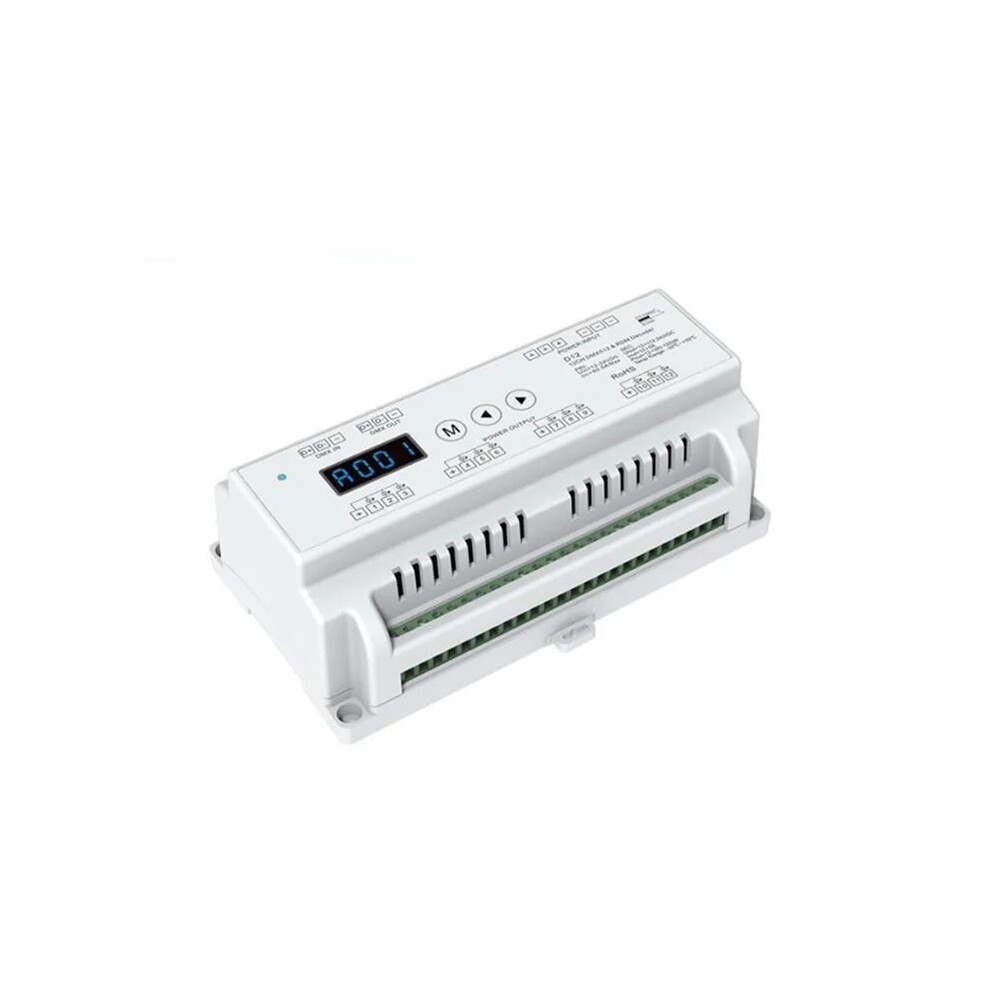

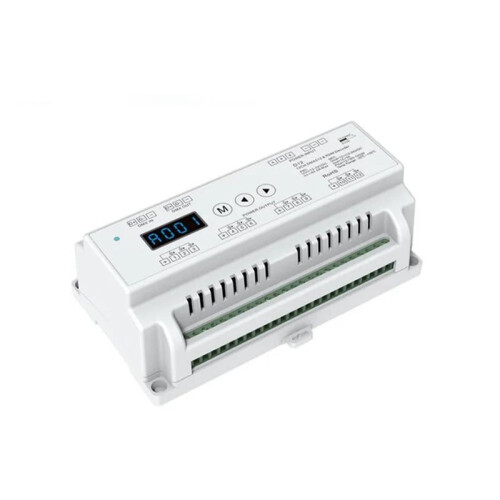

12CH DMX512 RDM Decoder, 12 Channel DIN Rail RGB Dimmer Controller, 8/16bit Digital Display for 12V 24V Stage Light

12CH DMX512 RDM Decoder, 12 Channel DIN Rail RGB Dimmer Controller, 8/16bit Digital Display for 12V 24V Stage Light Popis

Standalone Modes:Features 12-channel RGB and dimmer modes for independent control without DMX signal.
Advanced Grey Levels:Offers 16bit (65536 levels) /8bit (256 levels) grey level selectability for precise color control.
Multiple PWM Frequencies:Select from 500Hz to 32000Hz PWM frequencies to match your lighting needs.
Versatile Dimming Curves:Choose between logarithmic and linear dimming curves for customizable lighting effects.
Dmx Decoder|Dmx512 Decoder|DMX512 & RDM Compliance:Seamless integration with DMX512 & RDM protocols for reliable control and communication.

Features
Comply with the DMX512 standard protocols.
Digital numeric display, set DMX decode start address by buttons.
RDM function can realize intercommunication between
DMX master and decoder. For example,
DMX decoder address can be set by DMX master console.
16bit (65536 levels) /8bit (256 levels) grey level selectable.
PWM frequency 500/1000/2000/4000/8000/16000/32000Hz selectable.
Logarithmic or linear dimming curve selectable.
Stand-alone 12-channel RGB mode and 12-channel dimmer mode selectable,
which be controlled by buttons with built-in programs, instead of DMX signal.
Color: As Shown
Material: ABS+Metal

Package Contents:
1* 12CH DMX512 RDM Decoder
