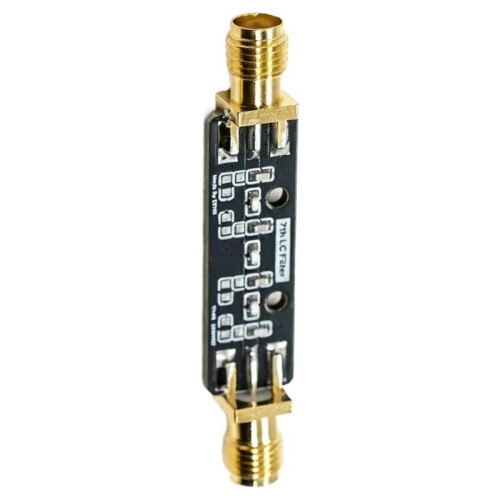

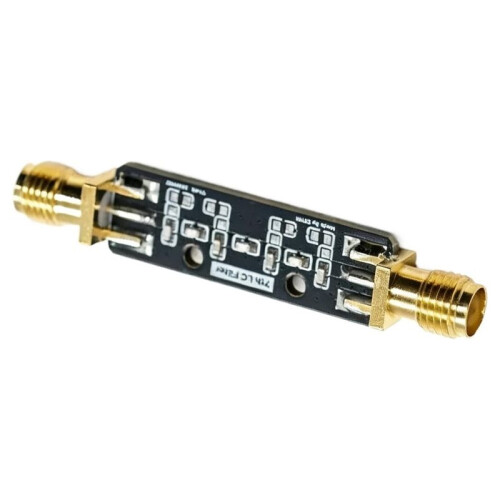

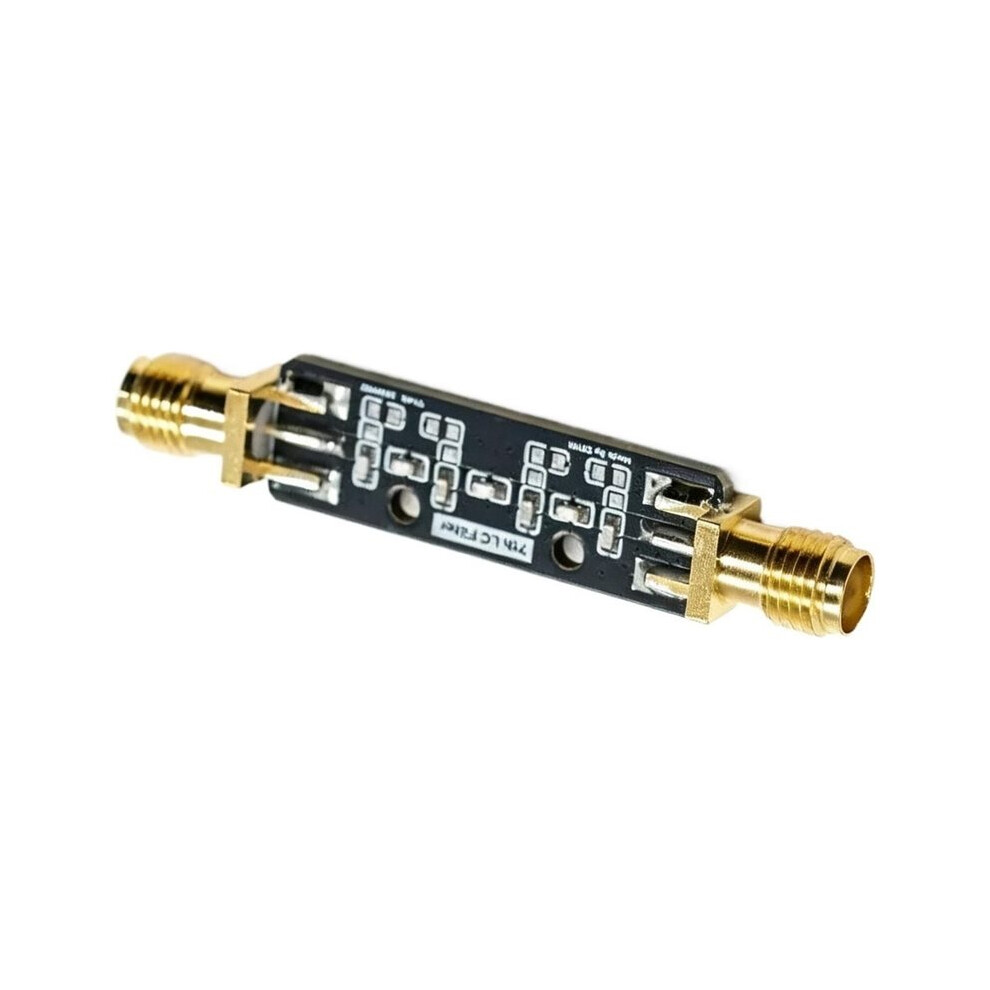

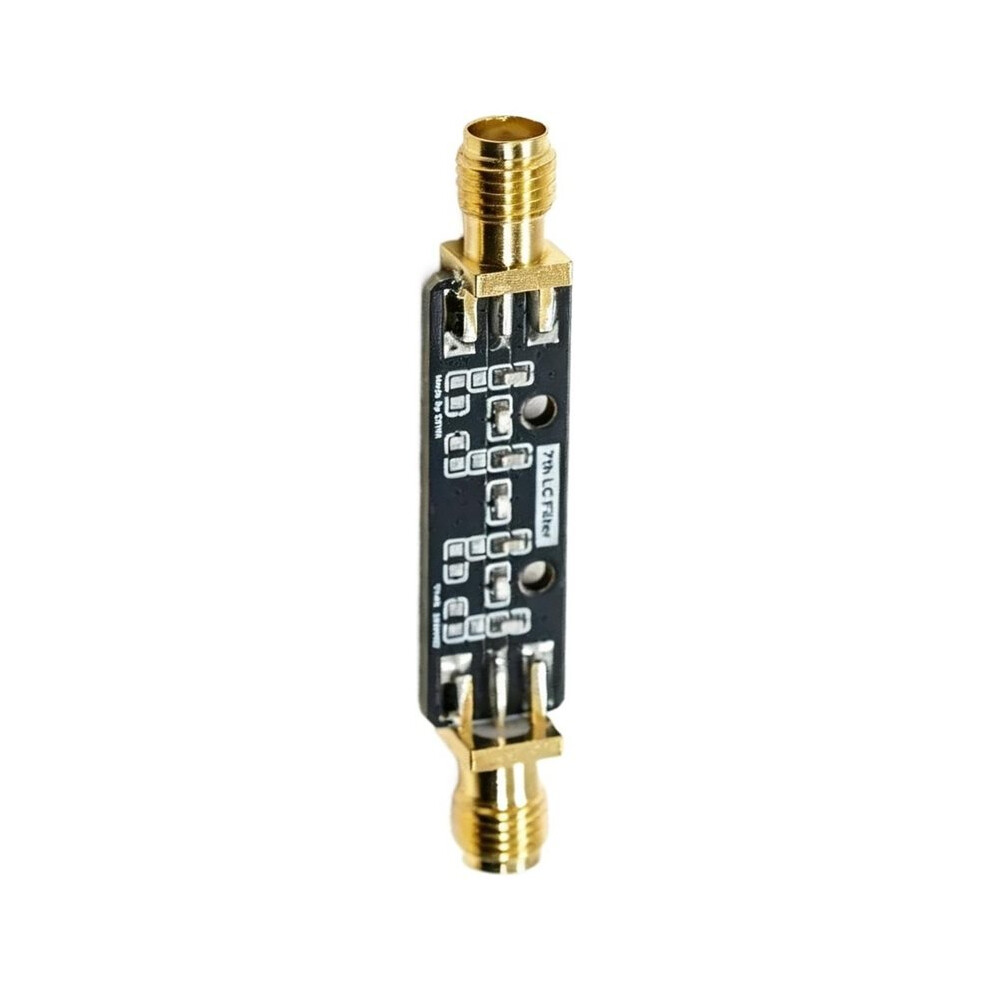

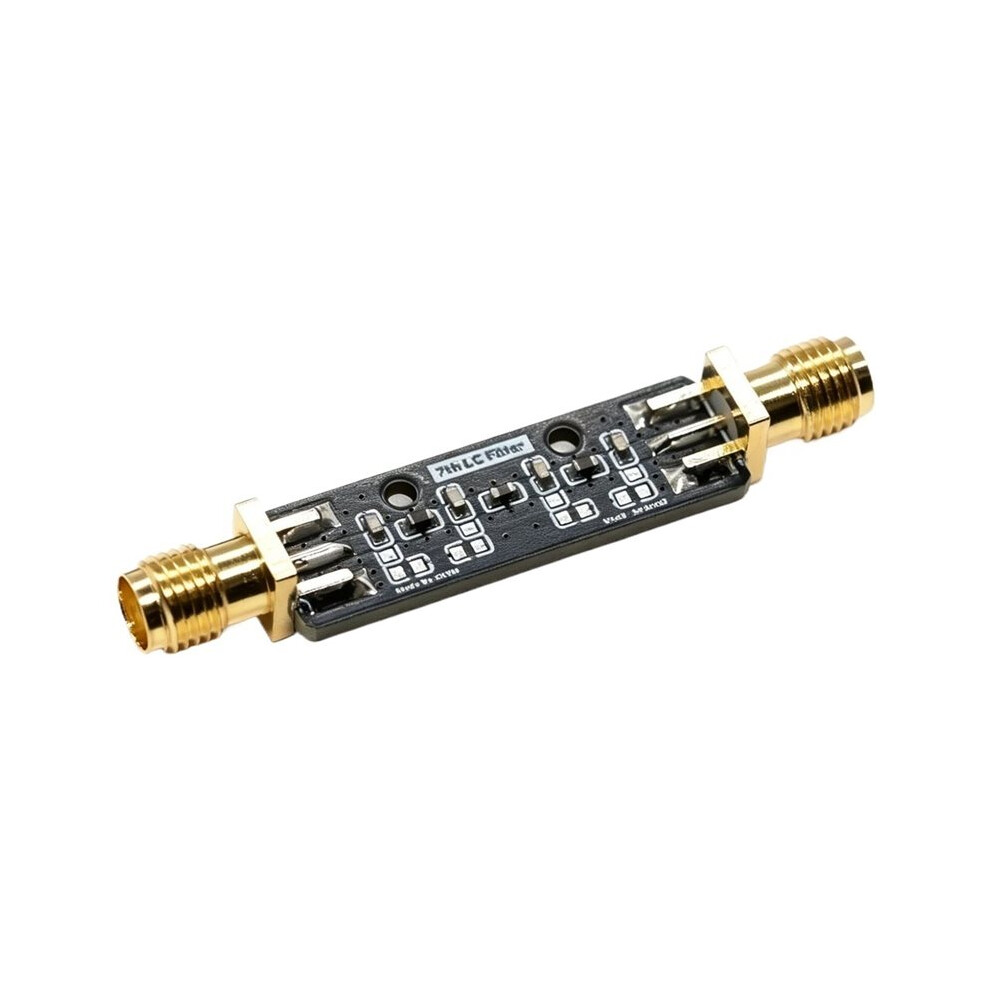

1500MHz LC Low-Pass Filter LPF Test Module - 7th-Order Chebyshev - 60dB Rejection

1500MHz LC Low-Pass Filter LPF Test Module - 7th-Order Chebyshev - 60dB Rejection Popis

Ultra-compact size, space-saving - Ideal for compact test platforms, handheld devices, and integrated systems.
Excellent in-band performance - In-band insertion loss 2 dB and in-band ripple 0.5 dB ensure stable signal transmission quality.
High out-of-band rejection - Features a 7th-order Chebyshev (Type I) design with out-of-band rejection of 30 dB at 2.3 GHz and 60 dB at 3 GHz, effectively filtering out high-frequency interference.
Optional enhanced shielding - A metal shield can be added for superior high-frequency rejection to meet stricter EMC requirements.
Designed for testing and verification - Specifically engineered for RF front-ends, communication modules, and laboratory verification, facilitating the rapid setup of filtering signal paths.

Technical Parameters (Typical Values):
Center Frequency: 1500 MHz
Filter Type: Low-pass LC
Filter Model: Chebyshev Type I
Order: 7th Order
In-band Insertion Loss: 2 dB
In-band Ripple: 0.5 dB
Out-of-band Rejection: 30 dB @ 2.3 GHz; 60 dB @ 3.0 GHz
Operating Temperature: -40C to +85C

Application Scenarios:
RF front-end anti-aliasing filtering
Spurious signal suppression in communication transceiver
Instrumentation testing and verification
, navigation, and wireless data transmission systems
Color: Black & Gold
Material: PCB+Metal

Package Contents:
1 * 1500MHz LC LPF Low Pass Filter
