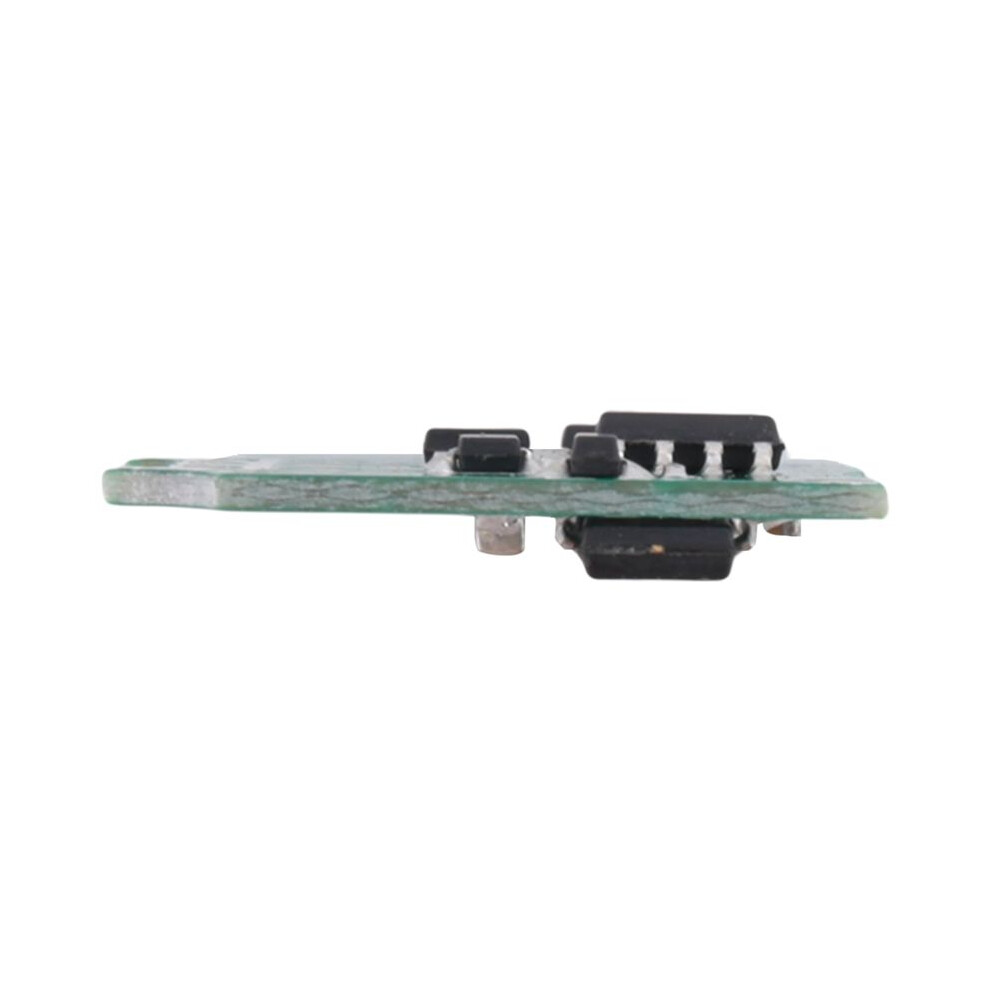

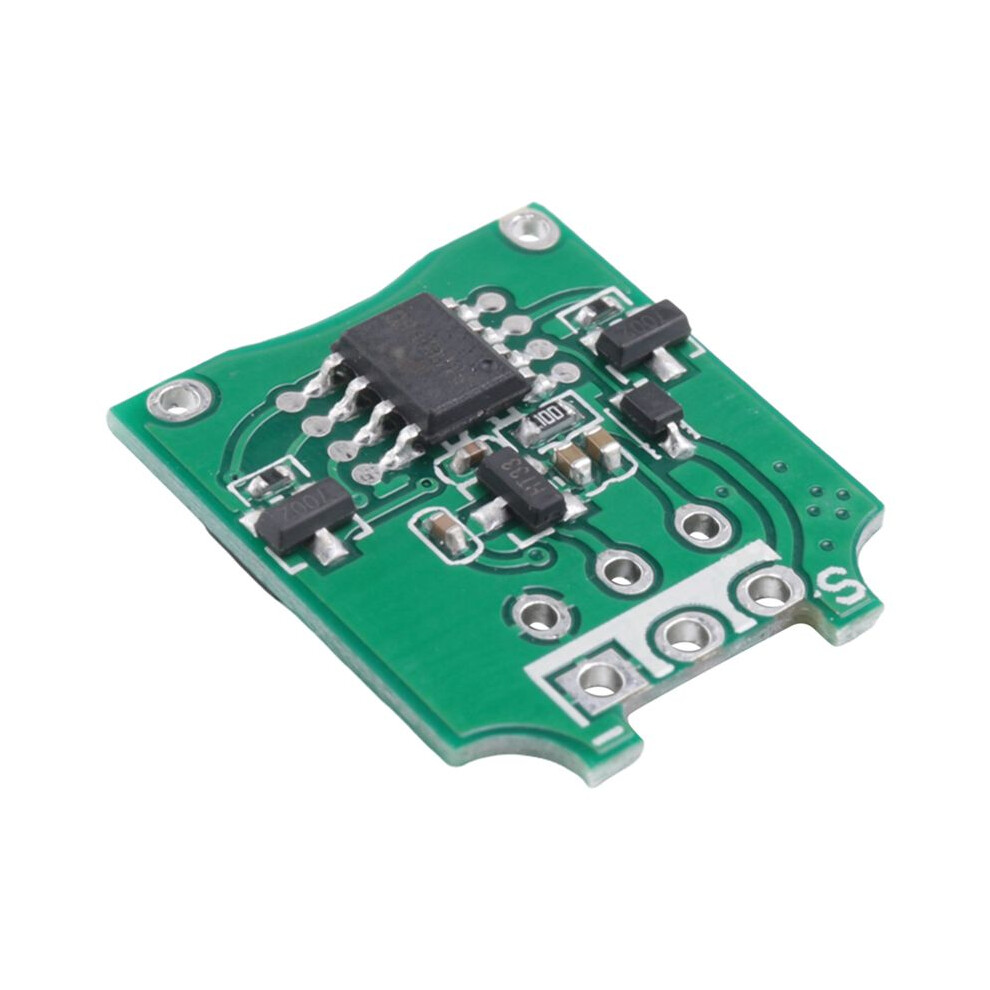

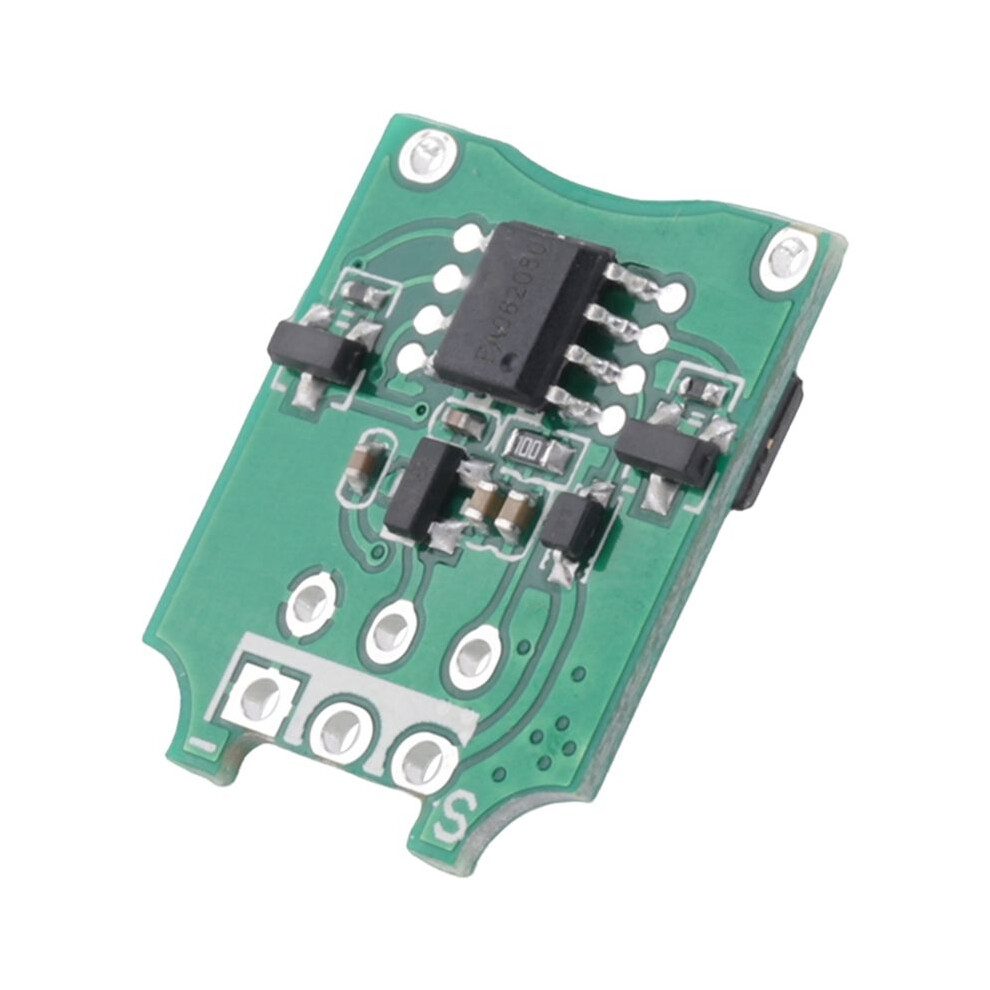

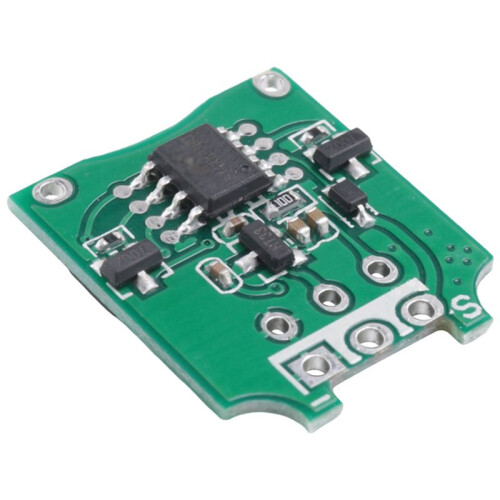

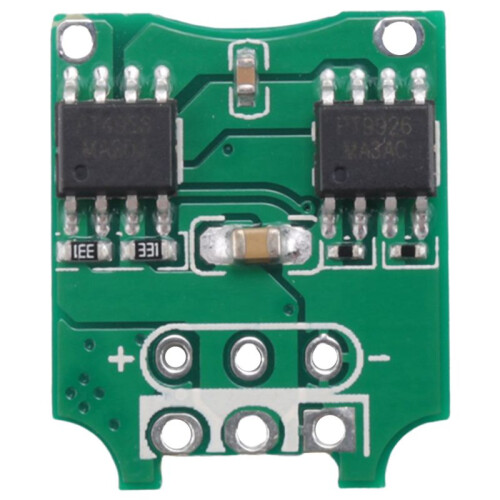

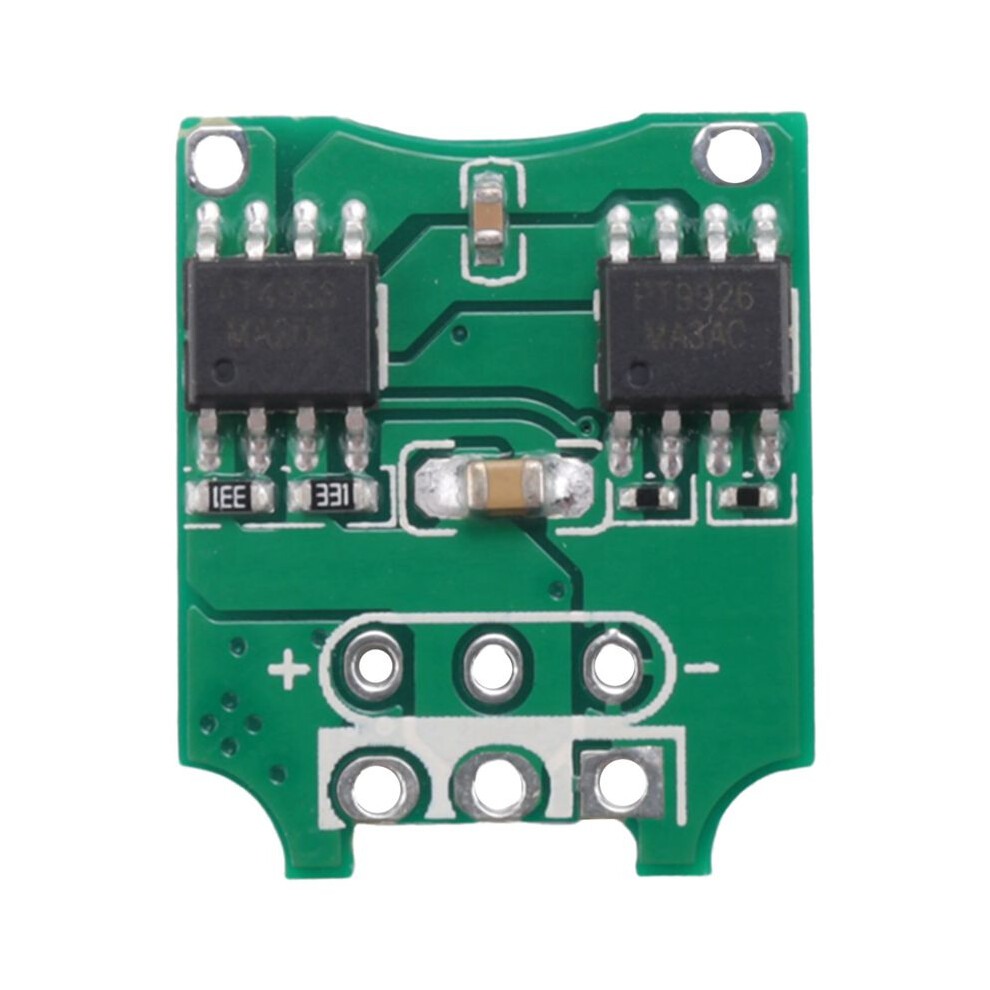

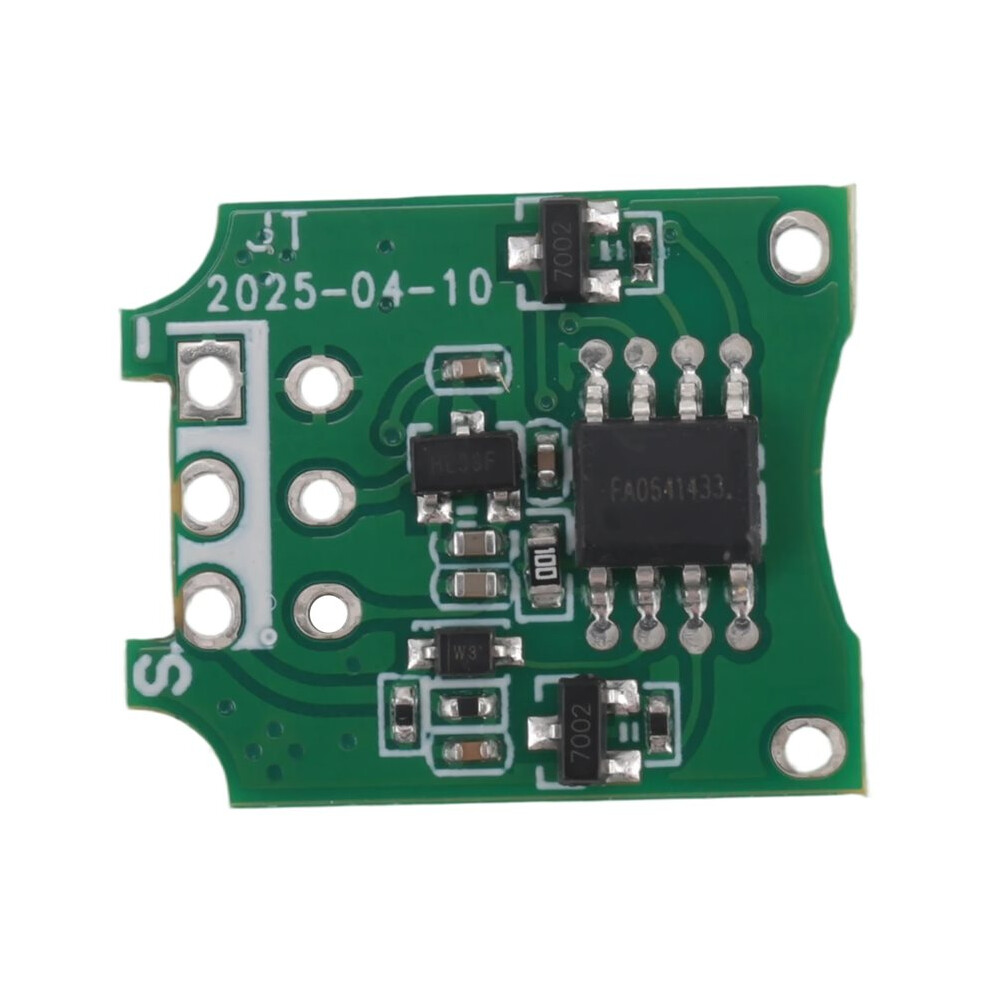

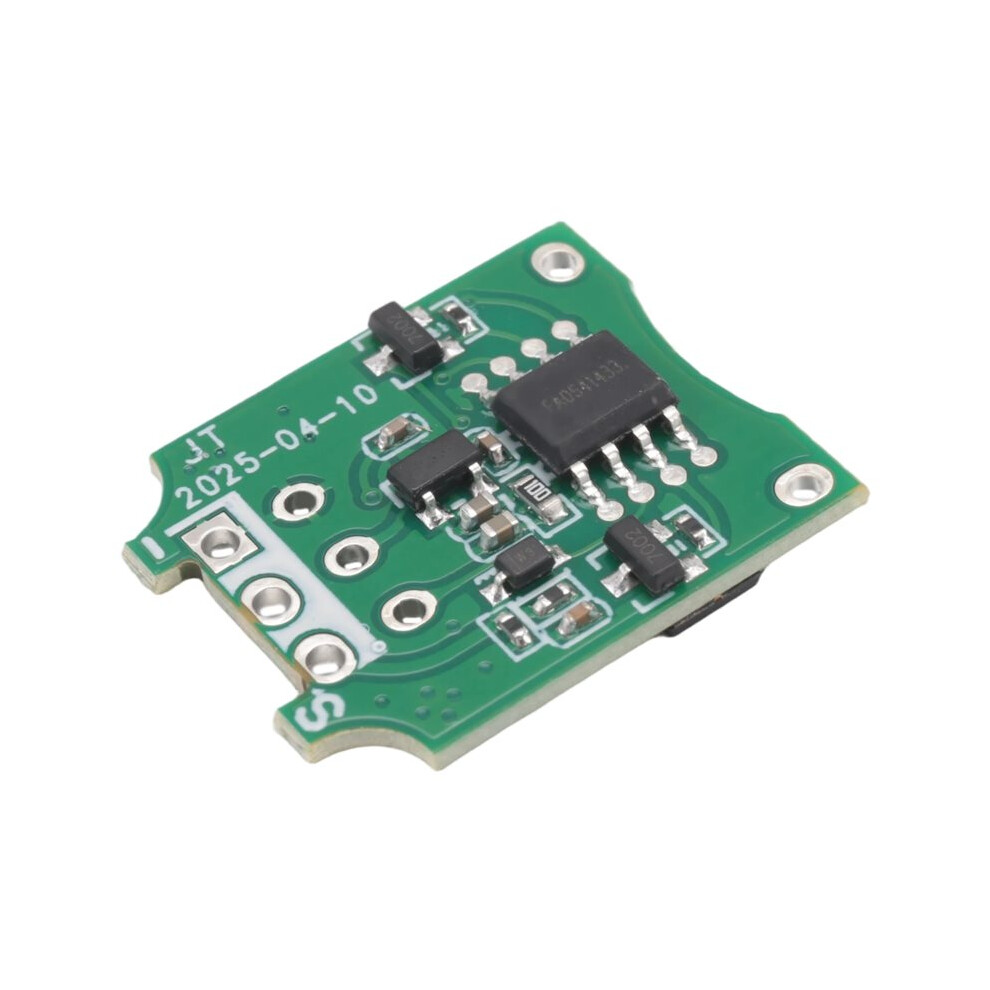

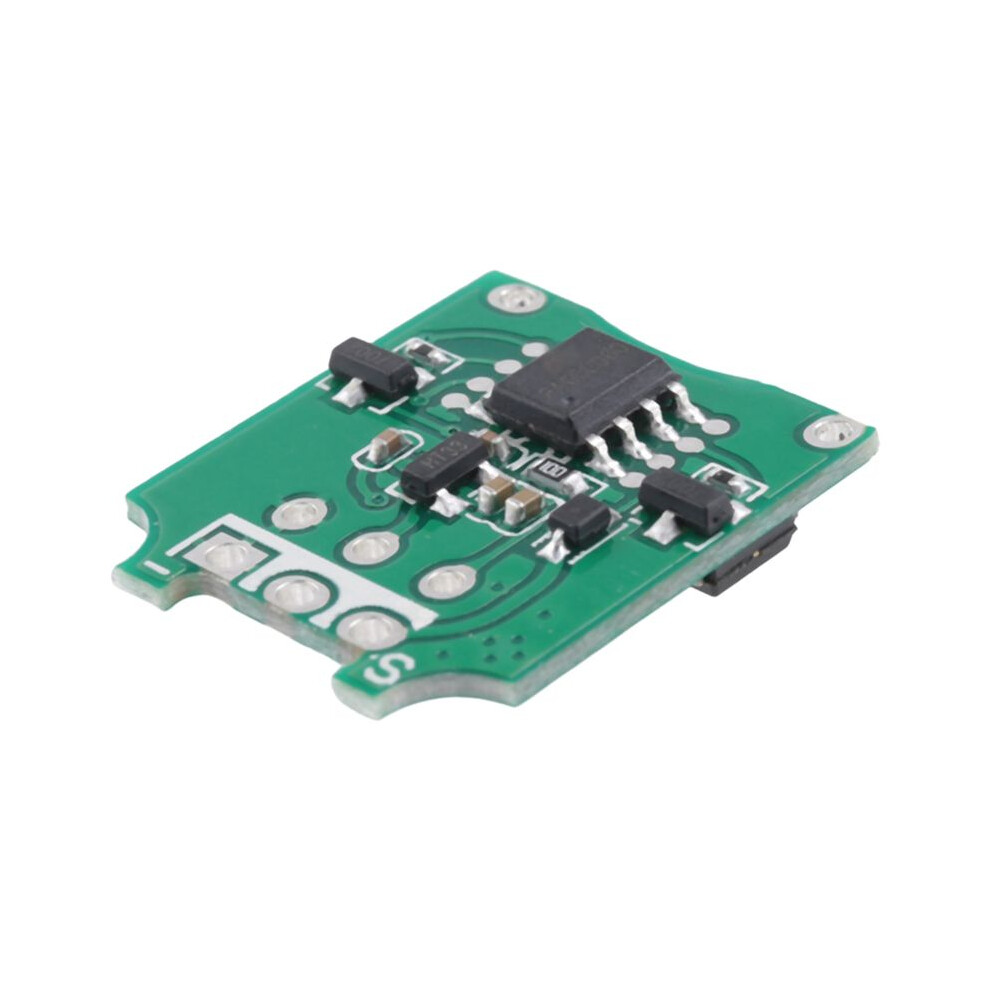

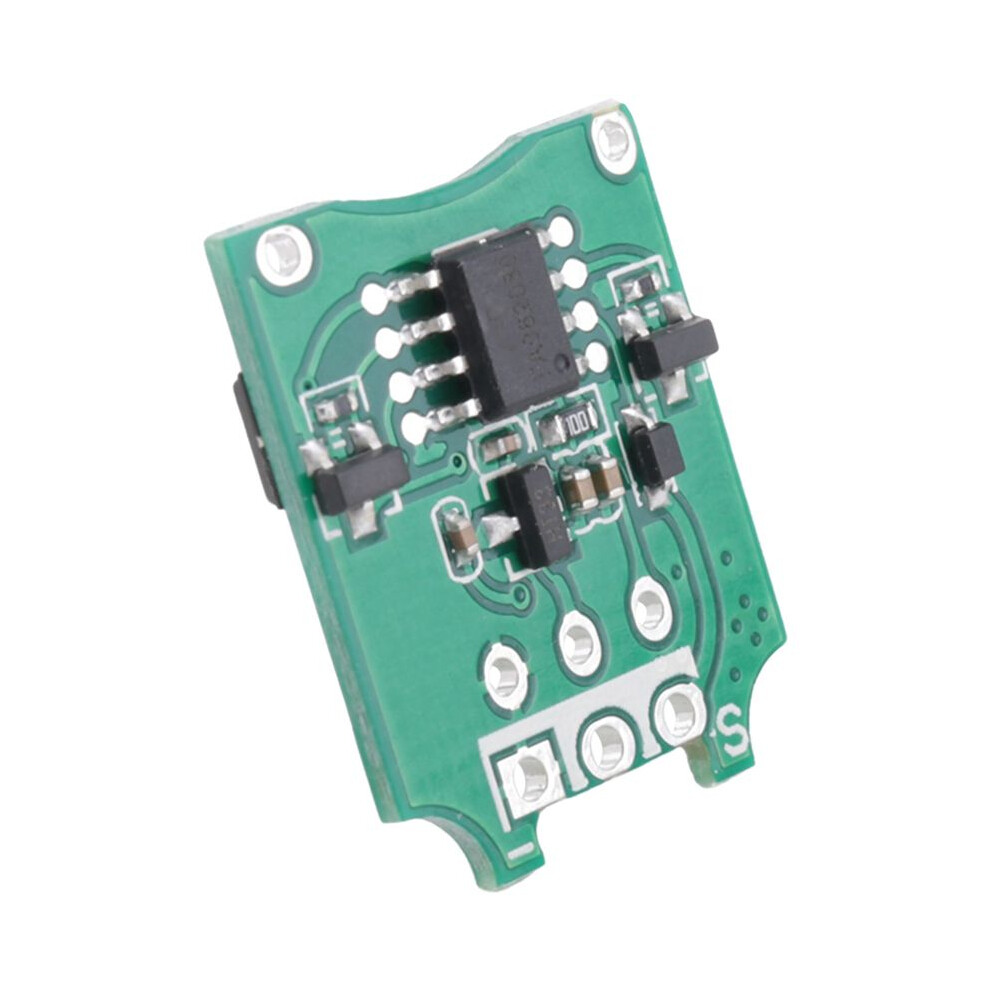

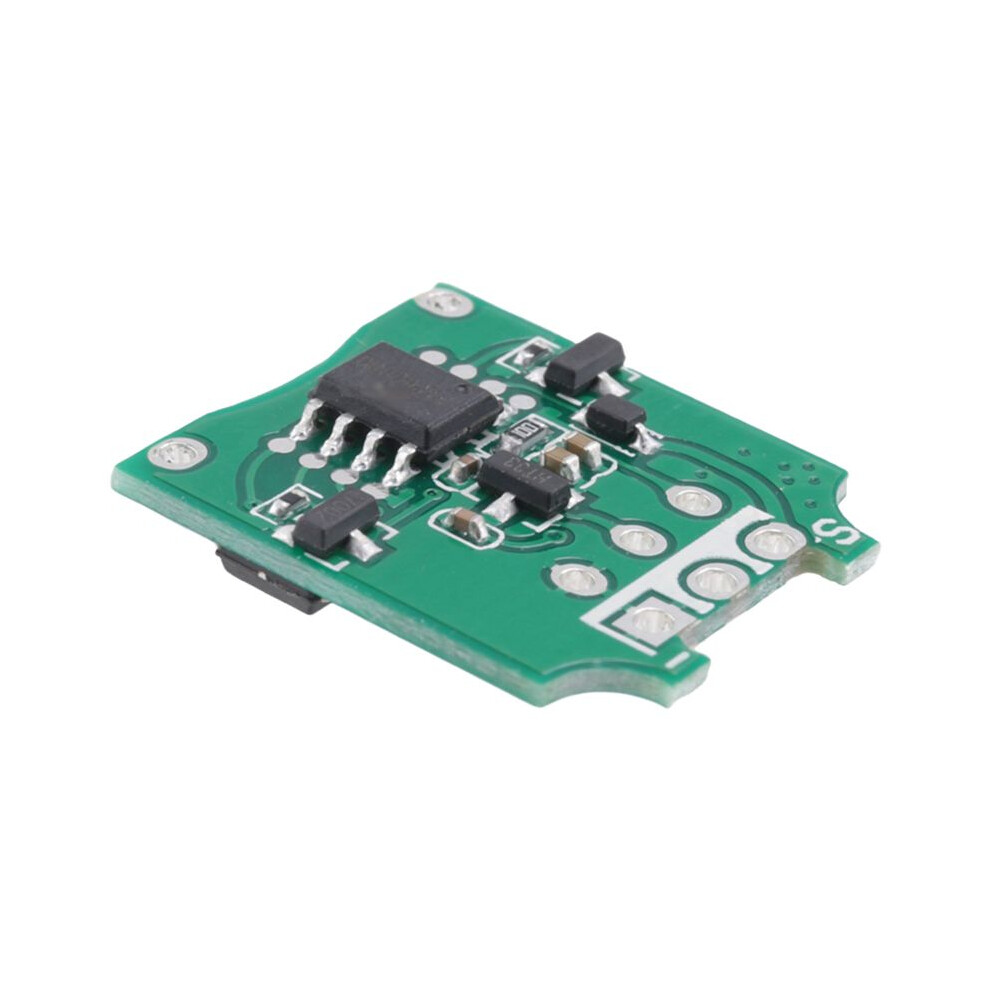

1PCS Micro-Type 3A ESC DIY Two-Way Forward and Reverse with Brushed Aircraft Model Multi-Rotor

1PCS Micro-Type 3A ESC DIY Two-Way Forward and Reverse with Brushed Aircraft Model Multi-Rotor Popis

1. All components are old products to ensure the reliability of the ESC.
2. Compatible with various remote controllers and receivers.
3. With smooth and delicate speed control feel and good linearity
4. Use: car, model airplane, drone, multi-rotor ESC, 360 degree continuous rotation servo, etc.
5. Used for 360-degree continuous rotation steering gear, digital circuit, no need for potentiometer adjustment, save worry and effort

Model No.: DM-ESC002
Voltage: 4.2-8.4v
Continuous current: 3A, maximum current 4A
PWM range: 1000~2000US, PWM 1500us stop
Size: 20x17mm
Single board weight: 0.6g
Direction of rotation: bidirectional, forward and reverse, PWM 1500us stop
Applicable motor: brush motor
Compatible with Futaba, JR, SANWA, Hitec and other well-known remote control systems.
360-degree servo is PWM to control its rotation speed and direction, 500-1500us PWM is to control its forward rotation, the smaller the value, the greater the rotation speed.
1500-2500us PWM is its reverse, the larger the value, the rotation The greater the speed. 1500us PWM is to control it to stop. Can only rotate continuously, not positioning.
color:As shown
Material:PC+Metal

Package Contents:
1 x Model aircraft multi-rotor ESC
