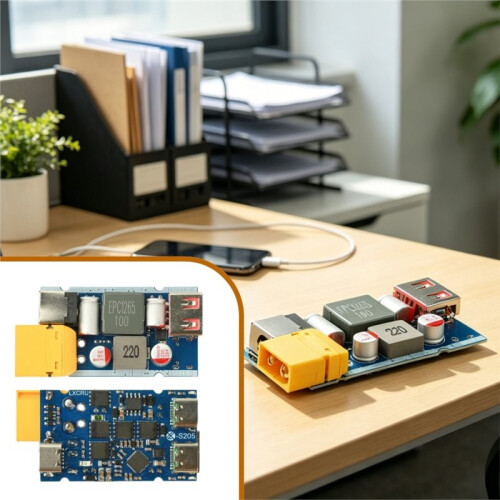

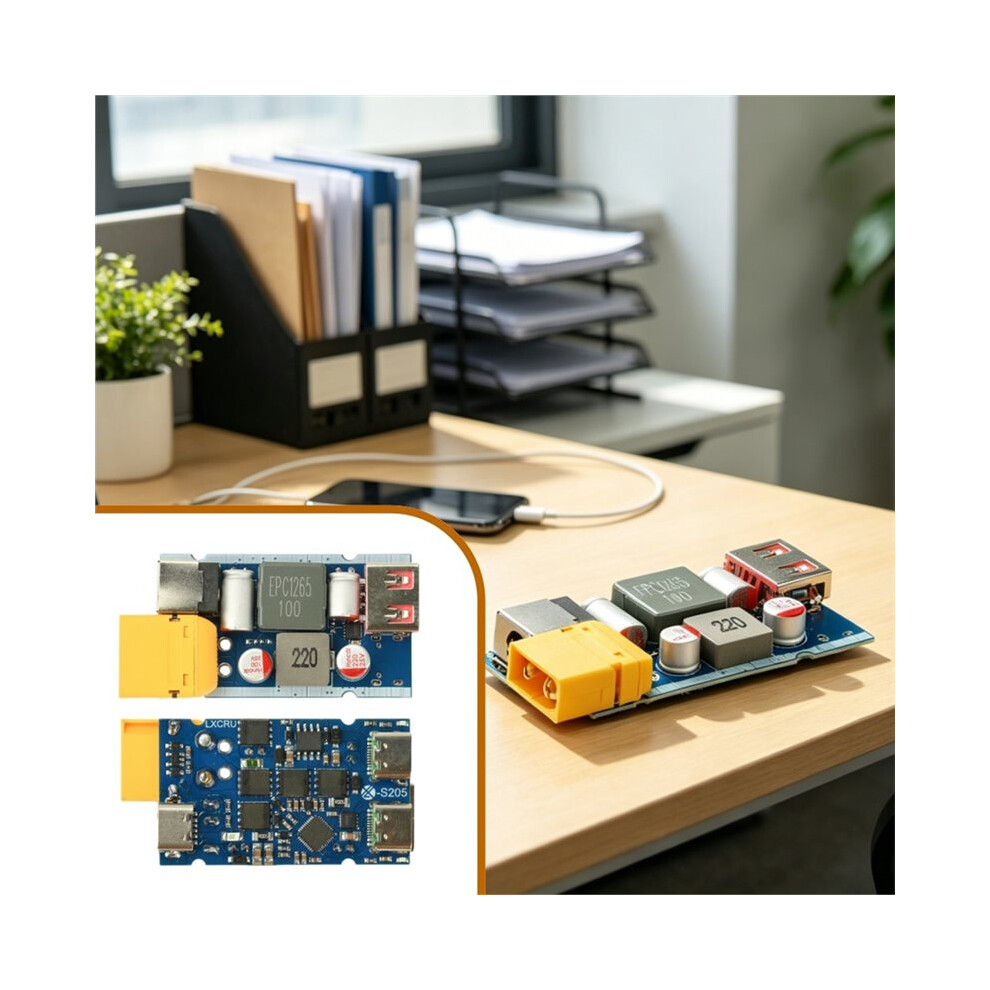

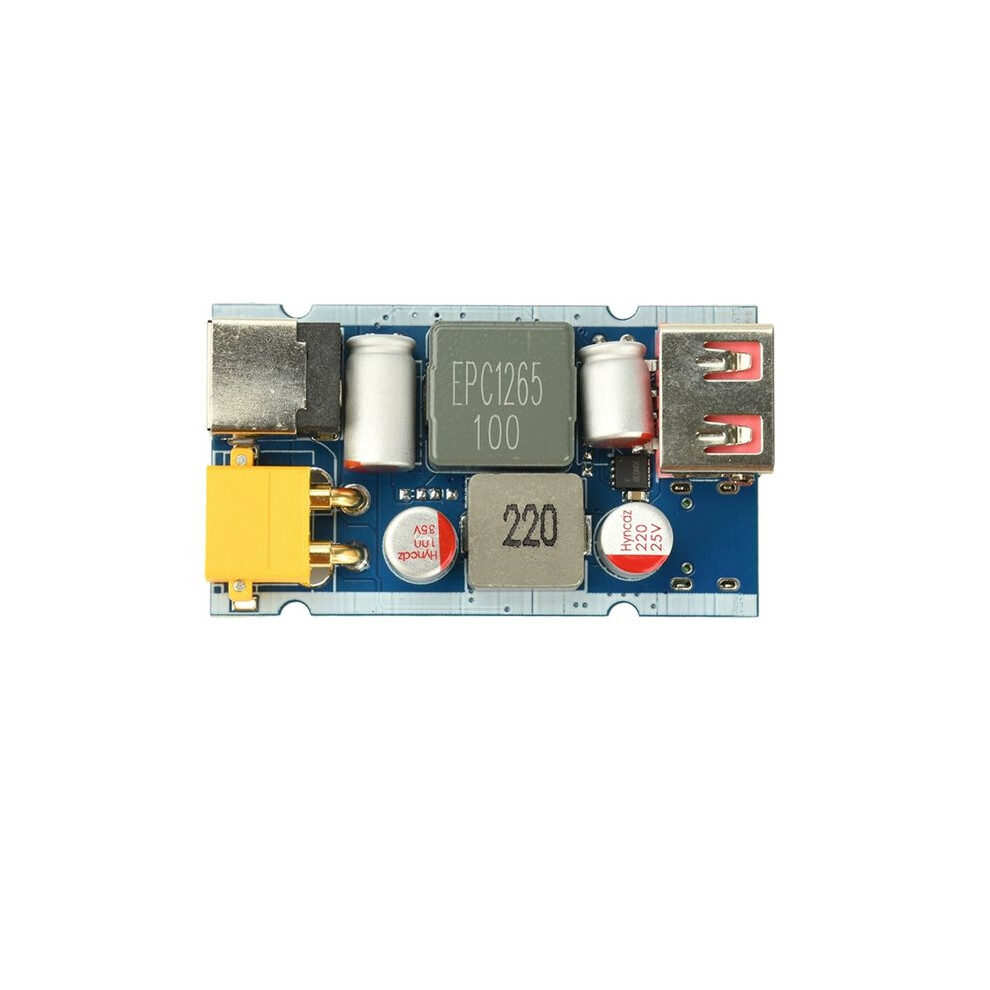

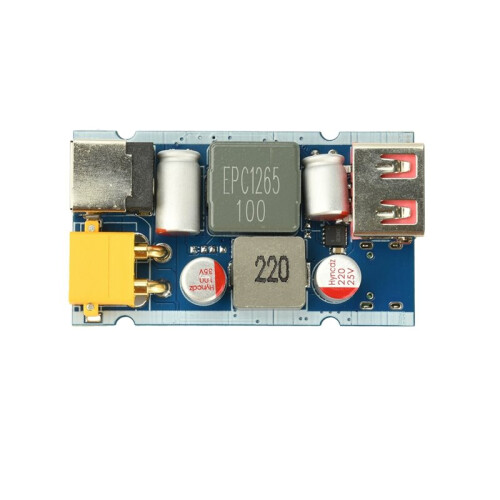

205W High Power Fast Charging Module PD QC 3.0/5.0 AllProtocols Step- Step-Down XT30/XT60 Interface Dual Port XT30

205W High Power Fast Charging Module PD QC 3.0/5.0 AllProtocols Step- Step-Down XT30/XT60 Interface Dual Port XT30 Popis

Product Features

1.140W/65W high power, fast charging

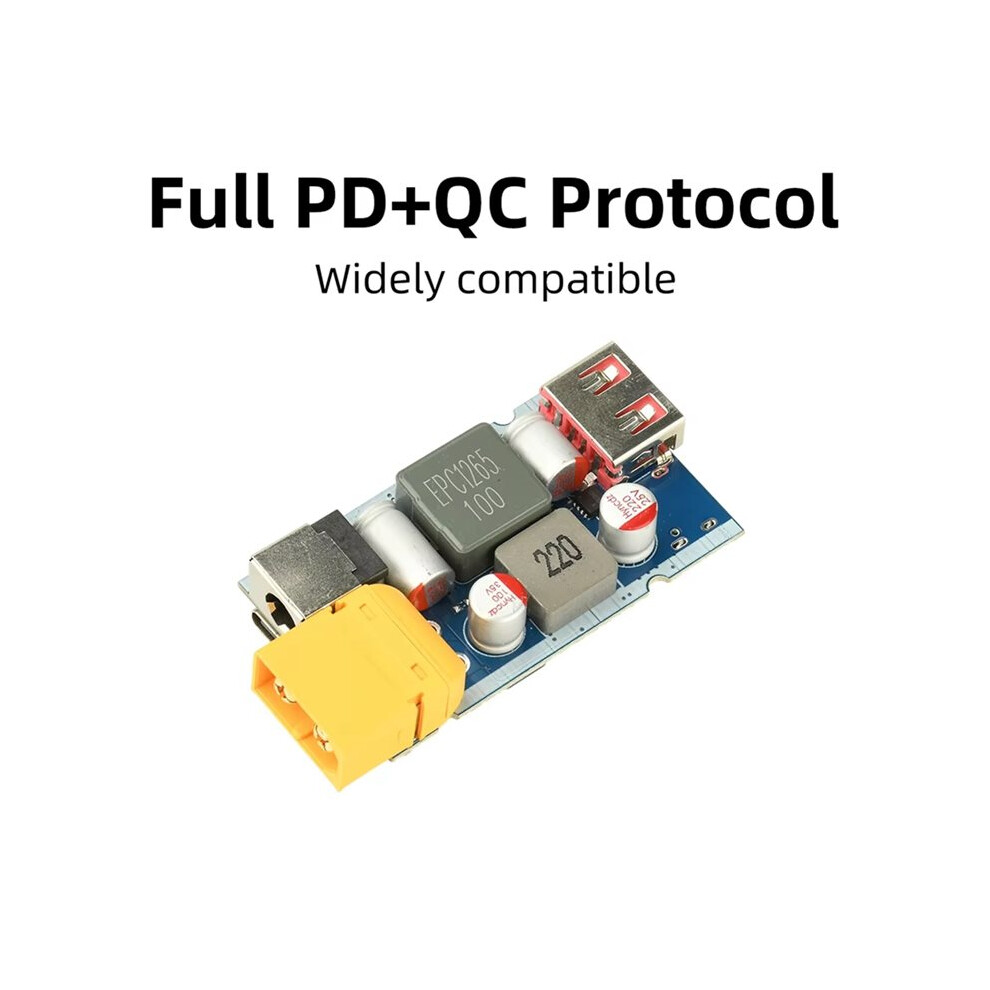

2. PD+QC full protocol, widely compatible

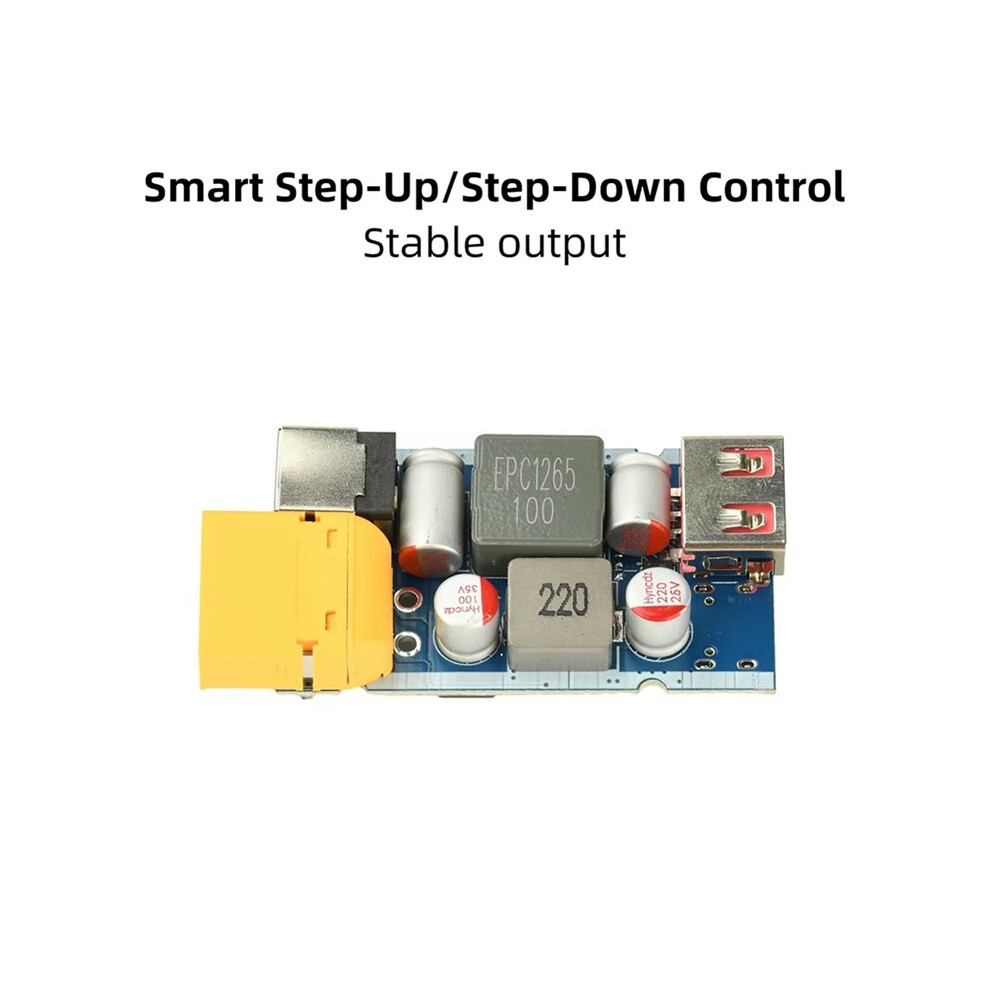

3. Intelligent regulation of pressure rise and fall, stable output
4. Multiple safety protections, low-temperature fast charging
5. Modular design, easy integration
Product Parameters
Input voltage: DC9-30V (CA and A1 are boost/buck, C2 is buck)
C1 supports PD/2.0/3.0/PPS
C1 supports QC2.0/3.0/4.0/4.0+/5.0
C1 supports FCP and high/low voltage SCP/SFCP
C1 supports a maximum of 28V/5A (140W)
C2 supports PD3.0, PPS, PE1.12.0, QC3.0, QC3+, QC4+, FCP, SCP, AFC, with a maximum of 65W
Some phones require original cables to support fast charging
The module is divided into two channels: 140W and 65W, with a default DC5525 input interface
XT30 requires PD fast charging power input for C-port input, which is used to convert PD protocol to other charging protocols

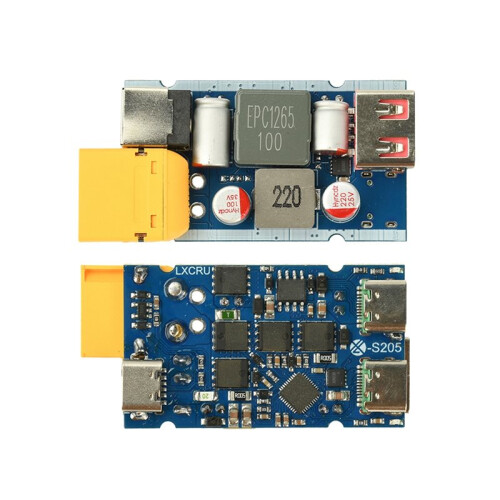

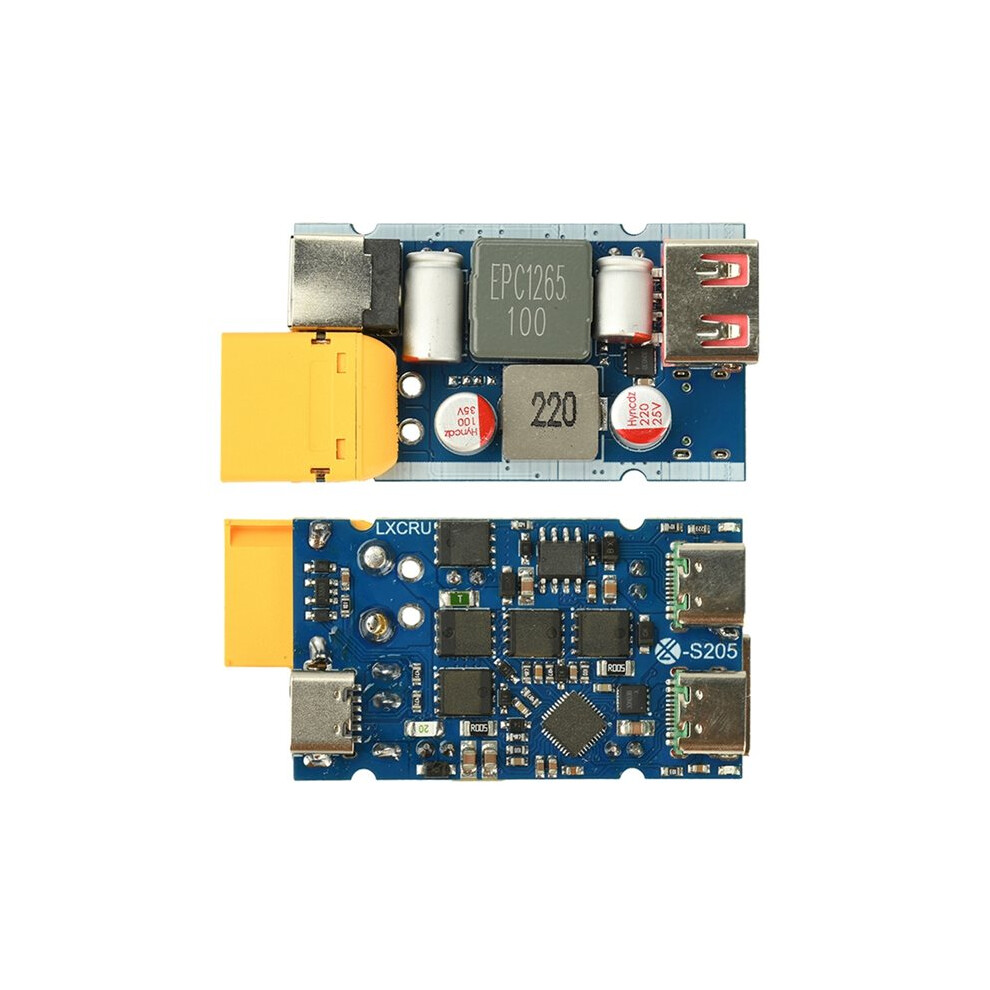

Output C1+A1 dual port, can be charged simultaneously, but charging at the same is normal charging; C2 and A1 or C1 can be fast charged simultaneously, and attention should be paid to strengthening heat dissipation during fast charging.
Color: As Shown
Material: Plastic+Metal
Specification: XT30

Package Contents:
1*Module
