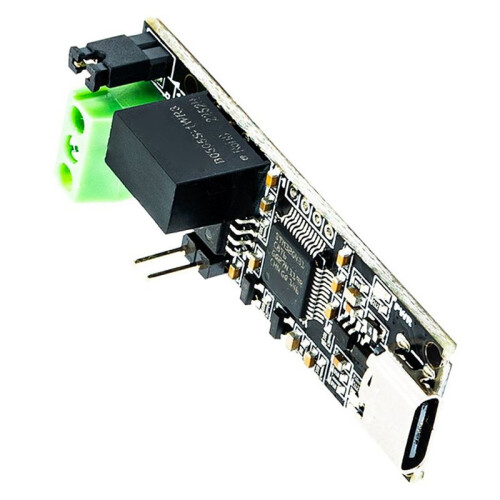

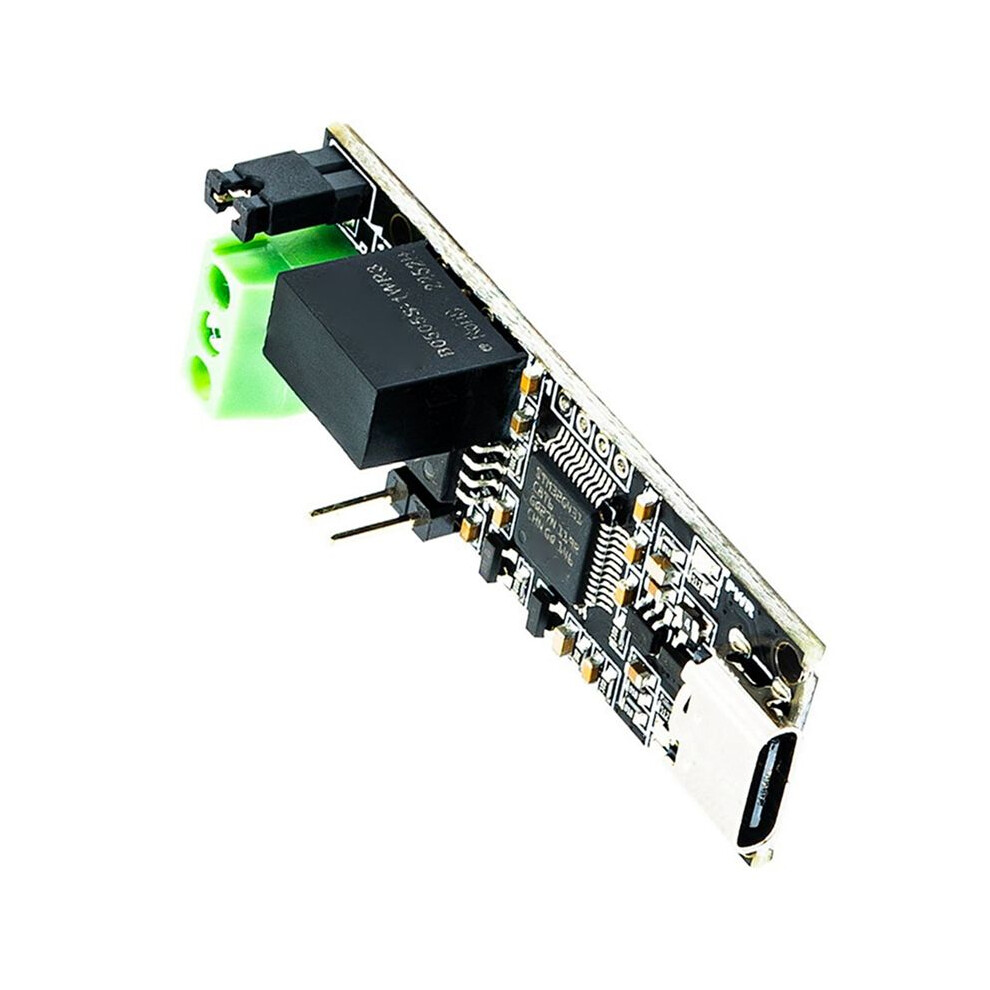

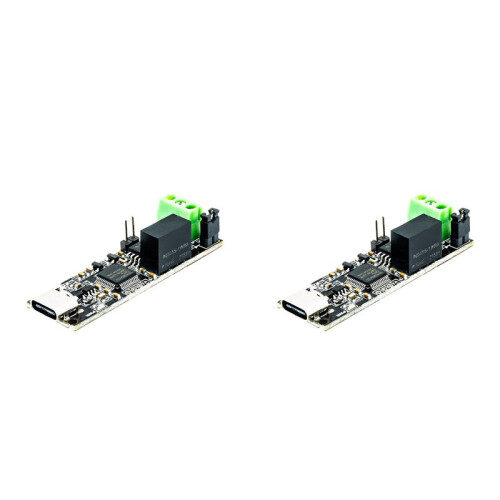

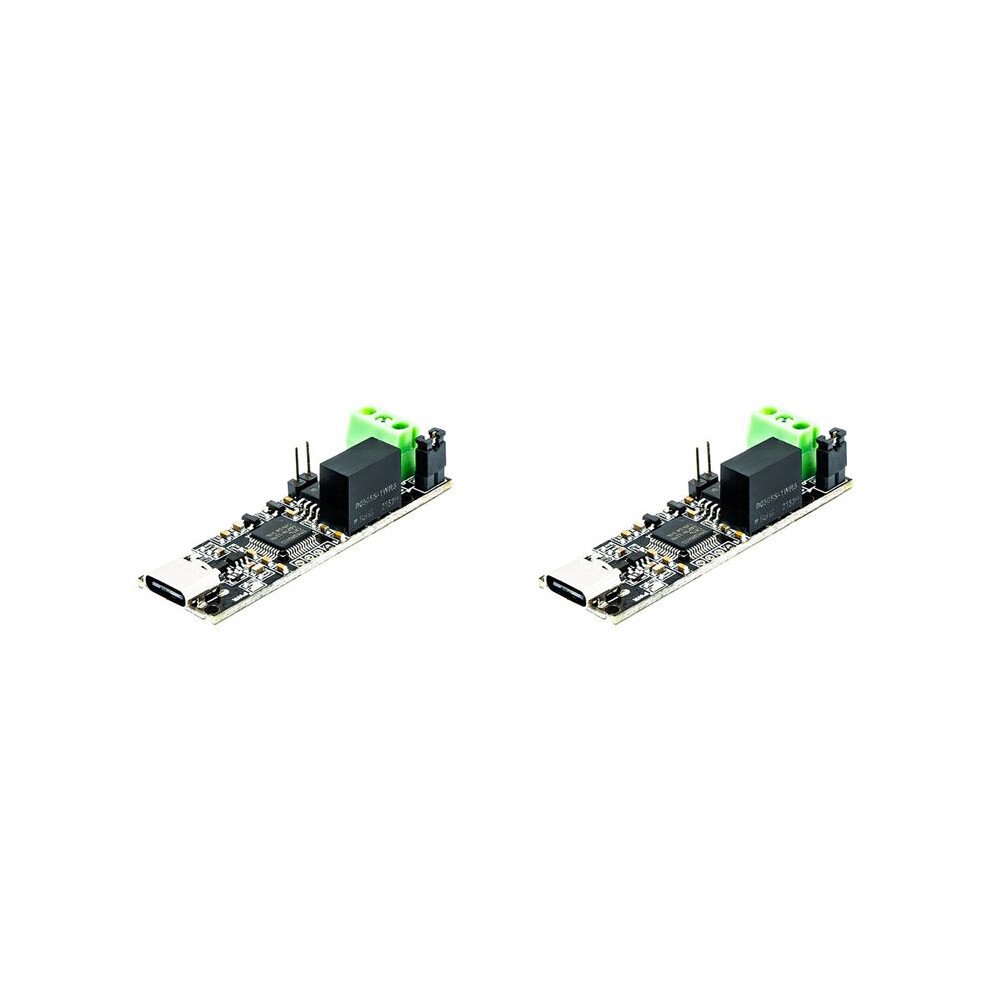

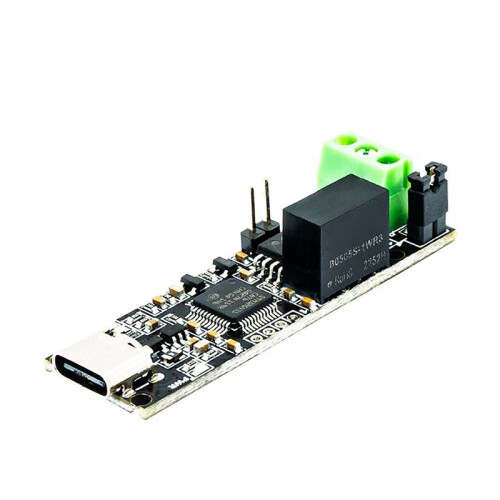

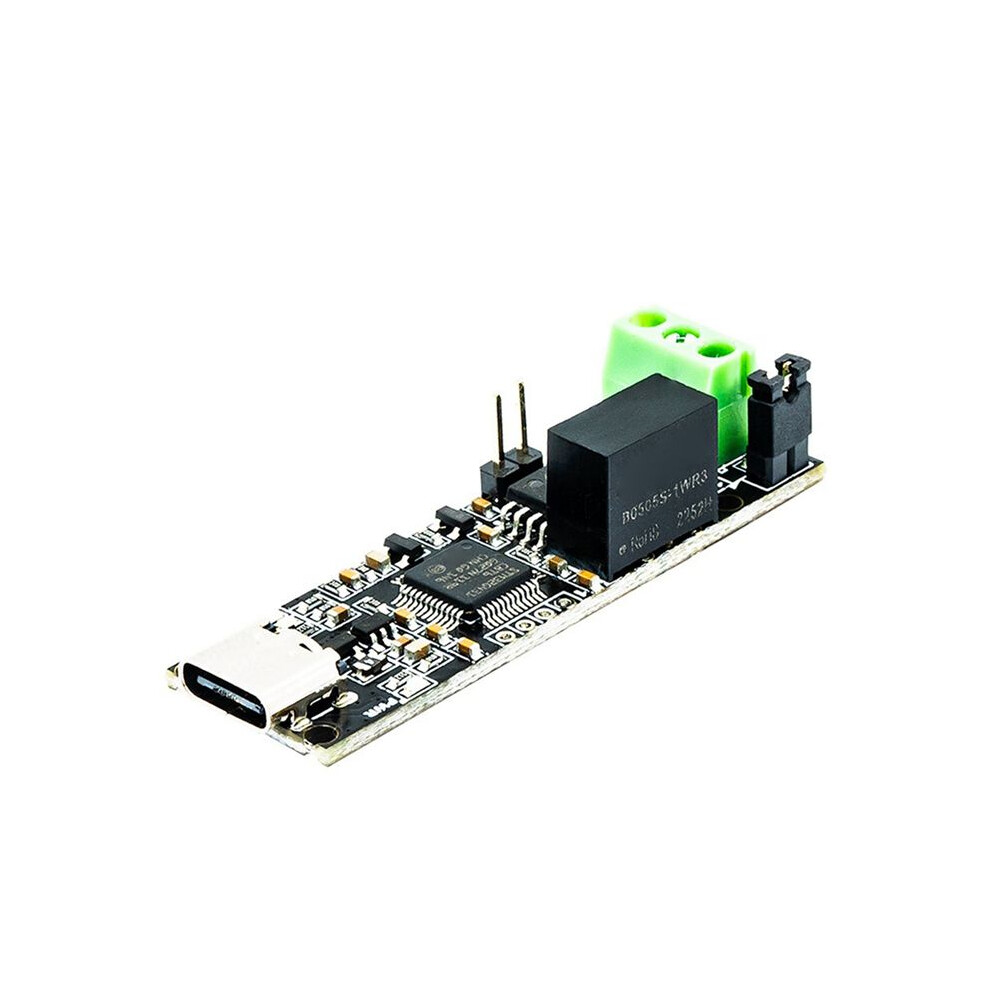

2X CANable V2.0 Pro CANbus Transceiver USB to PCAN Protocol Analyzer Adapter CAN2.0 Serial Controller

2X CANable V2.0 Pro CANbus Transceiver USB to PCAN Protocol Analyzer Adapter CAN2.0 Serial Controller Popis

Product Introduction:Under the premise of high-speed transmission rate and high operational stability, the MKS CAN able V 2.0Pro module has stronger anti-interference ability and is very suitable for industrial debugging or Application in motor field.
When using the candleLight firmware, CAN is enumerated as a native CAN interface for Linux.
The CAN able analyzer is compatible with for ARM-based embedded platforms, such as: for Raspberry Pi, for Raspberry Pi Zero, for O DROID, for Beagle Bone, etc., making it very suitable for integration into products.

Product Features:
1. Support for CAN 2.0A, CAN 2.0B, baud rate to 1M;
2. Support candleLight, sl can firmware, sl can initially supports CAN-FD, test rate to 2M/5M baud rate;
3. The terminal resistor can be selectively enabled/disabled through the short-circuit cap;
4. Supports Type-C USB interface, online firmware upgrade and DFU mode firmware upgrade;
5. Uses high-performance ARM Cortex-M4STM32G431C8T 6 processor, operating frequency to 170MHz;
6. Provided Schematic diagram, firmware and source code, host computer, etc. The information is complete and easy to use.
analyzer board Version: V2.0 Pro
Material: abs
colour: As Shown

Package Contents:
2 x usb data cable
2 x 3pin double Dupont cable
2 x analyzer board
