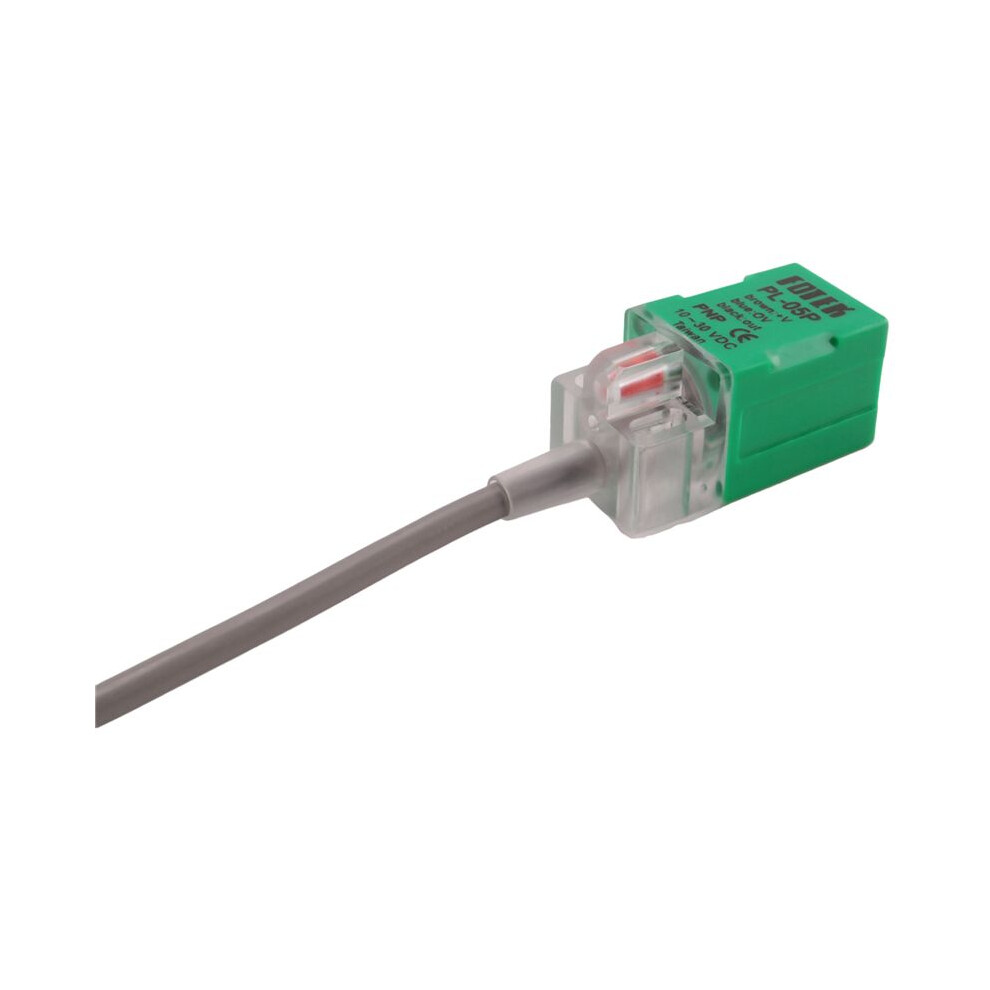

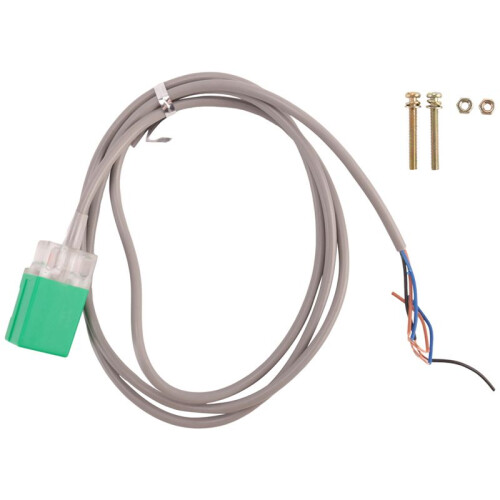

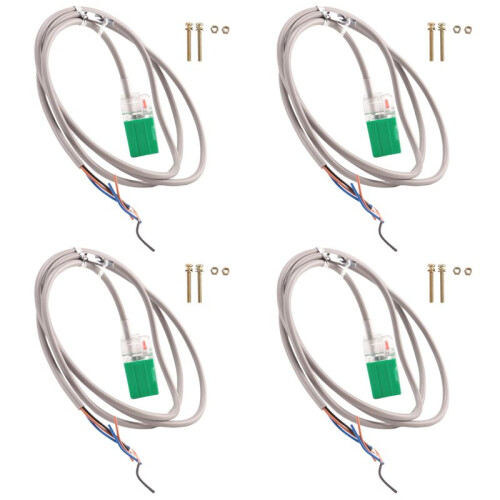

4X PL-05N/P 10-30V NPN NO 5mm Square Inductive Proximity Sensor 3 Wire P with Screws

4X PL-05N/P 10-30V NPN NO 5mm Square Inductive Proximity Sensor 3 Wire P with Screws Popis

ABS material detection surface, the proximity has a built-in intelligent sensor chip, which can sensitively detect objects. When the proximity is close to a single target object, a control signal is sent.
It is a component widely used in detection, control and non-contact switches in the automatic control industry. It is widely used in mechanical automation, 3D printer probe station leveling, papermaking, light industrial limit station, directional counting, overspeed test, etc.

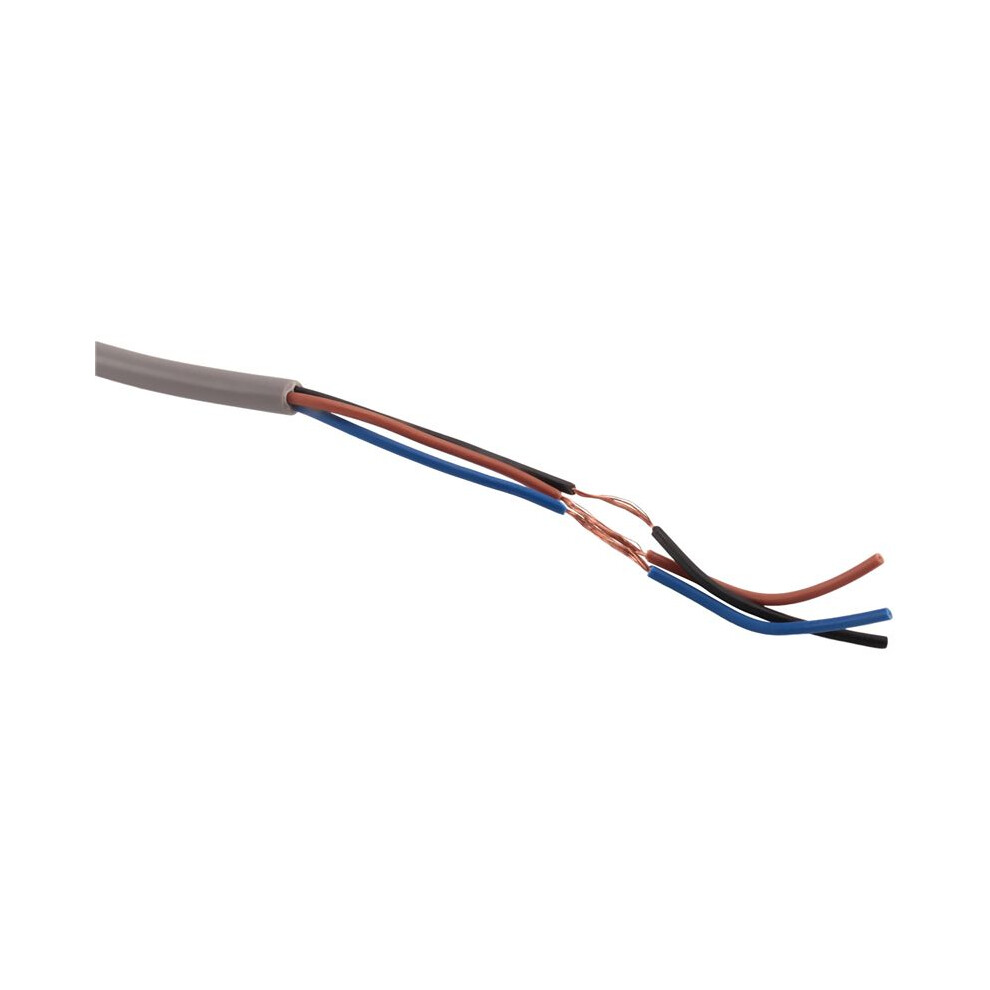

The voltage range is 6-36V. It is recommended that the actual detection distance be less than 70% of the detection distance the nameplate. Do not power when wiring, strictly follow the wiring diagram. Sensor wiring: Brown--Power+; --Power-; Black--Signal. Only metal objects can be detected, especially ferrous metals can be better detected, but if non-ferrous metals are selected, the detection distance will be greatly shortened.

Model: PL-05N;
Wire Type: 3 Wire Type ( Brown, ,Black)
Appearance Type: Cylinder Type
: Inductive Sensor
Output Type: NPN NO
Detecting Distance: 5mm/0.2 inch
Supply Voltage: 10-30V
Detect Object: Iron;

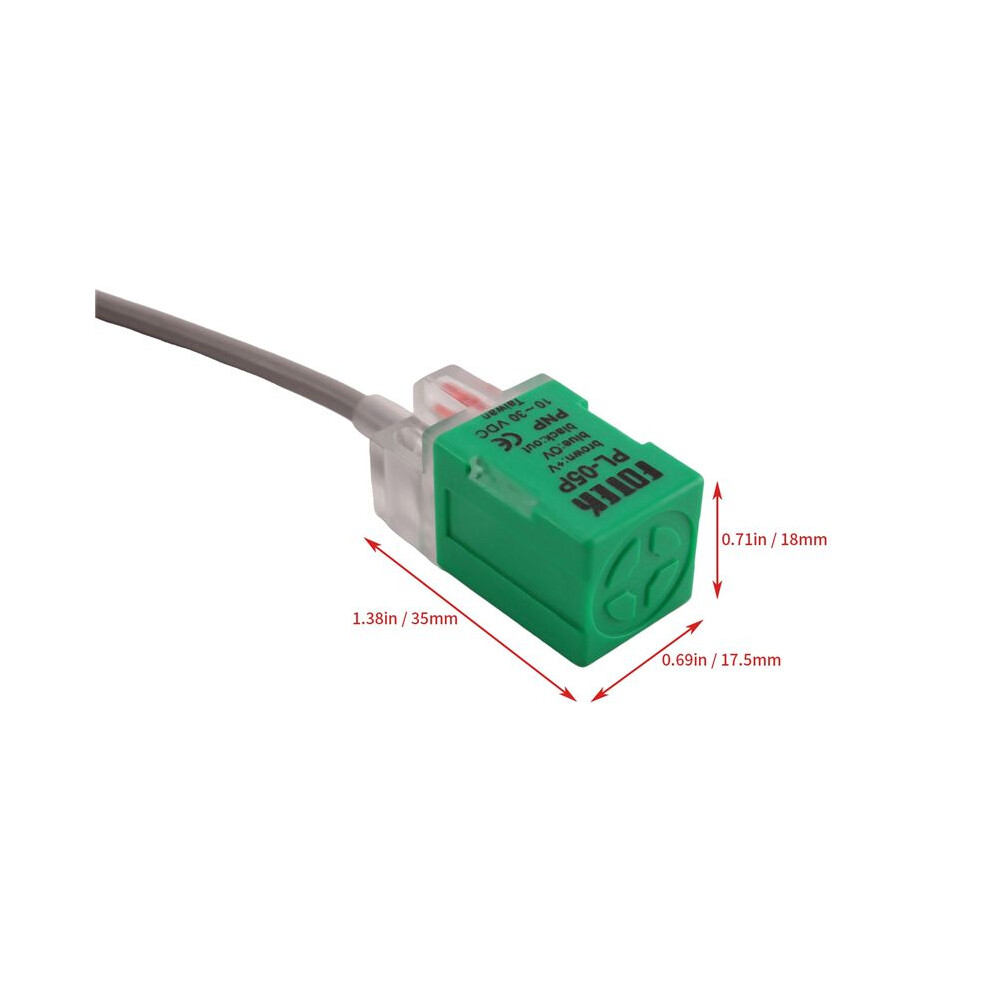

Size: 3.5 x 1.8 x 1.8cm/1.39 inch x 0.7 inch x 0.7 inch(L*W*T)
Cable Length: 1.5m/78 inch (Approx)
Material:ABS
colour:orange+gray

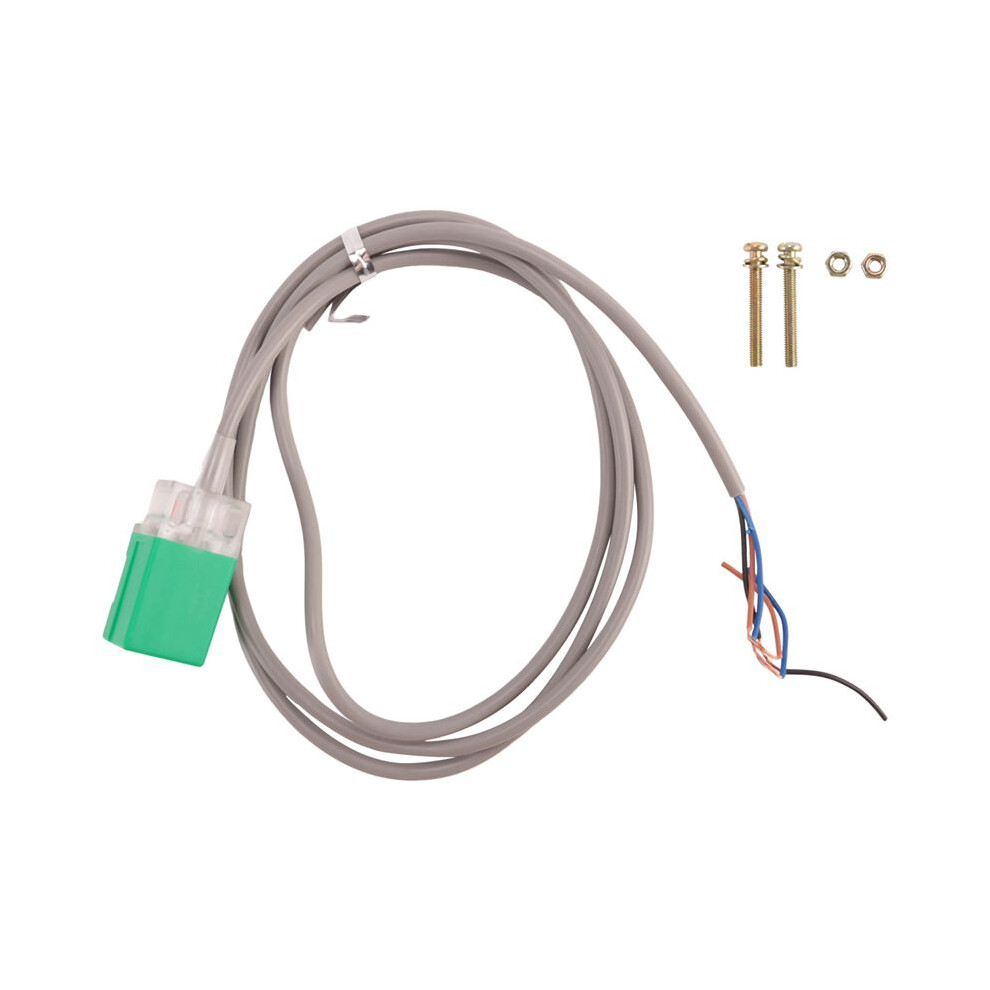

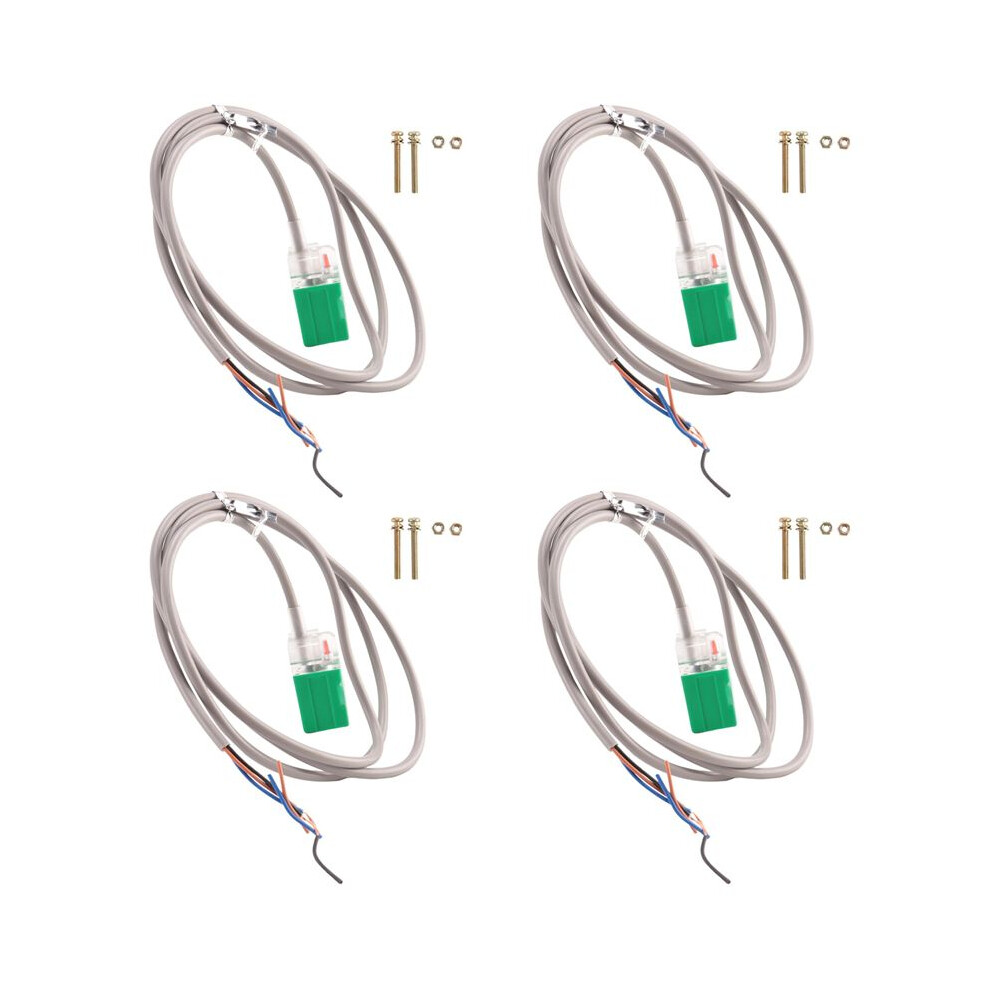

Package Contents:
4 x sensor
8 x screw
