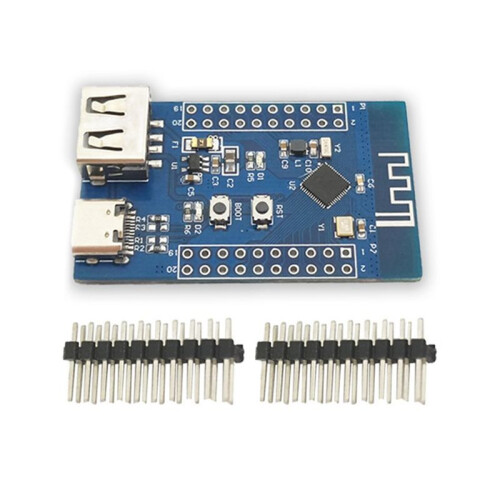

5.3 RF2.4G Microcontroller Multifunction Portable Low Power Dual USB RISC-V Module

5.3 RF2.4G Microcontroller Multifunction Portable Low Power Dual USB RISC-V Module Popis

Features: 1. Integrated 2.4GHz RF Transceiver And Baseband And Link Control
2. 32-Bit Barley RISC-V Processor WCH RISC-V4A
3. 512k Bytes Non-Volatile Storage Flashrom.
4. 2 Independent Usb Controller And Transceiver Groups
5. 5V USB Cable Power Supply, Usb Burn-In Program

Description:
Interface Introduction:
1. USBA Port Female Socket: Can Be Used As Usb Host Interface
2. -Board Power Conversion
3. -Chip DCDC Converter
4. -Board Antenna
5. Reset Button: Reset Microcontroller Operation
6. Download Button: Press The Boot Button, Insert The Usb To Download The Program.
7. Led Light: User Can Program And Control By Themselves.
8. Type-C Port: Used To Burn Program.
Development Environment:
Ide Use-Mounriver
Download Mounriver_studio, Double-Click To Install, You Can Use It After Installation.
Download Instructions:
Wchisptool Download
Press The Boot Button And Plug In The Usb Cable. Wchisptool Will Automatically Recognize The Chip Model And Select The Firmware To Download.
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use
size: about 45 x 33mm
Material: PCB
colour: dark

Package Contents:

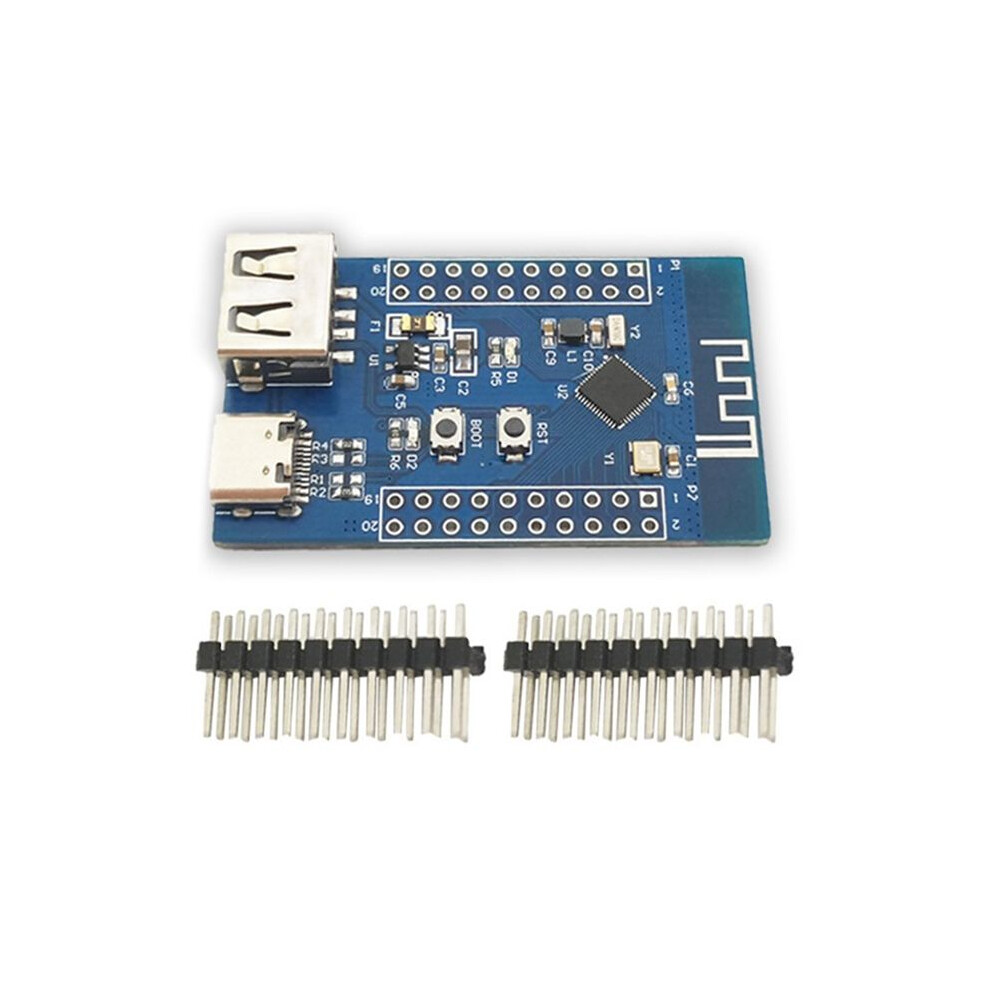

1 x CH582M Development Board Module
2 x 10P Double Row Pins
