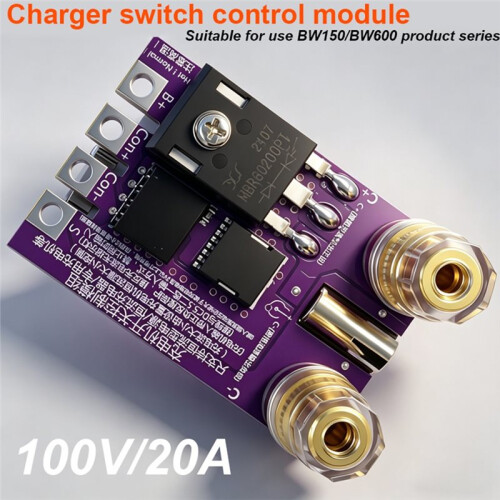

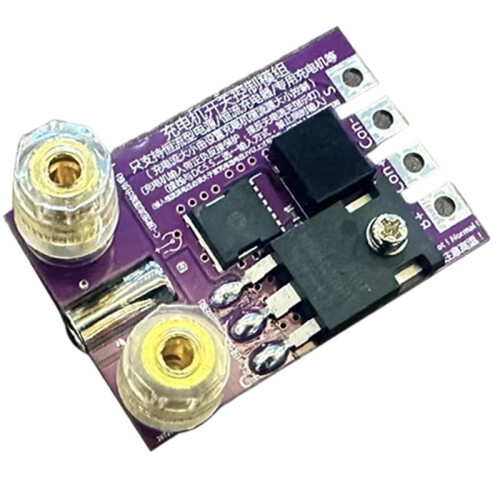

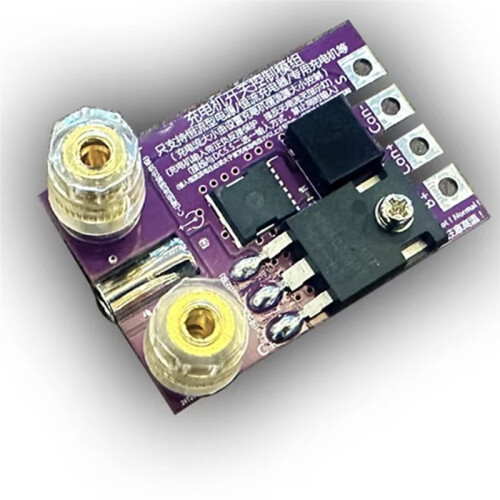

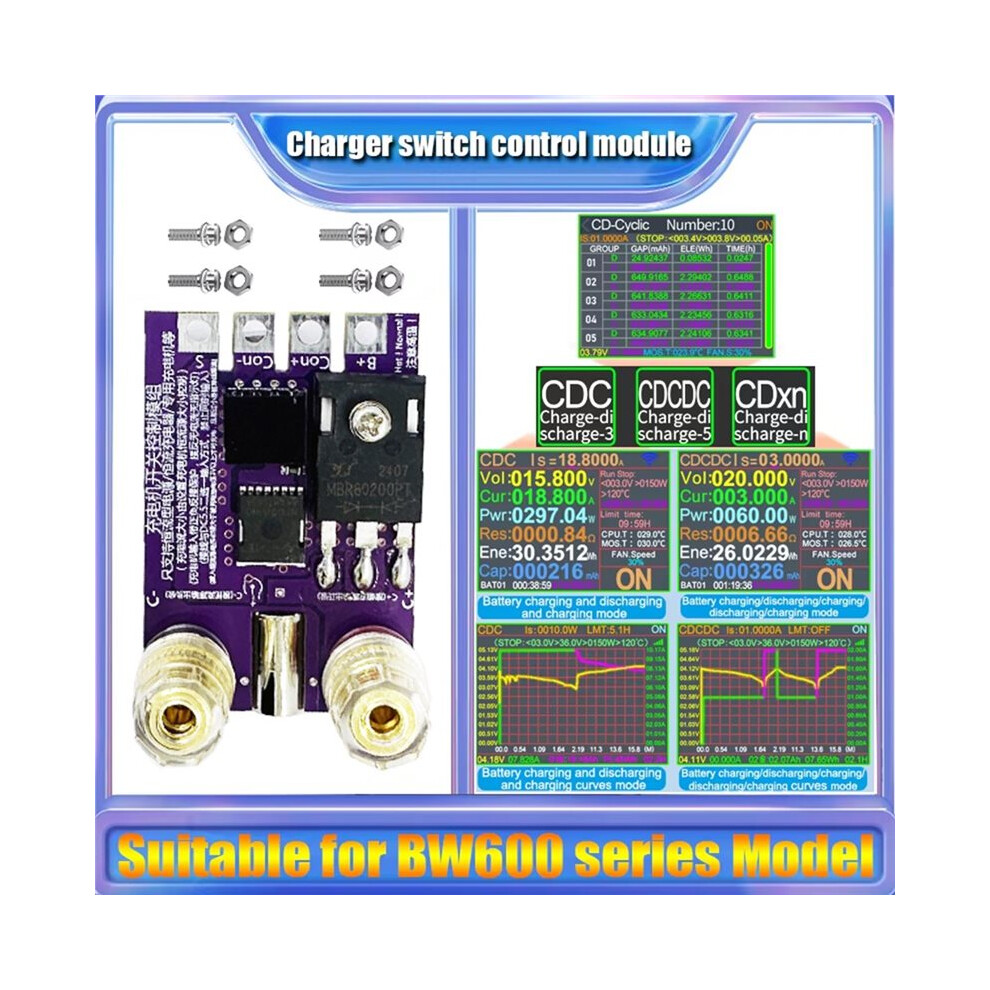

BW600 Electronic Load Meter Charging Control Module Adapter Max 100V 20A Supports DC5.5 Interface and Wiring

BW600 Electronic Load Meter Charging Control Module Adapter Max 100V 20A Supports DC5.5 Interface and Wiring Popis

Attention: This charging control module is suitable for BW600 series electronic load testers! Do not use other models!

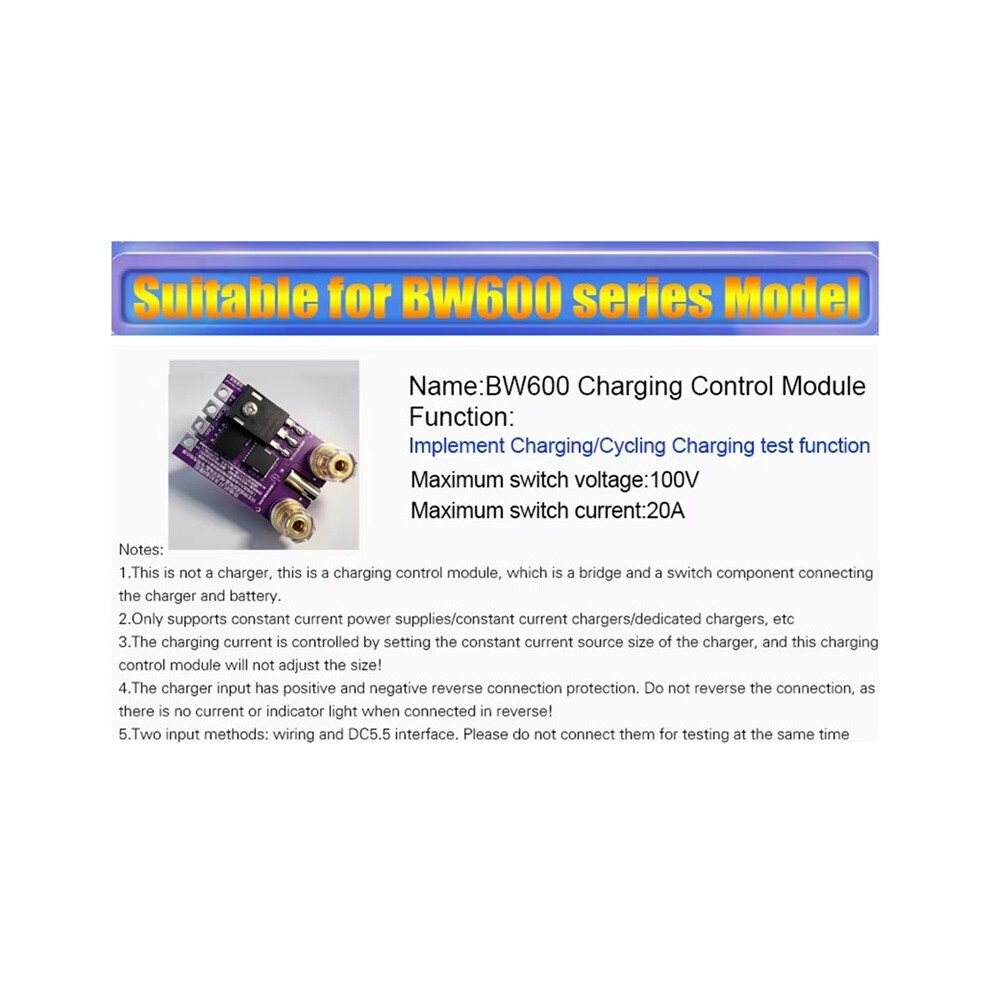

Name:BW600 Charging Control Module
Function:

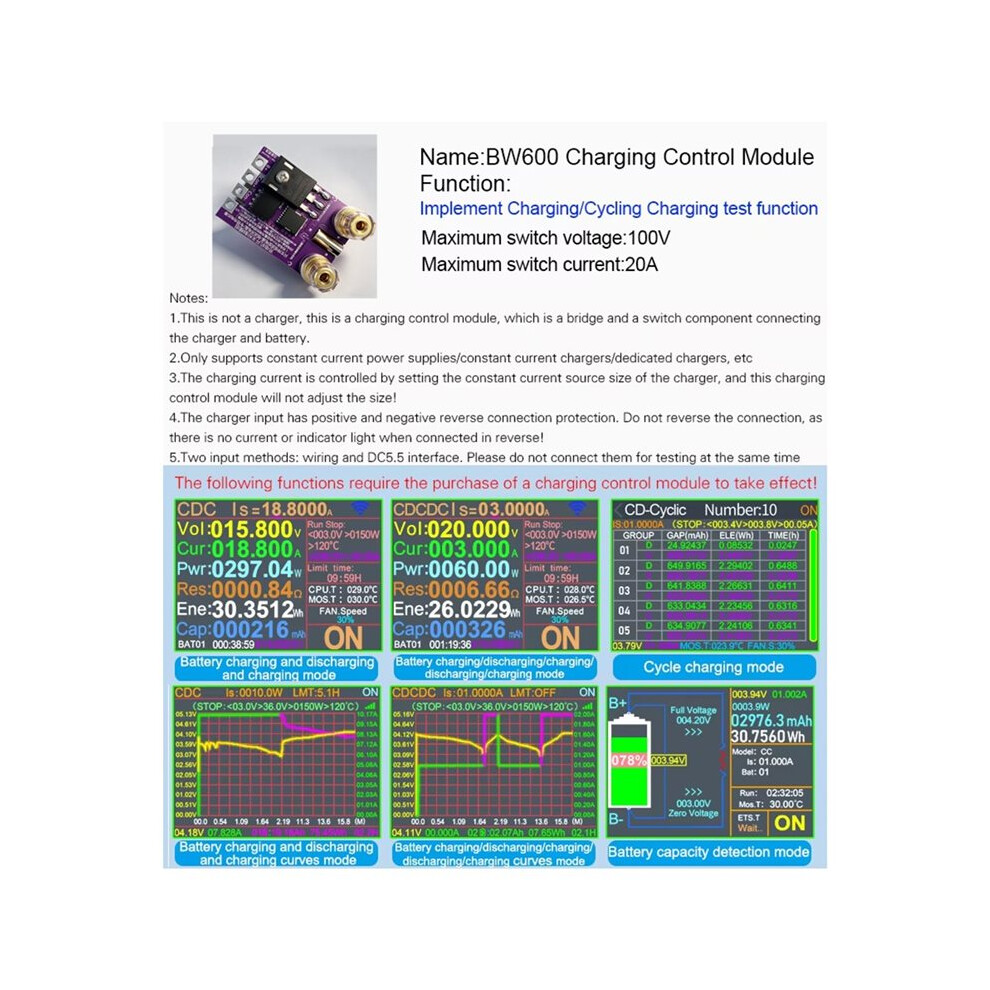

lmplement Charging/Cycling Charging test function
Maximum voltage:100V
Maximum current:20A

Notes:
1.This is not a charger, this is a charging control module, which is a bridge and a component connecting
the charger and battery.
2.0nly supports constant current power supplies/constant current chargers/dedicated chargers, etc
3.The charging current is controlled by setting the constant current source size of the charger, and this charging
control module wil not adiust the size!
4.The charcer input has positive and neative reverse connection protection. Do not reverse the connection. as
there is no current or indicator light when connected in reverse!
5.Two input methods: wiring and DC5.5 interface. Please do not connect them for testing at the same
Color:
Material: PCB

Package Contents:
1*Charging Control Module
