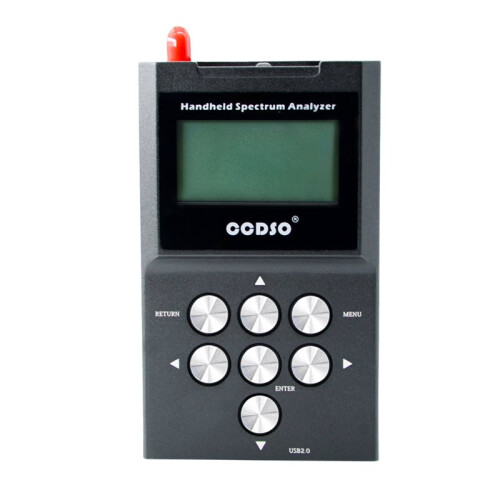

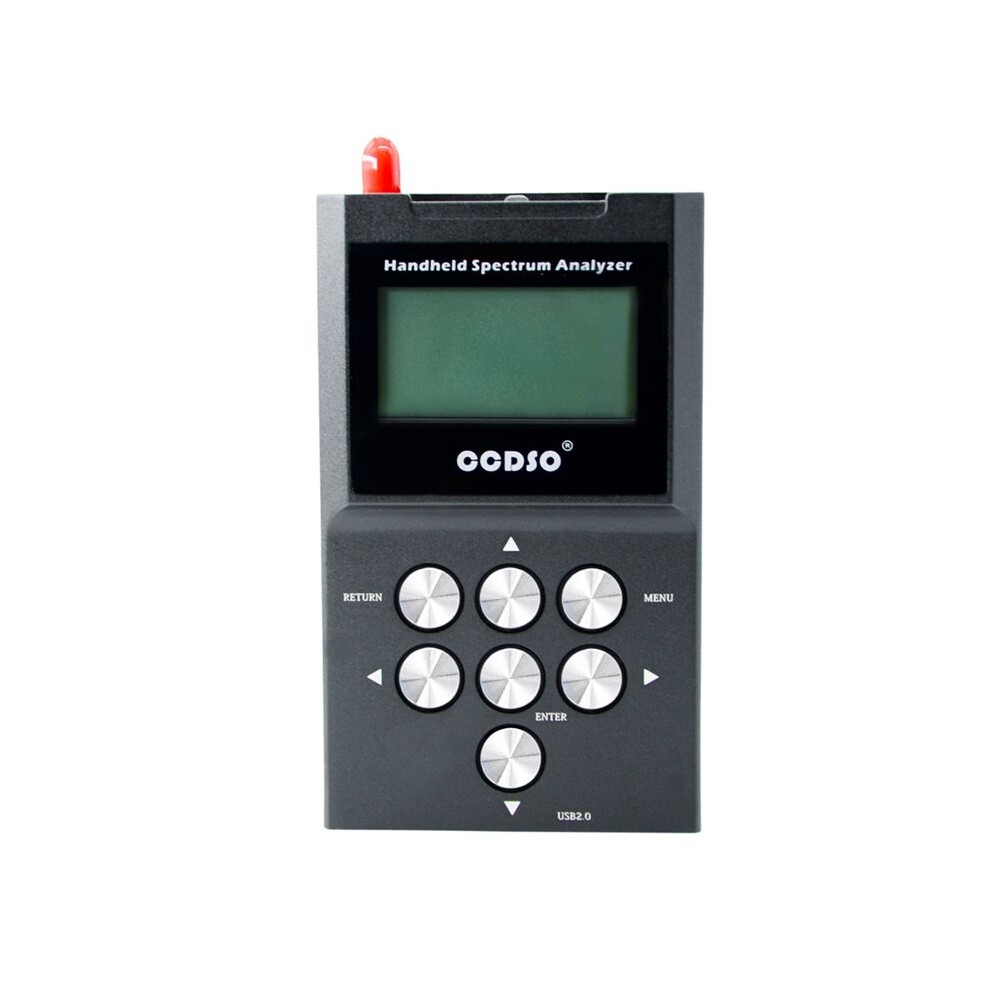

CCDSO Handheld Spectrum Analyzer RF Explorer Digital Spectrum Analyzer for Wireless Microphone Walkie-Talkie Speaker Test

CCDSO Handheld Spectrum Analyzer RF Explorer Digital Spectrum Analyzer for Wireless Microphone Walkie-Talkie Speaker Test Popis

RF Explorer is a handheld digital spectrum analyzer, a practical tool for operating in all common ISM bands. It is based a highly integrated frequency synthesizer, featuring high performance, small size, low power consumption, and low cost.
Works well in both indoor and outdoor environments and can be connected to a computer via a standard USB interface for additional functionality.
This model is equipped with a dual-band retractable 144/430MHz broadband antenna.

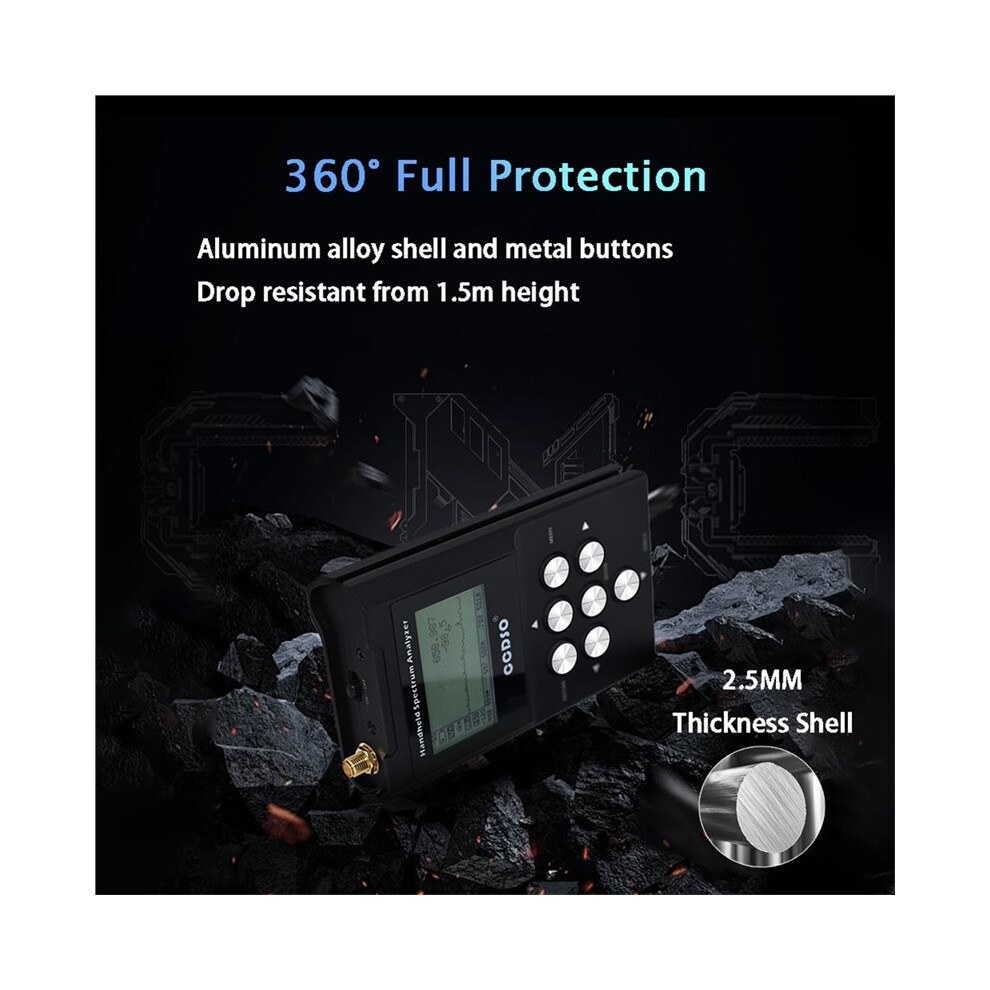

Pocket-sized and , with a robust aluminum alloy casing.

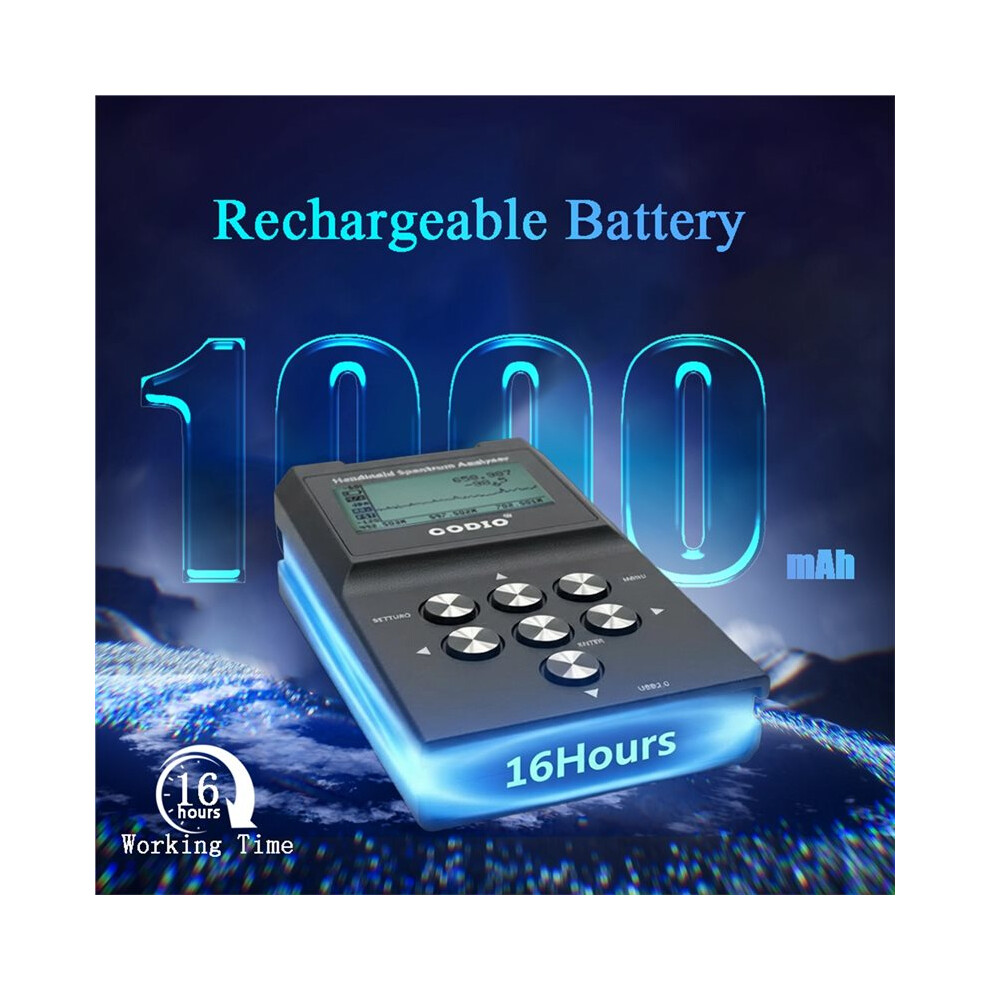

High-capacity lithium battery supports over 16 hours of continuous operation and can be recharged via USB.
Spectrum analyzer modes, including /maximum and hold, normal coverage, and average modes, offer support.

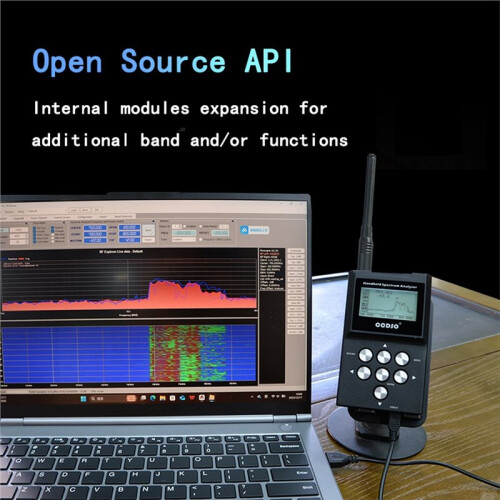

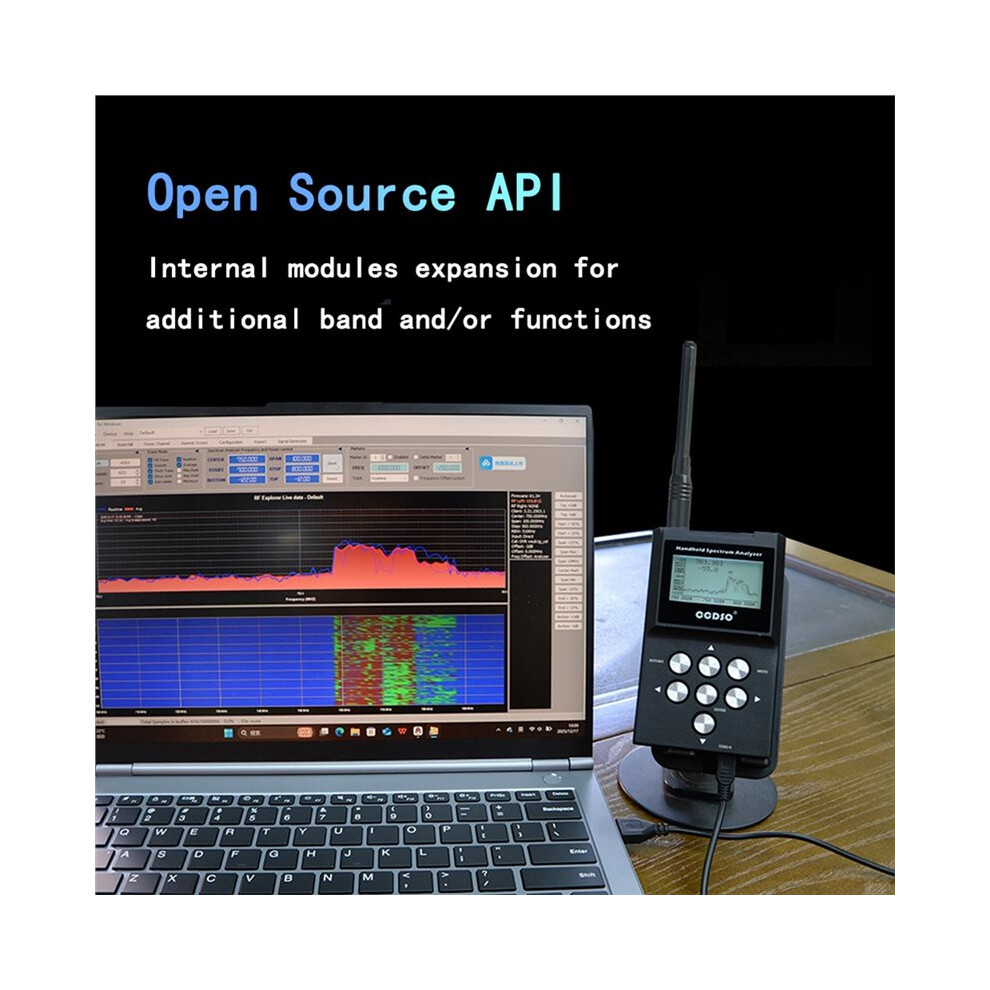

Open-source Windows PC client, expandable with built-in extension modules to add frequency bands and features.

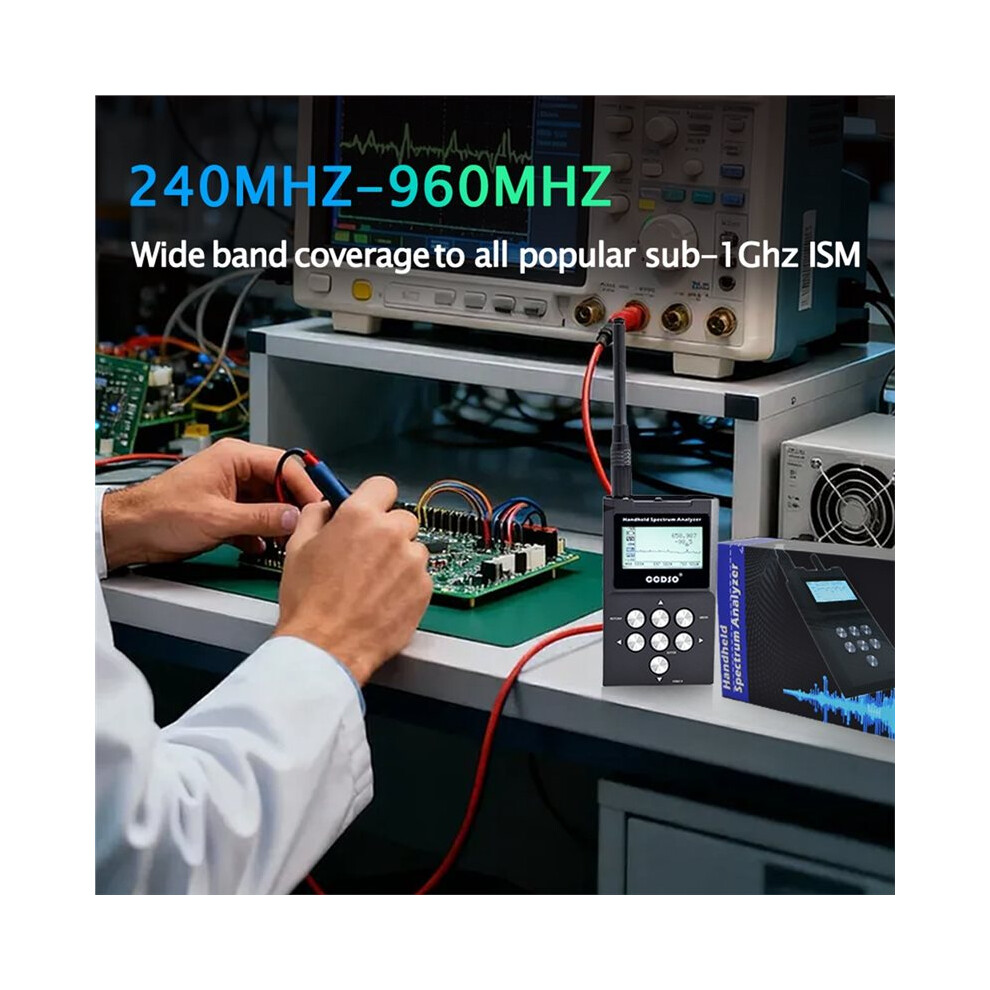

Wideband coverage encompasses popular sub-1GHz ISM bands: Provides wideband coverage including 315MHz, 433MHz, 868MHz, and 915MHz, also including UHF TV, 70cm and 33cm amateur radio, GSM, etc. Coverage of any frequency from 240MHz to 960MHz is included.
Frequency range: 240-960MHz
Frequency range: 112-100MHz
Amplitude resolution: 0.5dBm
Dynamic range: -115dBm to 0dBm
Maximum absolute input power: +5dBm
Average noise level (typical): -110dBm
Frequency stability and accuracy (typical): 10ppm
Amplitude stability and accuracy (typical): 3dBm
Frequency resolution: 1kHz
Resolution bandwidth (RBW): Auto 2.6kHz to 600kHz
Color: As Shown
Material: Aluminum Alloy

Package Contents:
1 * Handheld Spectrum Analyzer
1 * Charging cable
1 * 144-430MHz dual-band telescopic antenna
1 * Storage bag (random color)
