Digital AC Voltmeter Frequency Meter Tester Gauge LED Display Meter 50-500V 10.0-99.9hz Voltage Frequency Meter

Digital AC Voltmeter Frequency Meter Tester Gauge LED Display Meter 50-500V 10.0-99.9hz Voltage Frequency Meter Popis

1. The LED AC voltage frequency measuring instrument is mainly used for real- measurement of the AC voltage frequency in the electrical circuit, and uses the LED digital tube display to display in digital direct reading mode.
2. WIDE MEASURING RANGE: Digital AC voltmeter frequency meter can measure voltage of AC 50~500V, frequency 10.0-99.9hz, accuracy is 1% 2 digits, with high working efficiency of 2 times/s measuring speed.

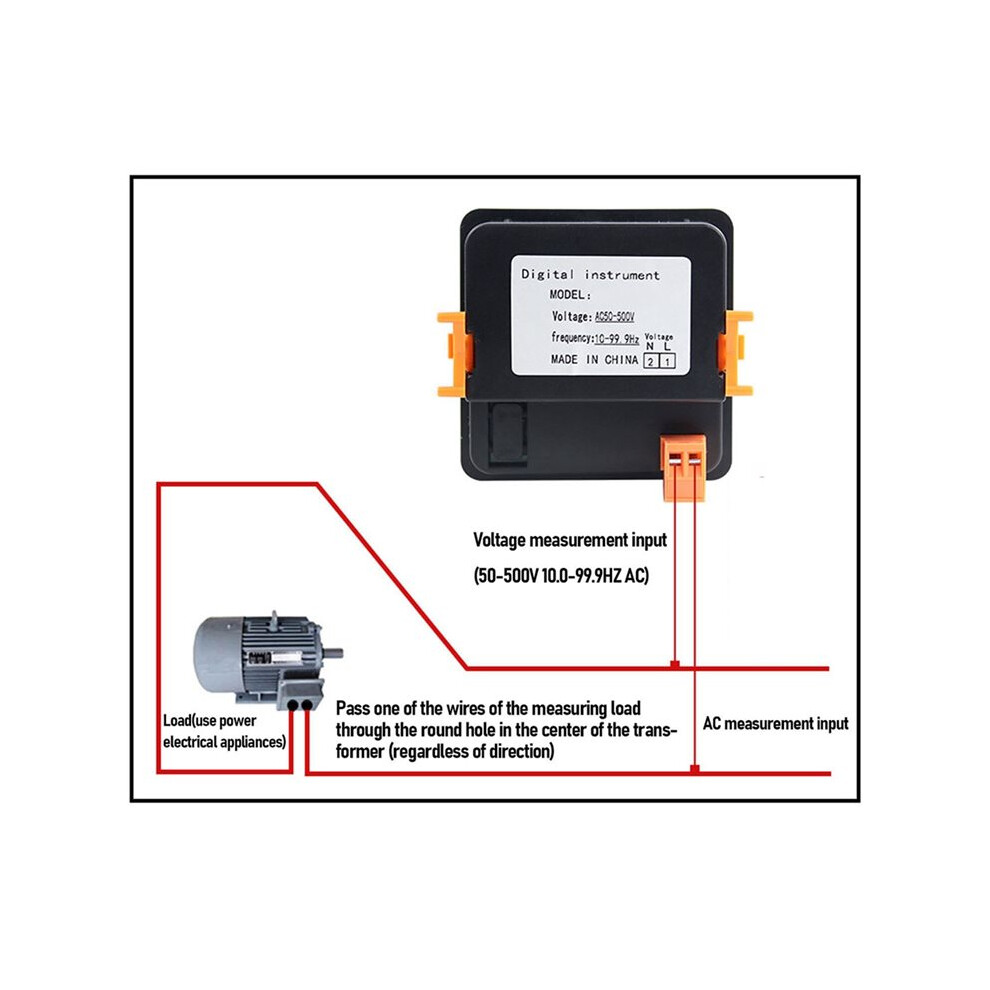

3. NO EXTRA INDIVIDUAL POWER SUPPLY: Voltage frequency meter can directly connect two wires to the tested voltage to measure voltage and frequency without power supply.
4. SUPER SMALL SIZE: With 68x68MM hole size. This voltage frequency meter can be installed anywhere flexibly, compact and convenient.

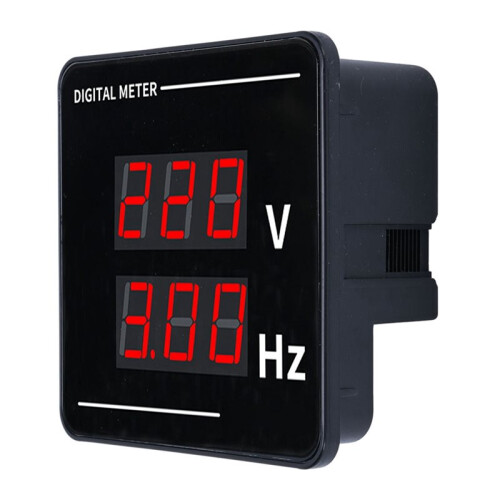

5. CLEAR AND INTUITIVE DISPLAY: Voltage frequency tester uses a 0.56in LED font size to display the distribution of data in a concise form, so that readers can quickly understand the data.

Specification:
Item Type: Digital Voltage Frequency Meter
Measurement Accuracy: 1% (2 digits)
Opening Size: Approx. 68 x 68mm (embedded installation)
Measurement Range: AC50-500V 10.0-99.9Hz

NOTE: This instrument is only suitable for pure AC 50-60HZ mains power supply. It cannot be used for square wave, inverter output, and sine wave circuits with modified sine waves, otherwise the instrument will be permanently damaged!
Color: Black
Material: ABS

Package Contents:
1 * Digital Voltage Frequency Meter
