DSO138 Digital Oscilloscope DIY Electronic Kit Microcontroller Circuit Board Assembly Welding Parts

DSO138 Digital Oscilloscope DIY Electronic Kit Microcontroller Circuit Board Assembly Welding Parts Popis

This kit uses ARM Cortex-M3 processor, and includes a 2.4-inch color TFT display screen, can be used as ARM test development board.
Can be secondary development the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
Adjustable vertical displacement. With automatic, regular and one-shot modes, easy to capture the moment waveform.
Available rising or falling trigger.
Observable previous trigger waveform (negative delay).

This DSO -138 digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen. It's easy and reliable for circuit operation. It can display frequency, period, duty ratio, MAX./MIN./AVG./-/virtual values.
Can freeze at any waveform display (HOLD function).
Comes 1Hz /3.3V square wave test signal source.
With waveform parameter digital display, including frequency, period, duty ratio, MAX./MIN./AVG./-/virtual values.
Short-circuit and open-circuit detection: can help the user find out the soldering error.
TFT controller recognition function.
Colour:Transparent
Material:Acrylic

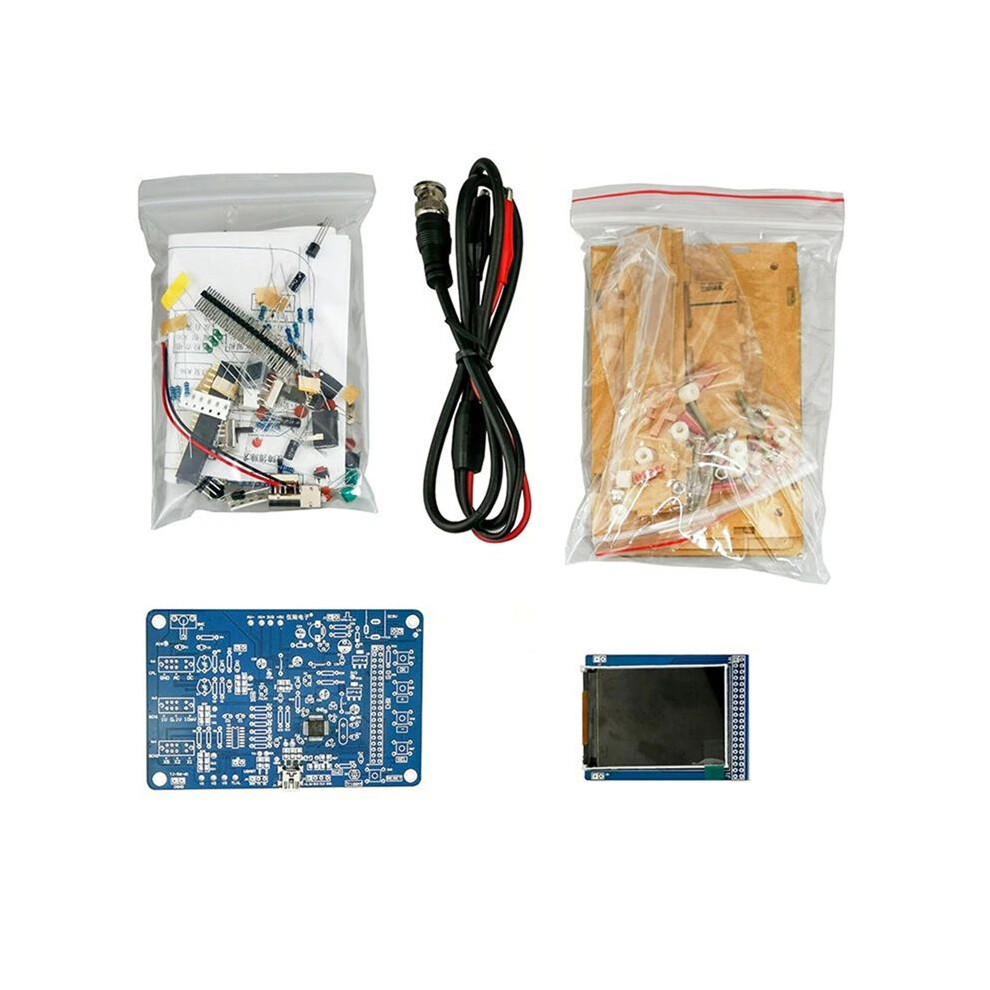

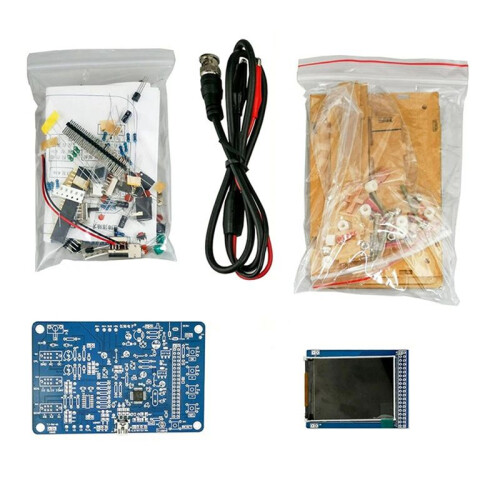

Package Contents:
1set * digital oscilloscope kit (with case, shipped in parts)
