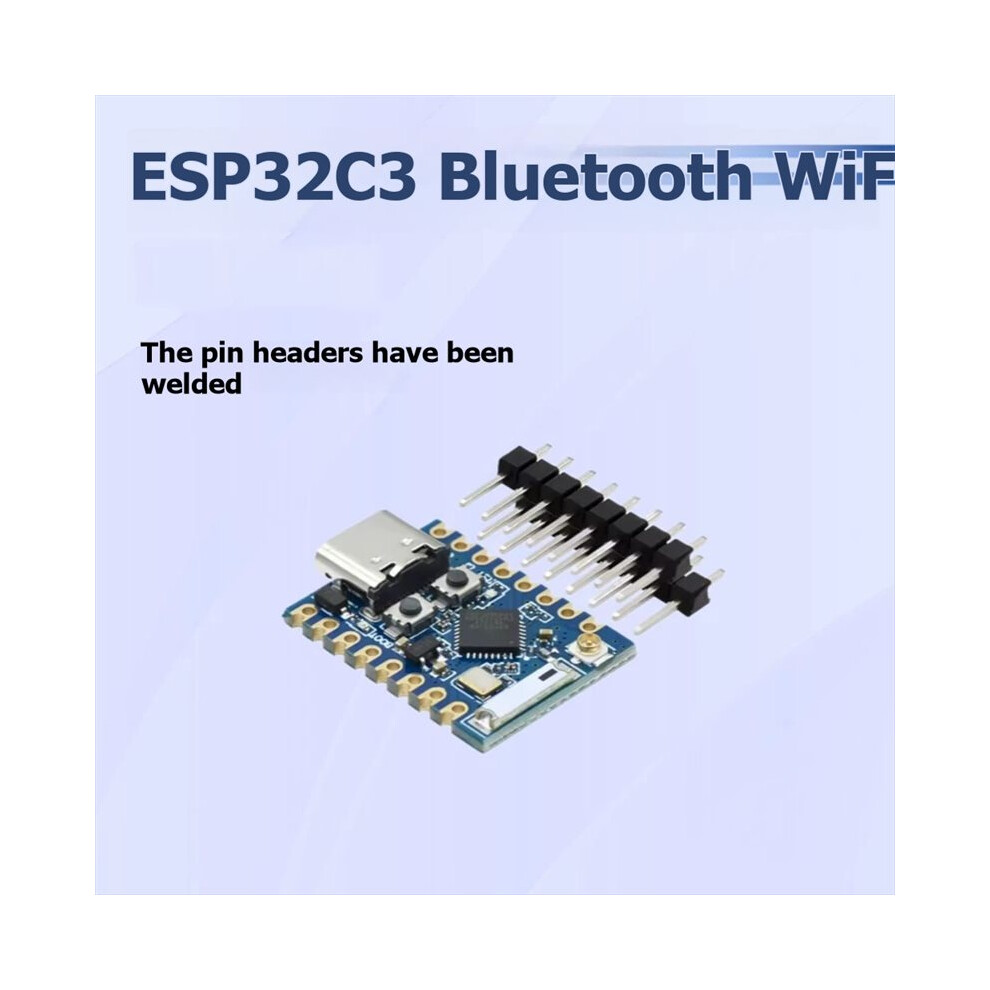

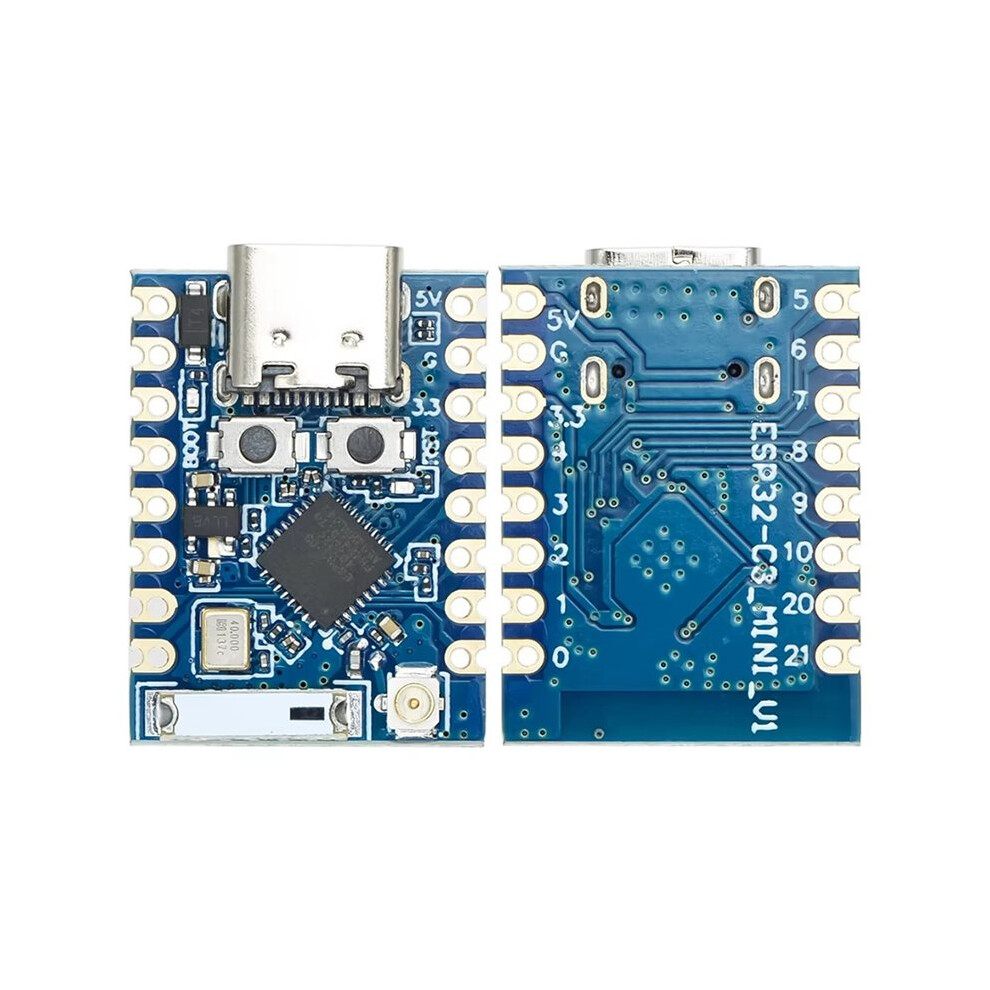

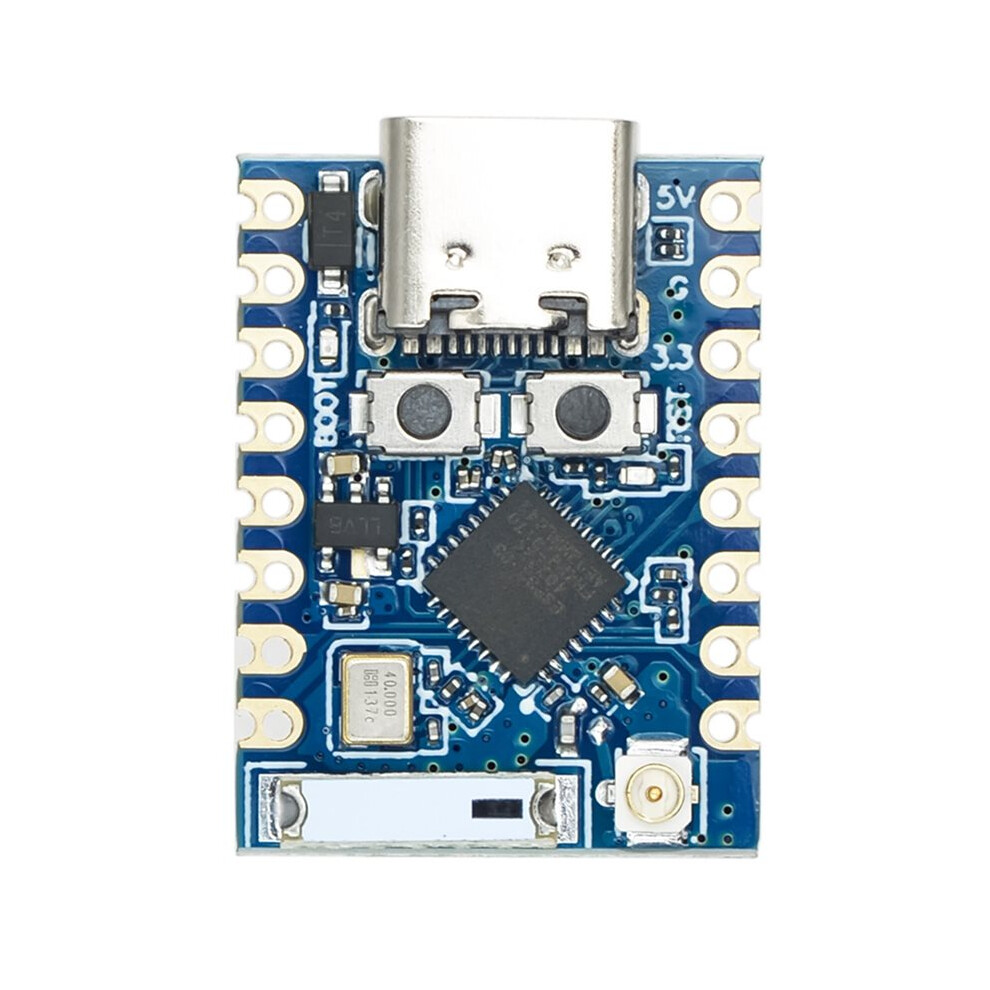

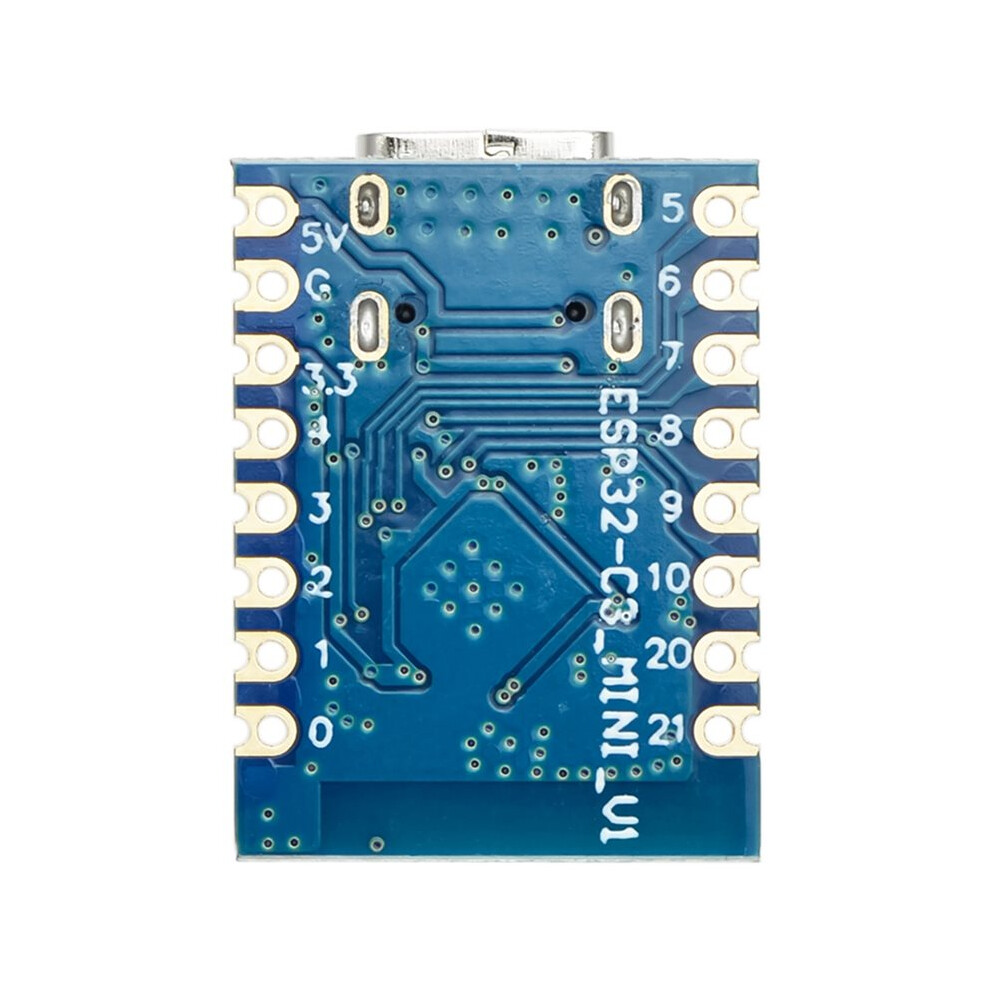

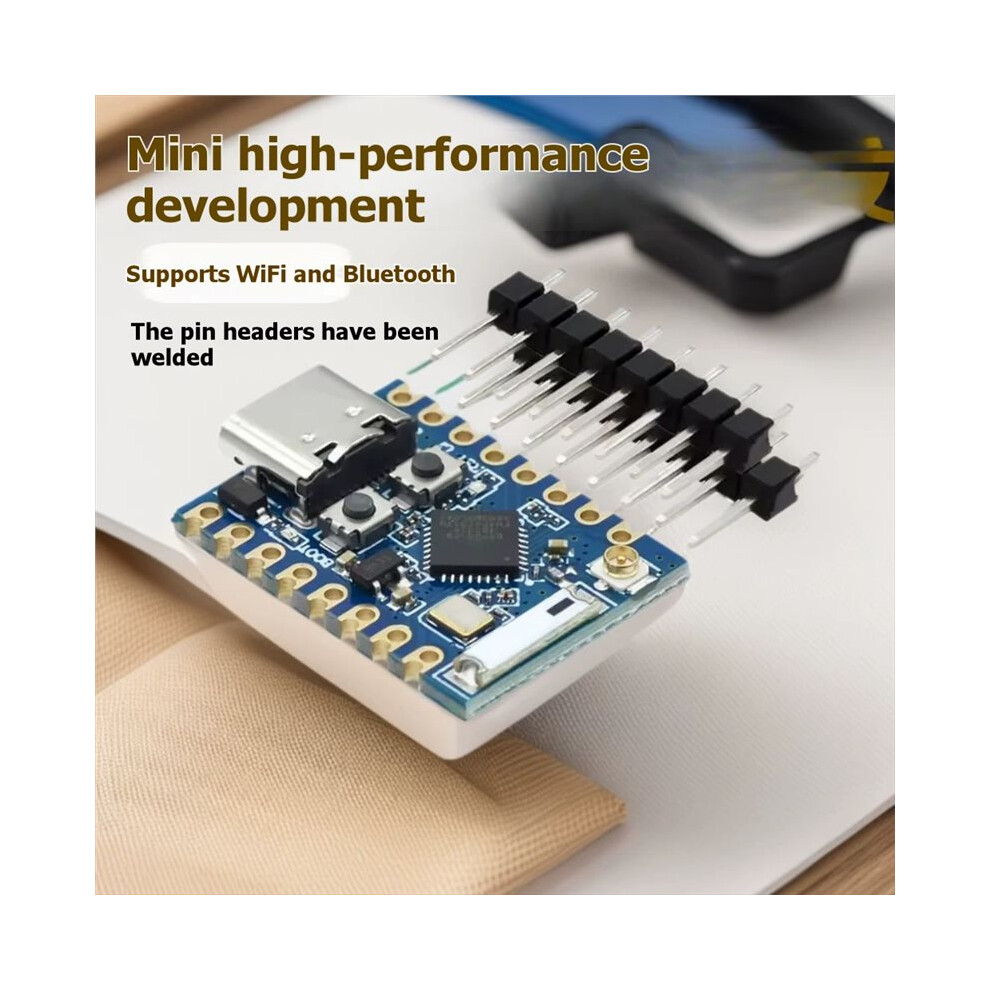

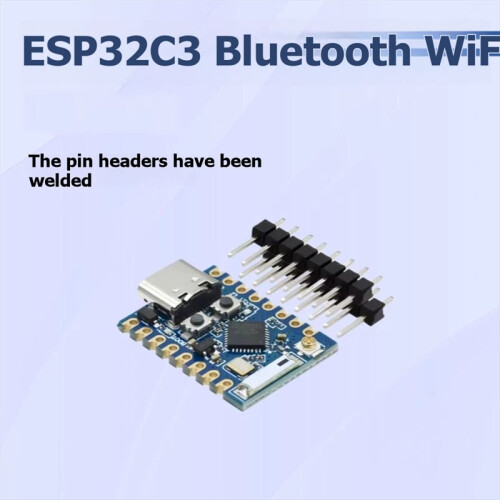

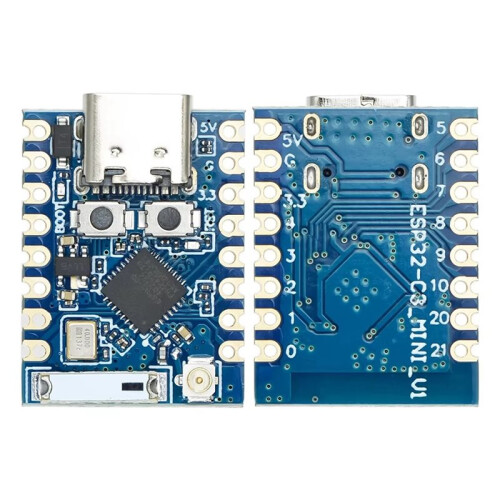

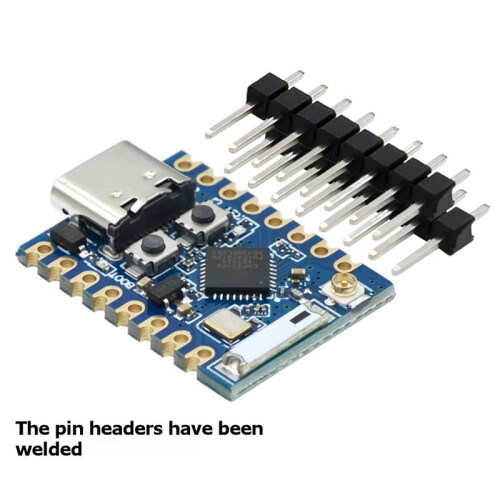

ESP32C3 PRO Development Board Onboard ESP32-C3FH4 Chip Module WiFi BT Function the Pin Header Has Been Soldered

ESP32C3 PRO Development Board Onboard ESP32-C3FH4 Chip Module WiFi BT Function the Pin Header Has Been Soldered Popis

ESP32C3 PRO is a compact IoT development board equipped with ESP32-C3FH4 chip. Powered by 32-bit RISC-V CPU with built-in FPU, it delivers powerful computing performance.
It supports IEEE 802.11 b/g/n WiFi and 5 (LE). With built-in ceramic antenna and IPEX antenna connector, it ensures excellent RF performance and stable signal.
The board features compact size and SMD design. It provides 11 digital I/O (PWM) pins, 4 analog ADC pins, and supports UART, I2C and SPI interfaces. Onboard reset and boot buttons simplify operation.
High performance, low power consumption and cost-effective, this board is ideal for low-power IoT projects and wireless wearable devices.

Powerful CPU: ESP32-C3, 32-bit RISC-V single-core processor, operating at to 160 MHz
WiFi: Supports 802.11b/g/n protocols, 2.4GHz, supports Station mode, SoftAP mode, SoftAP+Station mode, and promiscuous mode
: 5.0
Ultra-low power consumption: Approximately 43 µA in deep sleep mode
Ample onboard resources: 400KB , 384KB ROM, and built-in 4MB Flash.
• Chip Model: ESP32C3FN4
• Ultra-small size: Classic form factor, about the size of a thumb, suitable for small projects
• Reliable security features: Supports AES-128/256, hash, RSA, HMAC, digital signatures, and encryption hardware accelerator for boot
• Ample interfaces: 1 I2C, 1 SPI, 2 UARTs, 11 GPIOs (PWM), 4 ADCs
• Single-sided component, surface mount design
• Onboard LED: GPIO8 pins
Color: As Shown
Material: Electronic Component

Package Contents:
1*ESP32C3 PRO Development Board
