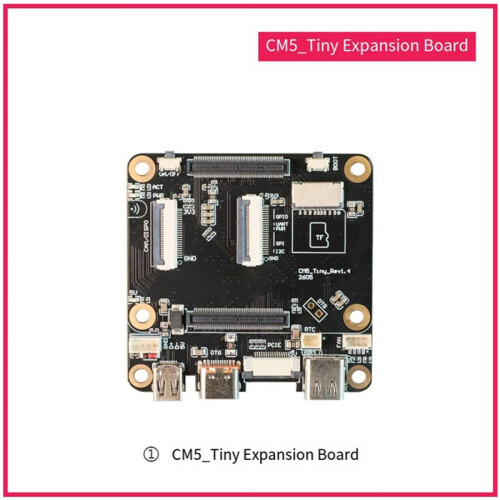

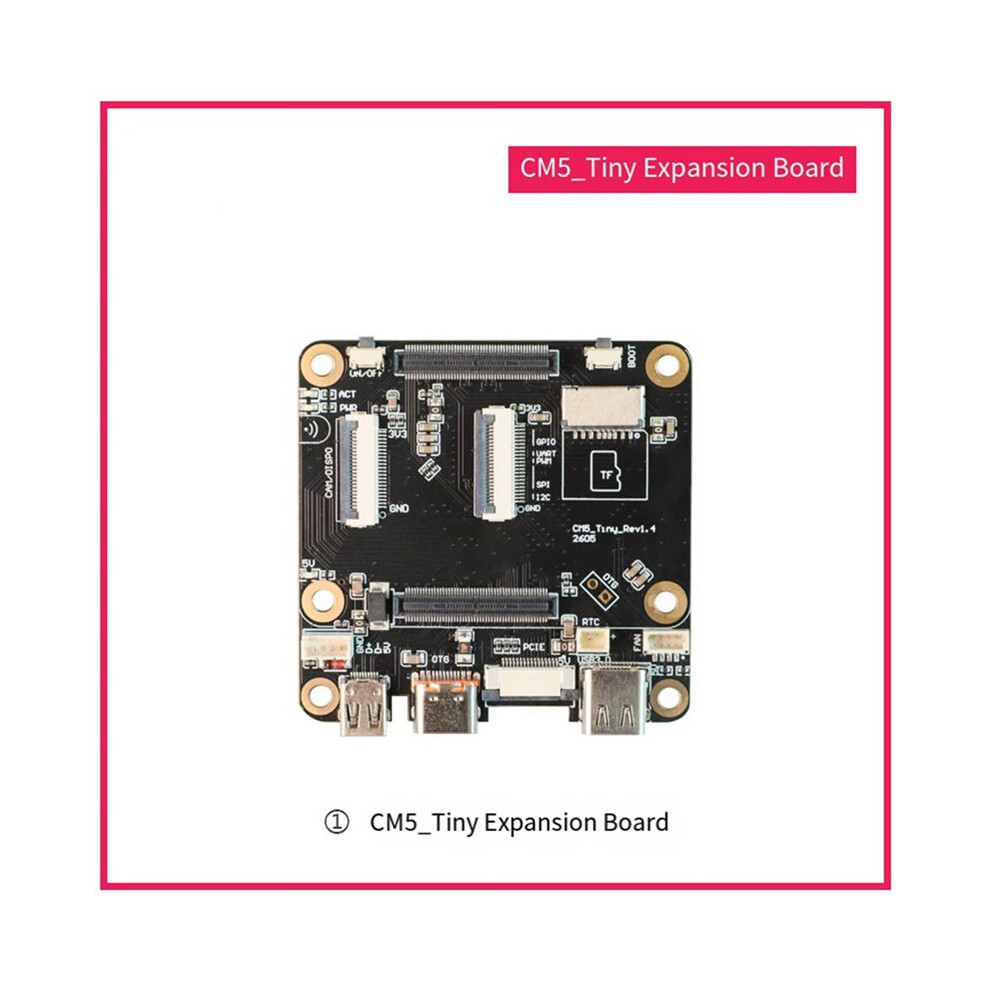

For Raspberry Pi CM5 Tiny Expansion Board with CNC Aluminum Case Support OpenWrt 4G with WiFi USB OTG

For Raspberry Pi CM5 Tiny Expansion Board with CNC Aluminum Case Support OpenWrt 4G with WiFi USB OTG Popis

The CM5_Tiny can be paired with 4G. When running an OpenWrt system, 4G can be used as a WAN, while the CM5's own WiFi and USB OTG can be connected to a PC as a LAN.The PCIe interface can be expanded to include NVMe, AI, WiFi 7, TPU, and other functionalities

Openwrt OS
The USB 2.0 OTG port can be configured as a USB network adapter under the OpenWrt system; when connected to a computer, it can provide power via USB and also function as a network adapter.

OpenWrt system can realize
1) The CM5 core board's WiFi is connected to the router as the WAN, and the USB OTG is connected to the PC as the LAN: that is, wireless input and USB network card output.

2) 4G LTE serves as the WAN, while the CM5's WiFi acts as an AP or is connected to a computer via USB 2.0-C and recognized as a USB network adapter to share the 4G network. In other words, 4G input and wireless or USB network adapter output.
(The product printed words may vary depending the batch, but this does not affect use)
Color: As Shown
Material: Metal

Package Contents:
1*Expansion Board
