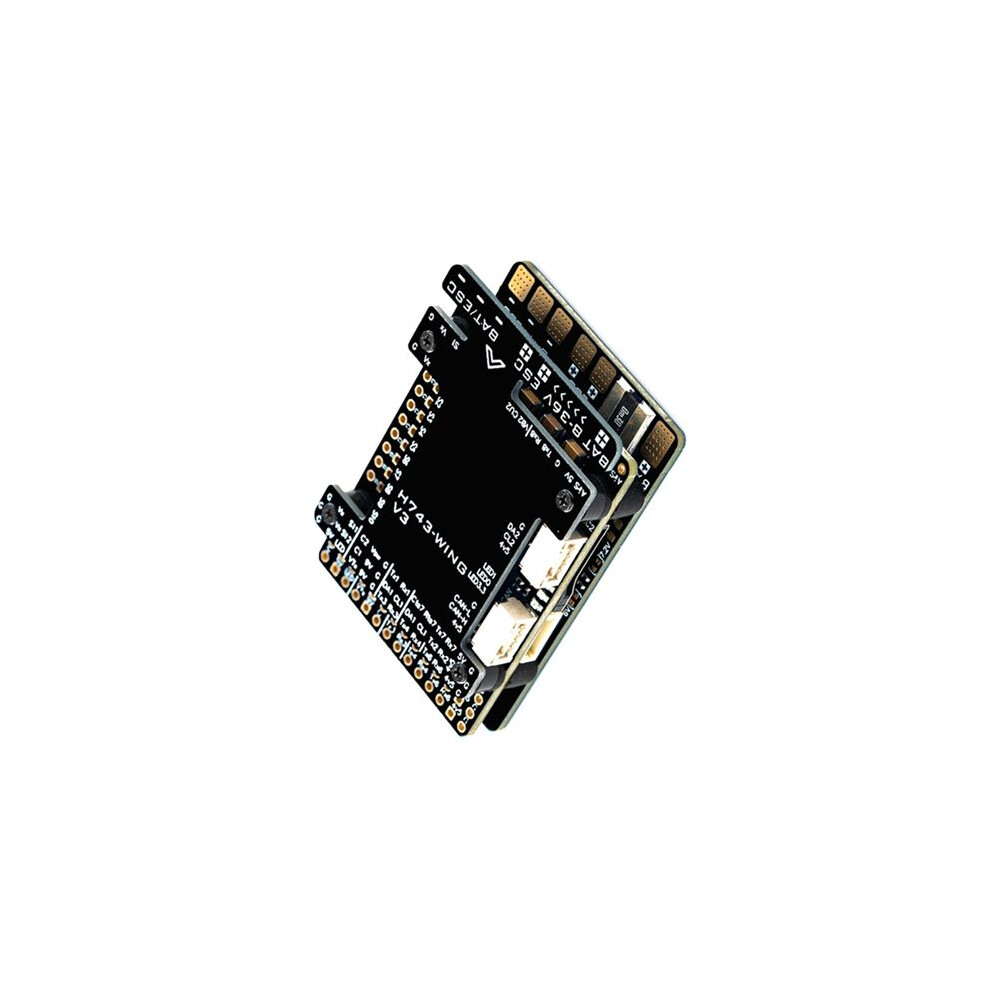

H743-WING V3 INAV 3-8S H743 Fixed High Precision Barometer Sensor Wing Flight Controller for RC Drone FPV

H743-WING V3 INAV 3-8S H743 Fixed High Precision Barometer Sensor Wing Flight Controller for RC Drone FPV Popis

Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, for AirSpeed
Linear Regulator
Voltage adjustable, 5V Default, 6V or 7.2V via jumper
Continuous current 2 Amps, 3A

MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash
IMU: ICM42688-P(V3) & ICM42605 (SPI4)
Baro: Infineon DPS310 (I2C2)
OSD: AT7456E (SPI2)
: Micro- card slot (SDIO)
7x Uarts (1,2,3,4,6,7,8) with built-in inversion.
13x PWM outputs(including "LED" pad)
2x I2C
1x CAN
6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2)
3x LEDs for FC STATUS (, Red) and 3.3V indicator(Red)

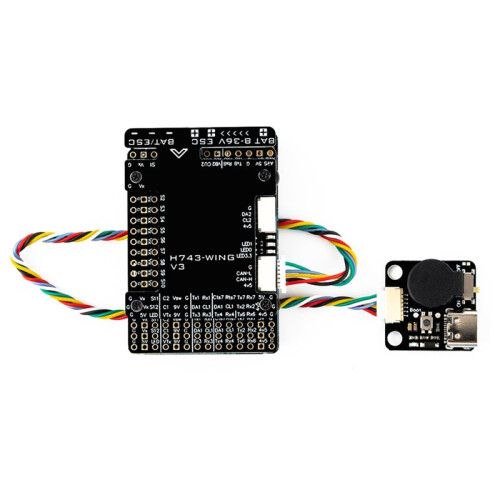

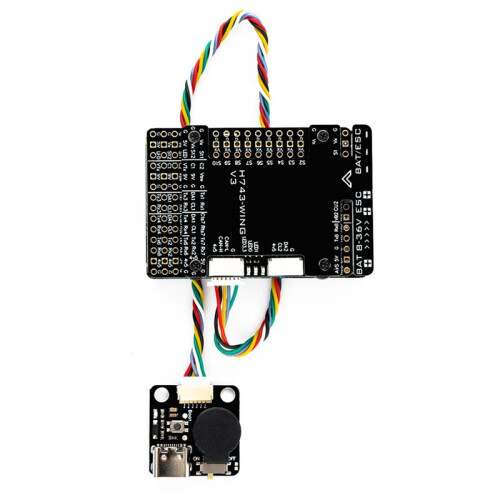

USB/Beep Extender with Type-C(USB2.0)
Dual Camera Inputs
5V/9V(12V) for Camera/VTX power
High-precision Current Sense (90A continuous, 220A )
Battery Voltage Sensor: 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot)
ADC VB2 voltage divider: 1K:20K
ADC AirSpeed voltage divider: 20K:20K
Static power 160mA 5V
for ArduPilot(ChiBiOS): MATEKH743
for INAV: MATEKH743
Input voltage range: 8-36V (3-8S LiPo) with TVS protection
The product appearance and printed words may vary depending the batch, but this does not affect use
Colour:As Shown
Material:PCB

Package Contents:
1set x flight controller accessories
