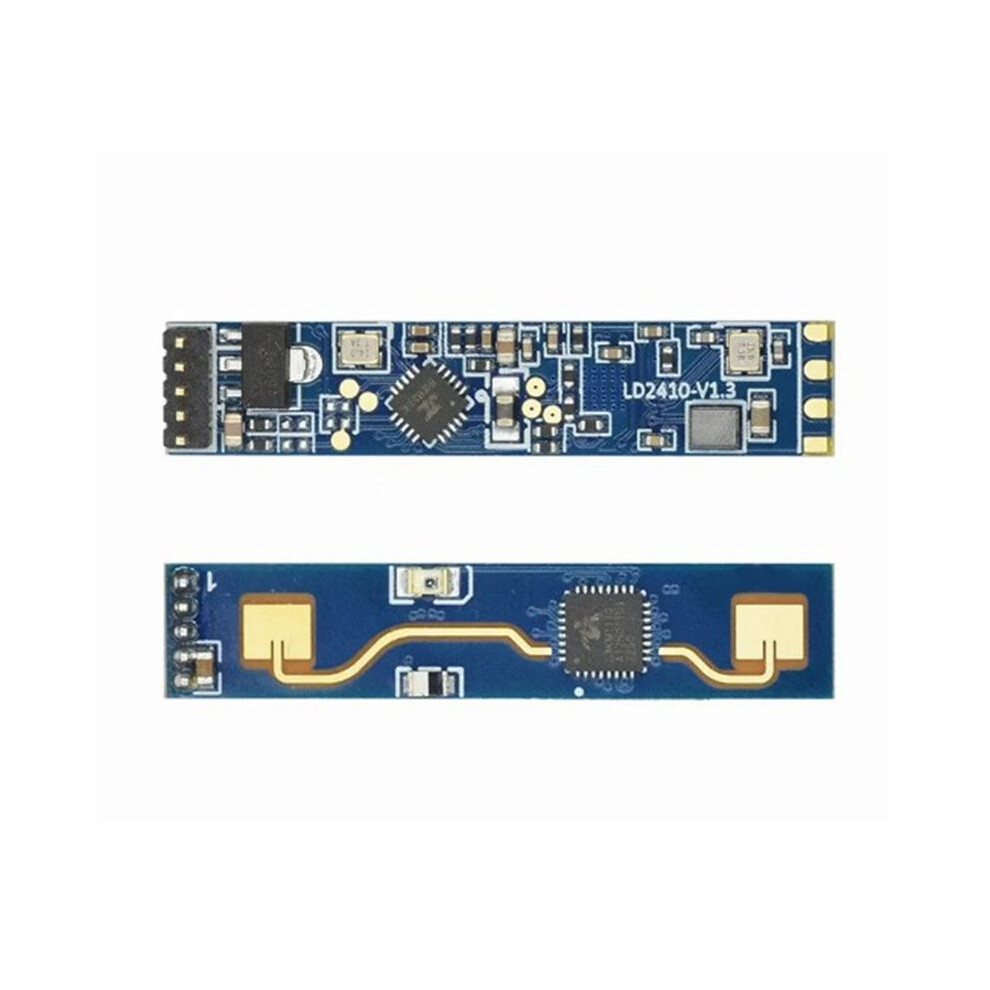

Human Presence Sensor Module 24GHz Millimeter Wave Sensing Heartbeat Detection Module with BT LD2410B A2

Human Presence Sensor Module 24GHz Millimeter Wave Sensing Heartbeat Detection Module with BT LD2410B A2 Popis

Plug and , simple assembly method,The maximum sensing distance can reach 5 meters

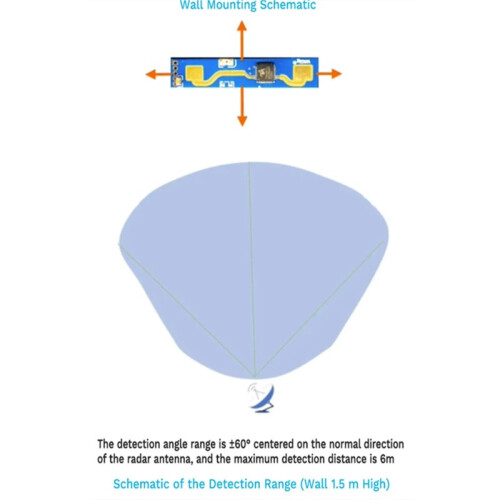

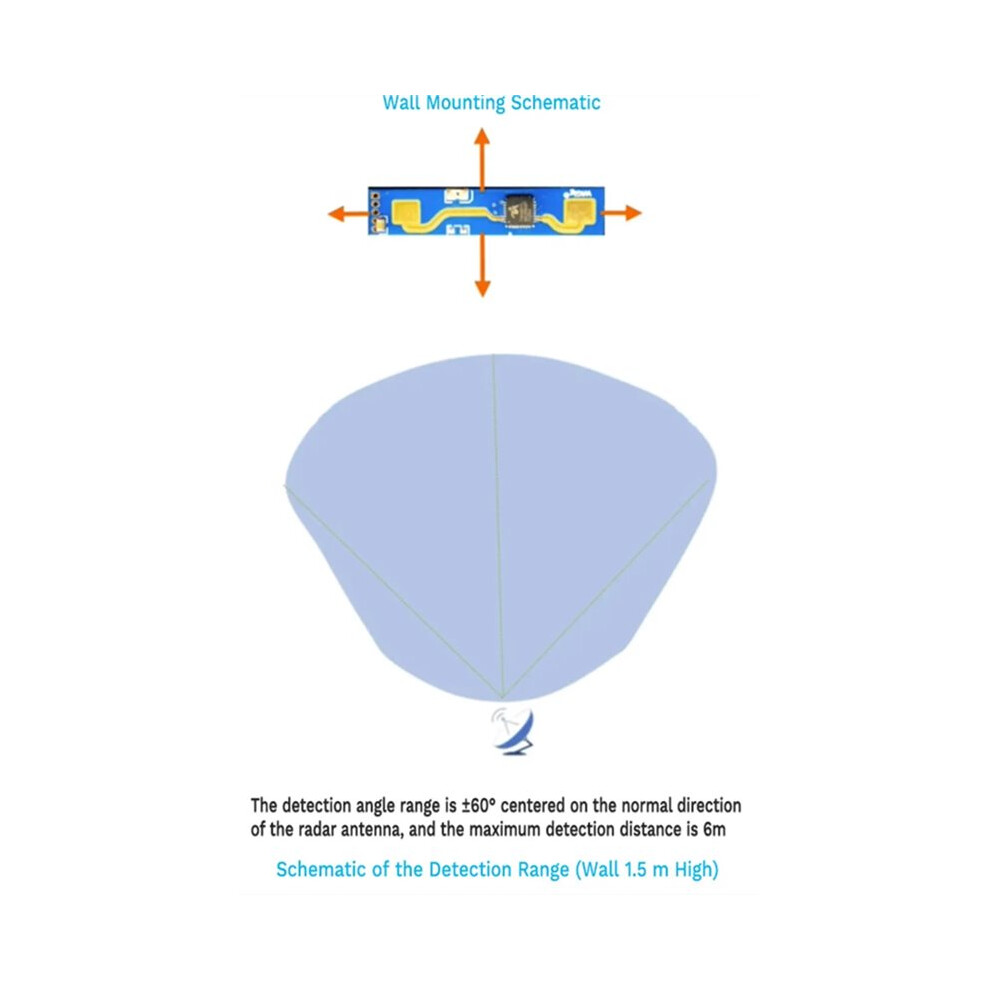

Large detection angle, coverage range to 60 degrees
Accurate identification within the interval, supporting the division of sensing range, and shielding interference outside the interval
Multi level intelligent parameter tuning can be achieved through or serial port to meet the needs of changing scenarios. Detection and identification of intrusion, stay, etc. within designated areas

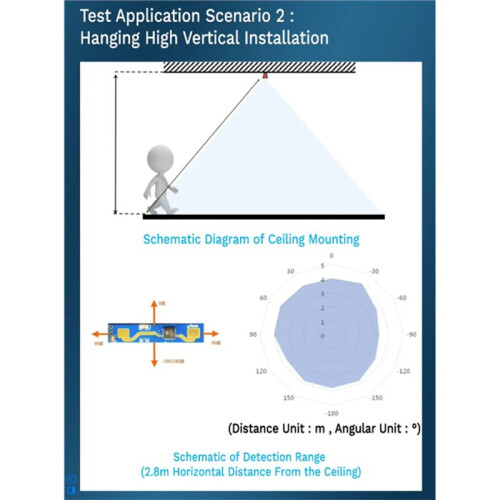

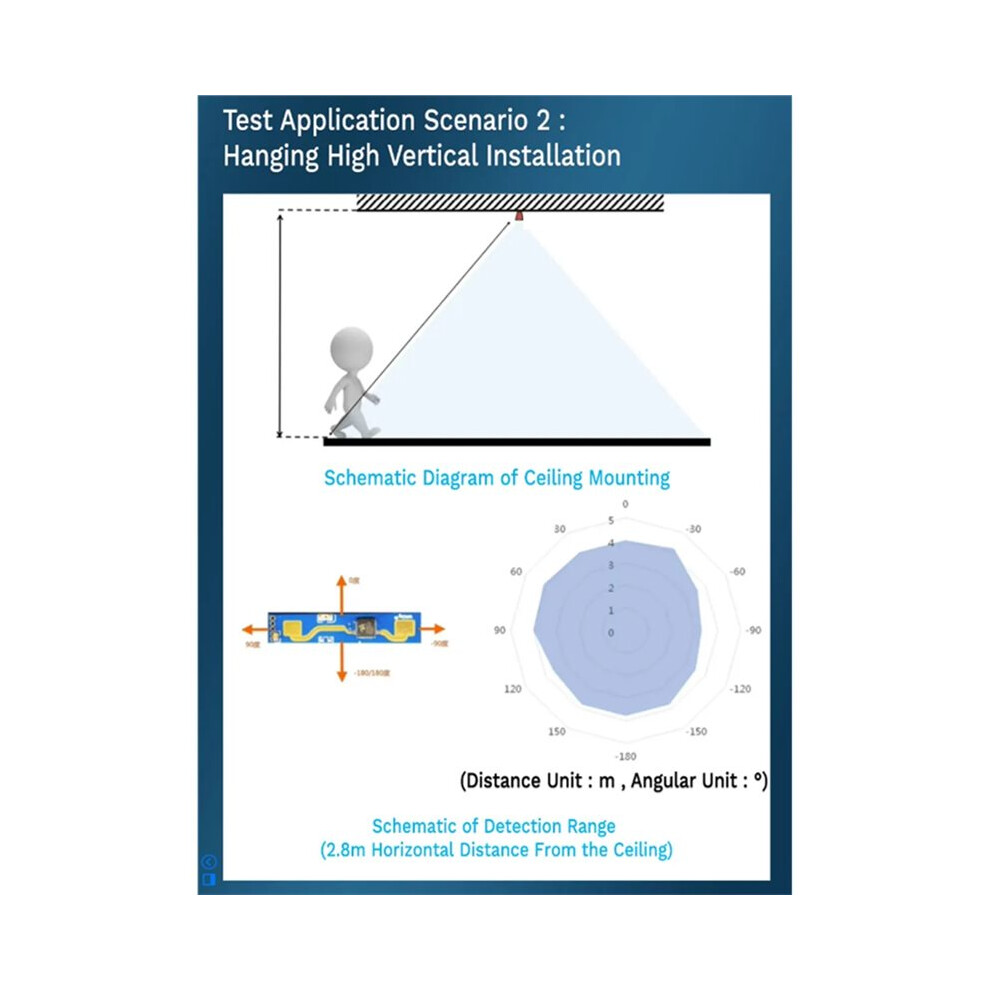

Visual debugging and configuration tools Compact and simplified, with a minimum size of only 7mmx35mm Support multiple installation methods such as hanging the top and wall 24GHz ISM frequency band, certified by FCC and CE frequency regulations
Application scenarios
The LD2410B human body sensing module can detect and recognize movements, micro movements, standing, sitting, and lying human bodies. It supports multi-level parameter tuning and can be widely used
Applied to various scenarios of AIoT, the commonly used types are as follows
·Human body induction light control
Sensing the presence of people in the space and automatically controlling lighting, such as public lighting equipment, various induction lights, bubble lights, etc.
·Human body induction wake- of advertising screens and other devices
Automatic activation by human intervention, automatic sleep mode without human intervention to save , and more precise and efficient information delivery
Life safety protection
UV lamp work protection to prevent personal injury caused by turning the UV lamp when there are people around
White motion detection notice in hazardous areas to prevent people from entering specific high-risk spaces, such as high-risk areas entered by personnel involved in coal mine blasting
home appliances
If there is no
