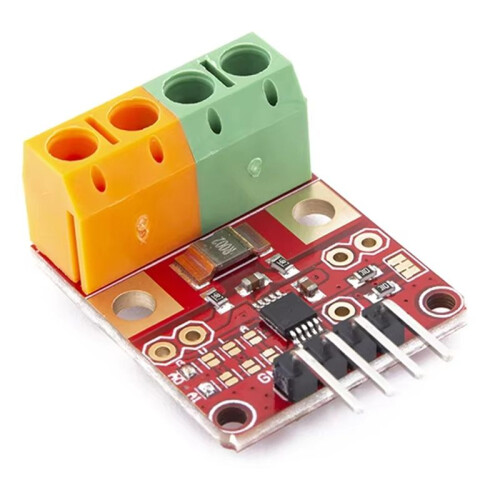

INA228 Current Voltage Monitoring Sensor Module IIC I2C Interface Bi-Directional Zero-Drift Breakout Board INA228

New

390,65 Kč

Podobné produkty, které by se vám mohly líbit

Konektory desek plošných spojů

Would you like us to let you know when it's back?

Přidat do košíku

Popis a podrobnosti

Shrnutí

INA228 is a current shunt and power monitor with I2C or SMBUS compatible interface.
The device simultaneously monitors the parallel voltage drop and the bus power supply voltage.
The programmable calibration value, conversion time and average value are used in conjunction with the internal multiplier to directly read the current in amperes and the power in watts.
The device has up to 16 programmable addresses on the I2C compatible interface.
Voltage Monitoring Sensor Module

INA228 Current Voltage Monitoring Sensor Module IIC I2C Interface Bi-Directional Zero-Drift Breakout Board INA228 Popis

INA228 is a current shunt and power monitor with I2C or SMBUS compatible interface.
The device simultaneously monitors the parallel voltage drop and the bus power supply voltage.
The programmable calibration value, conversion and average value are used in conjunction with the internal multiplier to directly read the current in amperes and the power in watts.
The device has to 16 programmable addresses the I2C compatible interface.

Micro-controller
Safety inspection
Industrial control
Product name: INA226 Voltage Current Monitor
Work voltage: 2.7V~5.5V
Measured voltage: 0V~36V
Measured current:-20A~20A
Error accuracy:+/-1%
Resolution:16Bit
IIC address:Set by pads
PCB Size:26 x 22 x 14mm
IIC address can be set
Measuring voltage
Measuring current
Specifications: INA228
Color: As Shown
Material: PCB

Package Contents:
1 * Module
