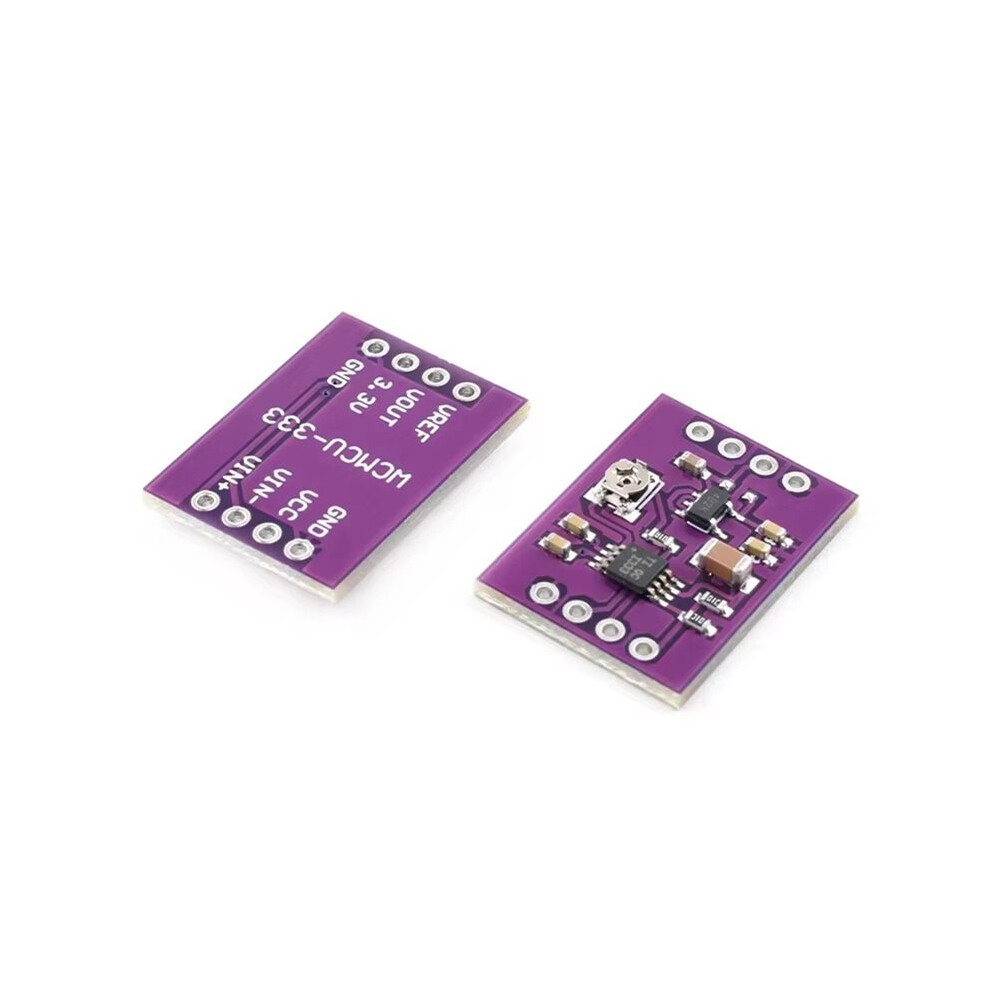

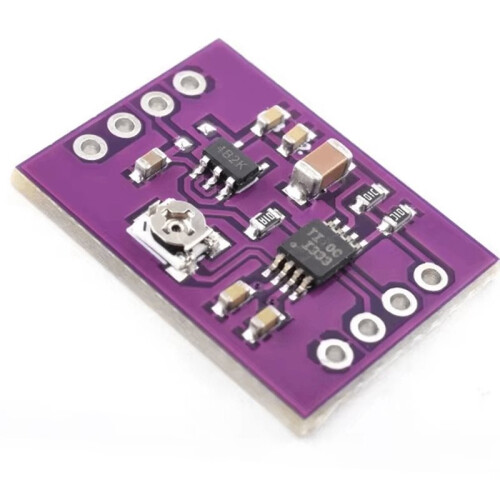

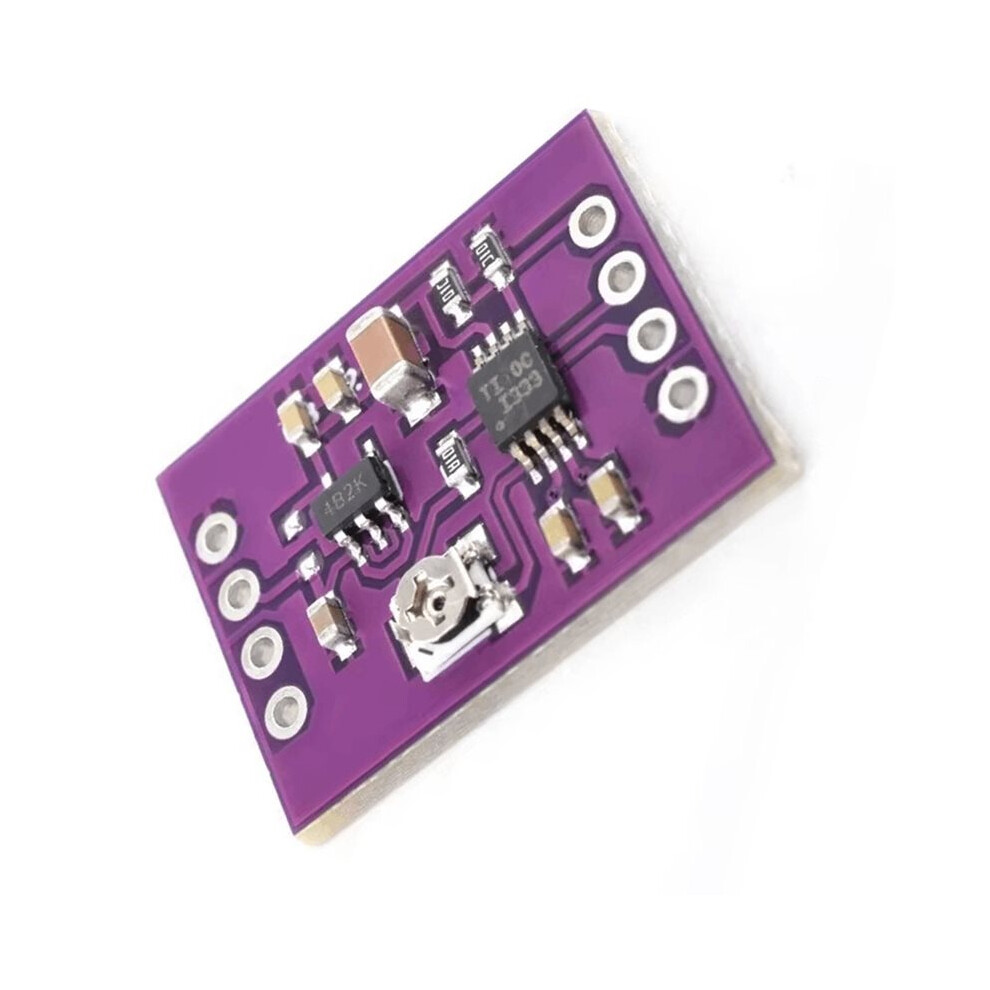

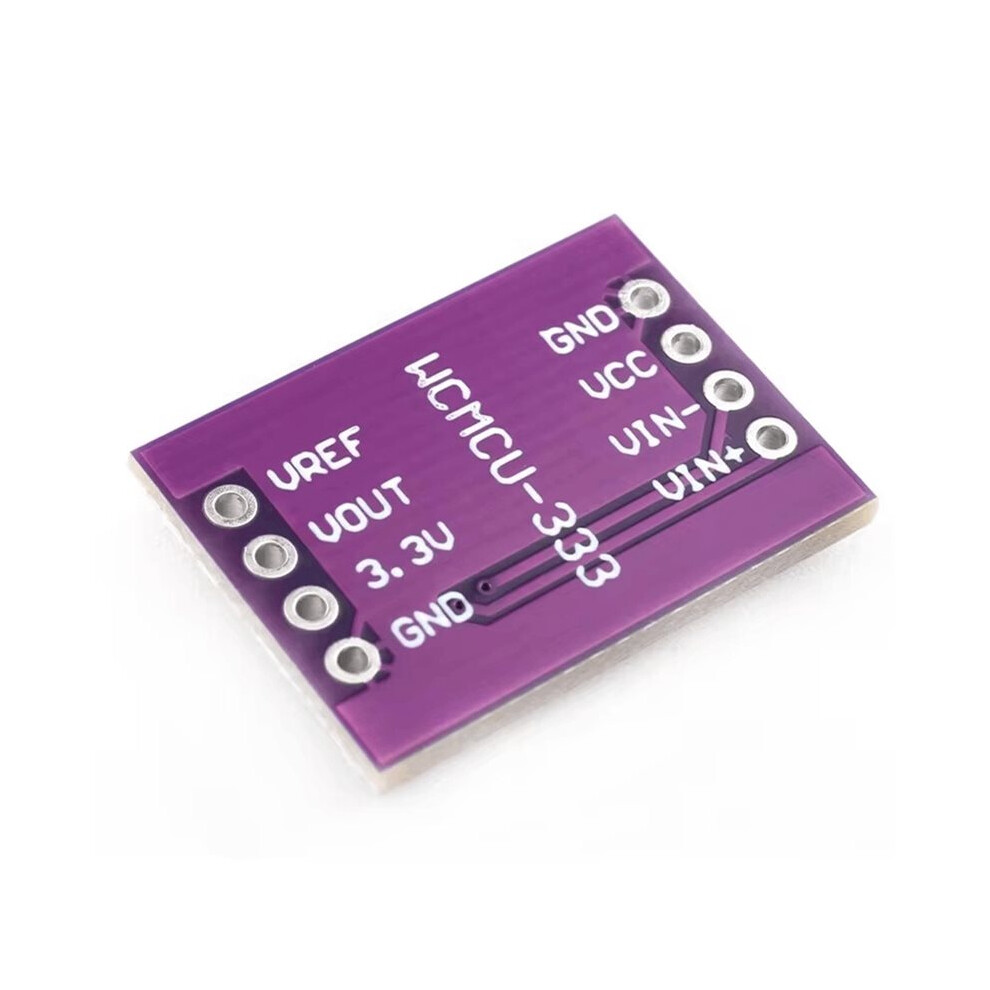

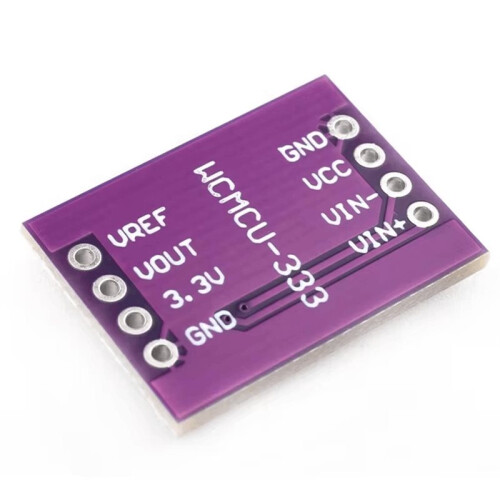

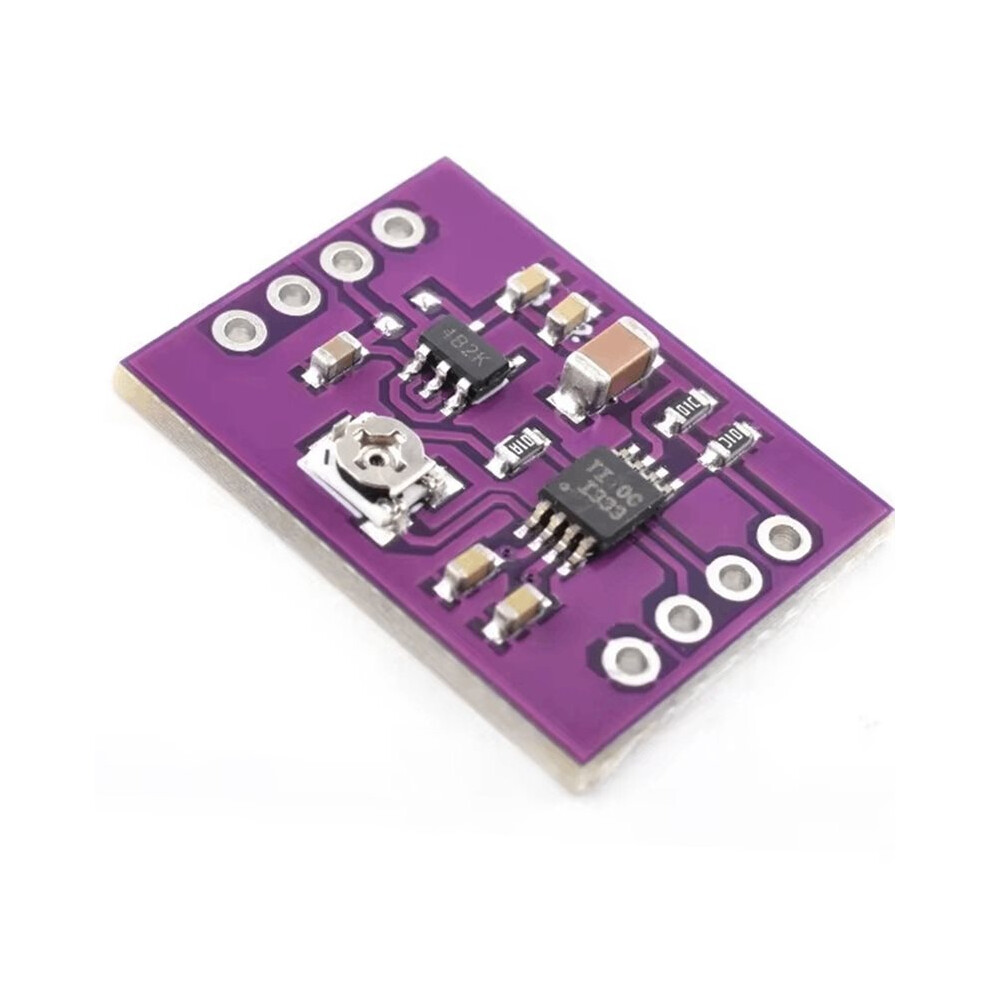

INA333 WCMCU-333 Human Micro Signal Multifunctional Module 3 Operational Amplifier Precision Amplifier Module

INA333 WCMCU-333 Human Micro Signal Multifunctional Module 3 Operational Amplifier Precision Amplifier Module Popis

The INA333 WCMCU-333 is a low-power, high-precision instrumentation amplifier with excellent accuracy.
The gain can be set from 1 to 100 using a single external resistor.
Designed for computer applications, this module enhances signal processing capabilities, ensuring smooth and efficient operation.
Operates efficiently within the INA333 WCMCU-333 temperature range, guaranteeing stable performance under various environmental conditions.
-efficient and safe, with no high-concern chemicals used in its production, making it environmentally friendly.

Input offset voltage: 25 µV (max), G greater than equal 100
Zero drift: 0.1 µV/C, G greater than equal 100
Common-mode rejection ratio: 100 dB (min), G greater than equal 10
Input bias current: 200 pA (max)
Input voltage range: (V-) + 0.1V to (V+) - 0.1V
Output voltage range: (V-) + 0.05V to (V+) - 0.05V
Color: As Shown
Material: PCB

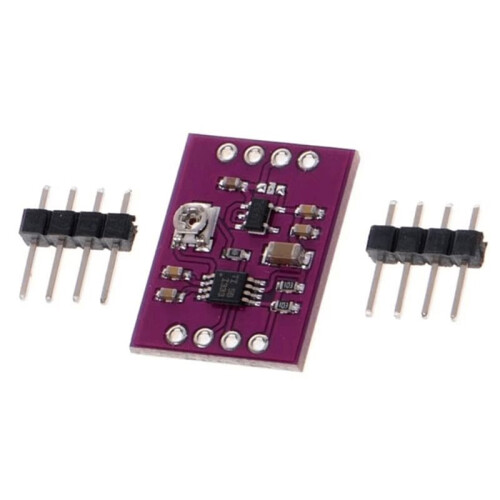

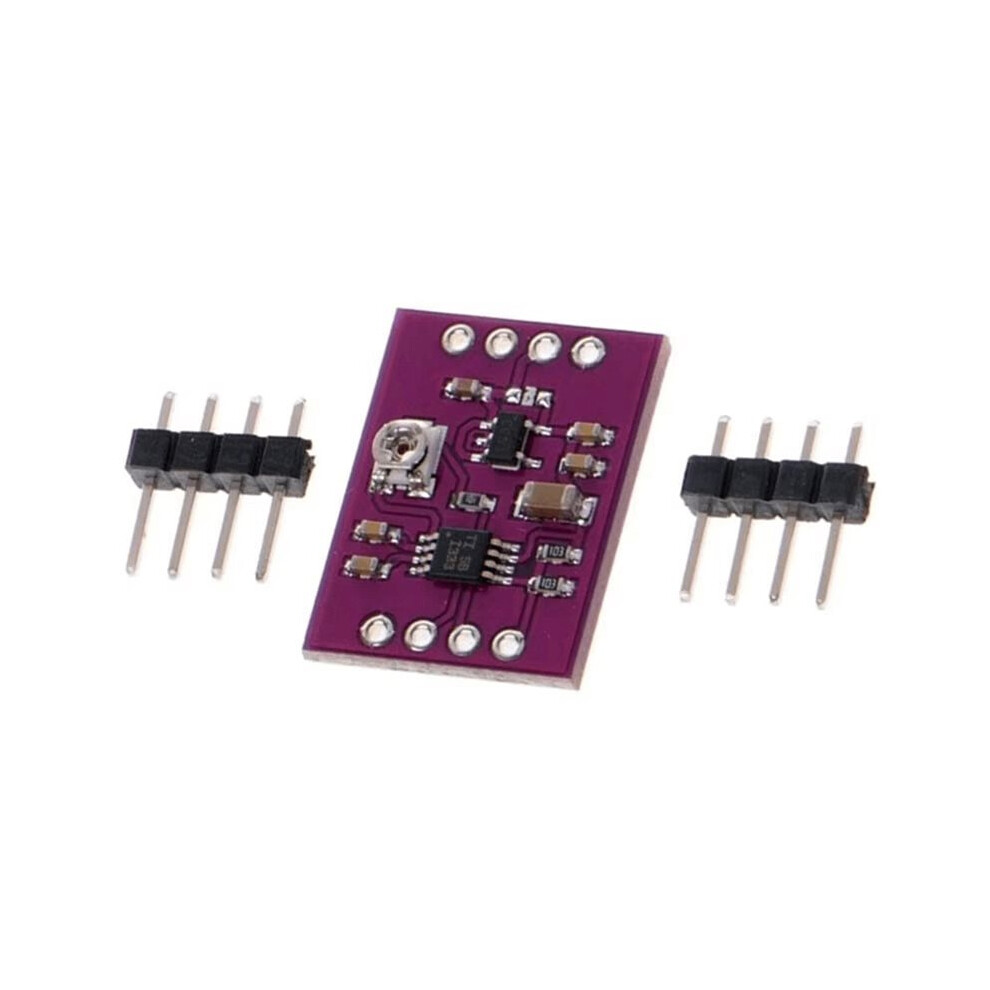

Package Contents:
1* Module
2 *pin headers

Only the above package content, other products are not included.

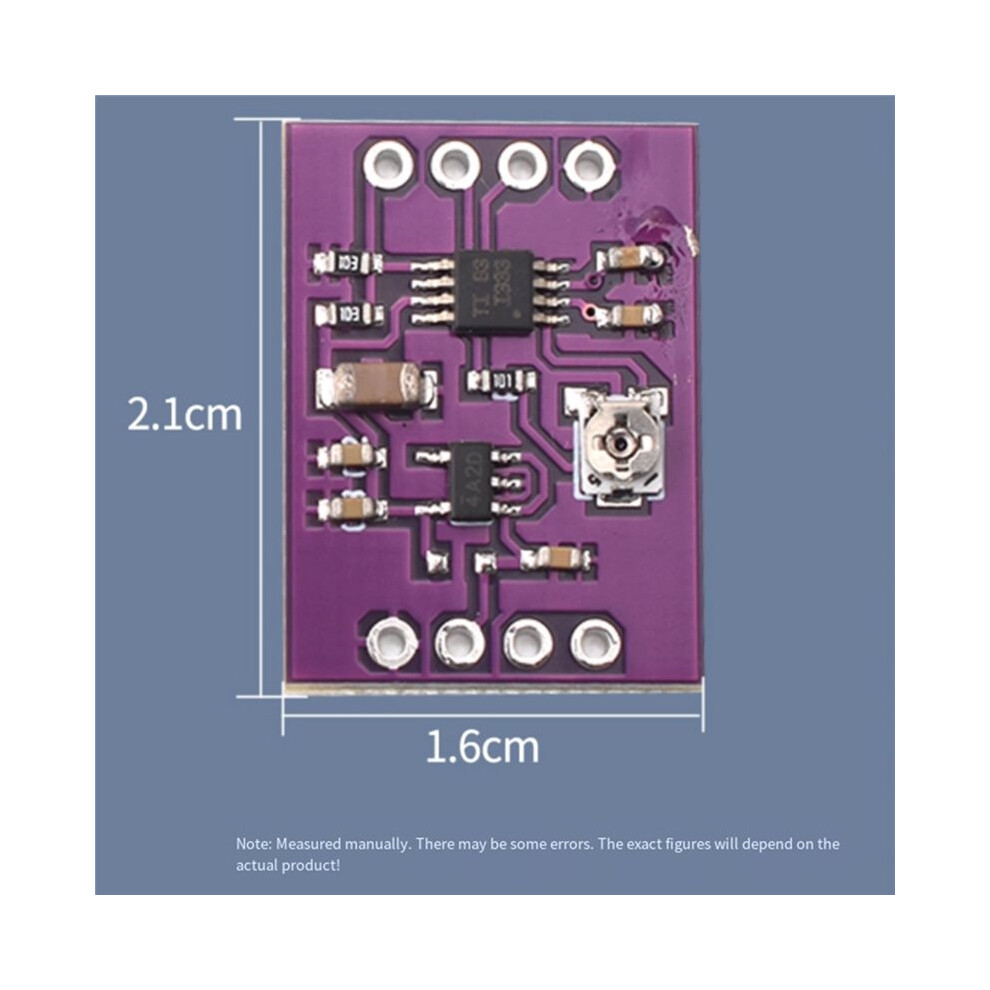

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
