LAN9252 Slave LAN9252 Development Board STM32407 STM32F407 EtherCAT Slave 16IO CIA402

LAN9252 Slave LAN9252 Development Board STM32407 STM32F407 EtherCAT Slave 16IO CIA402 Popis

Color: Black
Material: PC

Important Notice
1. The main site uses the Twincat3 software. To use Twincat, the network card of the computer must be an one.
2. All products will be dispatched after testing and are not eligible for return or exchange.

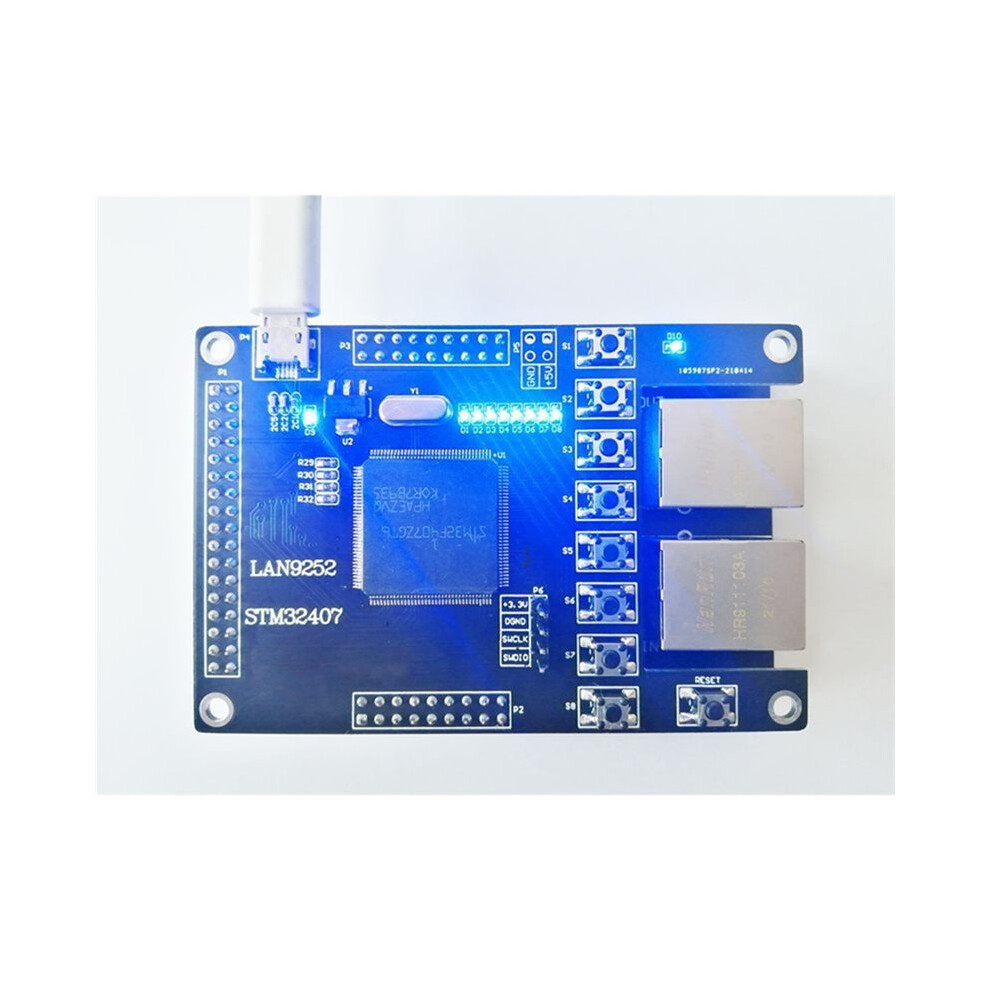

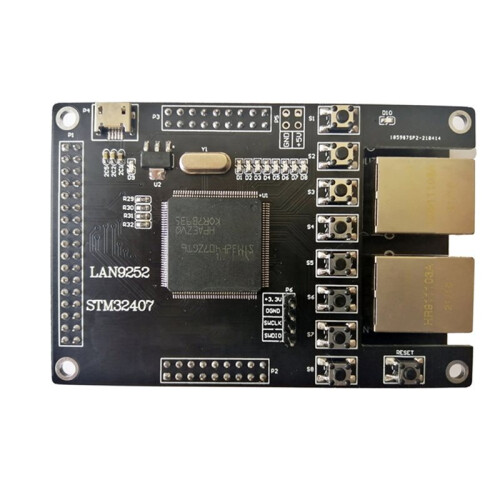

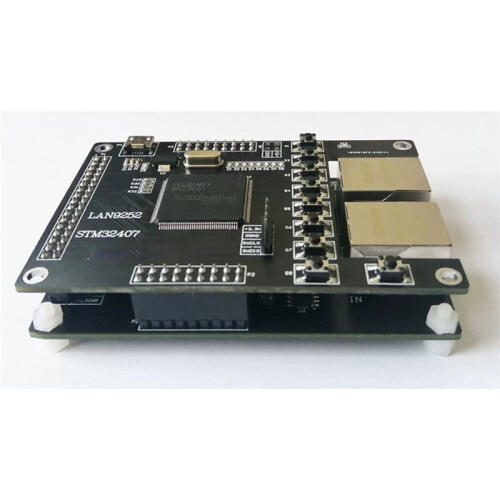

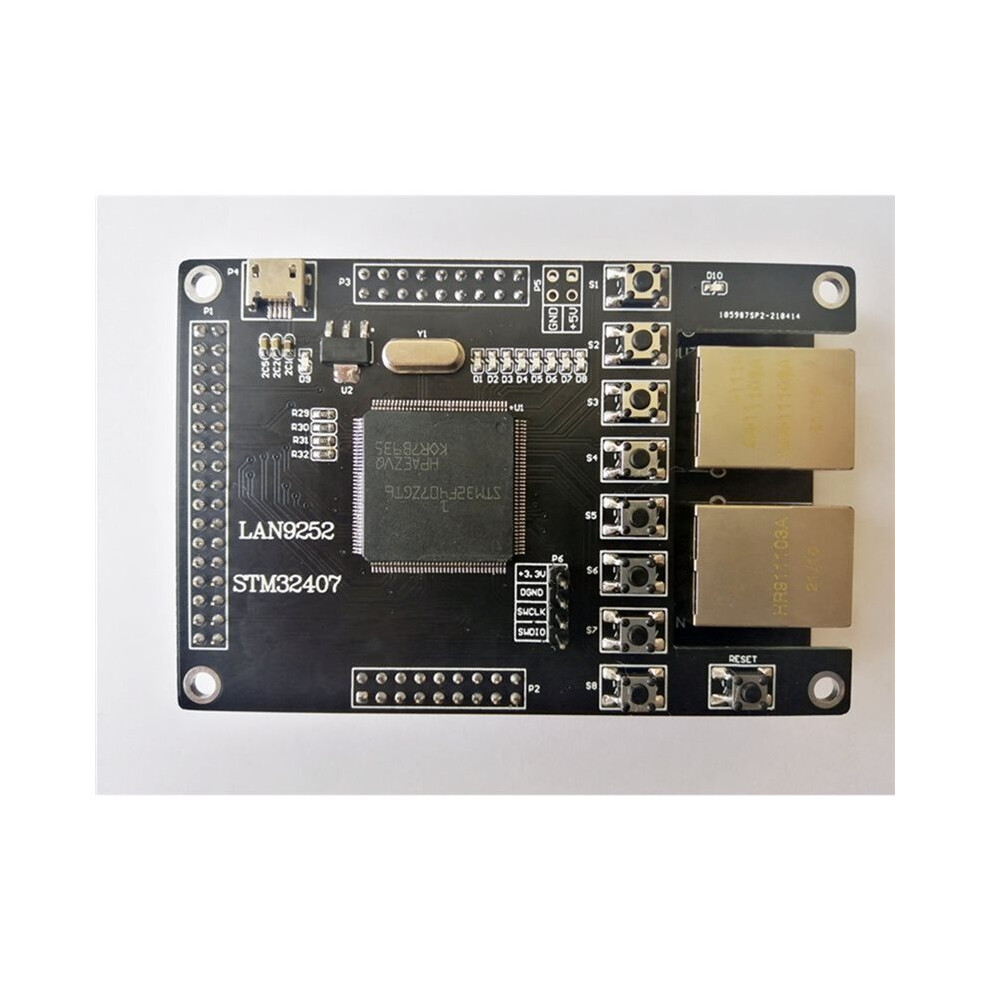

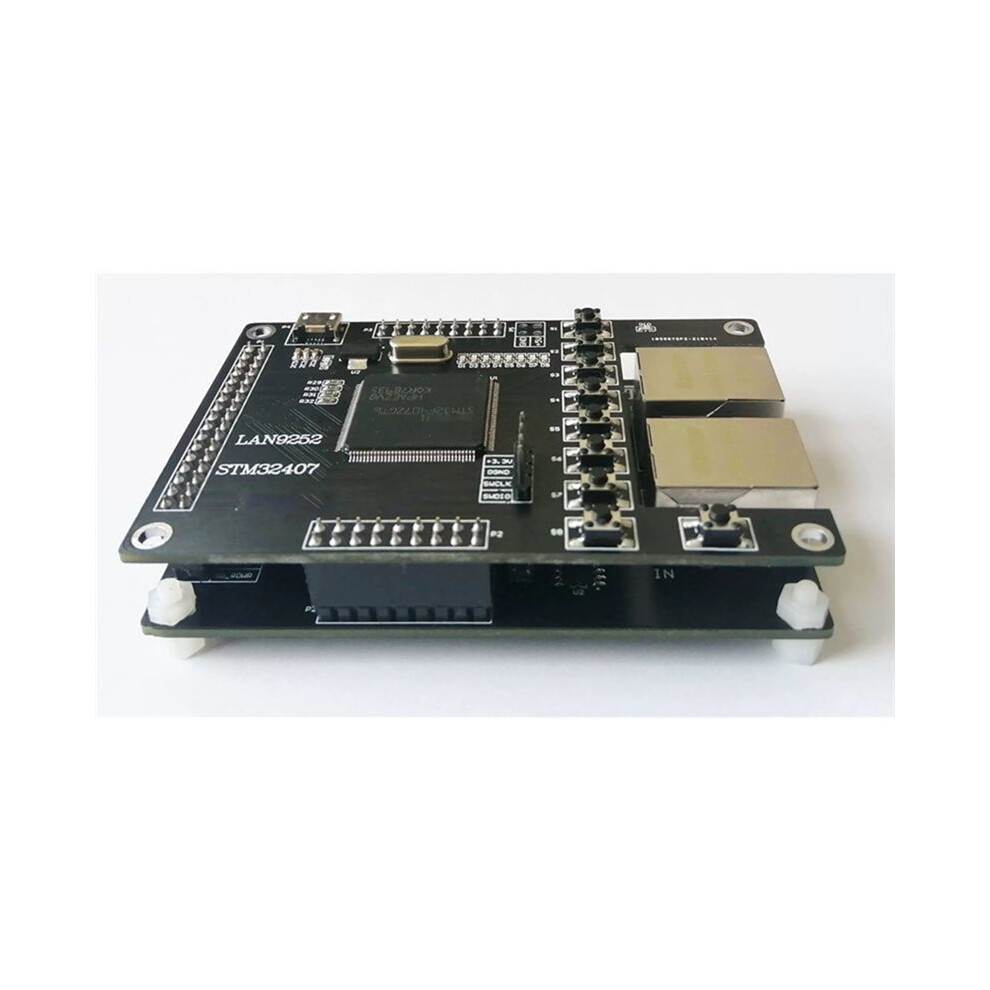

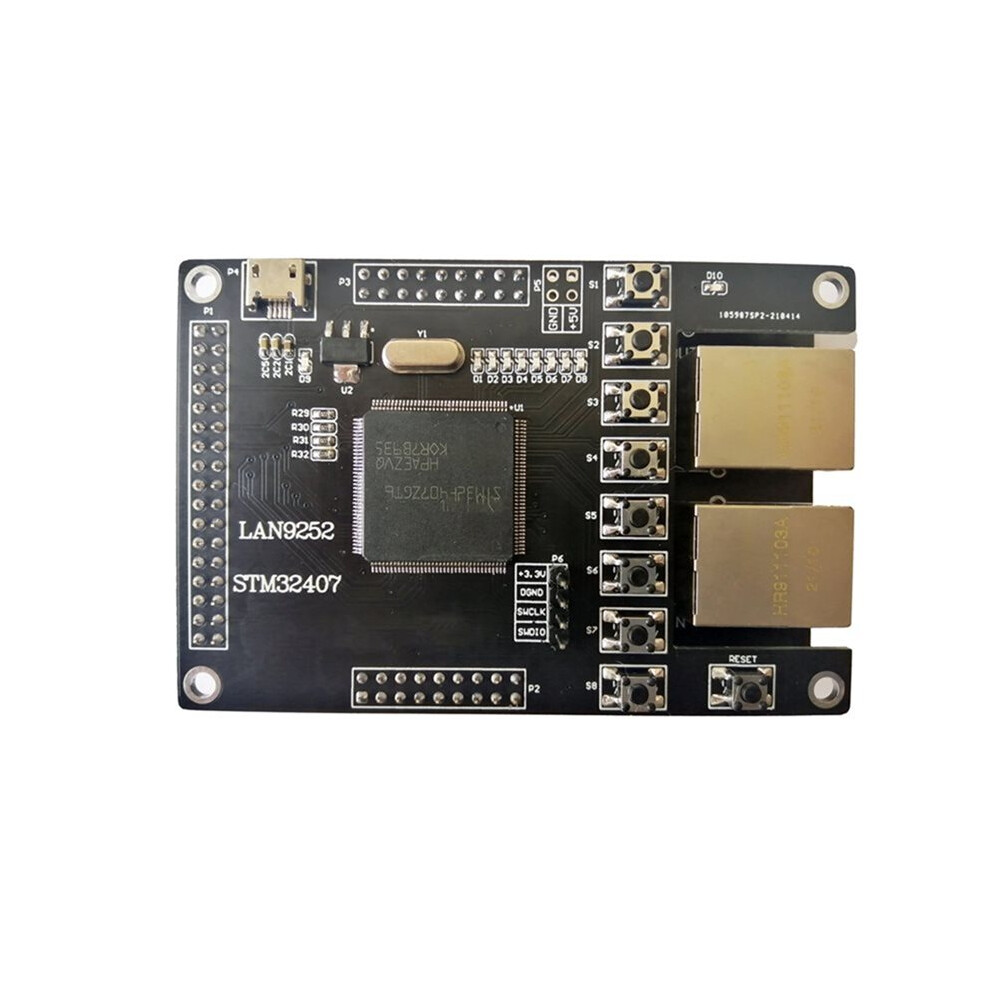

1. For EtherCAT slave development board, STM32F407ZGT6+ LAN9252 architecture.
2. Two communication methods can be used: SPI or FSMC parallel port.
3. All interfaces of LAN9252 are led out, facilitating the connection to different controllers.
4. 8-channel LED display and 8-channel buttons are designed to facilitate communication debugging at the main station.
5. Complete development materials (schematic diagrams, data sheets, master TwinCAT3 software, EtherCAT protocol, SlavestackCodeTool v5.11 slave code generation software, AltovaXMLSpy2013 cracked version slave XML editor, etc.).
6. The routines include CIA402 communication routines, parallel port I0 communication routines, and SPII0 communication routines.
Color: As Shown
Material: PC

Package Contents:
1* Development Board
