LD2417 24G Vehicle Status Sensing Module Vehicle Distance and Speed Millimeter-Wave Sensor 100M Distance

LD2417 24G Vehicle Status Sensing Module Vehicle Distance and Speed Millimeter-Wave Sensor 100M Distance Popis

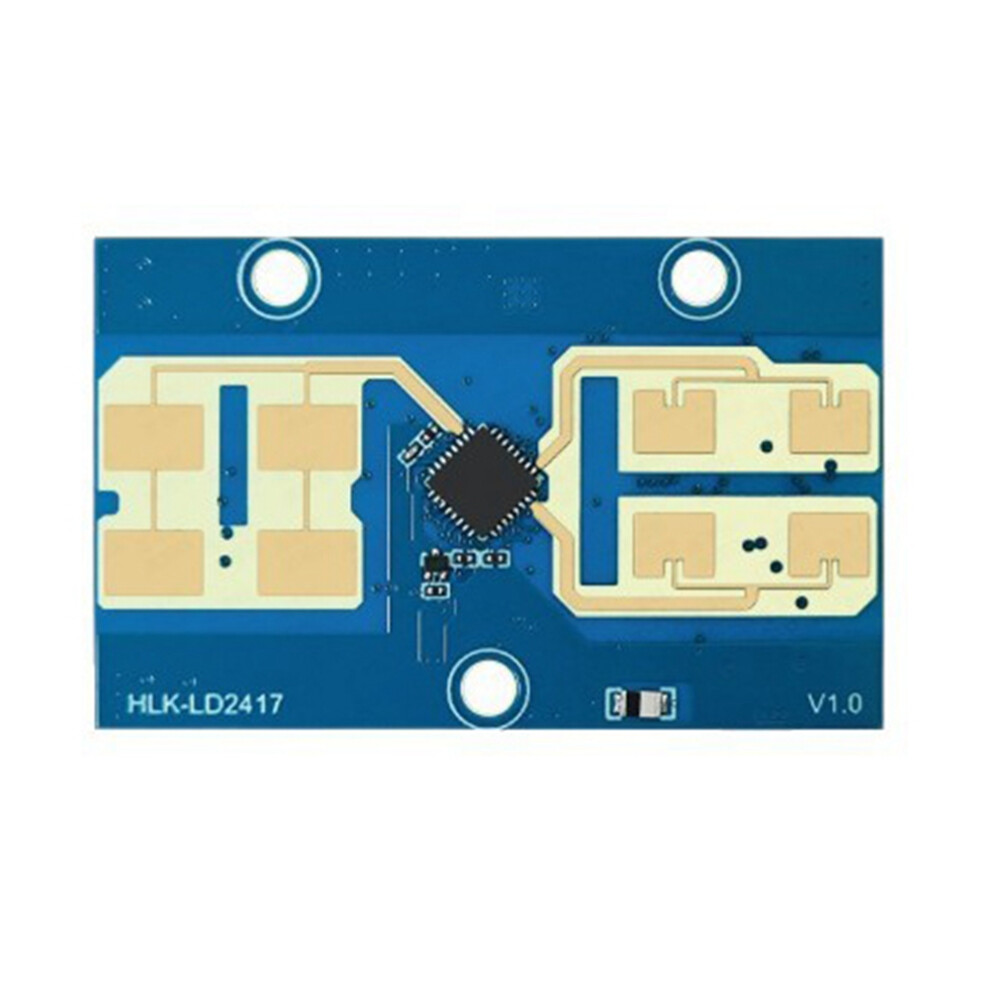

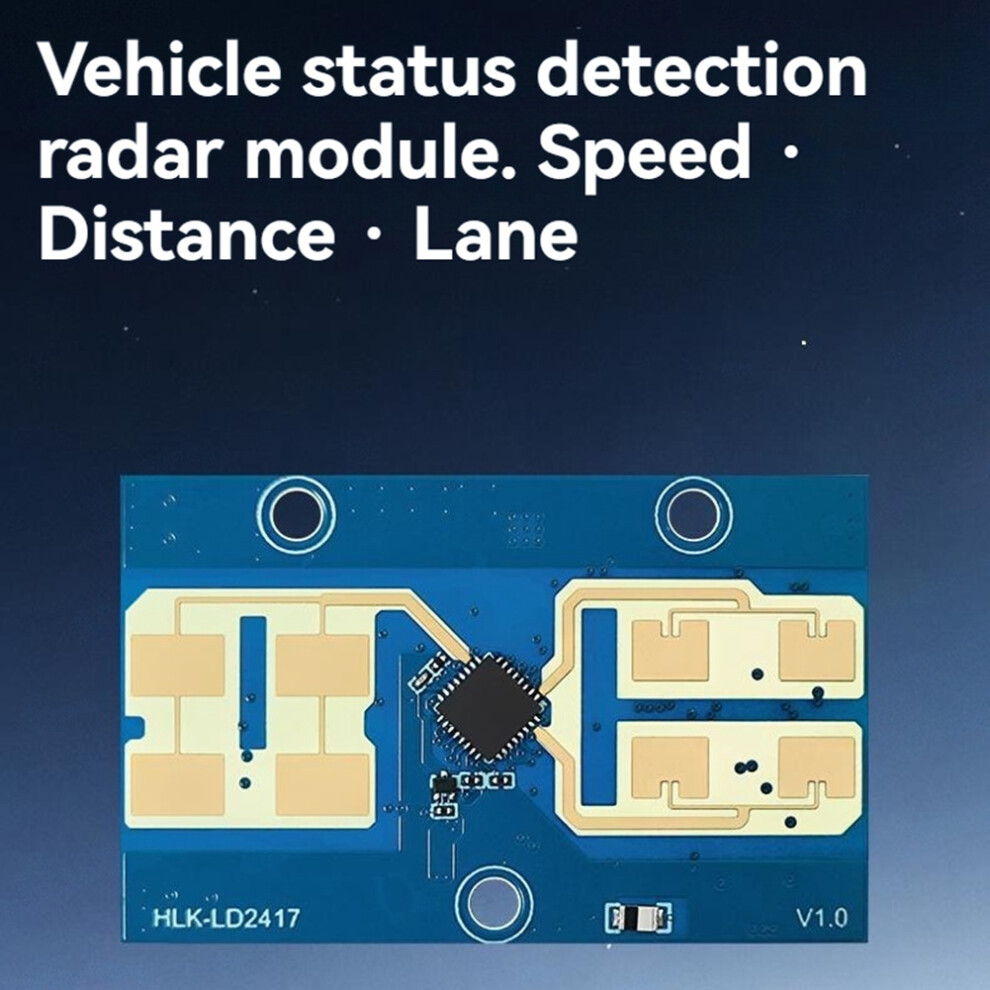

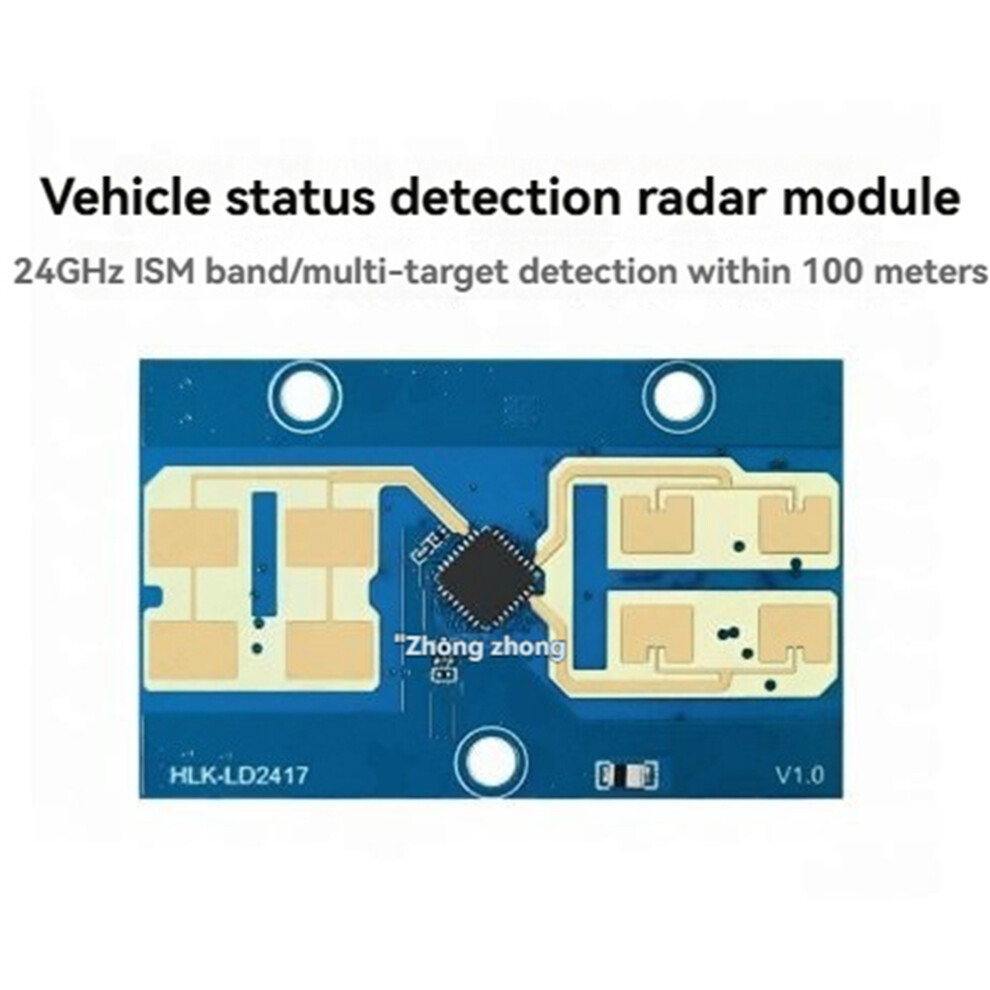

The LD2417 is a high-sensitivity 24GHz mobile vehicle status sensing module. It can detect auxiliary information such as the speed, distance, and of approaching vehicles within its detection range.
Its main applications include highway intersections, non-motorized vehicle lanes, motorized vehicle lanes, and intelligent driving scenarios, enabling the detection of the status of following vehicles.
Operating Frequency Band: 24GHz~24.25GHz
Power Supply Requirements: 5V~12V, power supply capacity > 300mA
Note: It is recommended to use an independent power supply. If the voltage is lower than 4.8V, it will not start.
Average Current: 40mA (12V power supply)
Modulation Method: FMCW

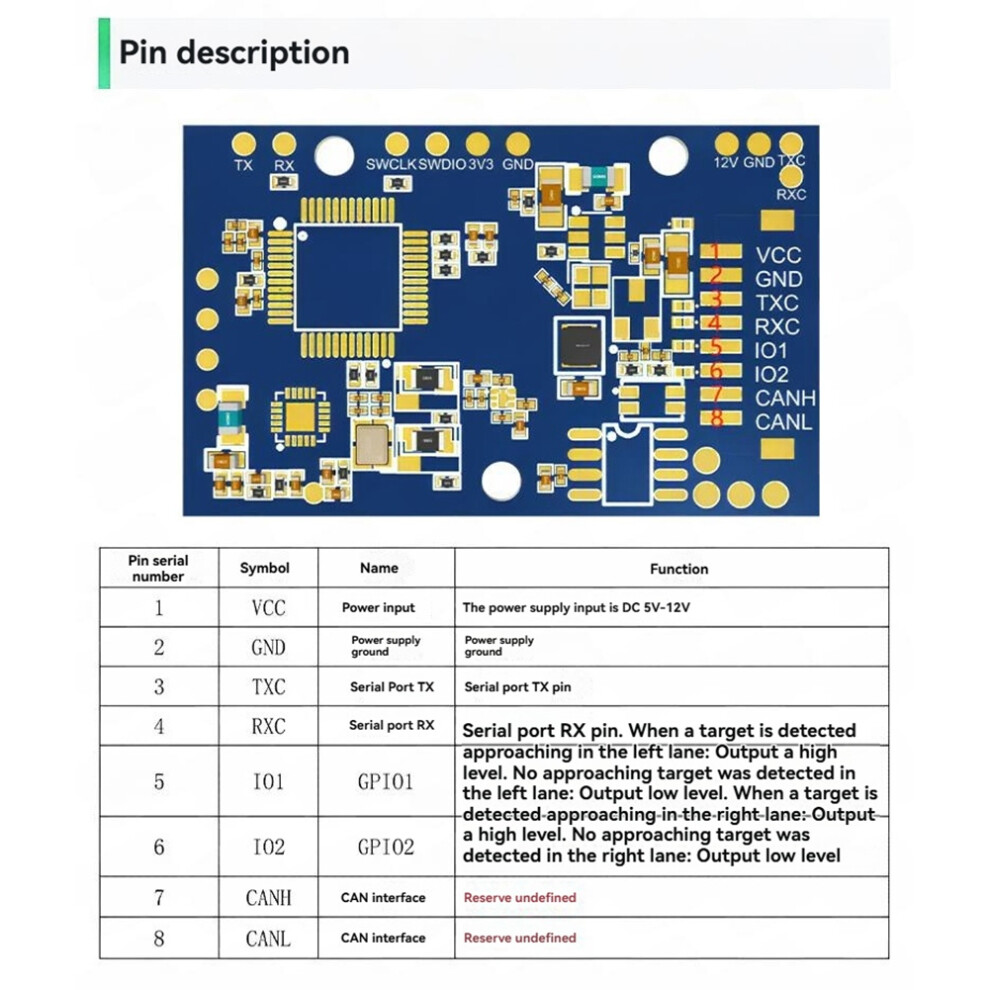

Interfaces: 2 GPIOs, IO level 3.3V, 1 UART, 2 CAN (reserved, undefined)
Target Application: Outdoor vehicle target detection
Detection Distance: Maximum detection distance: 100m for cars, 70m for electric vehicles
Note: Frame loss may occur at distances exceeding 50m.
Detection Angle: 60 horizontally, 20 vertically
Sweep Bandwidth: 250MHz
Operating Temperature: -40~+85
Dimensions: 40*25mm
Color:
Material: PCB

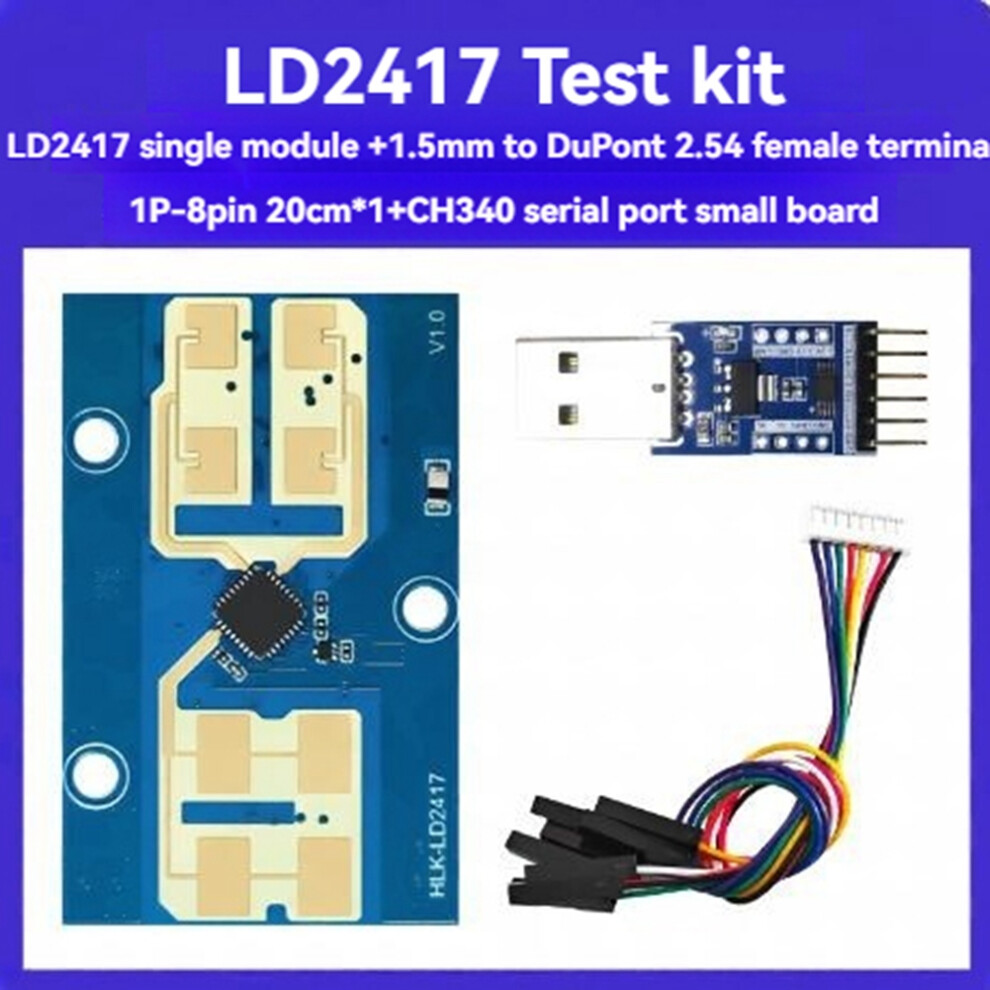

Package Contents:
1* Module
