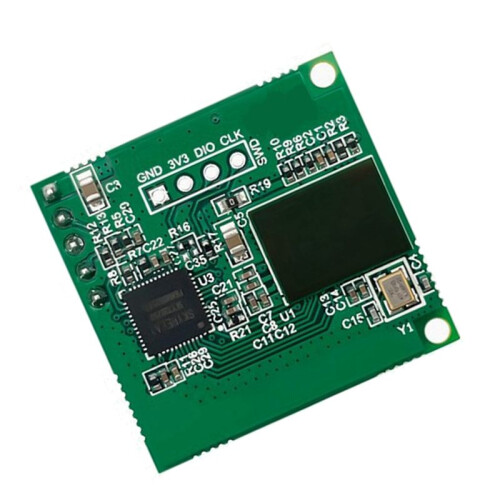

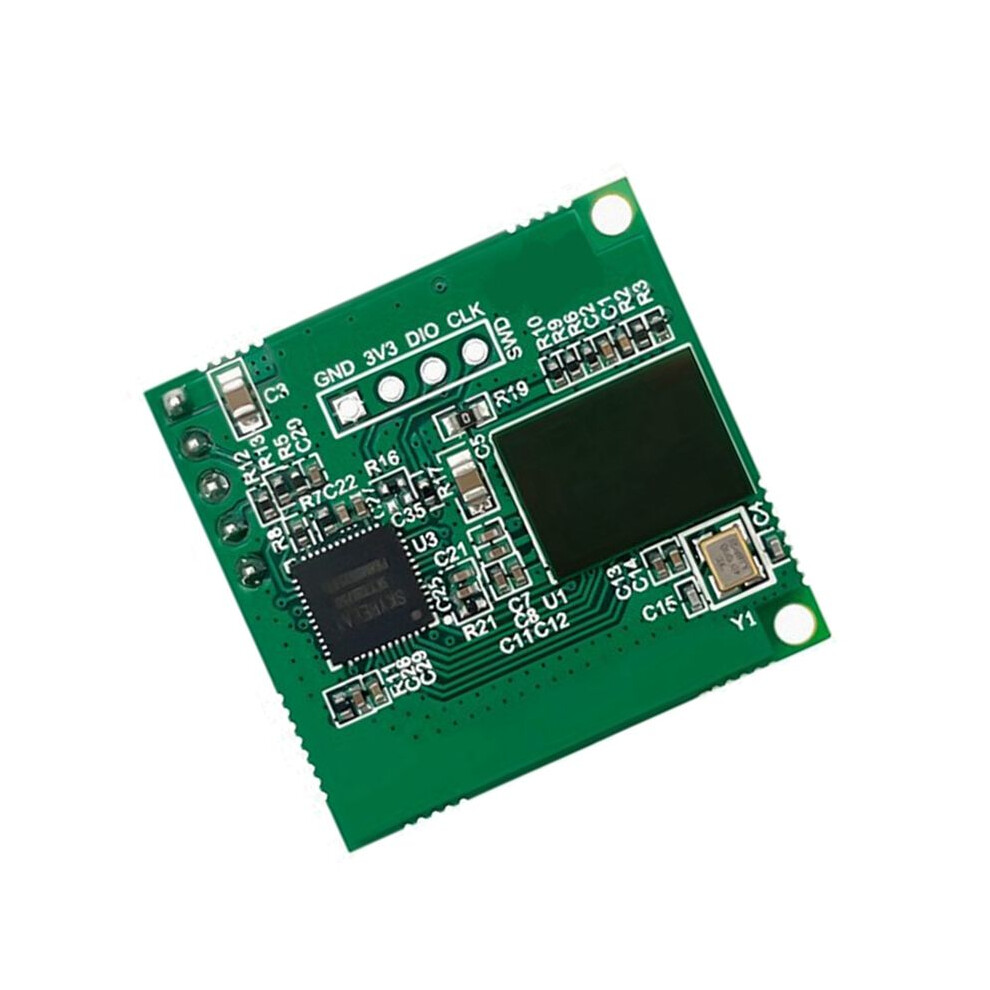

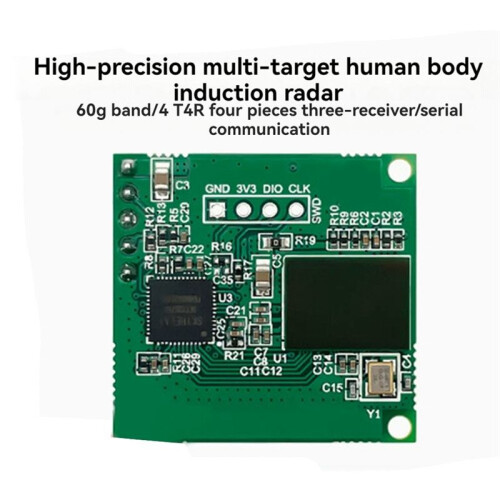

LD6001A 60GHz MmWave Sensor Module 4T 4R Low Power Consumption Human Presence Sensor Module

LD6001A 60GHz MmWave Sensor Module 4T 4R Low Power Consumption Human Presence Sensor Module Popis

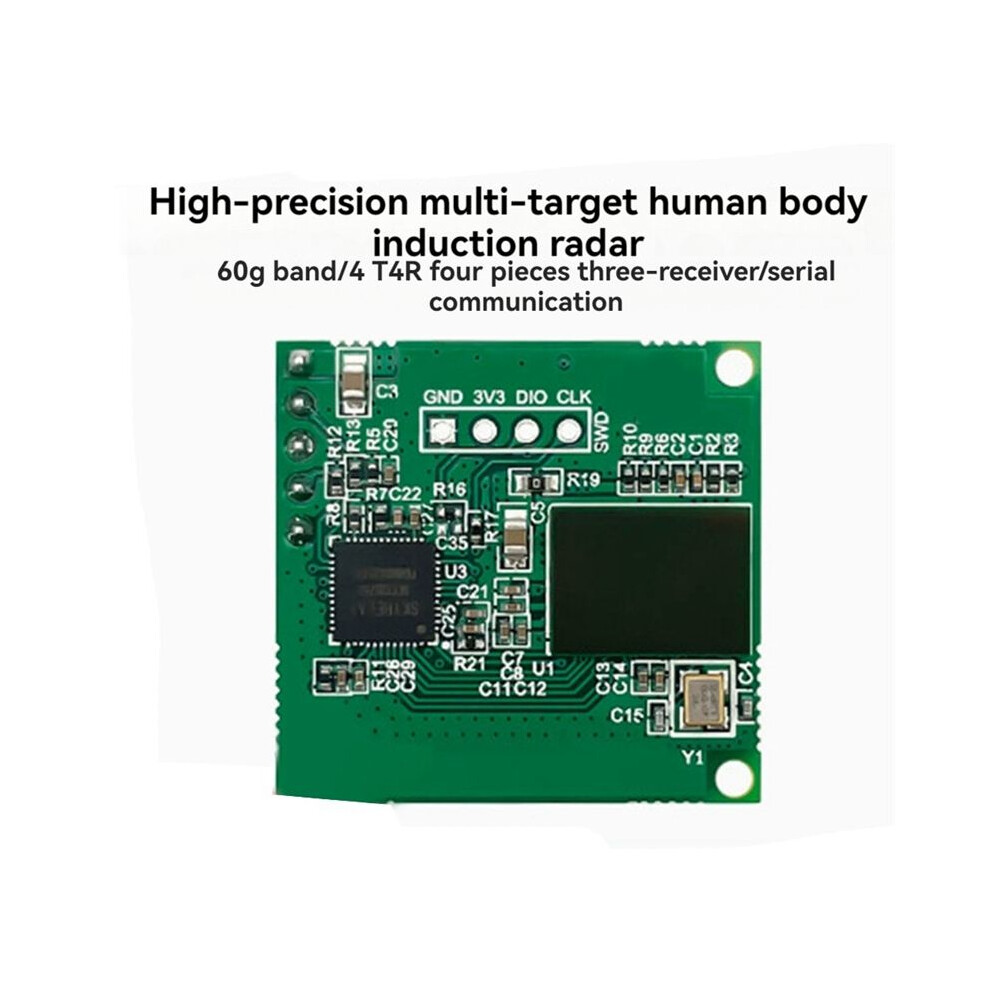

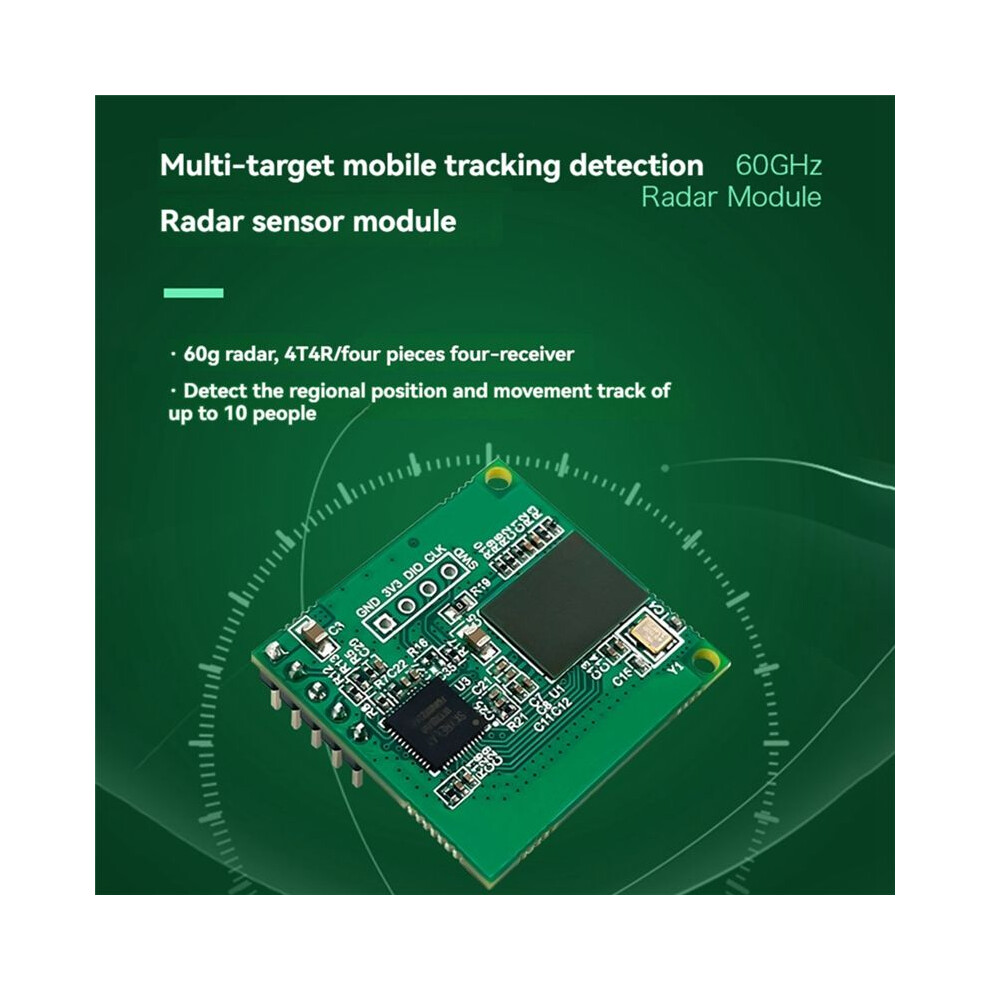

LD6001A is a high-performance 60GHz mmWave sensing module. Compared with traditional visual, infrared, laser and other sensing methods, millimeter-wave is not affected by light, and can realize non-sensing active sensing and monitoring of indoor personnel all day long, with personal privacy protection function.
The product uses chips, which are autonomous and controllable. At the same , it can detect people in static states such as reading and sleeping, and can suppress interference from curtains, green plants, etc.

Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
Frequency: 60GHz (60-64GHz)
Modulation mode: FMCW

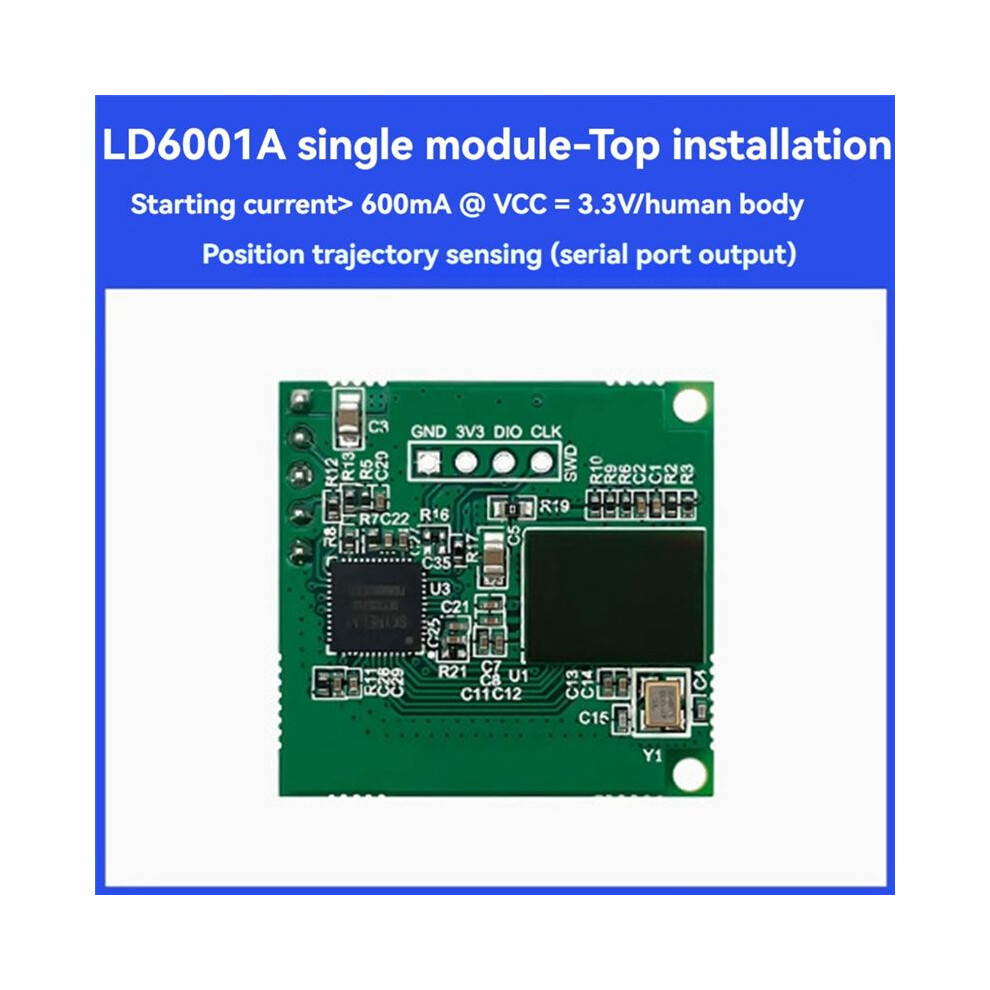

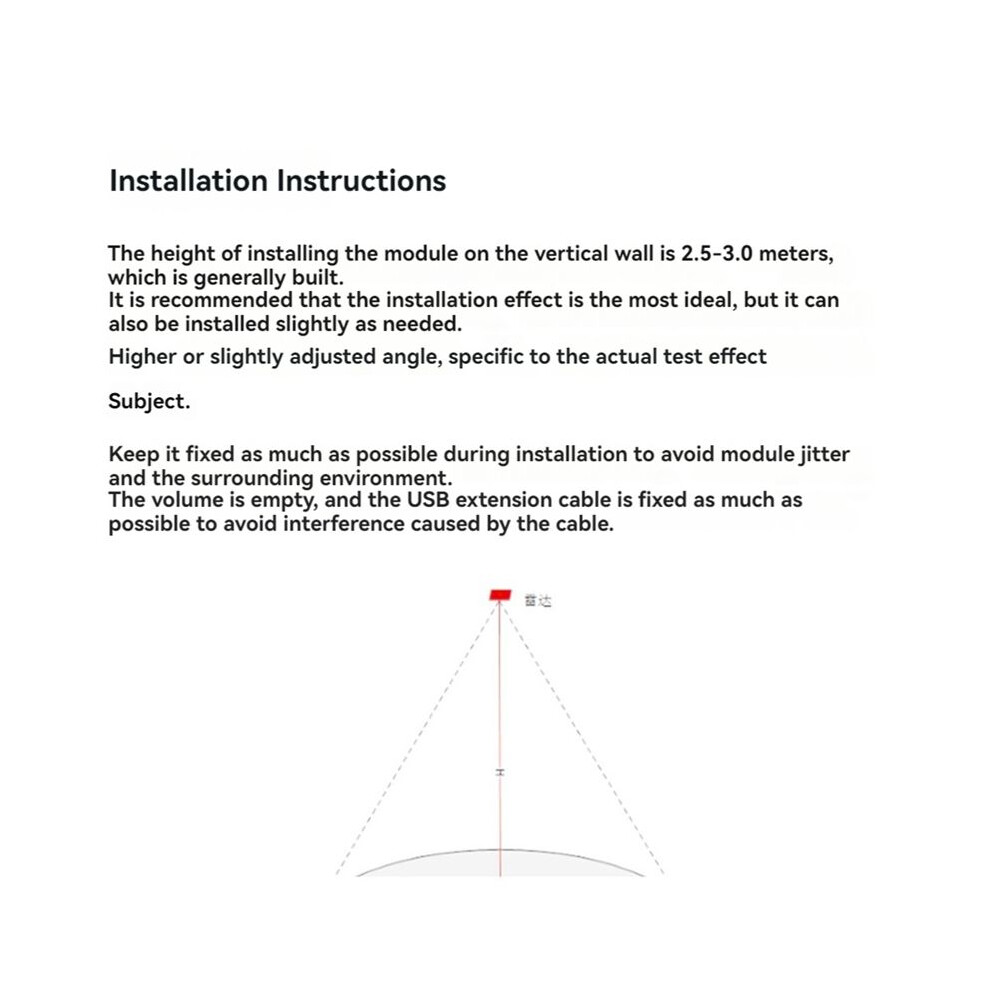

Installation method: Top installation recommended

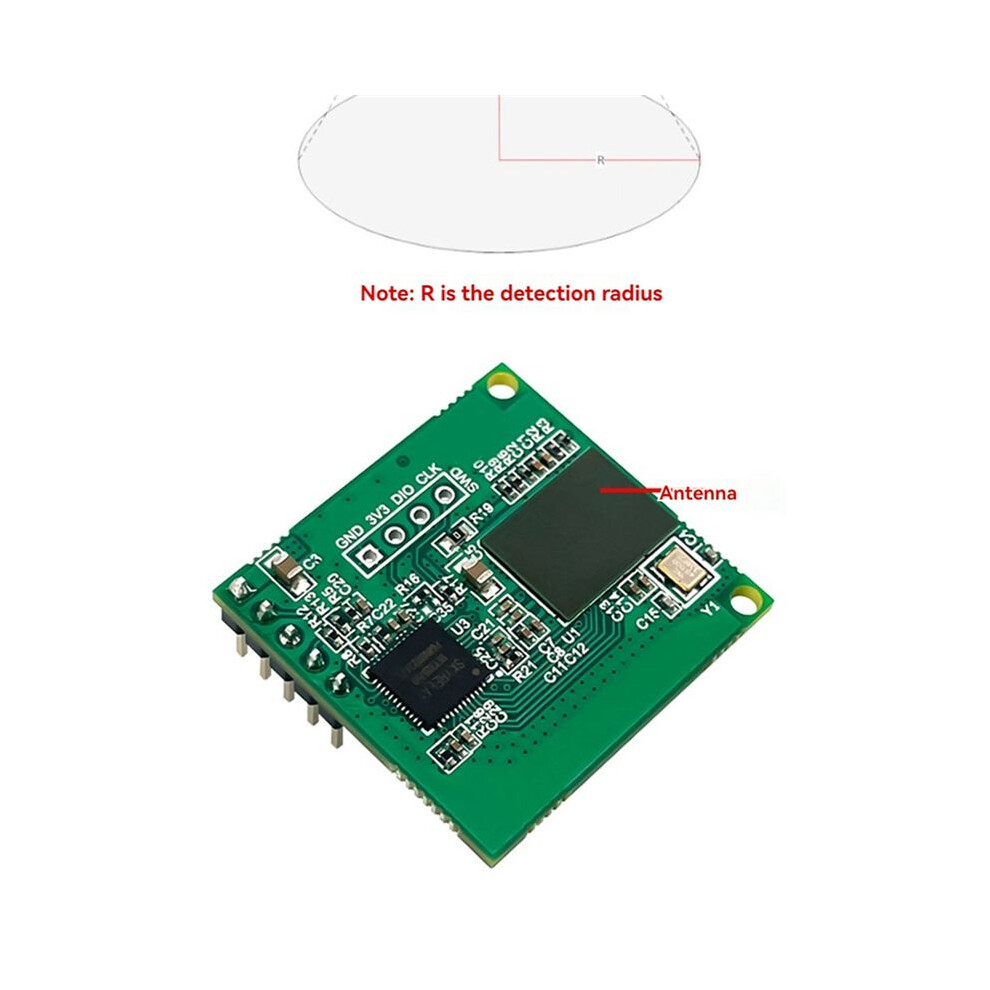

Detection distance: 0.5-8m (effective projection ground radius 3.5m installation height 2.7m)
Coverage angle: 60
Working voltage: 3.3V
Average power consumption: 0.3W
power consumption: 1.7W

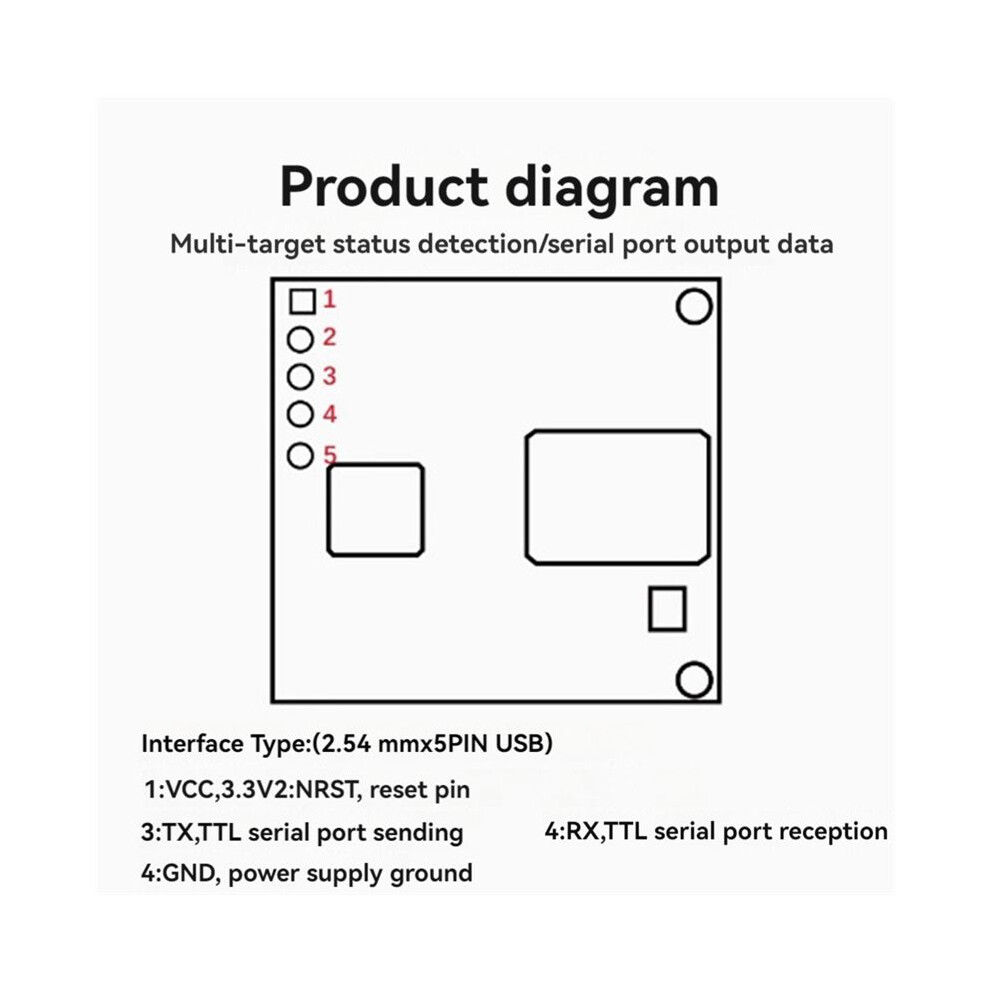

Communication method: TTL serial port
Processing cycle: less than equal 30ms
Colour:Green
Material:PCB

Package Contents:
1x Module
