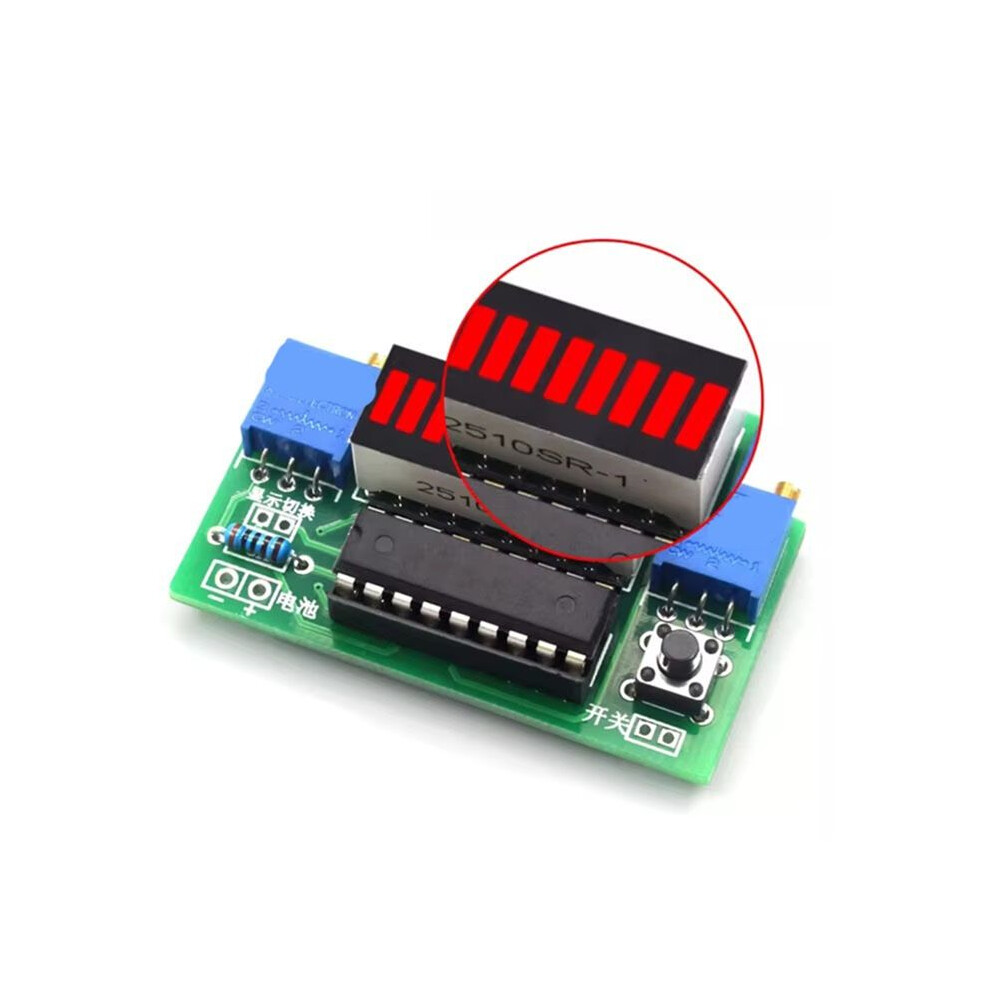

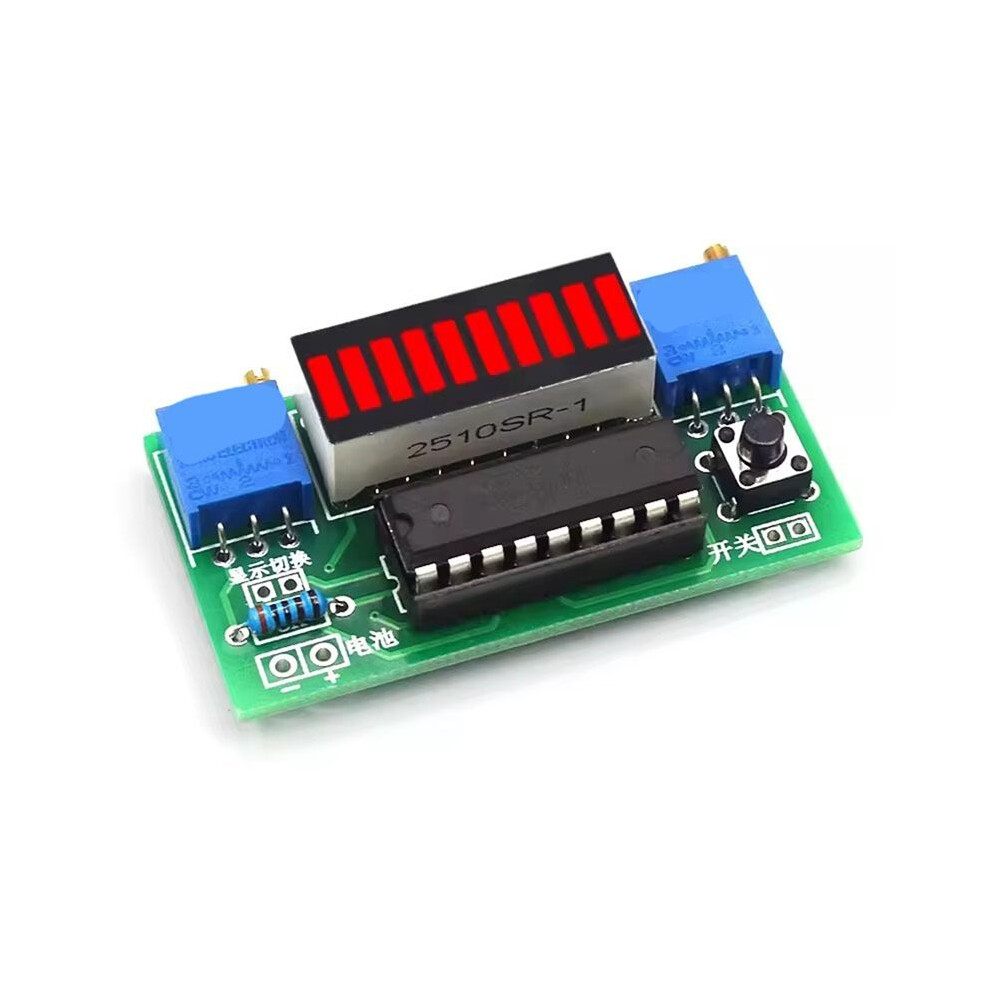

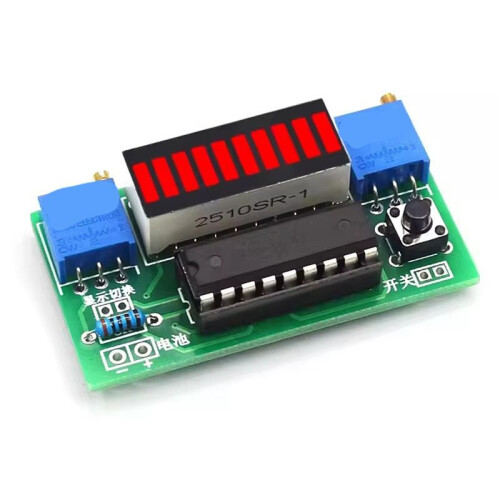

LM3914 10 Segment 3.7V Lithium 12V Battery Capacity Indicator Module Power Level Tester LED Display DIY Kits

LM3914 10 Segment 3.7V Lithium 12V Battery Capacity Indicator Module Power Level Tester LED Display DIY Kits Popis

1. It has high precision LM3914 analog voltage detection, users can accurately know the remaining battery power.
2. The power display range is adjustable, and the display range can be adjusted according to the battery power.
3. LED power indicator light, clear at a glance.
4. Suitable for lithium batteries, lead-acid batteries and other batteries, widely used.
5. The power display tester is simple to test and easy to use.

Parameter:
Power consumption: bar display full brightness 42ma, single lamp display 4ma
Measuring range: battery in general 2.4-20v
Display mode: multi-light bar display or single lamp dot display
Size: 50x25mm
Tips for use(One side of Nixie tube with words is a positive plate):
1. Adjustment sequence is to adjust the high-end voltage first and then adjust the low-end voltage. Repeat several times for accurate display.
2. Lower voltage display adjustment: When connecting to the lower limit voltage, turn counterclockwise if not lit, and clockwise if lit several or all lit. Adjust it to just lit one or none lit.
3. Upper voltage display adjustment: When connecting to the upper limit voltage, turn clockwise if not lit or lit several, and counterclockwise if all lit. Adjust it to just lit one or all lit.
Note: due to different production batches, the printed characters are different, which does not affect the use.
Colour:As Shown
Material:plastic+metal

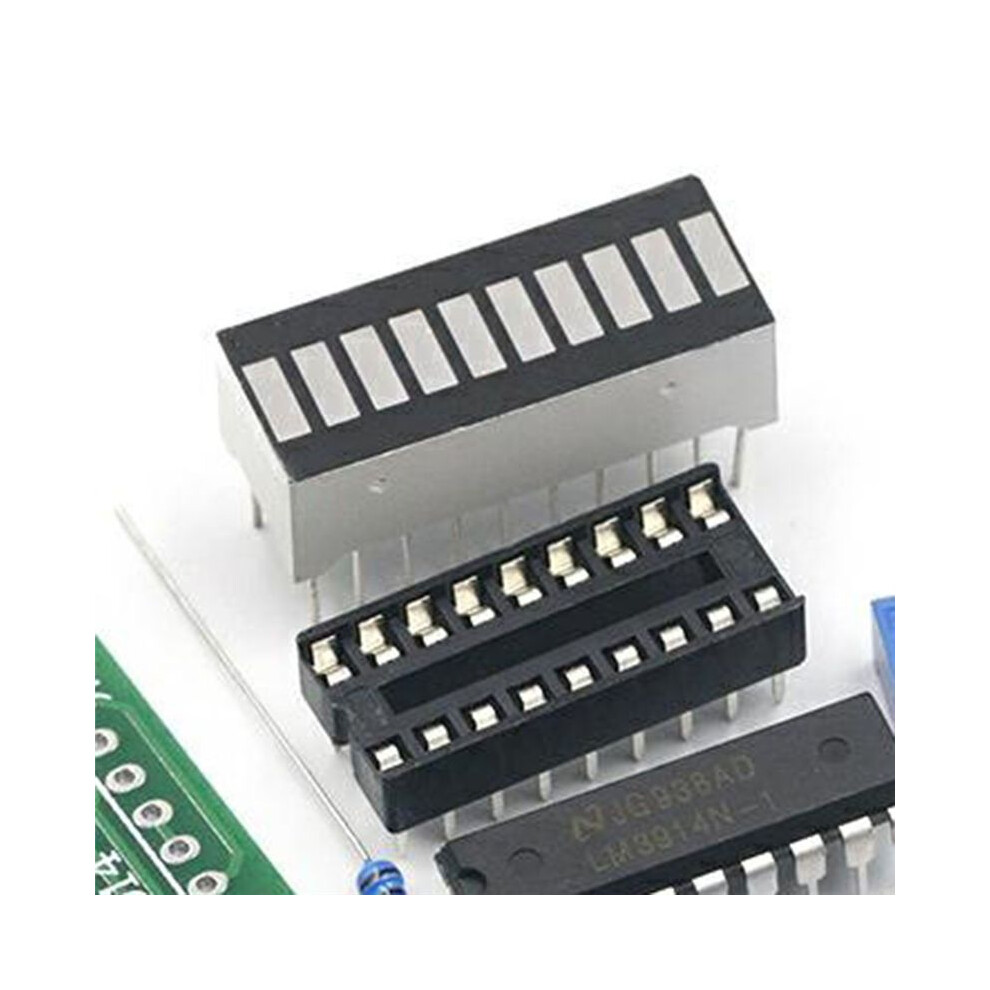

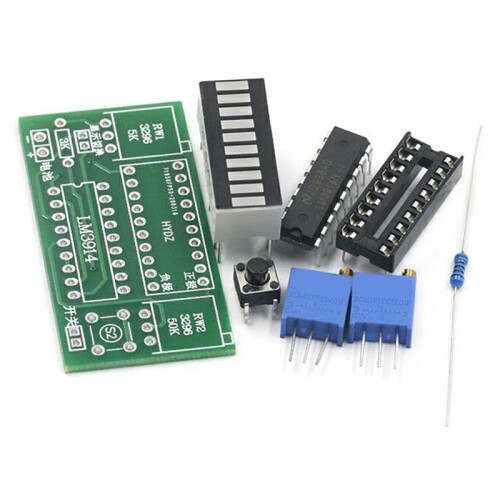

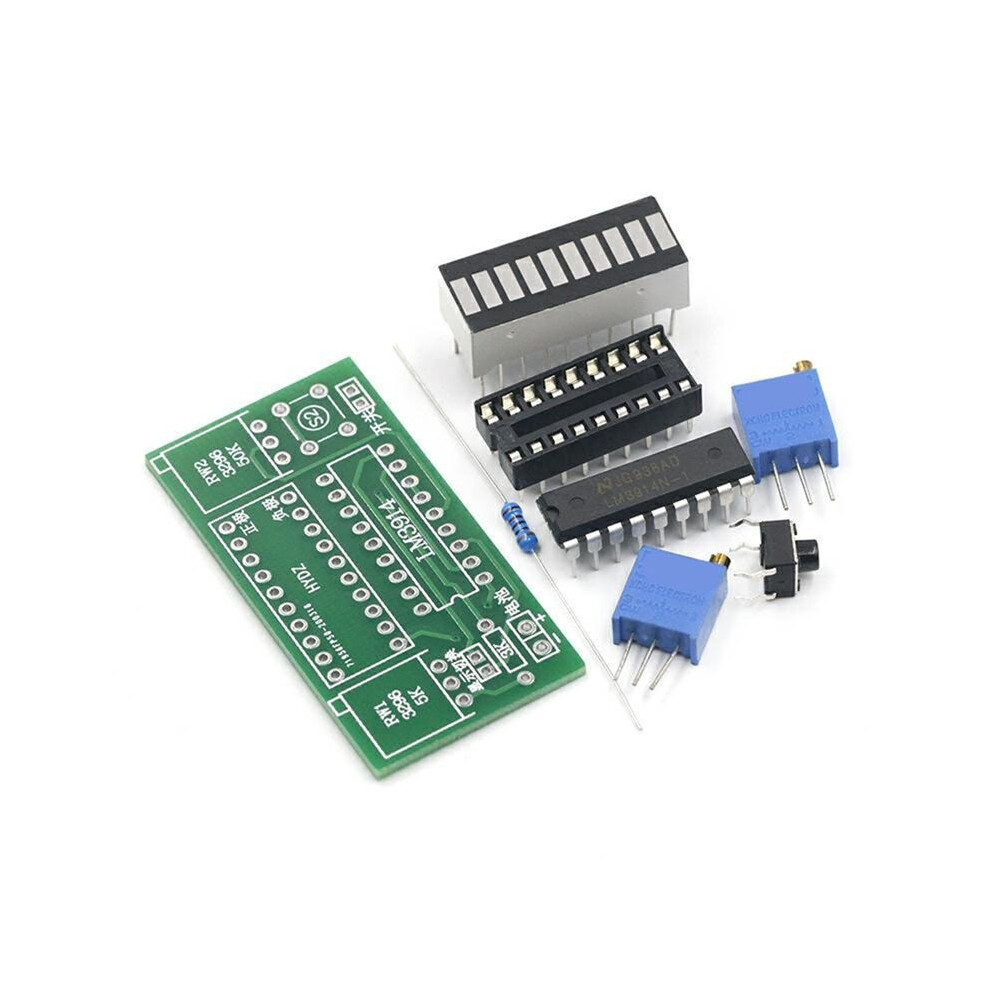

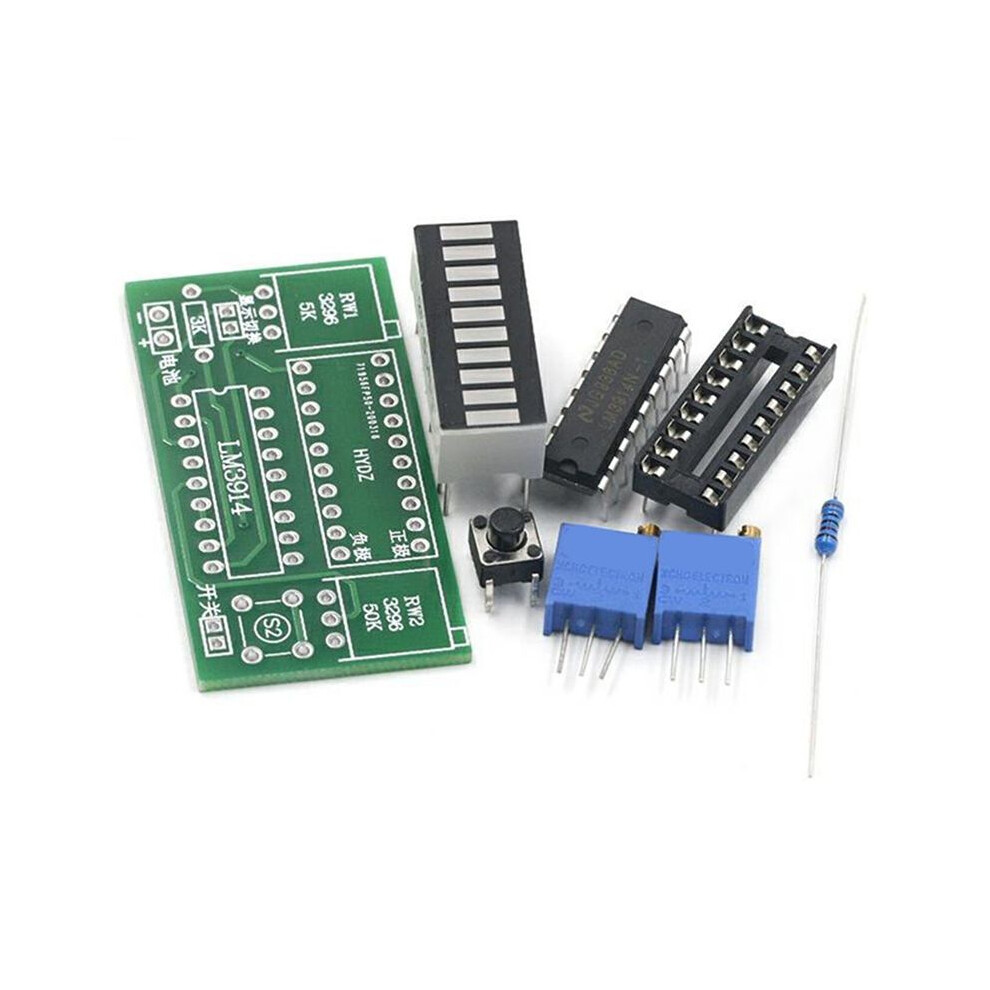

Package Contents:
1 * Battery Capacity Indicator Module
