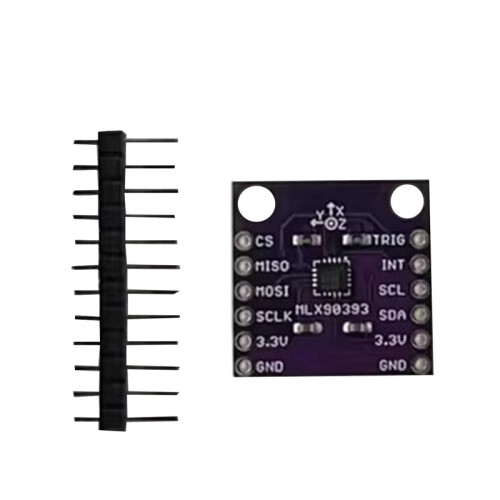

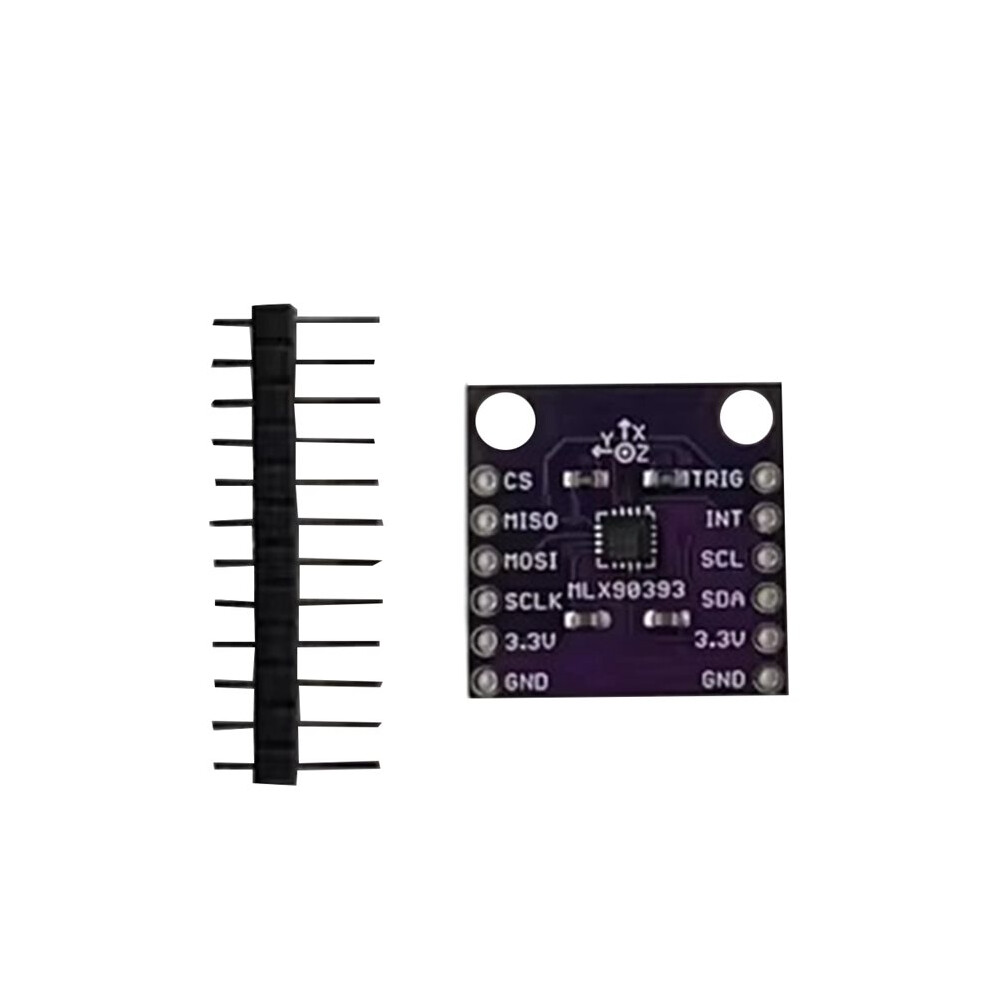

MLX90393 Three Digital Hall Sensor 3D Position Rotational Angle Displacement Sensor Board Contactless

MLX90393 Three Digital Hall Sensor 3D Position Rotational Angle Displacement Sensor Board Contactless Popis

The MLX90393 is an ultra-small, multi-functional, general-purpose, non-contact 3D Hall sensor designed for consumer applications; it can measure linear displacement, angular rotation, and 3D position detection.


The MLX90393 offers both I2C and SPI outputs.

MLX90363 Features and Advantages:

1. Ultra-small QFN 3*3mm package, not limited by customer structural requirements;

2. 16-bit AD/highly integrated digitization, low power consumption;

3. Wide operating voltage range of 2.2~3.6V;

4. I2C & SPI (10MHz) outputs;

5. XYZT (selectable) 3D absolute position output;

6. Direct communication with MCUs, very simple applications;

7. Low-cost integrated design; can replace potentiometers, joysticks, etc.; remote controls, VR, PSPs, etc.; widely used in consumer electronics industries such as gaming, remote control, and direction control.
Color: As Shown
Material: PCB

Package Contents:
1*Module
