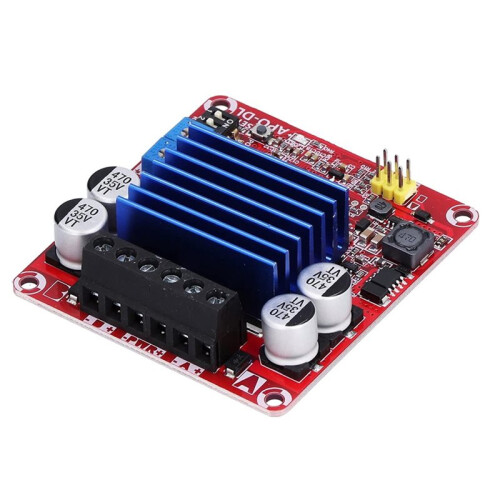

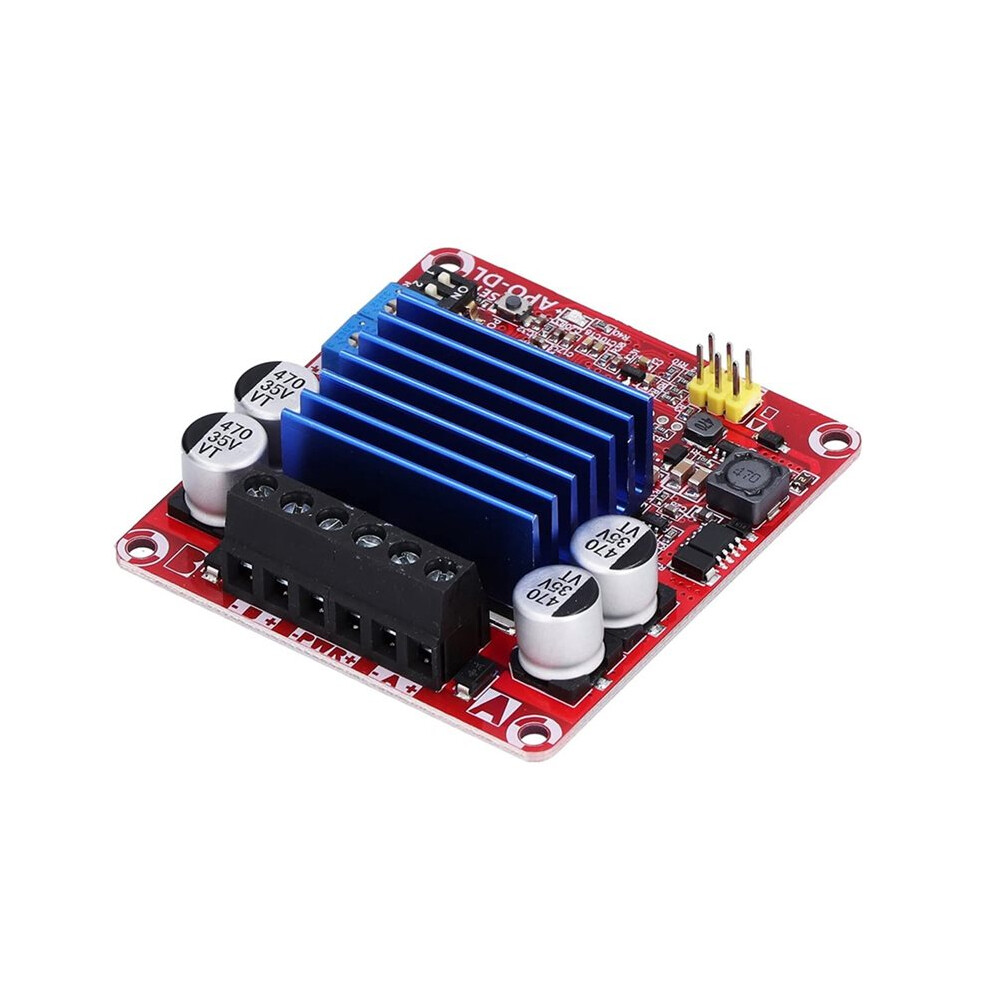

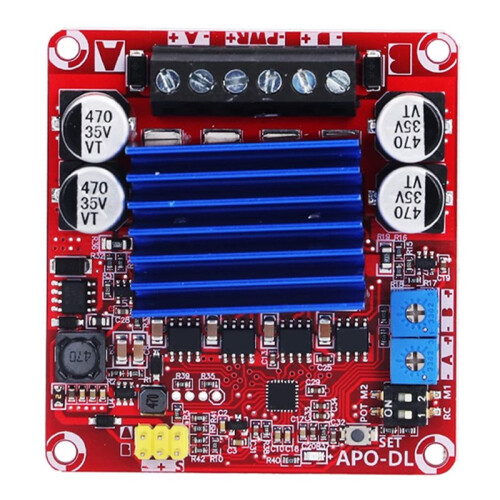

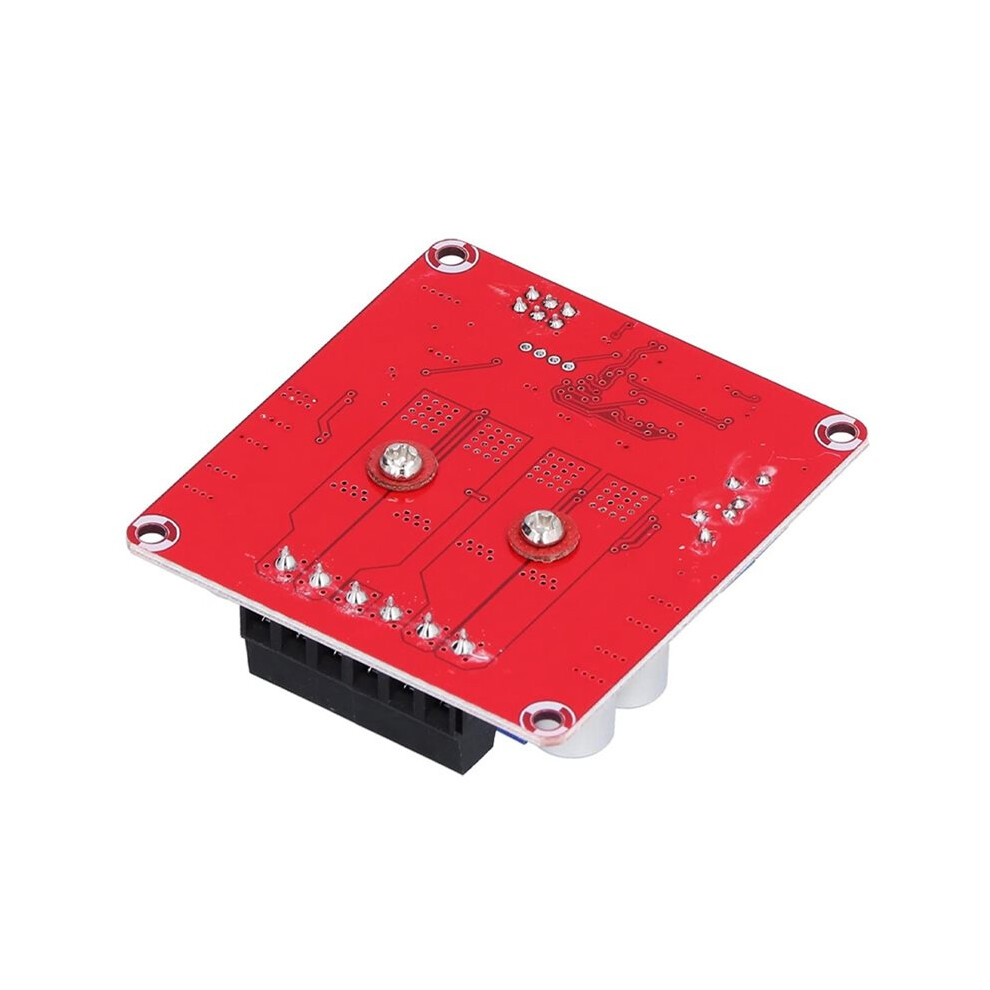

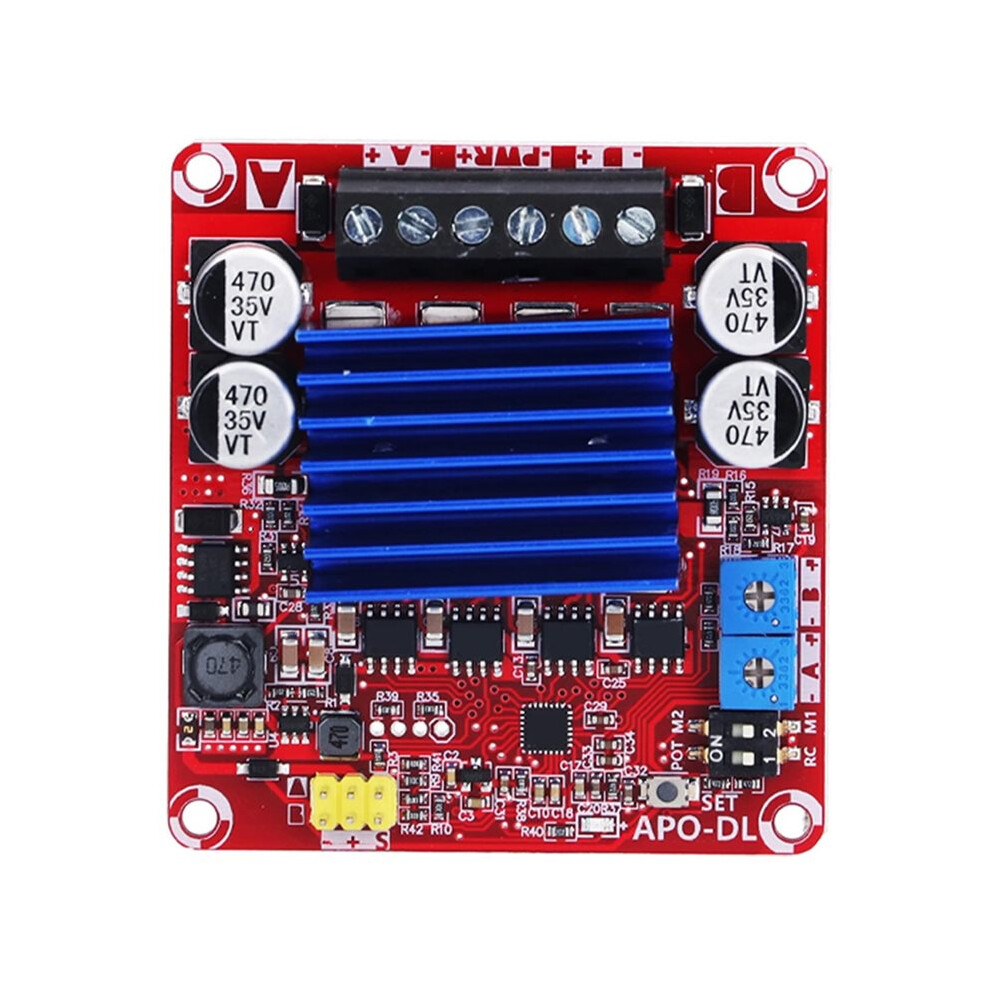

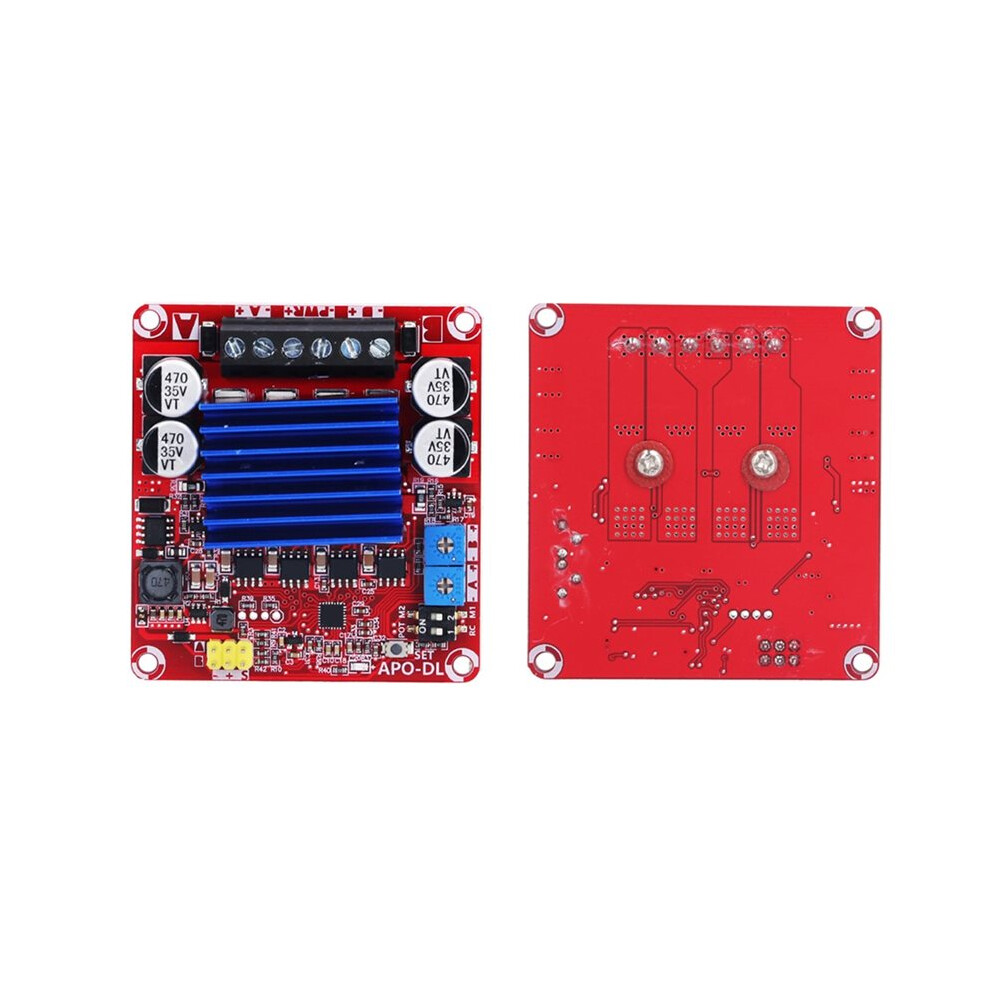

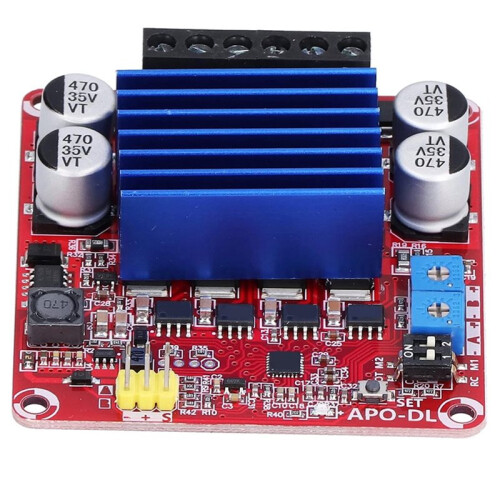

Motor Drive Board Dual‑Channel ESC Control Module Electronic Accessory 7‑24V for Model ESC/ Car

Motor Drive Board Dual‑Channel ESC Control Module Electronic Accessory 7‑24V for Model ESC/ Car Popis

Versatile Motor Control: This board is ideal for controlling motor speed and balance, adjusting ESC potentiometers, and managing the direction (CW/CCW) of brushed motors.
Compact and Portable: Designed with portability in mind, this motor drive board is both small and . It's easy to carry and can be used anywhere, making it a practical solution for -the-go adjustments and installations in various settings.
Broad Application Range: Suitable for dual-motor drives in tracked vehicles, mixed tracked and wheeled vehicles, and hollow cup motor speed regulation. This board provides a versatile solution for various motor control needs in robotics and hobbyist projects.
It's designed to withstand rigorous use in various environments, ensuring a long service life and reliability for continuous operation.
Efficient Speed Regulation and Commutation: The integrated potentiometer allows for precise speed adjustments and smooth commutation control, enhancing the performance and efficiency of your motor-driven projects.

Specification:
Item Type:Motor Driver Board
Material:PCB
Purpose :Output balance adjustment, walk straight without deviation
Application :Model ESC, car, motor speed and commutation control, tracked vehicle control, dual-drive vehicle, hollow motor control
Rated Input Voltage : 7V-24V
Standby: Current <20mA
Current Limit :10A (per channel)
Control Mode:
ESC Mode :Horizontal and horizontal remote control 1ms-2ms (pulse width)50Hz
Potentiometer Mode: OV-5V input voltage (2.45V-2.55V motor stops)
Mixing Mode :Mixing can be used in ESC mode and potentiometer mode
Limit Input Voltage :Range 5V-30V (maximum)
Limit Output: Current Range 10 A10.5aA(maximum)

Note:
Do not use the board outside the range of voltage and current parameters.
