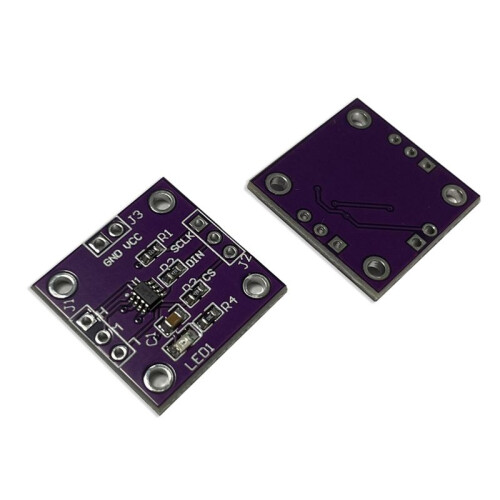

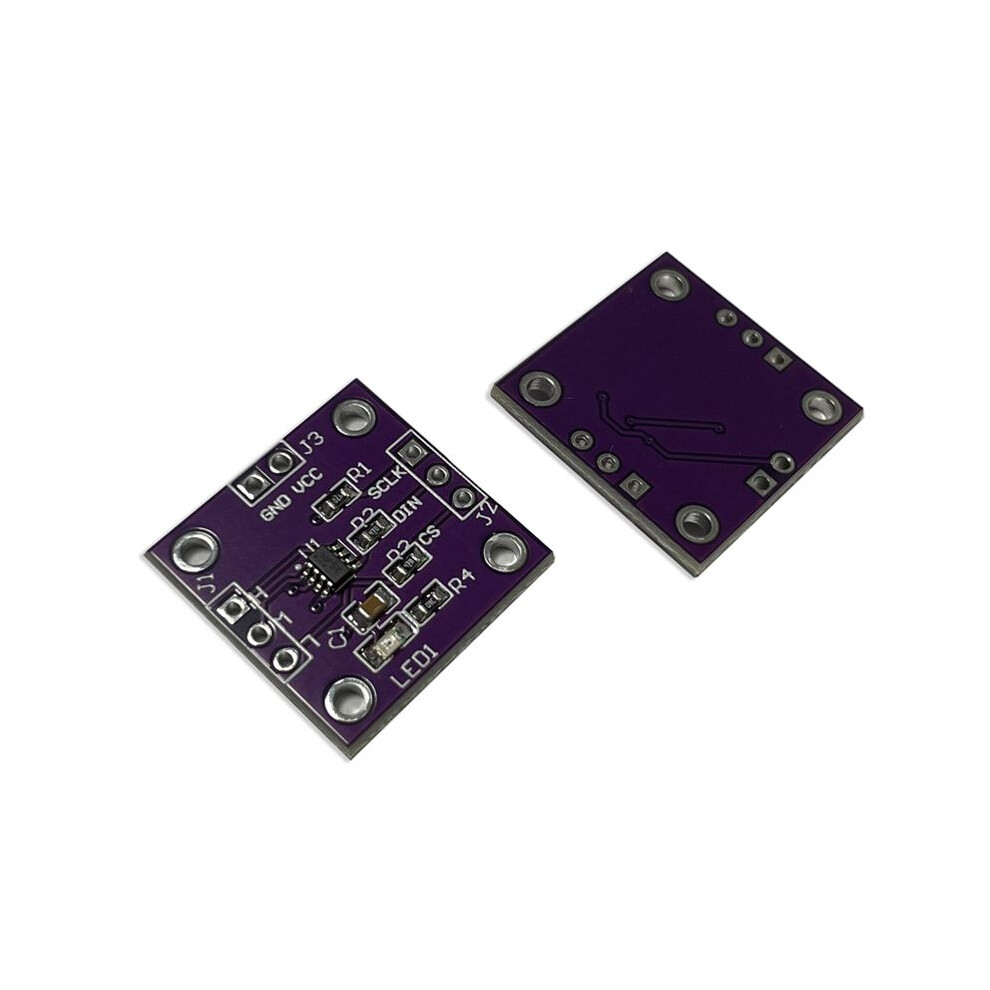

MT6816 Magnetic Encoder Module High-Speed and High-Precision Magnetic Induction Angle Measurement Sensor Module

MT6816 Magnetic Encoder Module High-Speed and High-Precision Magnetic Induction Angle Measurement Sensor Module Popis

Based AMR technology, it provides absolute angle measurement from 0 to 360.
Operating voltage: 3.3V to 5.0V
Operating temperature: -40 to 125
Typical linearity deviation: Less than 0.75, Less than 1.0 over the full temperature range

System latency is as low as less than 2µs, supporting speeds to 25,000 rpm
Provides a standard 3-wire or 4-wire SPI interface ( to 16MHz) to read the chip's internal 14-bit angle data
Incremental ABZ output supports arbitrary resolutions from 1 to 1024 lines
Incremental UVW output supports arbitrary pole pairs from 1 to 16
Provides 12-bit PWM output
Supports to 5 online zero-point programming
Apply:
Absolute Angle position sensor
brushless motor control
Servo motor control
Closed-loop stepper motor control
Alternative to partial photoelectric encoder applications
Color:
Material:PCB

Package Contents:
1 x Magnetic encoder
1 x Magnet
1 x pin
