PM11 Multi-Functional Charging Boost Power Module 5V Stable Output USB-C Fast Charging

PM11 Multi-Functional Charging Boost Power Module 5V Stable Output USB-C Fast Charging Popis

Product Introduction

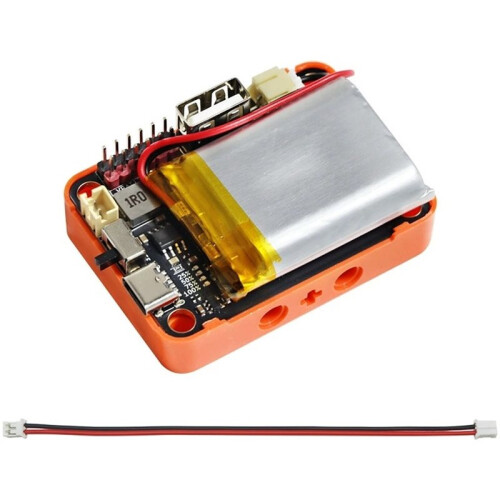

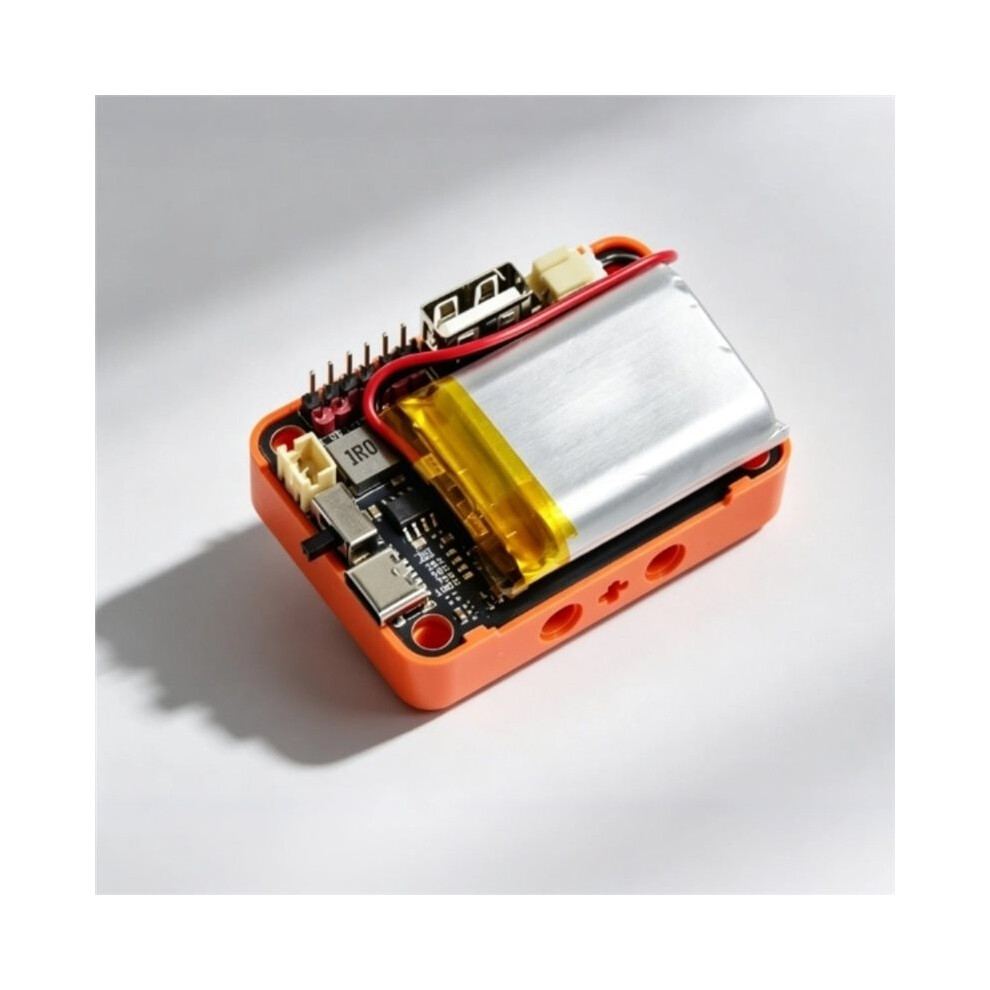

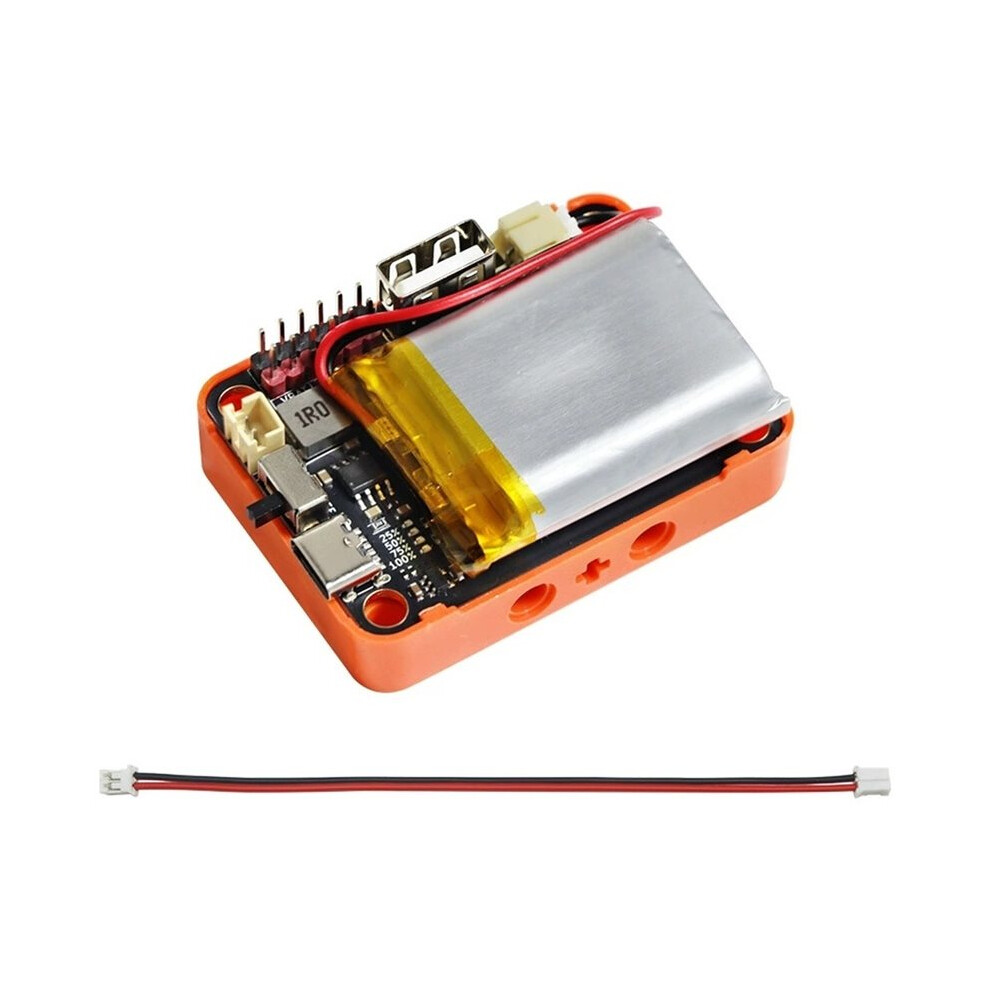

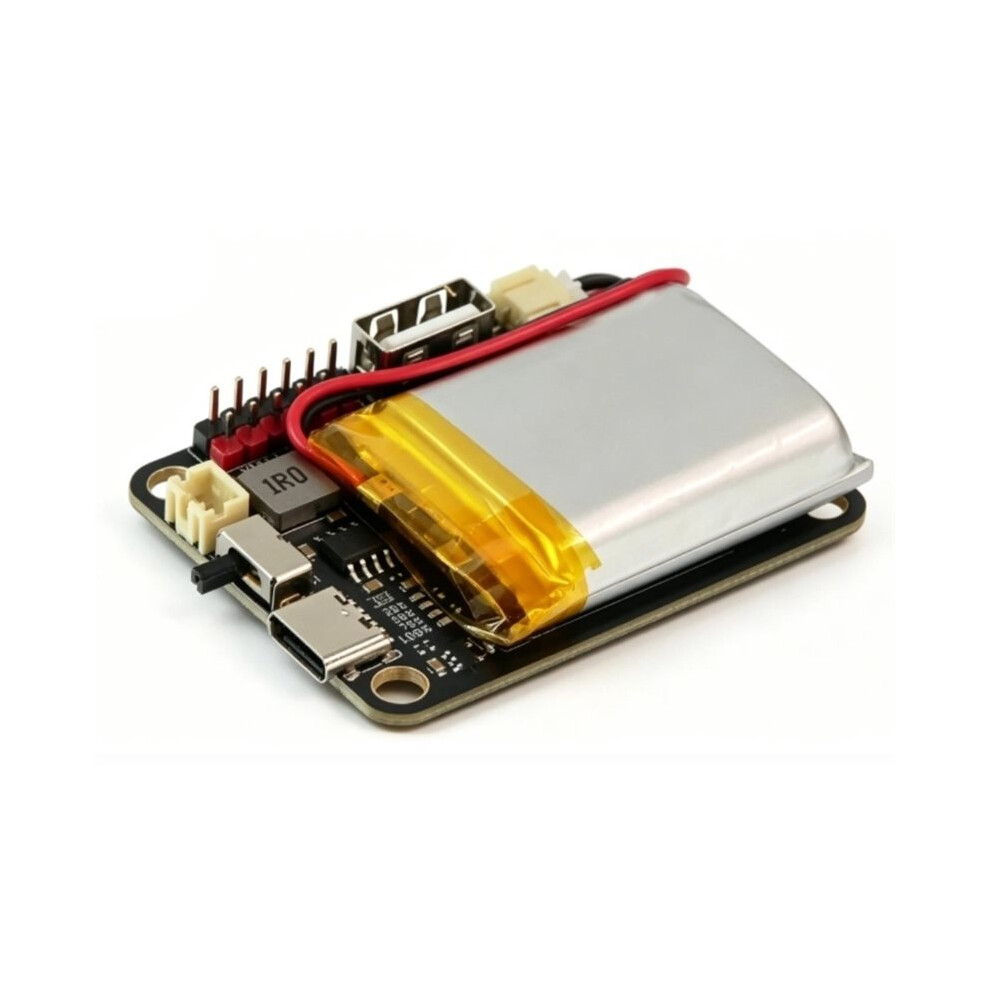

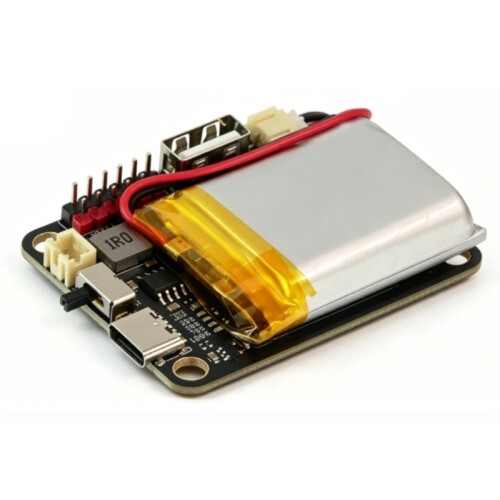

This charging module is a 3.7V lithium battery charging and boosting 5V integrated module, with an onboard 1200mA lithium battery pack. By using the TypeC interface, onboard lithium batteries can be safely and efficiently charged to 1.2A. The board provides PH2.0-2Pin, 2pin pin lithium battery direct output, USBA port, 2pin pin 5V output, and 2Pin pin 3.3V 800mA output. Multiple voltage outputs, very convenient for application in various voltage and low-power application scenarios. And the charging chip comes with overcharge, reverse connection, and overload protection.
Attention: When charging, be sure to turn the toggle to the "" position. If it is turned to "OFF", the battery will not be able to charge.
Product Parameters:
USB charging: TypeC interface 5V, maximum charging current 1.2A;
Conversion efficiency: Charging boost conversion efficiency of 90%;
Voltage output: 2pin PH2.0, pin lithium battery output, USBA port, 2pin pin 5V output, 2Pin pin 3.3V 800mA output;
Battery type: 1200mA lithium battery pack (full charge voltage 4.2V);
Battery overcharge/reverse connection/overload protection.
Color: As Shown
Material: Plastic+Metal

Package Contents:
1*Module
1*case
1*battery

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
