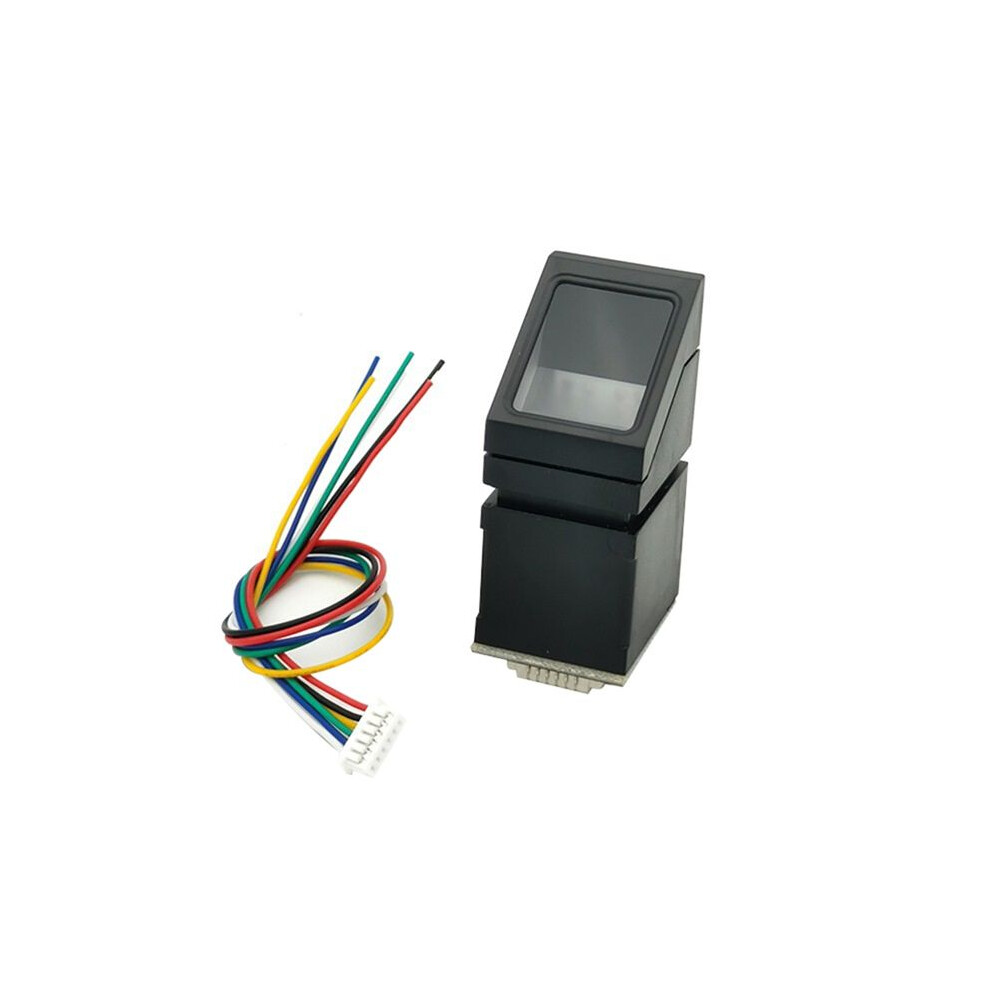

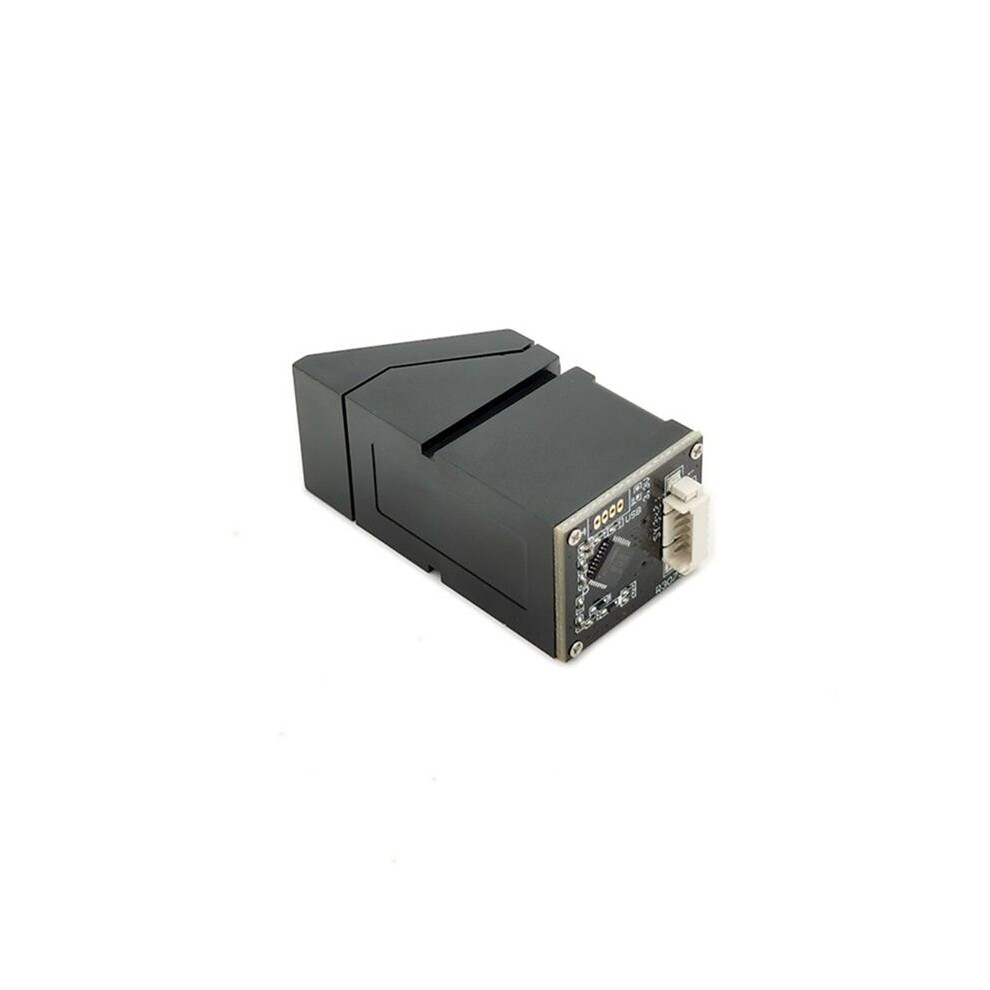

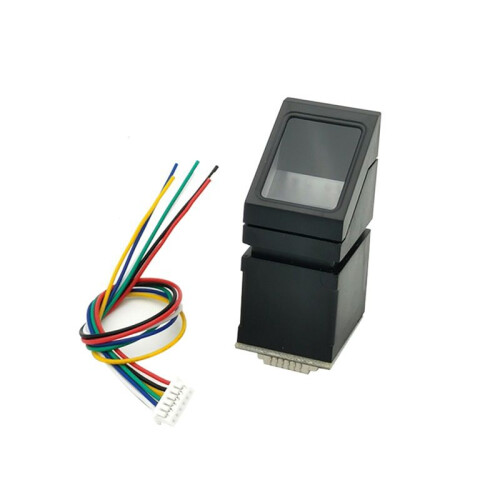

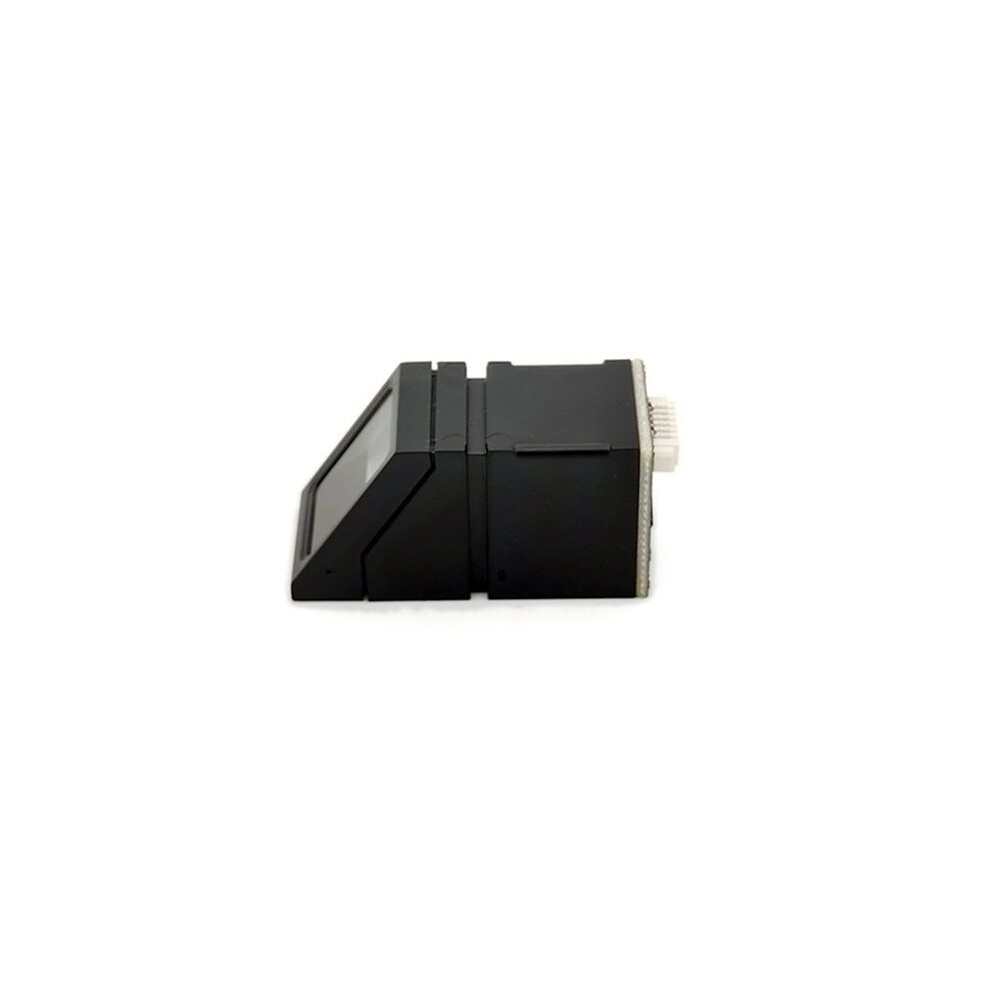

R307S Cheap 1000 Capacity USB UART Optical Fingerprint Module Sensor Scanner for Door Access Control

R307S Cheap 1000 Capacity USB UART Optical Fingerprint Module Sensor Scanner for Door Access Control Popis

1. Integrated image collecting and algorithm chip together, ALL-in-One.
2. Fingerprint reader can conduct secondary development, can be embedded into a variety of end products
3. Users can conduct secondary development, can be embedded into a variety of end products, such as: access control, attendance, safety deposit box, car door locks
4. Low power consumption, low cost, small size, excellent performance.Professional optical technology, precise module manufacturing technics
5. Good image processing capabilities, can successfully capture image to resolution 500 dpi.Have finger detection function.R307S use different chip when compare to R307.

Model: R307S
Type: Optical Fingerprint Module
Interface: USB, UART(RS232 TTL)
Resolution: 508 DPI
Voltage: 4.2-6V, or 3.3V
Fingerprint Capacity: 1000
Sensing array: 300000 pixel
Fingerprint module size: 52 x 20 x 22 (mm)
Effective collection area: 11 x 15 (mm)
Scanning Speed: Less than 0.2 second
Verification Speed: Less than 0.3 second
Matching Method: 1: 1; 1: N
FRR: 0.1%
FAR: 0.001%
Work environment: -20C-50C
Work Humidity: 10-85%
Anti-static capacity: 15KV
Abrasive resistance intensity: 1 million times
Communications baud rate (UART): (9600 x N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)
Material: plastic
colour: Black

Package Contents:
1 x Fingerprint Module
