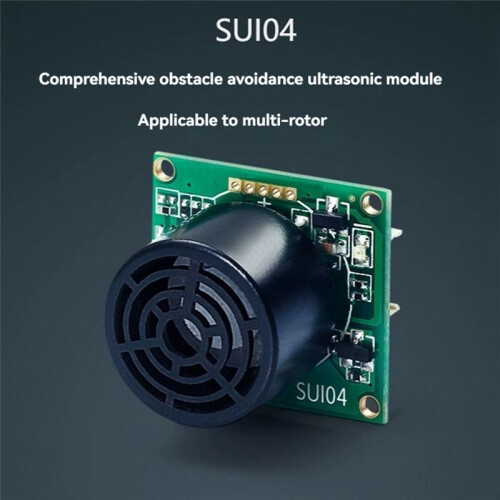

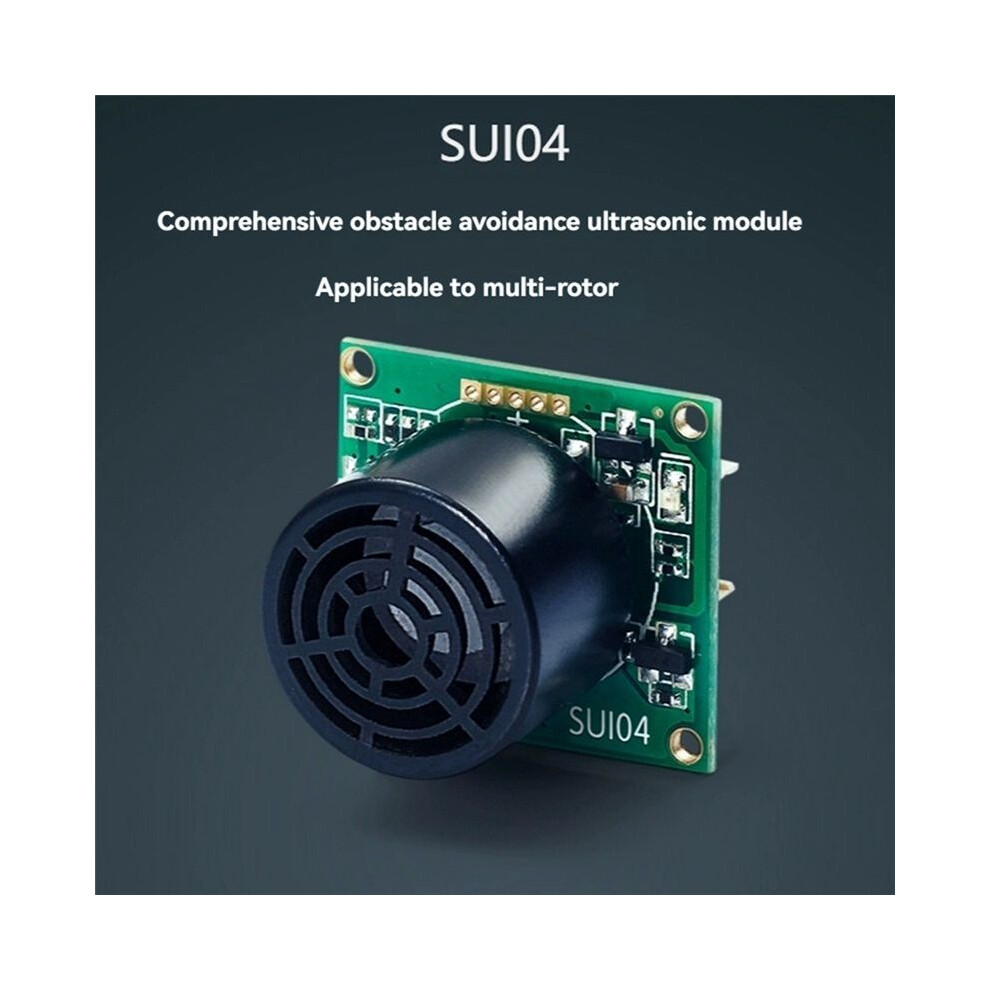

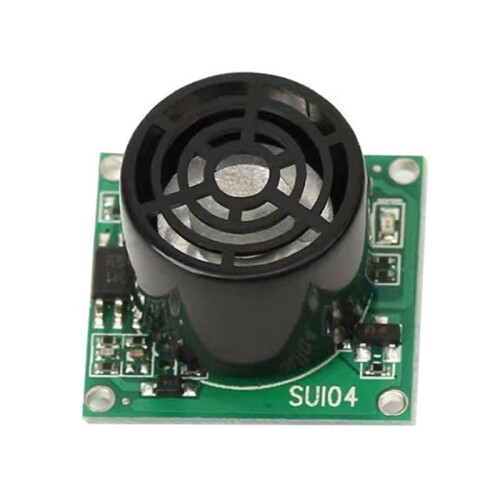

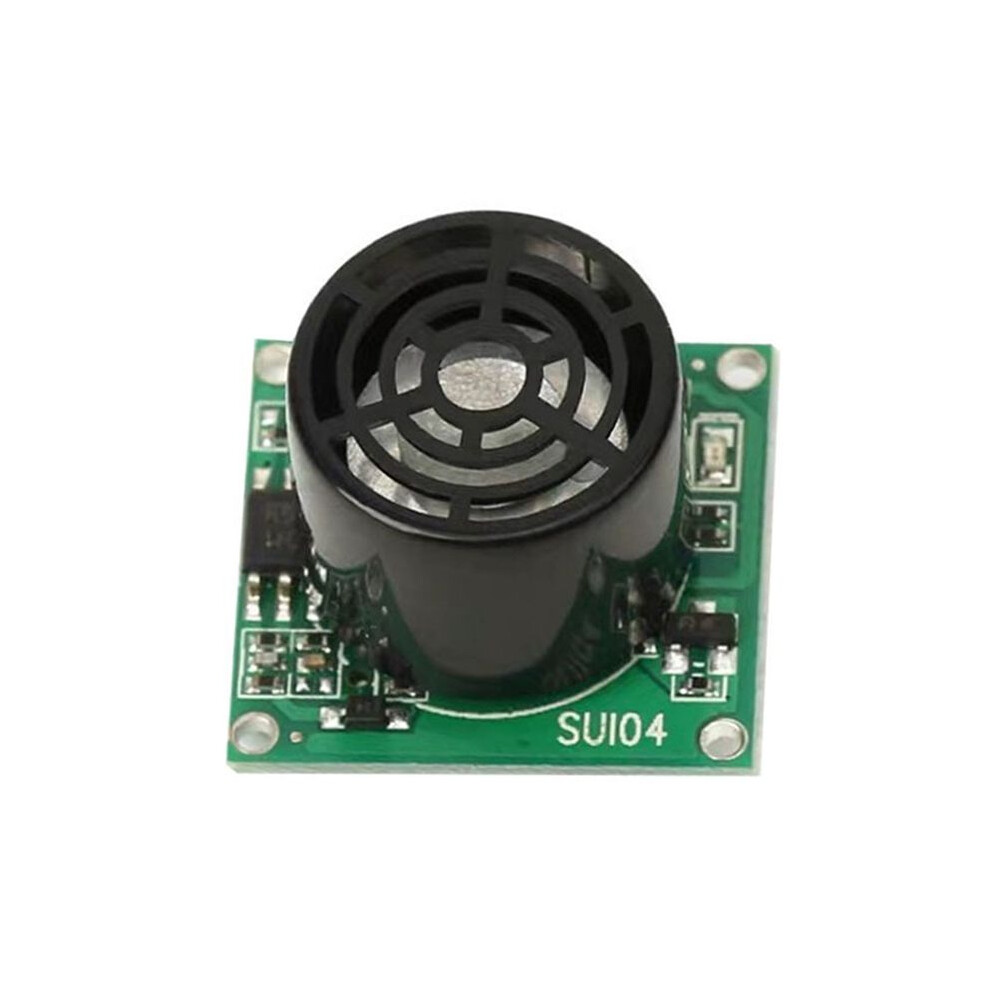

SUI04 Ultrasonic Sensor Obstacle Avoidance Module for Radiolink PIXHAWK PIX APM RC Multi-Copter Accessories

SUI04 Ultrasonic Sensor Obstacle Avoidance Module for Radiolink PIXHAWK PIX APM RC Multi-Copter Accessories Popis

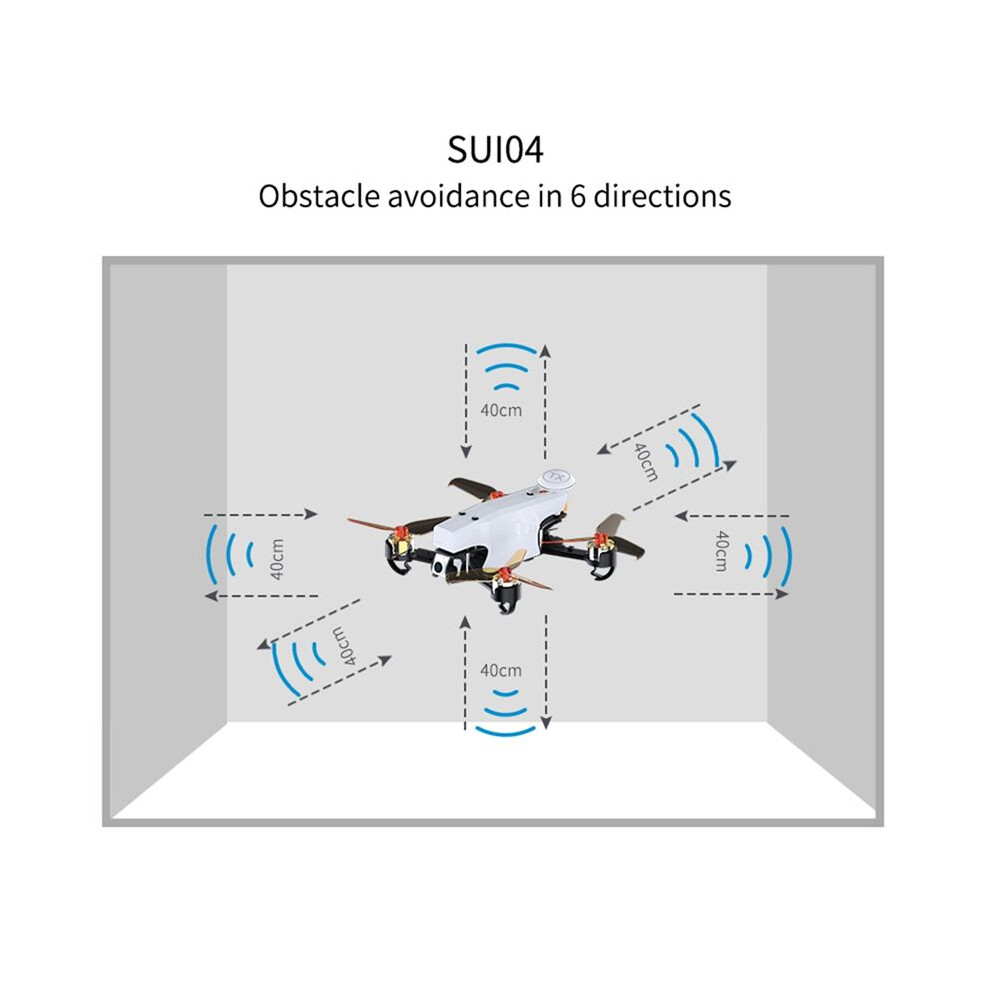

Advanced Obstacle Avoidance: The SUI04 sensor enables autonomous obstacle avoidance at horizontal, upward, and downward altitudes. It is ideal for multirotor aircraft
Accuracy and Speed: With a detection accuracy of 0.4 cm, the SUI04 sensor can precisely identify the tiniest obstacles. Its ultra-fast response of 30 milliseconds ensures your drone navigates smoothly and efficiently, quickly avoiding potential hazards
Compact and Versatile: This ultrasonic sensor is and can be easily installed a variety of drones. Its versatile capabilities provide the necessary protection, especially for beginners learning to fly

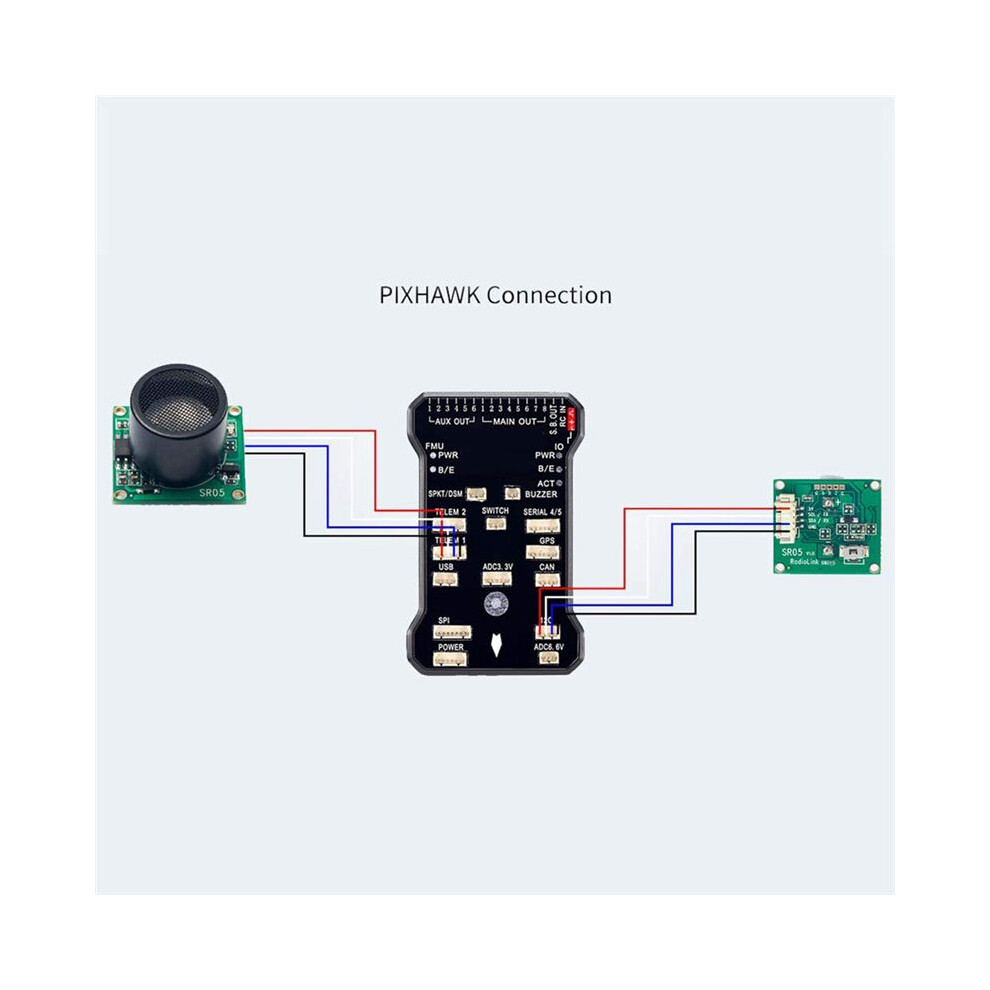

Wide Compatibility: Designed specifically to integrate seamlessly with Radiolink flight controllers such as PIXHAWK, PIX, and TURBO PIX, this sensor also features automatic I2C port recognition, making setup simple and efficient
Ideal for Special Applications: The SUI04 is not only suitable for agricultural use, but also for training and rescue operations. It ensures safe outdoor operation and is compatible with multirotor aircraft such as quadcopters, hexacopters, and octocopters

Input voltage: 4.5~5.5V (does not support high voltage)
Current: 18mA@5V
Transmit power: 90mA
Operating temperature: -20~80
Detection distance: 40cm~450cm
Detection accuracy: 0.4cm
Detection frequency: 401.0KHz
angle: 60 degrees (transmitter and receiver integrated)
Blind area: 0 blind area (data shows that the blind area is 40cm)
Output mode: I2C mode
Duty cycle: 30ms
Supported models: multi-rotor
Colour:As Shown
Material:PCB

Package Contents:
1 * Ultrasonic Sensor Kit
