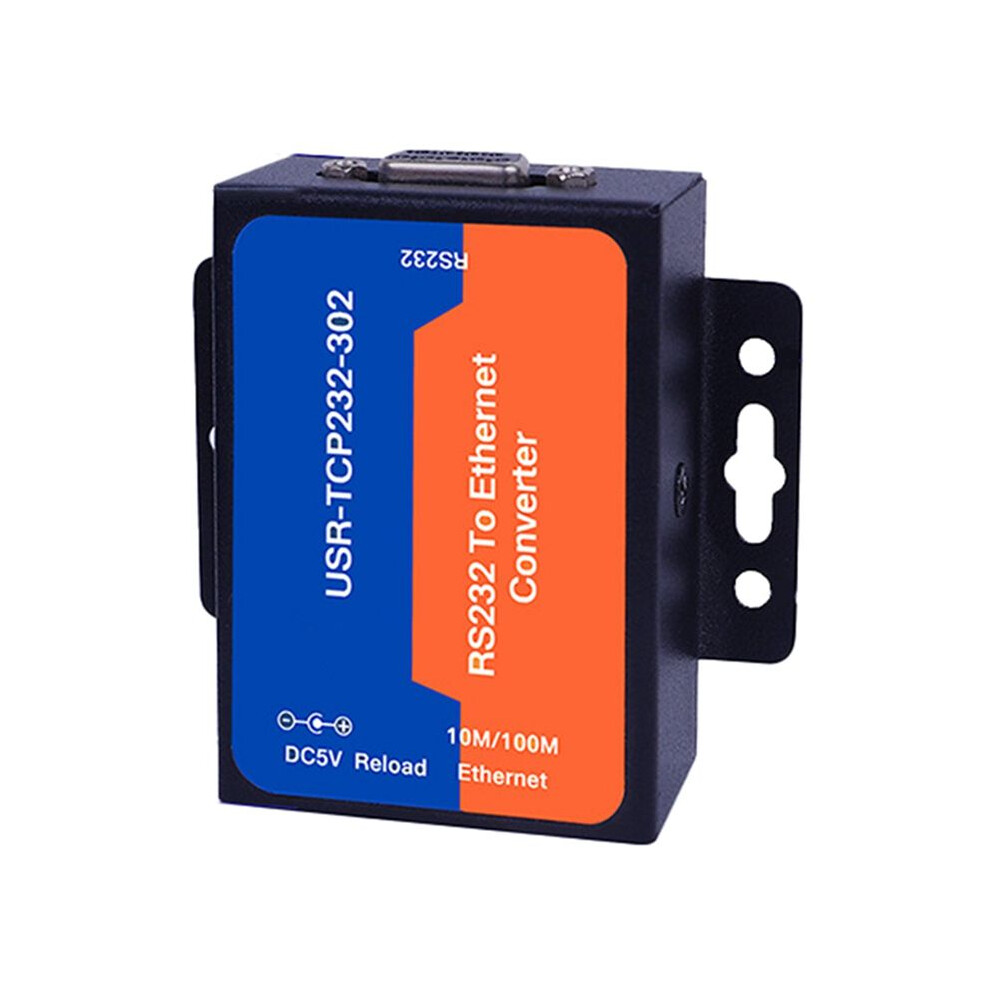

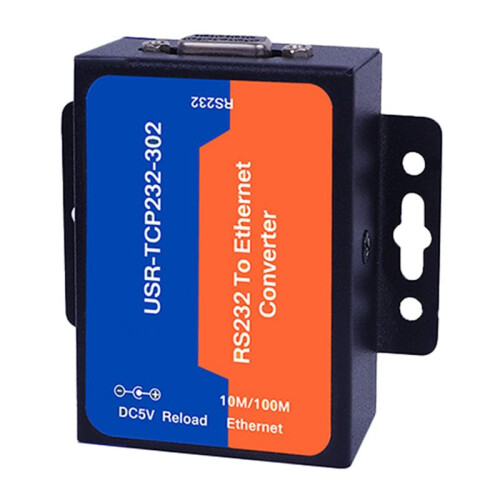

USR Ethernet Server Module USR-TCP232-302 RS232 to Ethernet TCP IP Server Module Ethernet Converter Support DHCP/DNS

USR Ethernet Server Module USR-TCP232-302 RS232 to Ethernet TCP IP Server Module Ethernet Converter Support DHCP/DNS Popis

Support DHCP, automatically obtain an IP address and query IP address through serial protocol setting
DNS support function
Set the parameters through the web page
Firmware update via the network
Auto-MDI / MDIX, RJ45 port with 10/100 Mbps

Serial port baud rate from 600 bps to 230.4 Kbps, Control bits of None, Odd, Even, Mark and Space
Working modes: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
Support virtual serial port and provide corresponding USR-VCOM software
Heartbeat package mechanism to ensure the connection is reliable, put an end to dead link
User-defined package registration mechanism, check connection status and use as the packet header
In TCP Server mode, Client number ranges from 1 to 16; default number is 4
The global unique address bought from IEEE, the user can define address
Factory default reset
Through the gateway, , router
Can work in LAN, also can work in internet (external network)
Provide PC TCP / IP programming test socket such as VB, C ++, , Android and IOS
Support customization
Industrial data transmission, industrial automation
Safety and security monitoring, public safety
home, power control, environmental monitoring, agriculture
Control door at work attendance system, POS system, rice sales system
Building automation system, power control, self-service banking system, telecommunications monitoring machine room
Colour: black
Material: metal

Package Contents:
1 * rs232 to Ethernet converter

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
