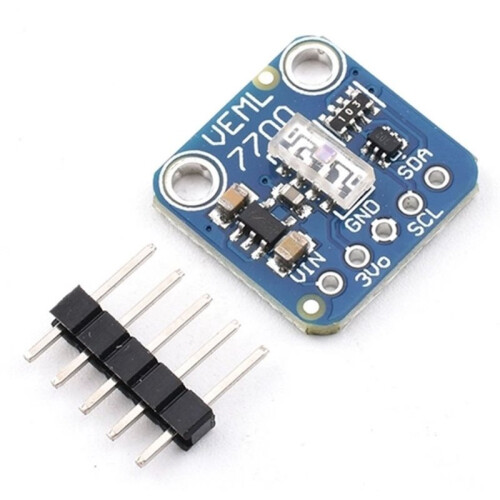

VEML7700 Ambient Light Sensor 120k Lux Light Measuring Sensor Board 3.3V 5V I2C IIC Interface for Raspberry Pi

VEML7700 Ambient Light Sensor 120k Lux Light Measuring Sensor Board 3.3V 5V I2C IIC Interface for Raspberry Pi Popis

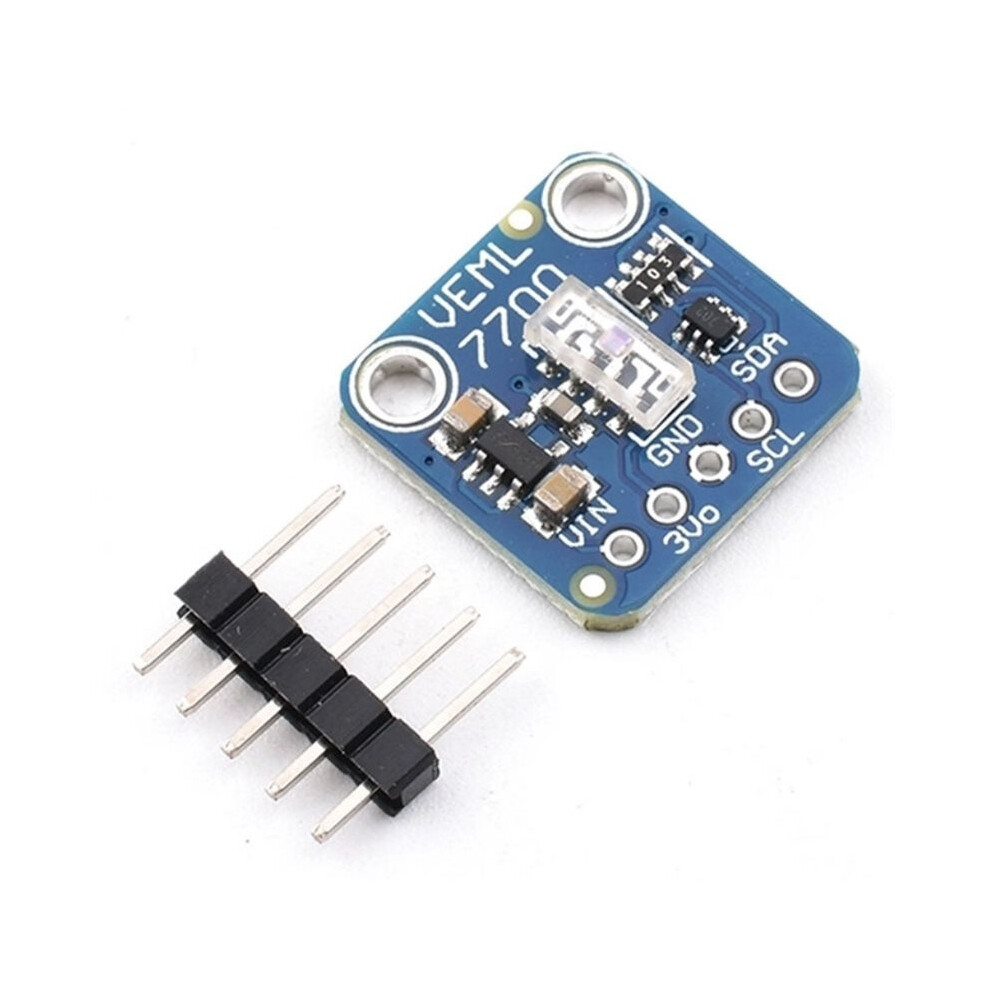

Module based a VEML7700 sensor for measuring ambient light. This sensor is intended for use with an for or for Raspberry Pi type microcontroller or compatible via the I2C bus.
The VEML7700 simplifies your life by calculating illuminance, which is the SI unit of light. You'll get more consistent readings across multiple sensors because you won't have to deal with values that are unitless.
The sensor has a 16-bit dynamic range that detects ambient light from 01ux to about 120klux with a resolution as low as 0.00361x/ct and has software adjustable gain and integration .
The sensor uses a common general purpose i2C. We put this sensor a breakout board with a 3.3V regulator and logic level converter so you can use it with a 3.3V or 5V power supply/logic microcontroller.
Connectivity: The use of this module requires soldering of the included 5-pin connector depending the use.

Reference data for illuminance (brightness):
Nighttime: 0.001-0.02 lx;
Moonlit night: 0.02-0.3 lx;
Overcast indoors: 5-50 lx;
Overcast outdoors: 50-500 lx;
Sunny indoors: 100-1000 lx;
Summer midday sunlight: approx. 10⁶ lx;
Illuminance for reading: 50-60 lx;
Standard illuminance for home video recording: 1400 lx.
Features:
High precision: 0.005 lx/ct
Wide range: 0-167 klx (compared to 0-65 klx for the BH1750)
Low power consumption support
Gravity I2C interface
Parameters:
Supply voltage: 3.3-5V
Operating current: 45 µA
Shutdown mode: 0.5 µA
Measurement range: 0-120 klx
Precision: 0.0036 lx/ct
Operating temperature: -25C to +85C
Color:
Material: PCB

Package Contents:
1 * Ambient Light Sensor
