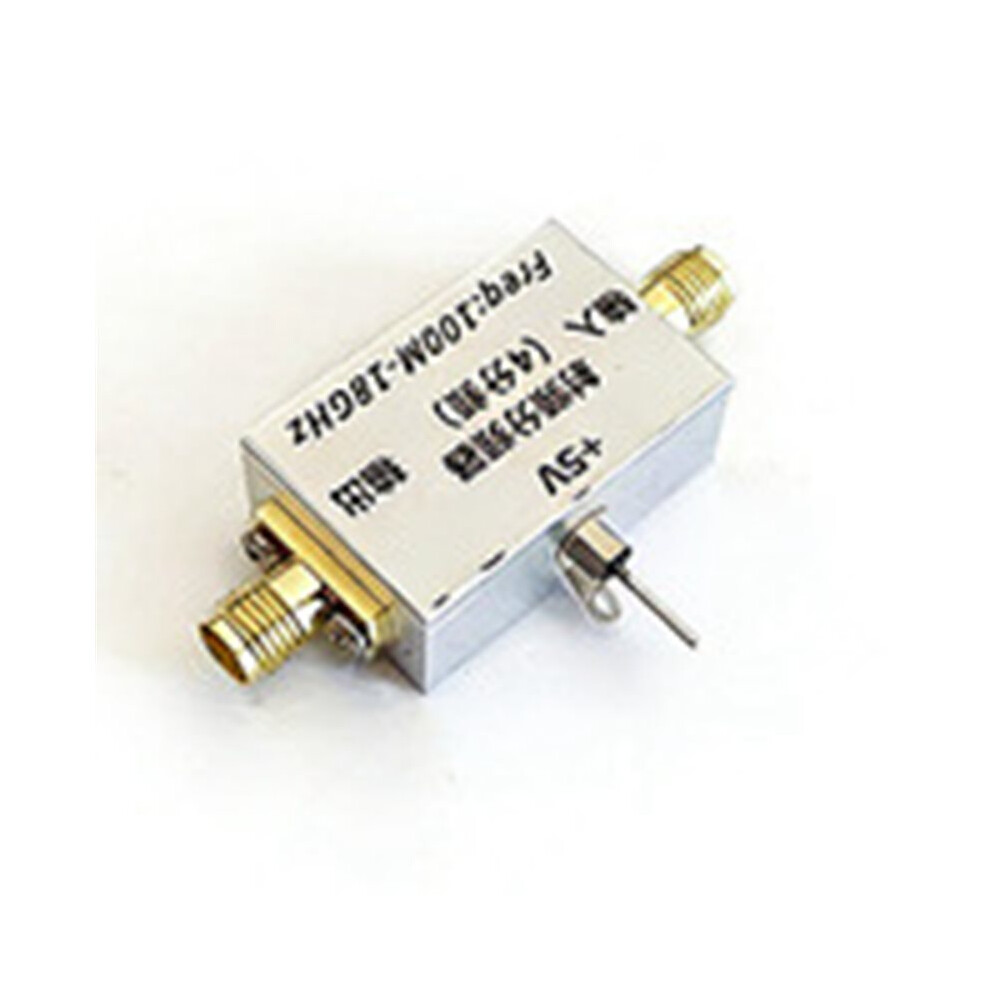

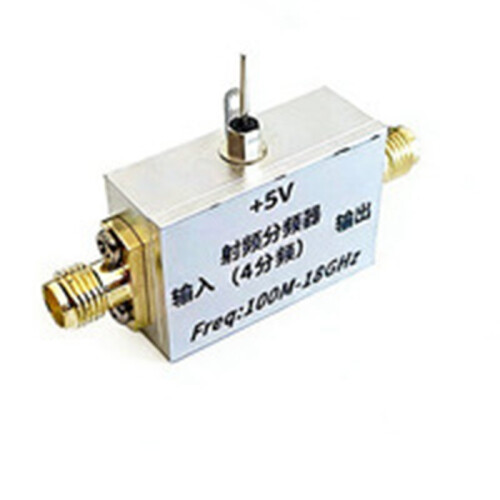

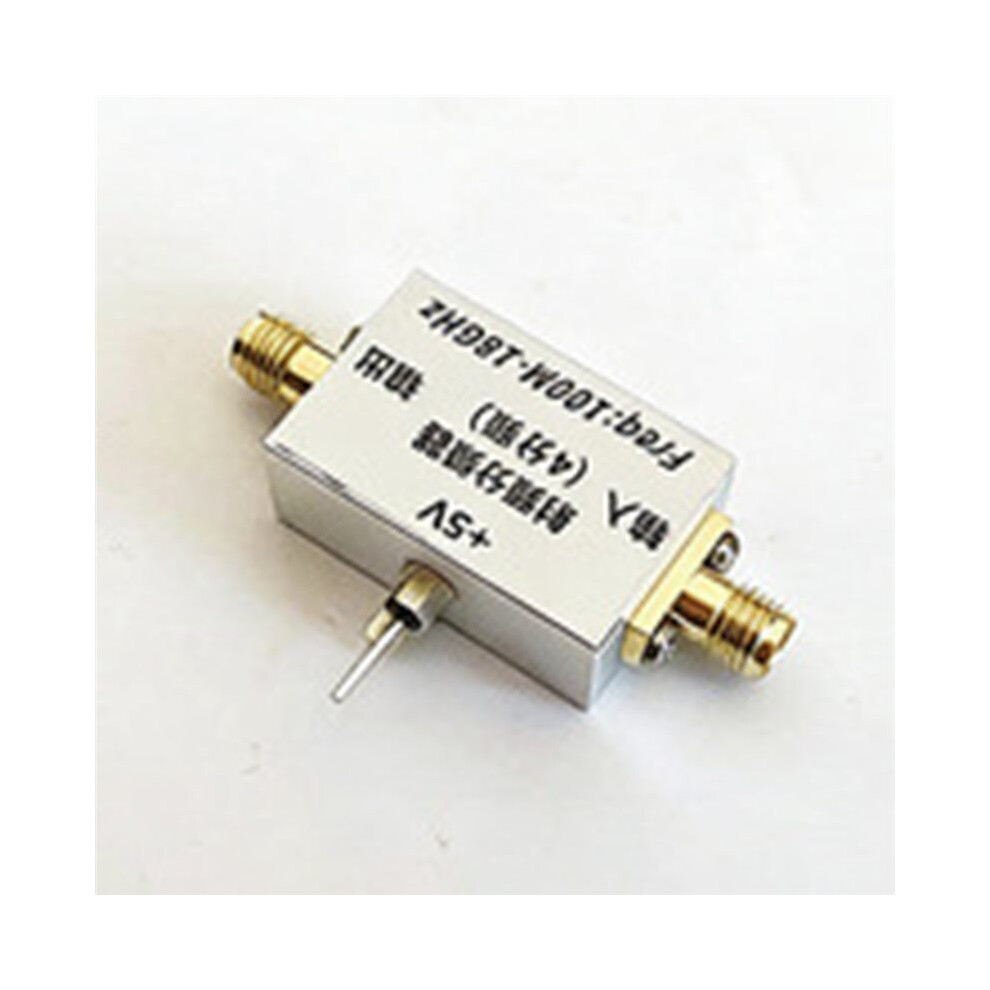

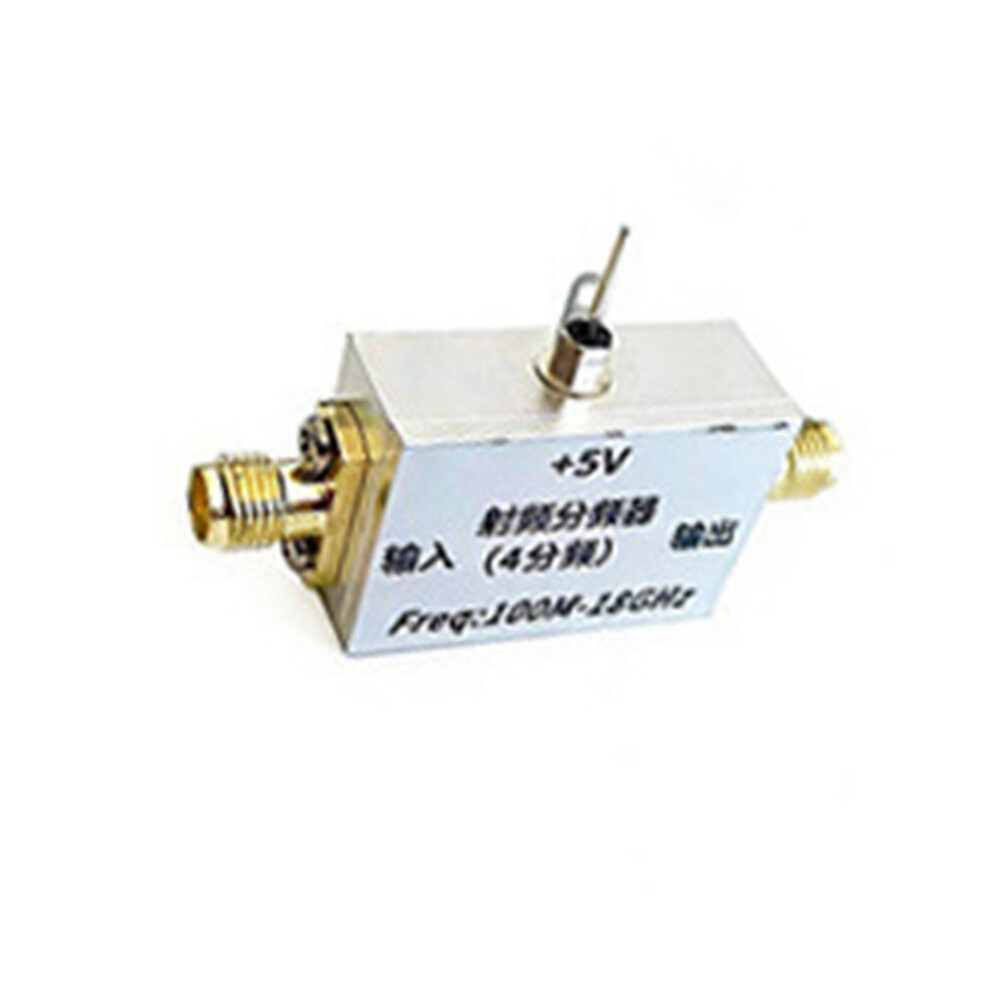

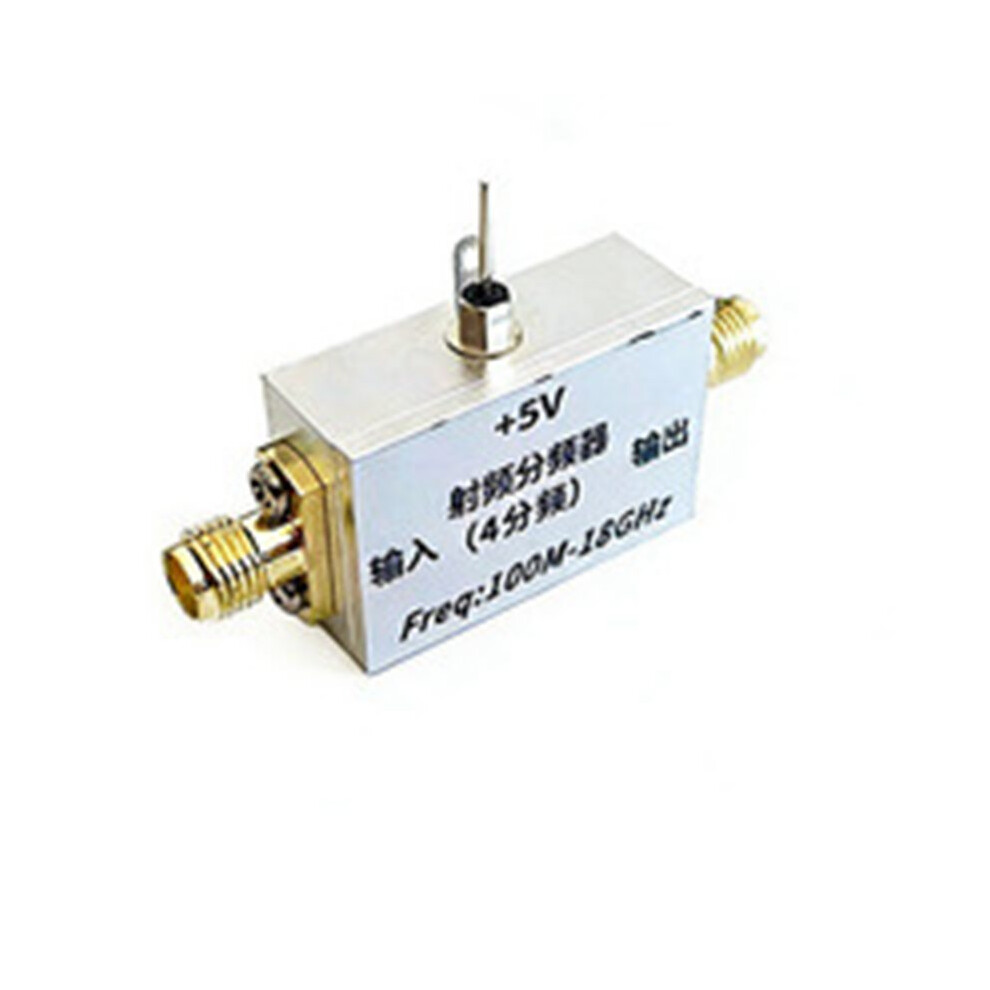

100Mhz-18GHz RF Prescaler Divider Frequency Divide-By-4 High Frequency to Low Frequency Broadband 4 Frequency Divider

100Mhz-18GHz RF Prescaler Divider Frequency Divide-By-4 High Frequency to Low Frequency Broadband 4 Frequency Divider Beschreibung

This module implements broadband frequency division by four, covering a wide frequency range of 100MHz-18GHz. It can divide input signals within this range by four.
In frequency measurement systems, this module can be used to convert high-frequency signals into low-frequency signals for easier subsequent processing.
It can also be used in other signal frequency division applications (point-to-point communication) where conversion from high-frequency to low-frequency signals is required.
The module uses a CNC-machined enclosure, providing excellent electromagnetic shielding performance.
Module Model: QM-FD011804S
Module Power Supply: +5V single power supply
Operating Current: 95mA
Power Supply Interface: Feedthrough capacitors
Input Frequency Range: 100MHz-18GHz
Division Ratio: 4
Input Level Requirements:
100M-14GHz: -20dBm to +8dBm;
14-16GHz: -20 to +3dBm;
16-18GHz: -15 to 0dBm;
SSB Phase Noise (100 kHz offset): -150dBc/Hz;
Maximum Input Power: +13dBm;
Input/Output Interface: SMA (male connector);
Input/Output Impedance: 50 ohms;
Color: As Shown
Material: Metal

Package Contents:
1*RF Prescaler Divider
