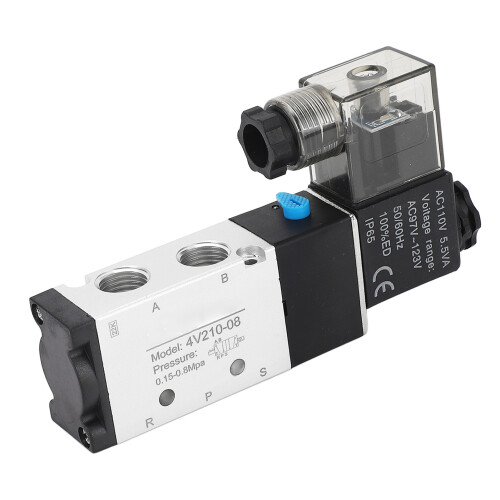

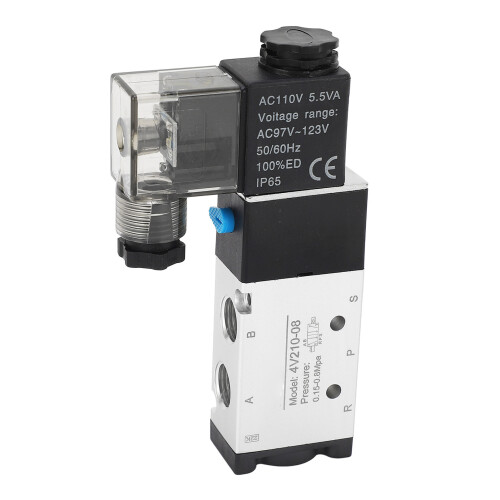

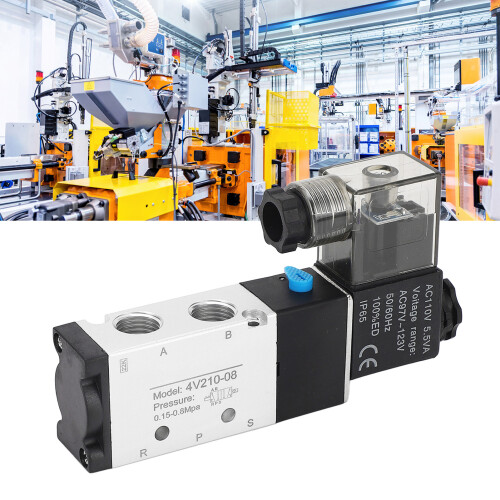

4V210-08 Aluminum Solenoid Valve 2-Position 110V
New
39,77 €
Ähnliche Produkte, die dir gefallen könnten
Would you like us to let you know when it's back?
Beschreibung & Details
Zusammenfassung
- HIGH POWER COIL: 2 position 5 way solenoid valve, valve body adopts 0.04um mirror inner wall, full turns full power coil to ensure long term work without burning.
- SEALING RING: Adopting self lubricating sealing ring, with 6 ring precise stem, high accuracy pilot, 5s per time response high frequency without blocking.
- STANDARD PORT: This pneumatic solenoid valve has standard PT 1/4in air port, a PT1/8 exhaust silencer, and a maximum operating frequency of 5 times per second.
- WORK PRINCIPLE: When the coil is powered off, the air solenoid valve remains open, and closes when energized, and the inner nut can be removed without tools.
- PRESSURE RANGE: The pneumatic electric solenoid valve adopts a direct acting working mode, with a pressure range of 0.15‑0.8Mpa, to meet more control needs.
4V210-08 Aluminum Solenoid Valve 2-Position 110V Beschreibung
4V210‑08 Electric Solenoid Valve 2 Position 5 Way Cylinder Control Reversing Valve Pneumatic Air Valve AC110V
Item Type: Solenoid Valve
Material: Aluminum Alloy
Product Voltage: AC110V
Working Medium: Air
Pressure Range: 0.15-0.8Mpa
Working Mode: Direct Acting
Power: 4.8W
Working Temperature: 32-140
Protection Grade: IP65
Details
| OPC | PT5HNS7 |
|---|---|
| Codes | 4991393659301 (EAN) |
