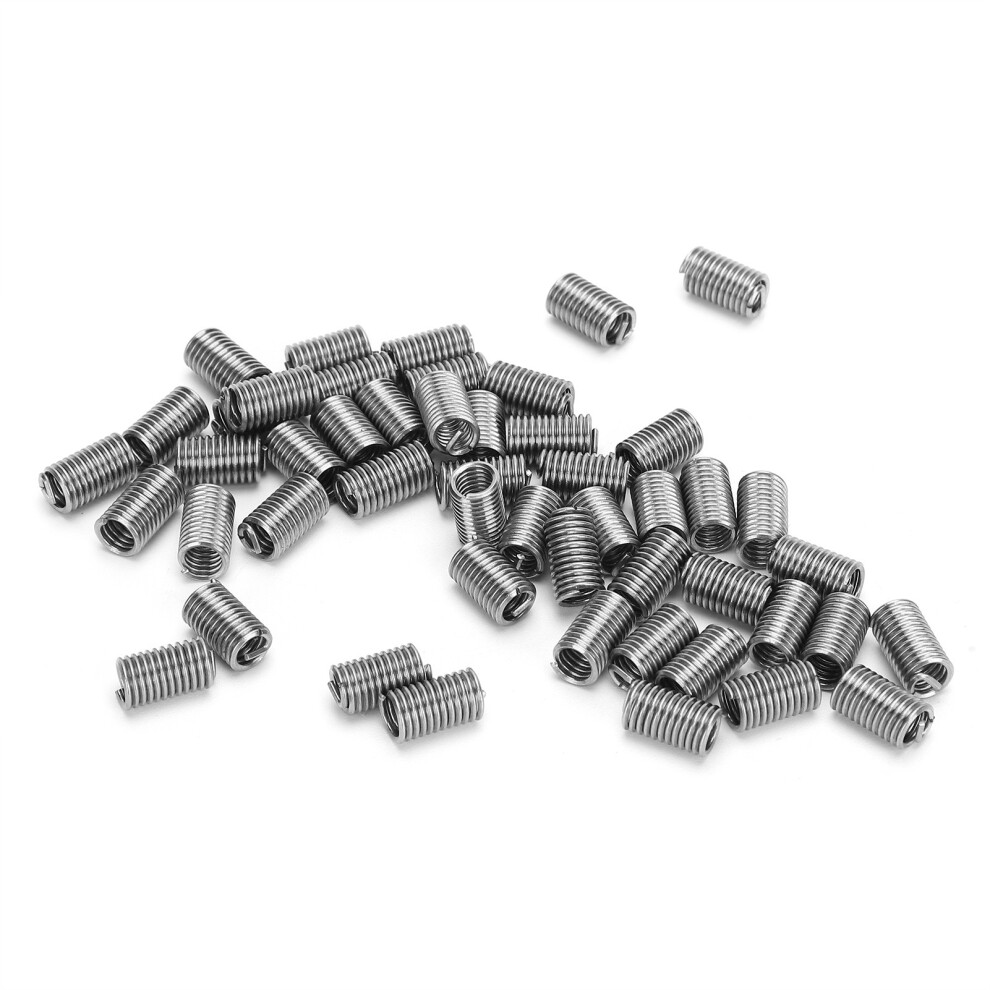

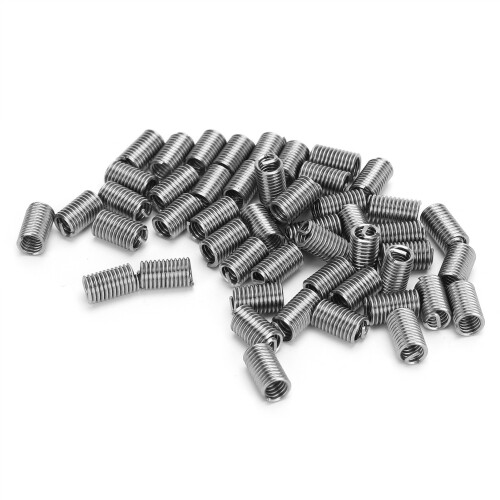

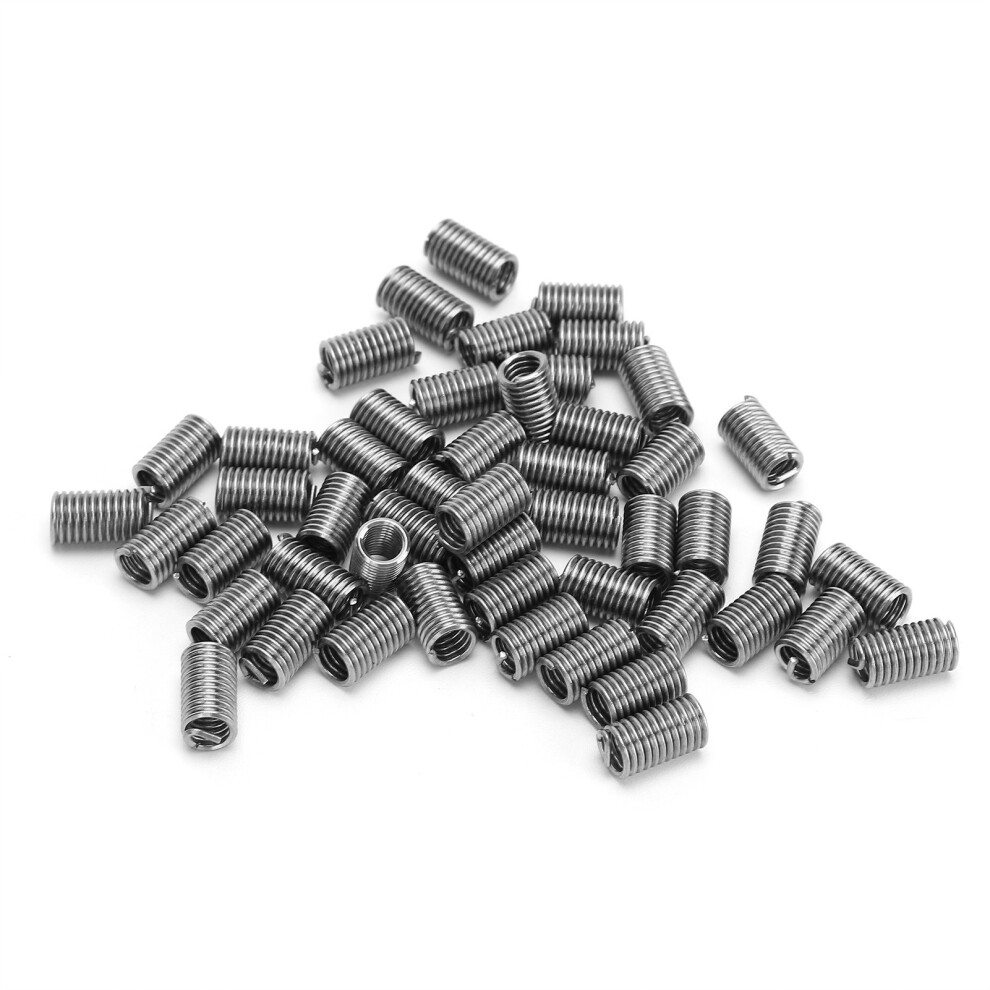

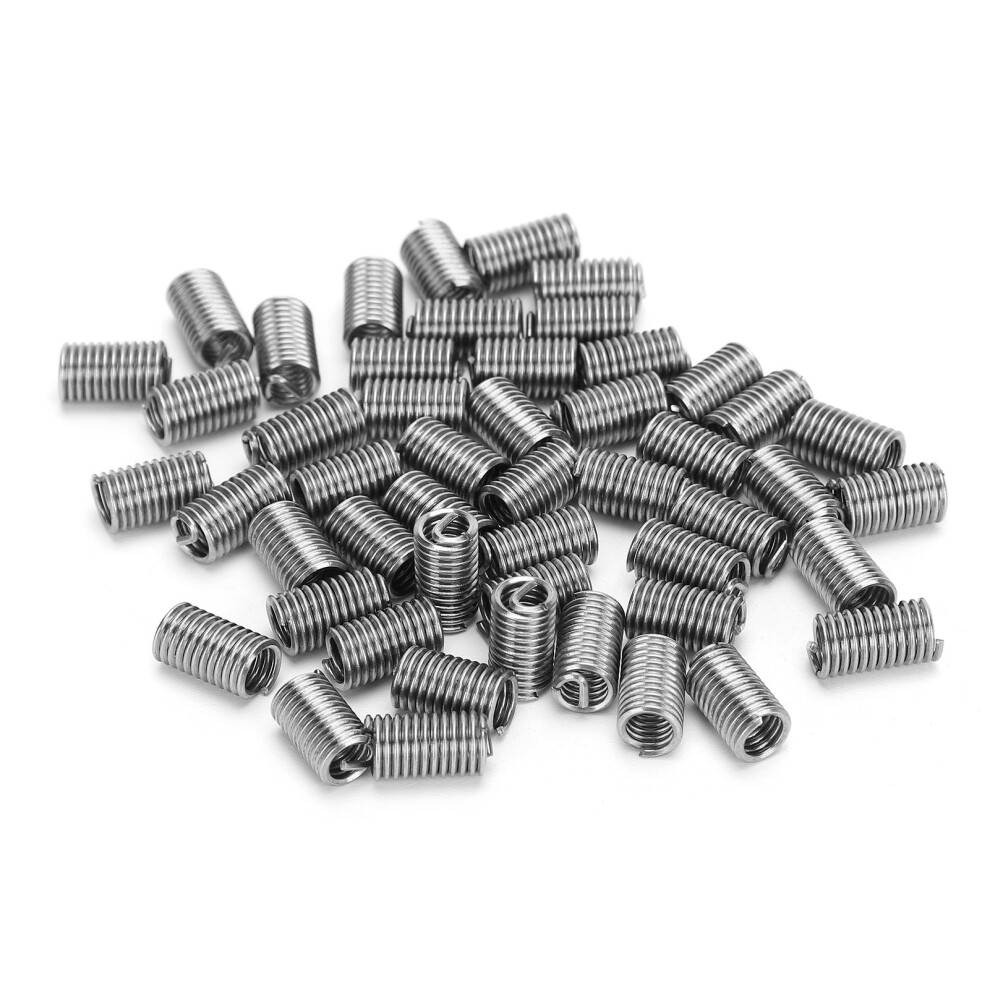

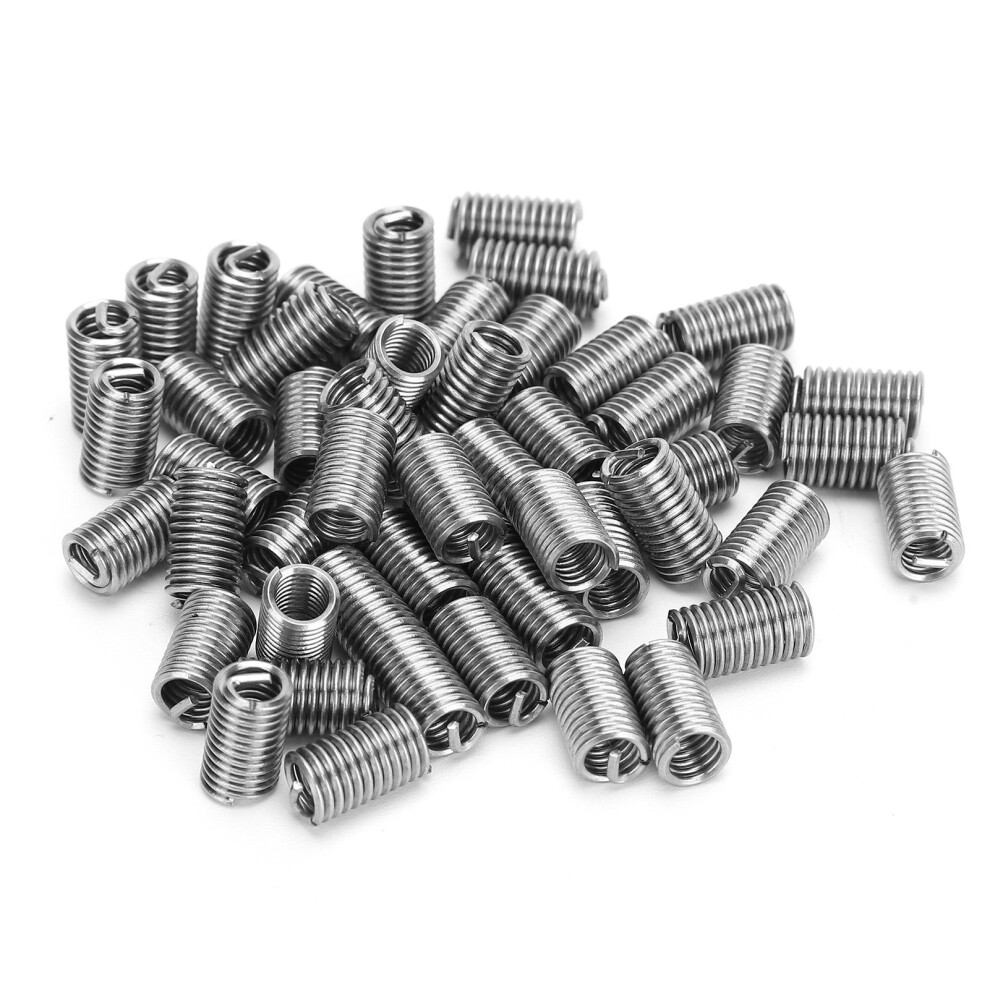

50x Gewindeeinsätze M10-24x3D Edelstahl

50x Gewindeeinsätze M10-24x3D Edelstahl Beschreibung

1. Install the wire screw set in the screw hole of the workpiece made of aluminum alloy and other materials to form a high-strength, wear-resistant, high-accuracy standard female thread. 2. Using wire thread inserts allows for easy conversion between metric and inch thread holes, which is convenient and fast. 3. Threaded inserts can be used as a cost-effective repair method for threaded holes when a thread error occurs or a damaged female threaded hole needs repair. 4. The product is also called threaded sheaths, stainless steel threaded sleeves, or wire sleeves; it is a new type of female threaded fastener made from high-strength, high-accuracy diamond-shaped cross-section steel wire. 5. Applied to low-strength engineering materials such as aluminum alloy, zinc alloy, other alloys, copper, plastic, and engineering plastics, it significantly improves thread strength and wear resistance.
Item Type: Thread Inserts
Material: SUS304
Model: M10-24x3D
Purpose: Threaded connection
Outside Diameter Before Installation: Approx. 6.1 ~ 6.6 mm / 0.2 ~ 0.3 in
Length After Installation: Approx. 14.4 mm / 0.6 in
Diameter of Drilling Drill Bit for Installation: Approx. 5.1 mm / 0.2 in
Thread Protective Sleeve Model Specification Description: For example: M3x0.5X1.5D, which means that after the screw set is installed, the female thread is M3, the pitch is 0.5, and the length is 1.5D (length refers to 1.5 times the diameter, i.e., 1.53=4.5 mm). The length here refers to the length after installation.
50 x Thread Inserts
