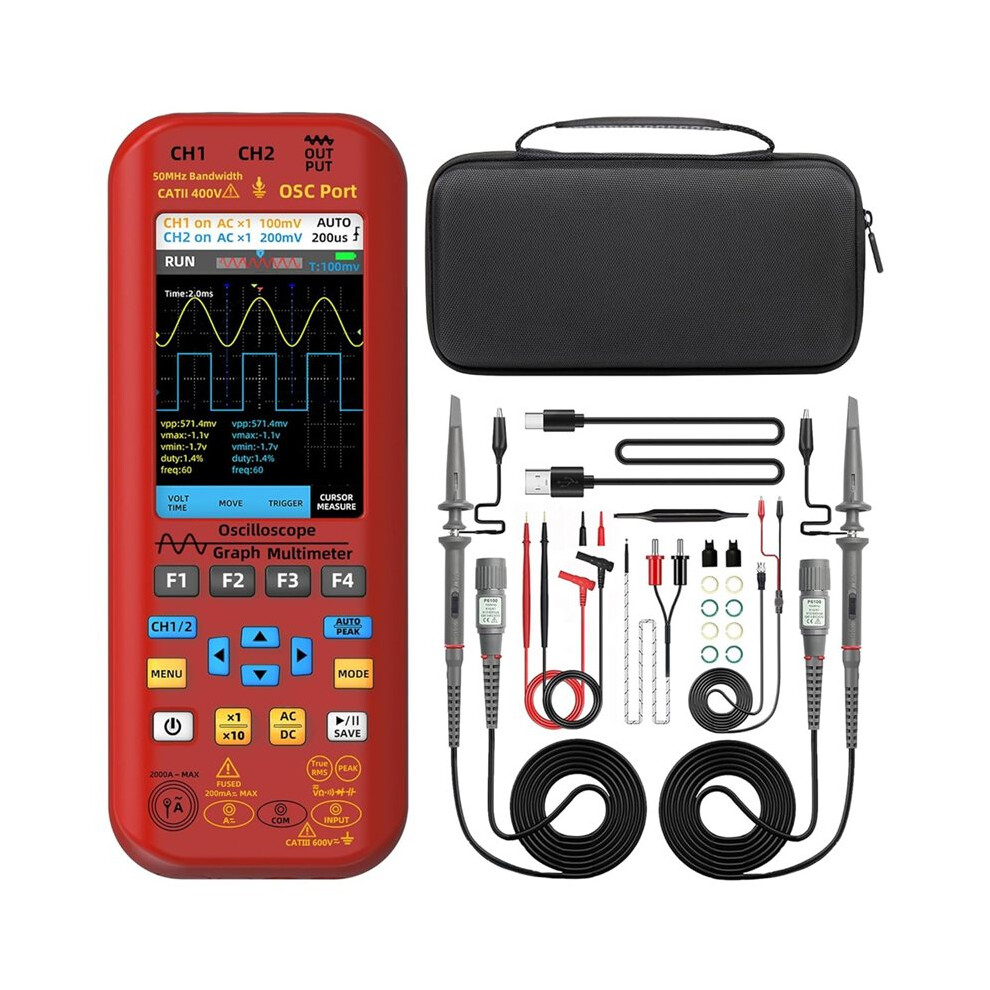

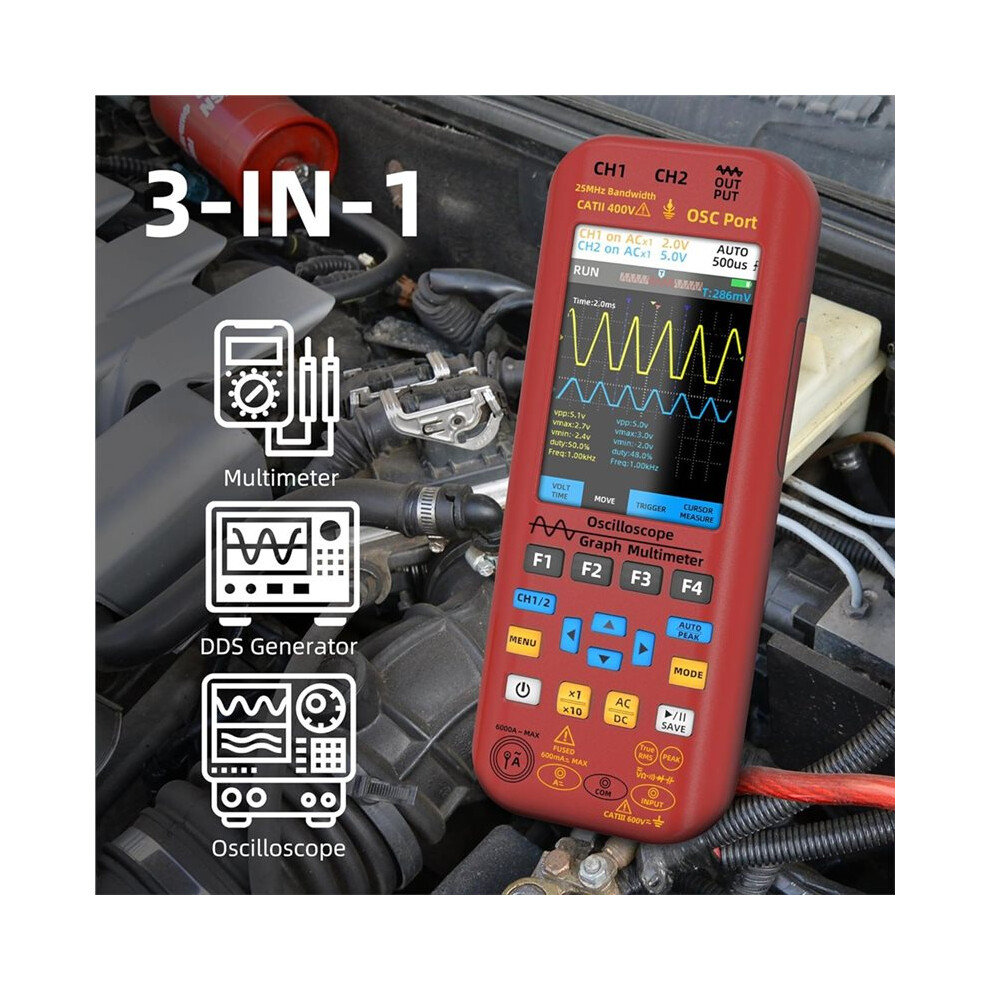

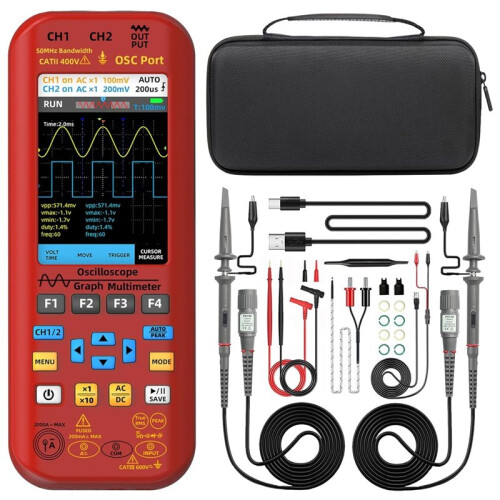

BSIDE 2 Channels Handheld Oscilloscope Multimeter, 50MHz Bandwidth, 20000 Counts Rechargeable DDS Generator, for DIY

BSIDE 2 Channels Handheld Oscilloscope Multimeter, 50MHz Bandwidth, 20000 Counts Rechargeable DDS Generator, for DIY Beschreibung

The signal generator can output six waveform: sine wave, square wave, triangle wave, full wave, half wave, sawtooth wave, wave. Frequency range: 0-2MHz. Output Amplitude: 0.1-3V.
digital multimeter measures flexible ac current accurately to 2000A. The flexible clamp wire were not included.
BSIDE O9 multimeter tester comes with rechargeable 5000mAh rechargeable battery & charging cable, ensuring that you never have to worry about running out of power during your measurements.
Handheld oscilloscope equipped with full-body soft silicone case that provides a comfortable feel and protection against shocks, friction & bumps.

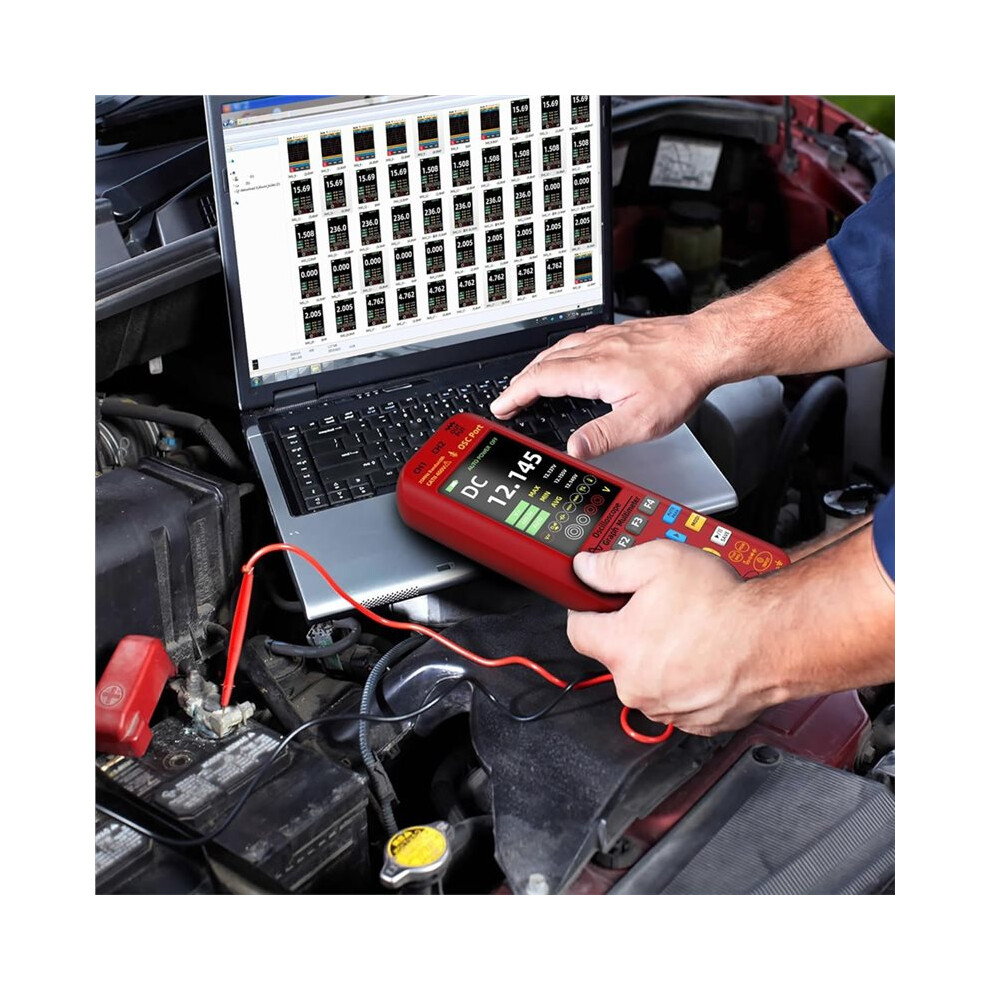

The data of this lab tester can be saved and exported to your computer, laptop or pc, etc.
Specifications:

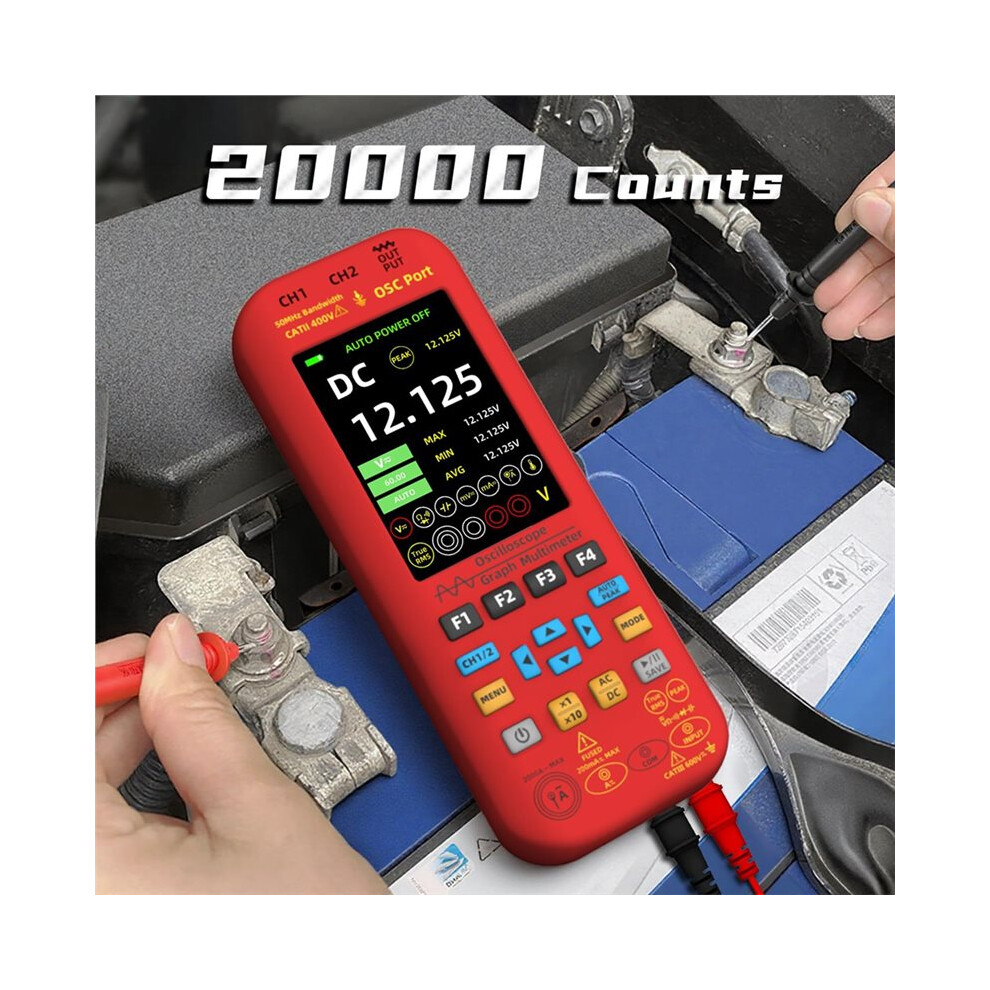

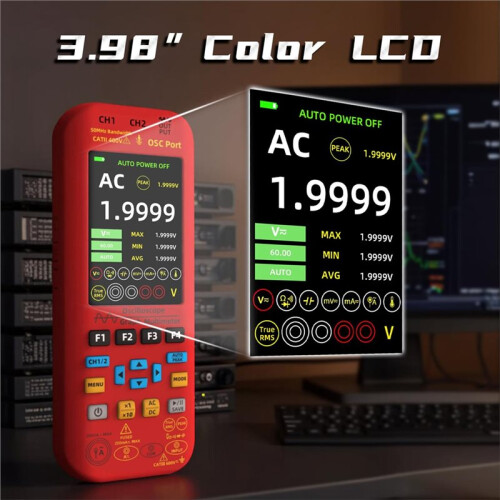

MAX Display: 20000 counts

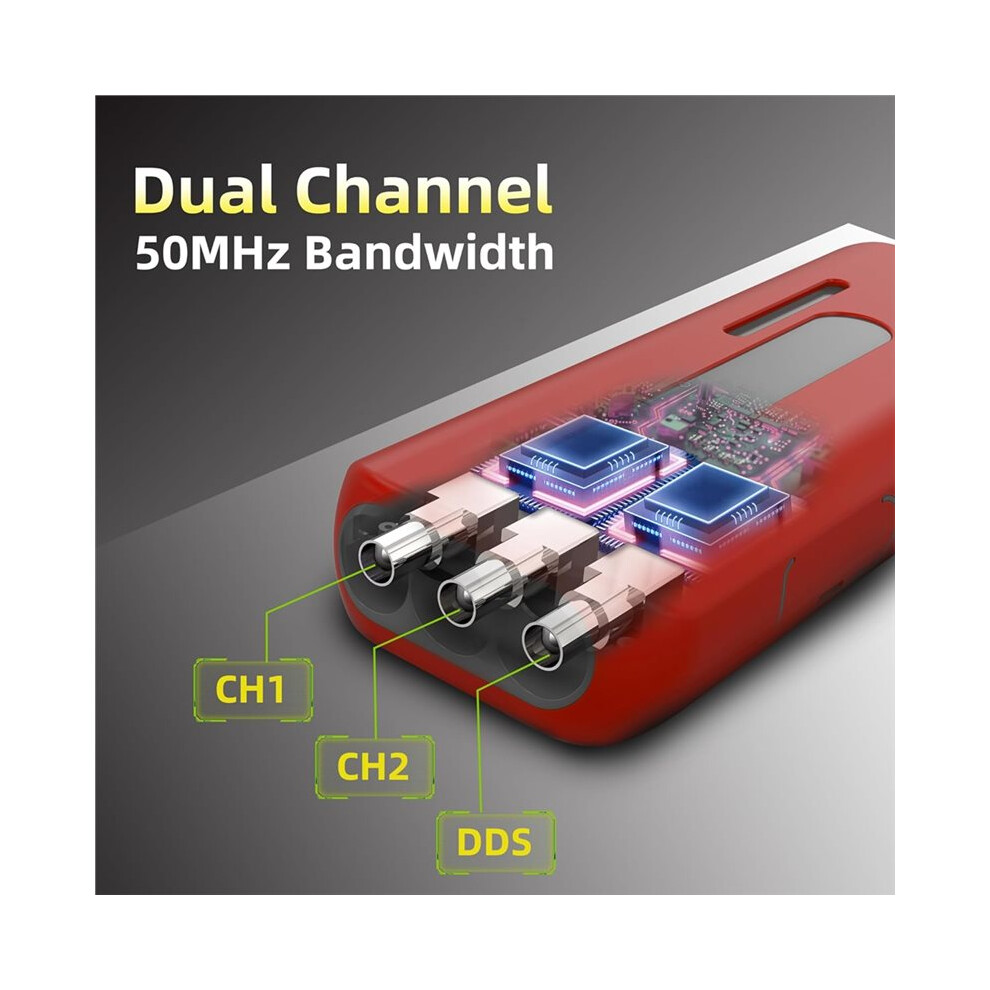

Bandwidth: 50MHz

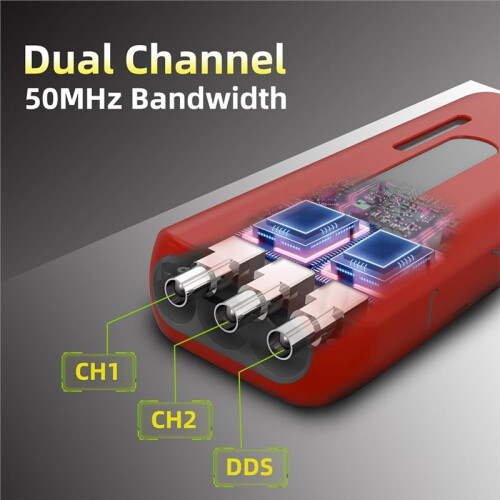

Channel: 2
Real- sample rate: 250MSa/s
Input Impedance: 1MΩ,@16pf
Maximum input voltage: 300V (+AC )
Horizontal SEC range: 100ns/div -20s/div
Vertical sensitivity: 20mV/div -100V/div
voltage:
20mV/200mV 0.001mV/0.01mV (0.1%+3); 2V/20V 0.0001V/0.001V/ (0.05%+3); 200V/1000V 0.01V/0.1V (0.5%+3)
AC voltage:
20mV/200mV 0.001mV/0.01mV (0.1%+3); 2V/20V 0.0001V/0.001V/ (0.05%+3); 200V/750V 0.01V/0.1V (0.5%+3)
current: 20mA/200mA 0.001mA/0.01mA (0.1%+3)
AC current: 20mA/200mA 0.001mA/0.01mA (0.1%+5)
Flexible AC Current: 200A/2000A 0.1A/1A (1.0%+5)
Continuity: Yes
Output Waveforms: sine wave, square wave, triangle wave, full wave, half wave, sawtooth wave, wave
Frequency range: 0-2MHz
Output Amplitude: 0.1-3V
Square Wave Duty Cycle: 1%-99%
Power: 2*Rechargeable Li-ion battery
Size: 216.6 x 84.5 x 36 mm
Weight: 384g
1 x User Manual
Color: As Shown
Material: Metal+Plastic

Package Contents:
1 x Portable Oscillos
