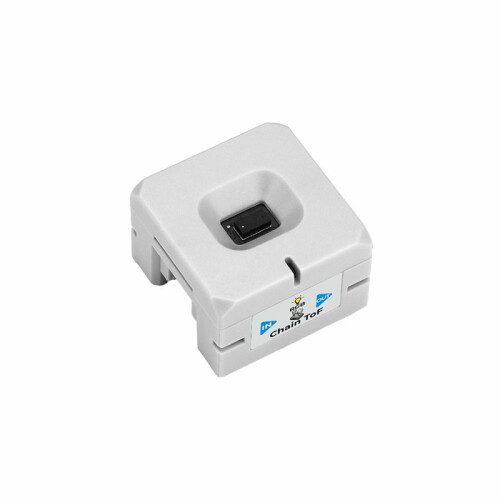

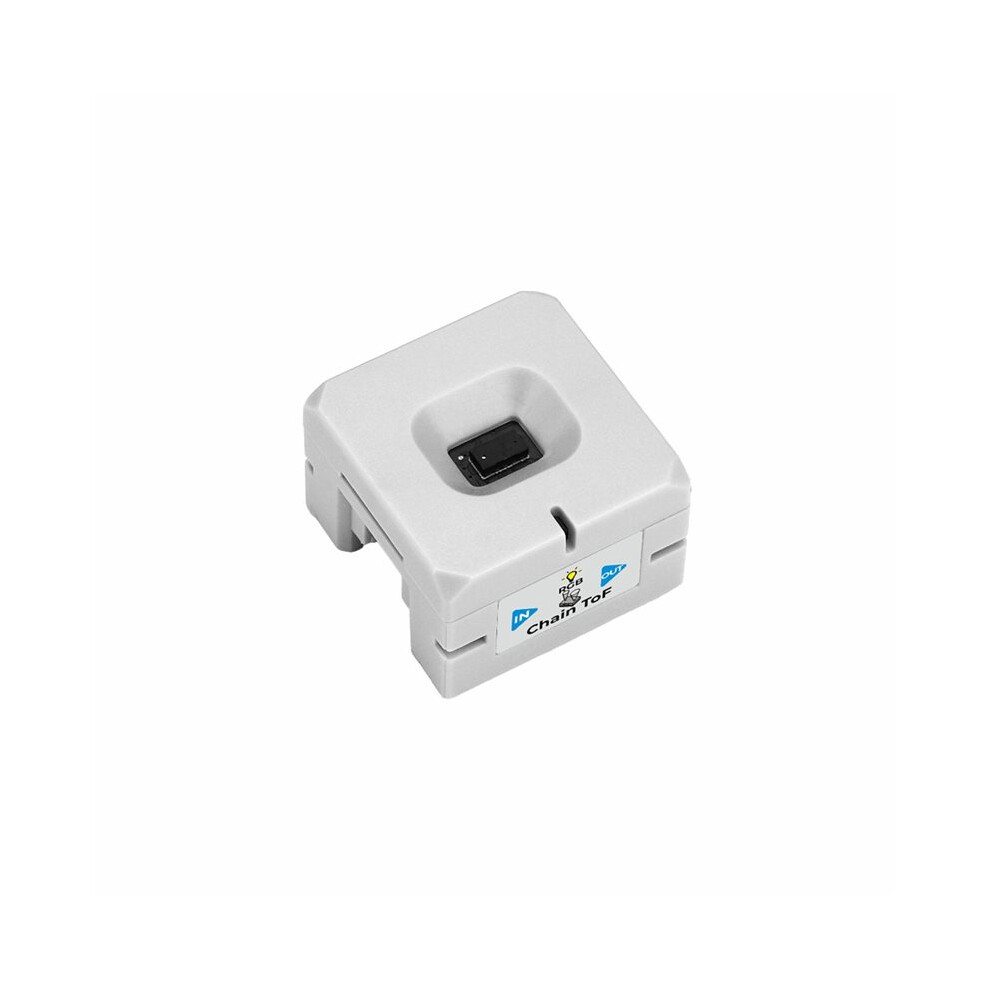

Chain ToF Laser Ranging Sensor Node Integrates VL53L0C Laser Ranging Module for M5Stack Chain Series

Chain ToF Laser Ranging Sensor Node Integrates VL53L0C Laser Ranging Module for M5Stack Chain Series Beschreibung

Chain ToF is a laser ranging sensor node in the M5Stack Chain series. The device integrates a VL53L0C laser ranging module, supporting a ranging range of 3~200cm with a measurement accuracy of 3%. It is suitable for short-distance air-to-air ranging or object proximity detection applications.
Chain ToF integrates an STM32G031G8U6 core controller and uses a UART serial cascading communication protocol. Through two HY2.0-4P expansion interfaces, it can expand to include more Chain series devices, building richer interactive applications.
Features
For M5Stack Chain Series
VL53L0C Laser Ranging Module
3~200cm Ranging Range
STM32G031G8U6 Core Controller
Uses UART Serial Cascading Communication Protocol
2x HY2.0-4P Expansion Interfaces, expandable to Chain series devices

Parameters:
MCU: STM32G031G8U6
Laser Ranging Module: VL53L0C
Ranging Range: 3~200cm
Ranging Accuracy: 3%
Input Power: 5V
Communication Interface: UART
Interface Specifications: 2x HY2.0-4P
RGB LED: 1x WS2812C
Power Consumption:
Stop Mode (White RGB ): [email protected]
Default Mode Single Ranging: [email protected]
Default Mode Continuous Ranging: [email protected]
Operating Temperature: 0~40
Color: Gray
Material: plastic

Package Contents:
1 * Chain ToF
