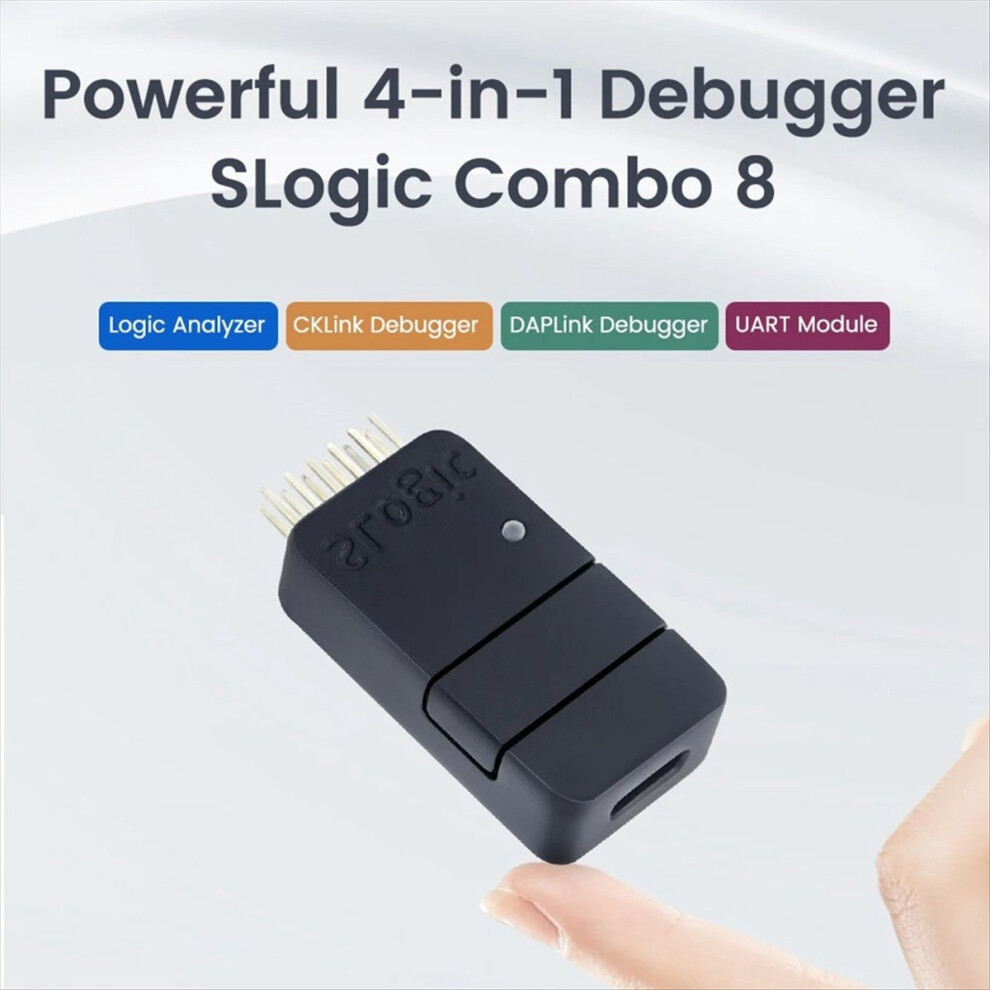

Combo 8 Analyzer DAPLink CKLink Debugger-Tool Weiß

Combo 8 Analyzer DAPLink CKLink Debugger-Tool Weiß Beschreibung

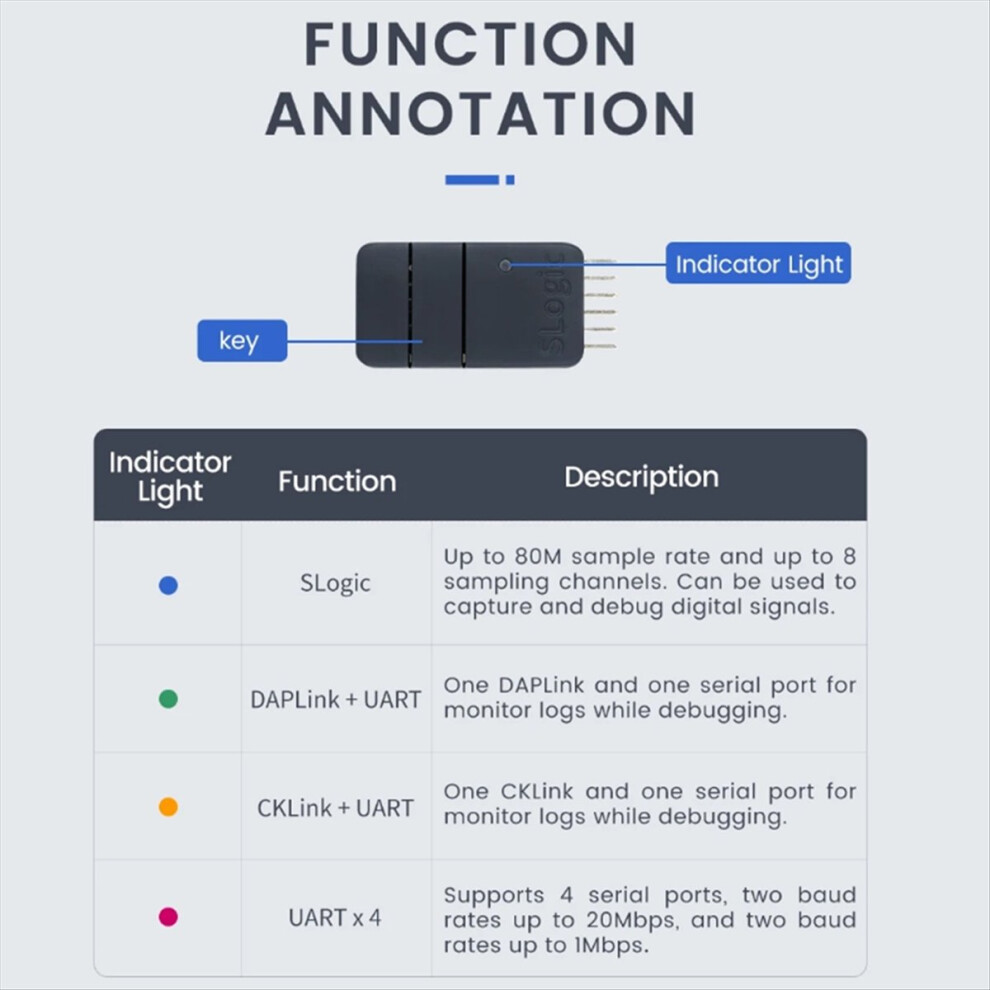

Combo 8 is a development tool that combines the functions of a logic analyzer, CKLink Debugger, -Link Debugger, and USB2UART. You can switch functions at by pressing the button during use.

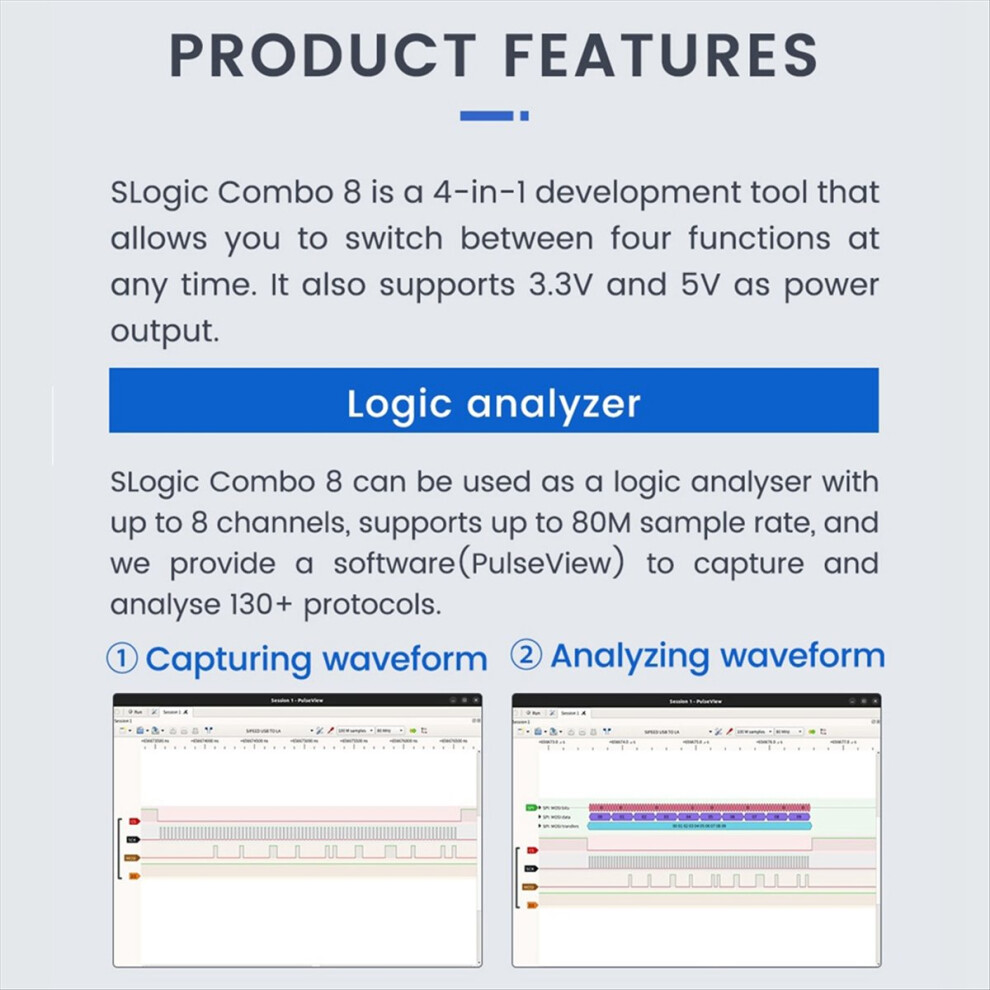

When used as a logic analyzer, it supports a maximum sampling rate of 80MHZ, and can cooperate with the host computer to analyze most protocols; when used as a UART module, it supports 4 serial ports at the same time, and supports a maximum baud rate of 20M, which can adapt to most scenarios where serial ports are used;
Use as CKLink or DAPLink It can be used to debug RISC-V series chips and ARM series chips, and additionally supports 1 serial port for observing logs.

function parameters
Logic Analyzer: Combo 8
Maximum number of channels: 8CH

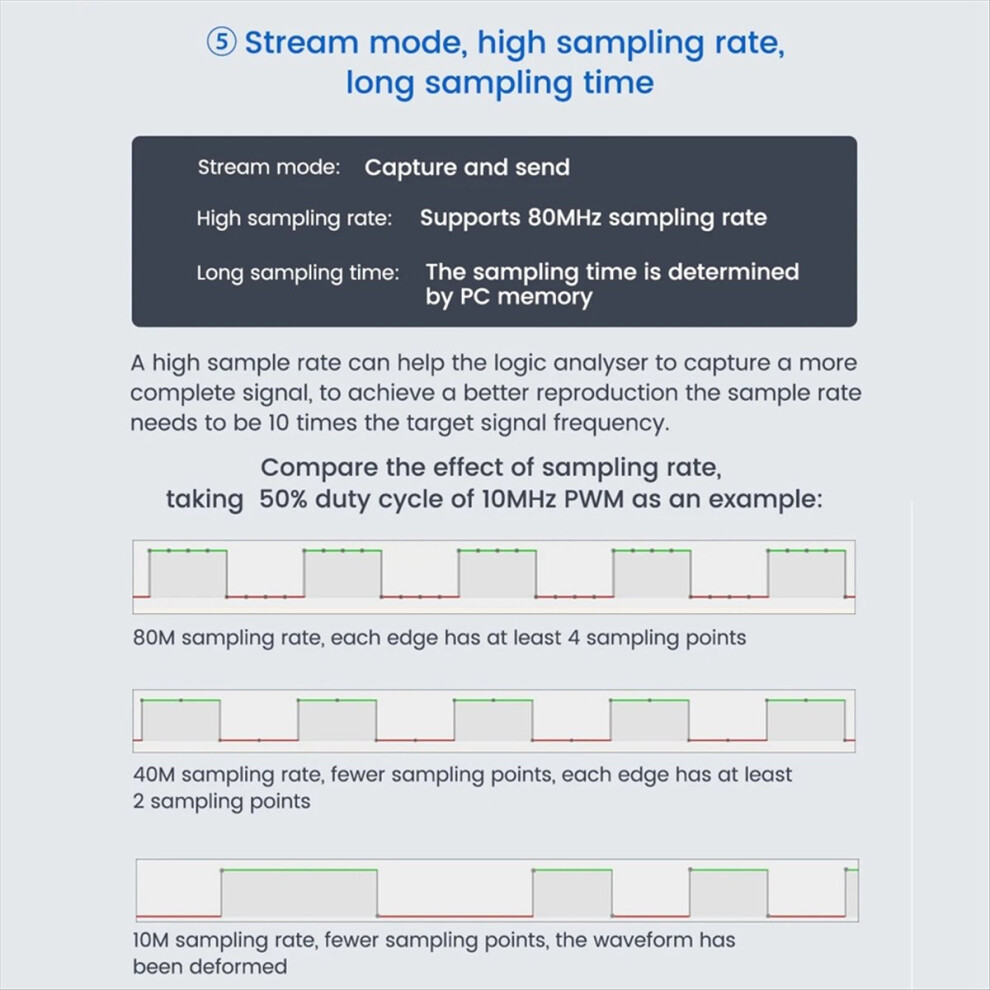

Maximum sampling rate: 80M
Transmission bandwidth: 320Mb/s
Sampling mode: Stream
Typical configuration: 80M@4CH 40M@8CH
Signal input range: 0~3.6V
High and low level threshold: VIH 2V VIL Less than 0.8V
Note: The maximum transmission bandwidth of Combo 8 under environment is 160Mb/s, and the typical configuration is 80M@2CH 40M@4CH
CKLink function parameters
JTAG clock rate: 16M
Typical dump speed: 1200KB/s
Debug serial port: up to 20Mbps
DAPLink function parameters
Debug serial port: up to 20Mbps
Typical burning speed: 110KB/s
UART function parameters
High speed four serial ports
Maximum baud rate: 2x20Mbps+2x1Mbps
Total bandwidth: 42Mbps
Material: plastic
colour: White

Package Contents:
1 x Combo 8 Analyzer
1 x USB Type-C data cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
