Zusammenfassung

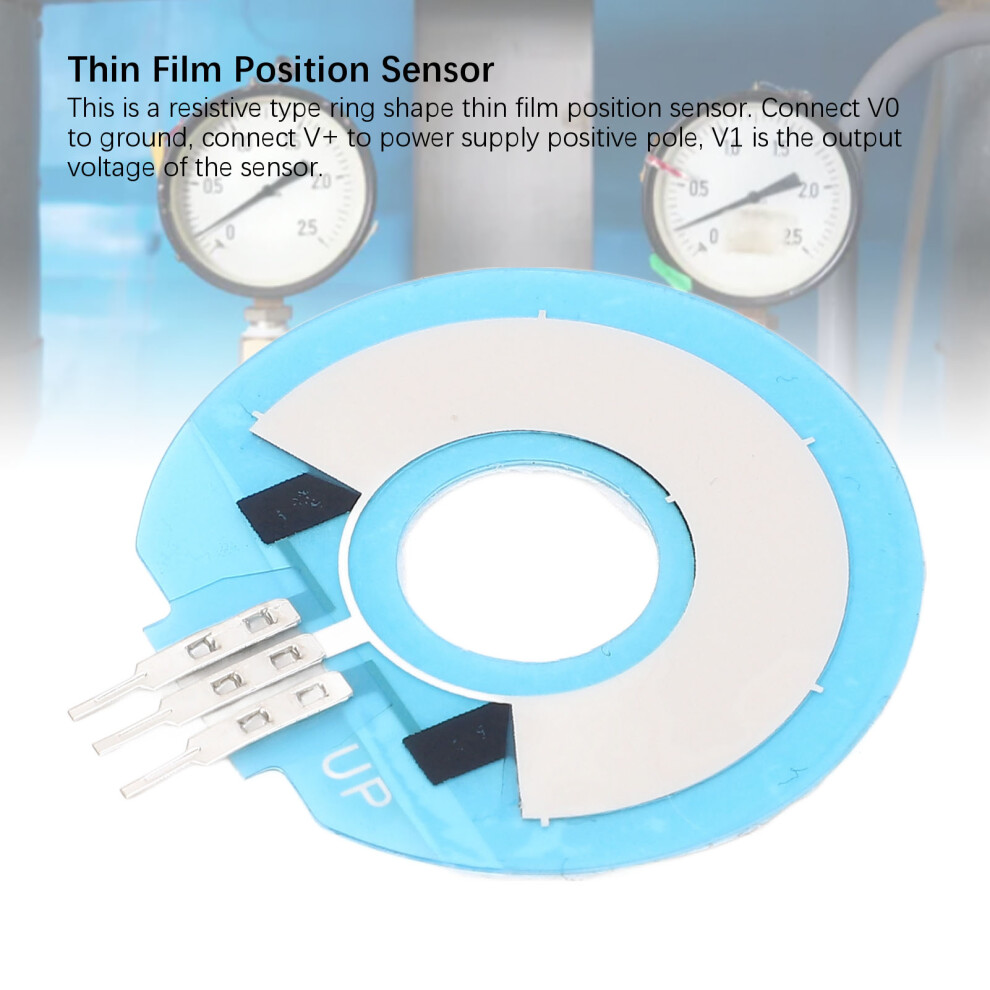

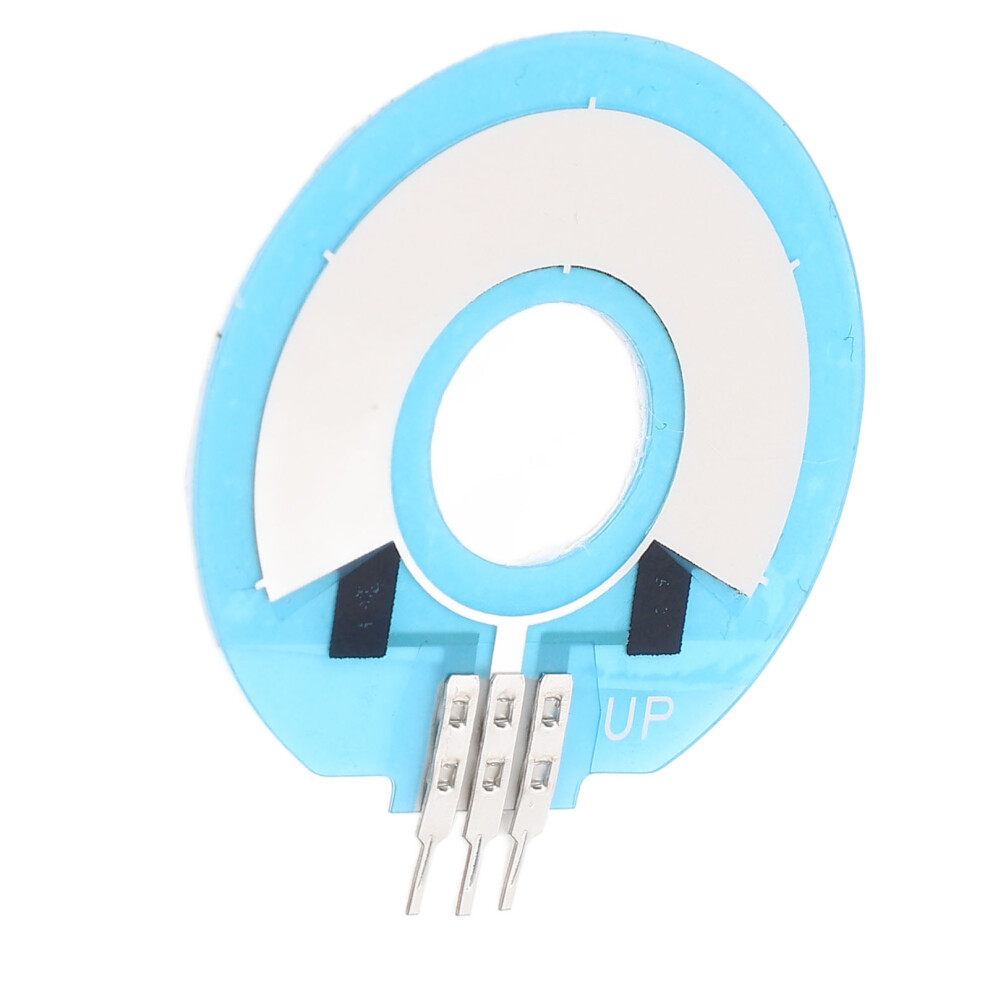

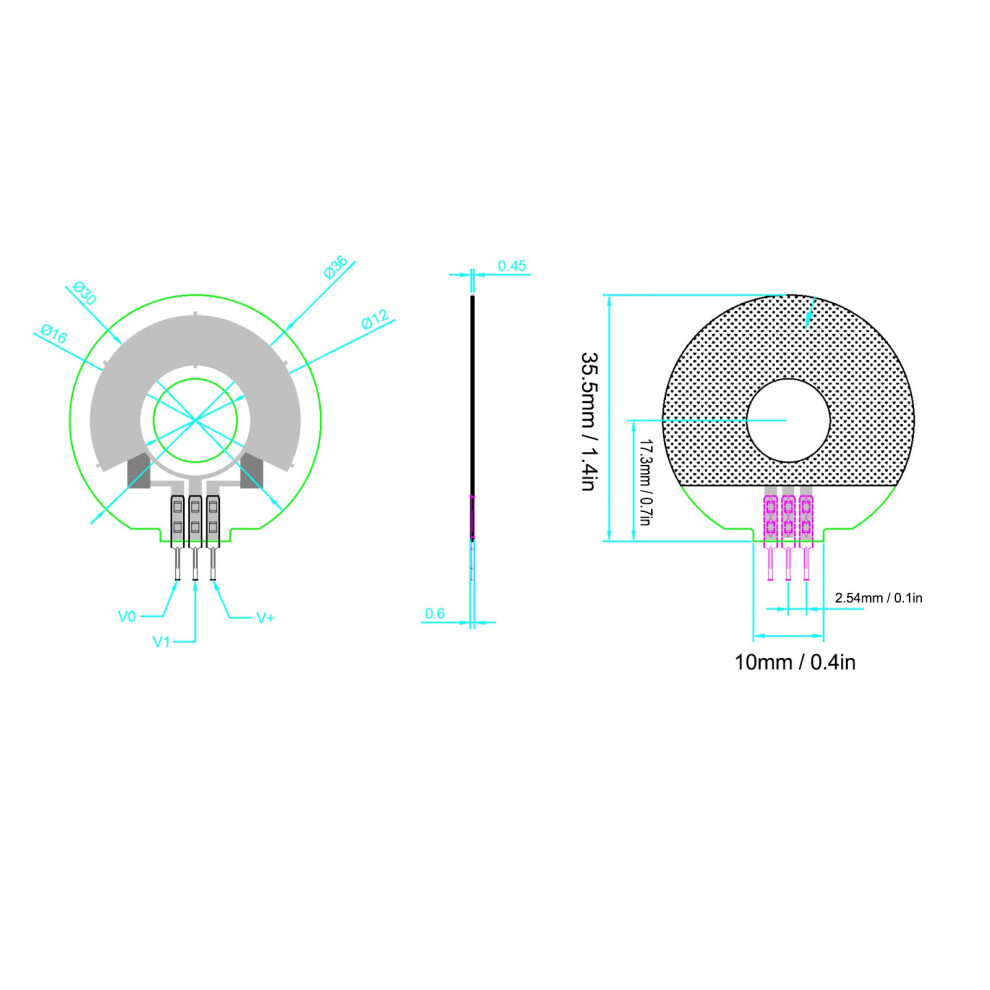

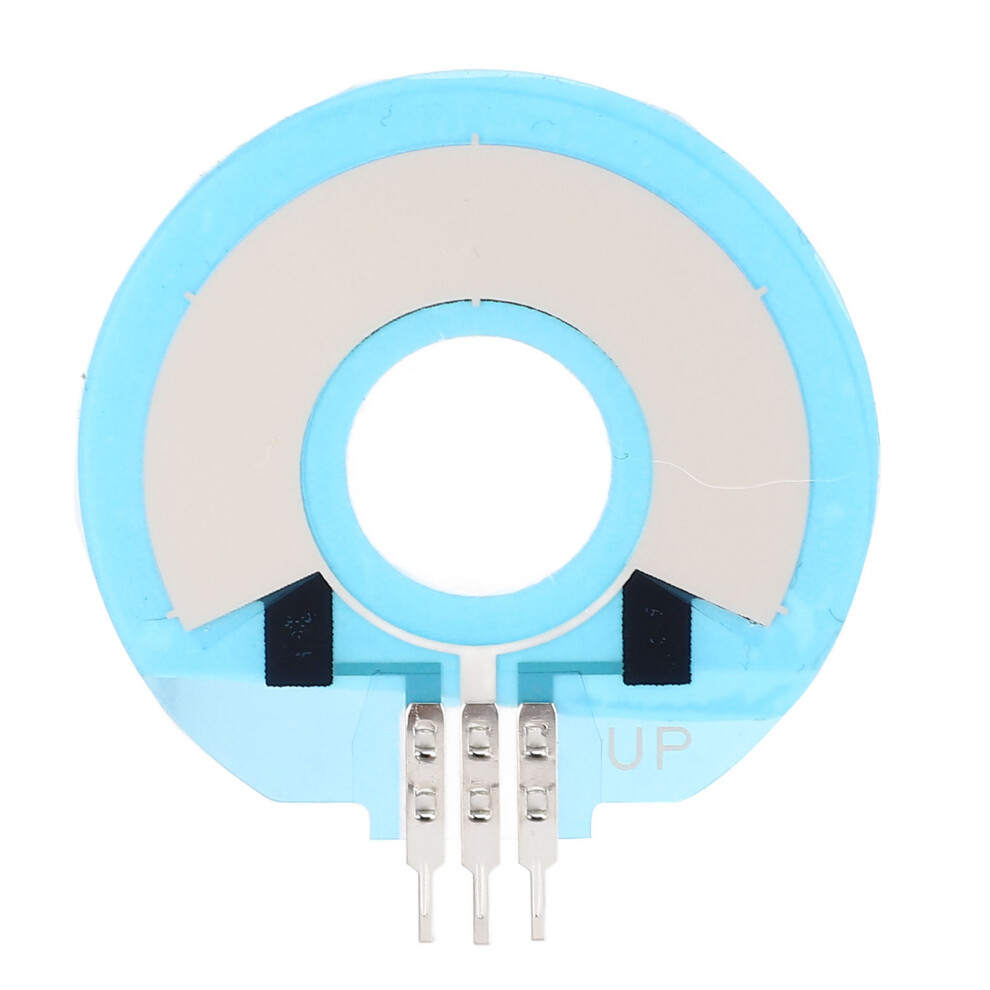

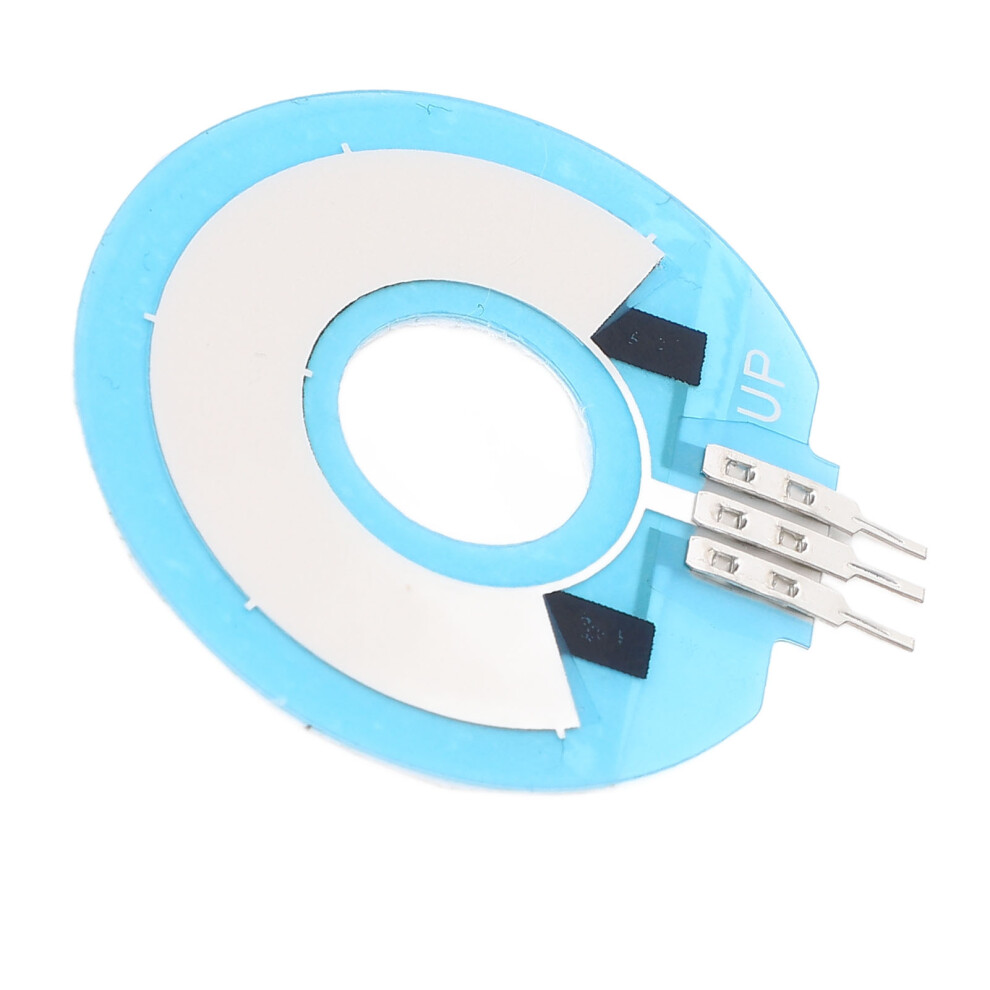

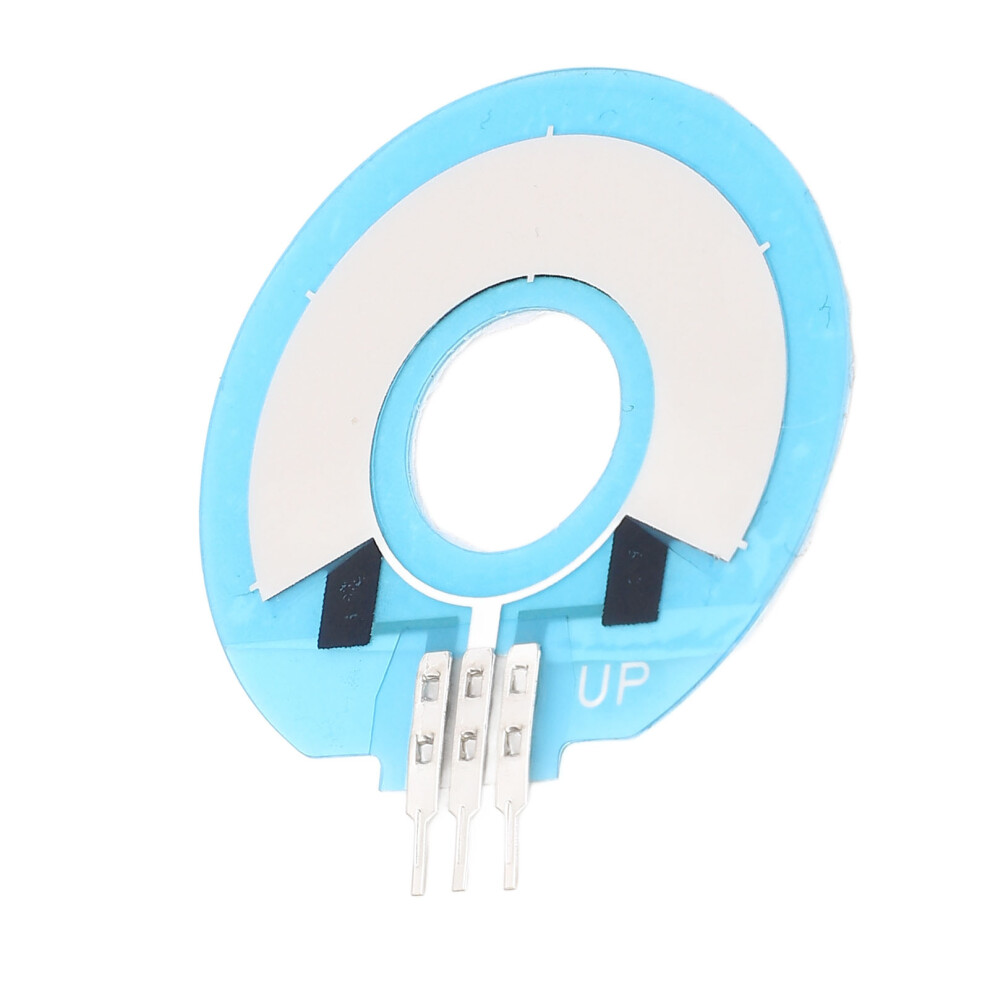

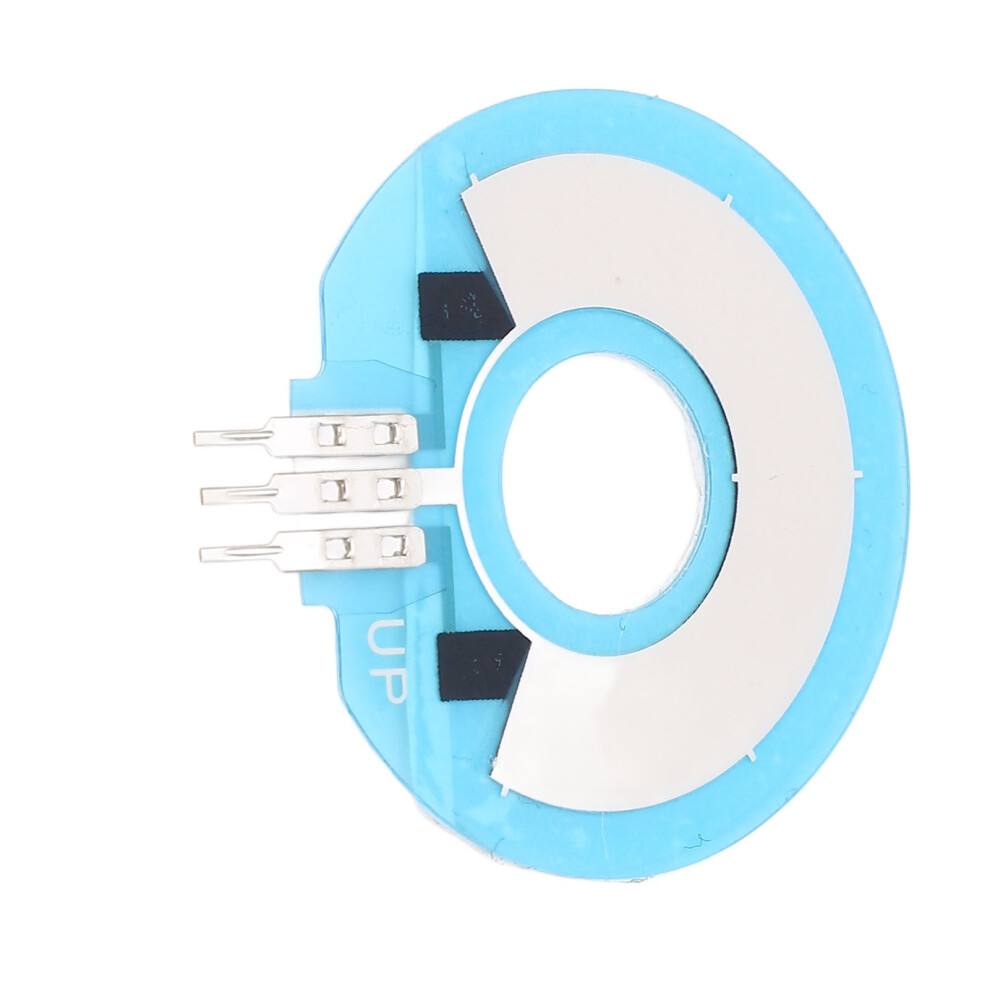

• Thin Film Position Sensor: This is a resistive type ring shape thin film position sensor. Connect V0 to ground, connect V+ to power supply positive pole, V1 is the output voltage of the sensor.

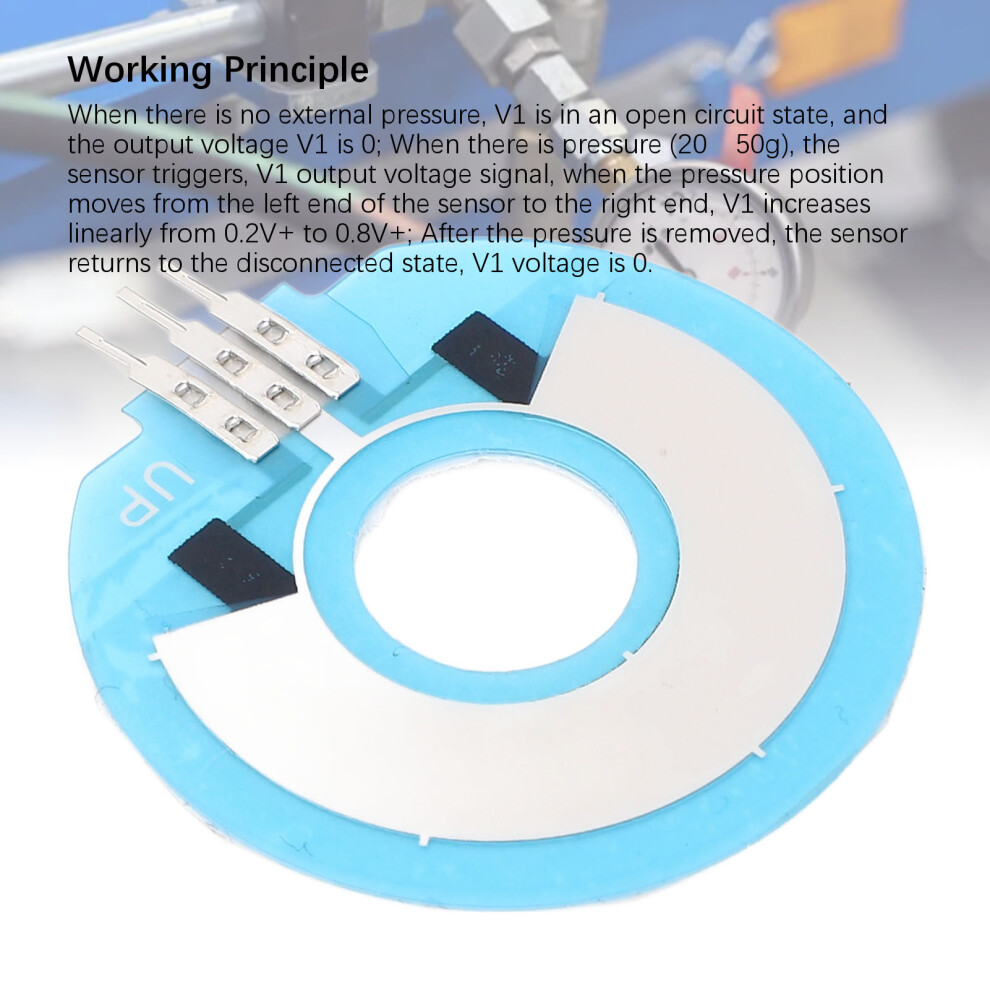

• Working Principle: When there is no external pressure, V1 is in an open circuit state, and the output voltage V1 is 0; When there is pressure (20‑50g), the sensor triggers, V1 output voltage signal, when the pressure position moves from the left end of the sensor to the right end, V1 increases linearly from 0.2V+ to 0.8V+; After the pressure is removed, the sensor returns to the disconnected sta

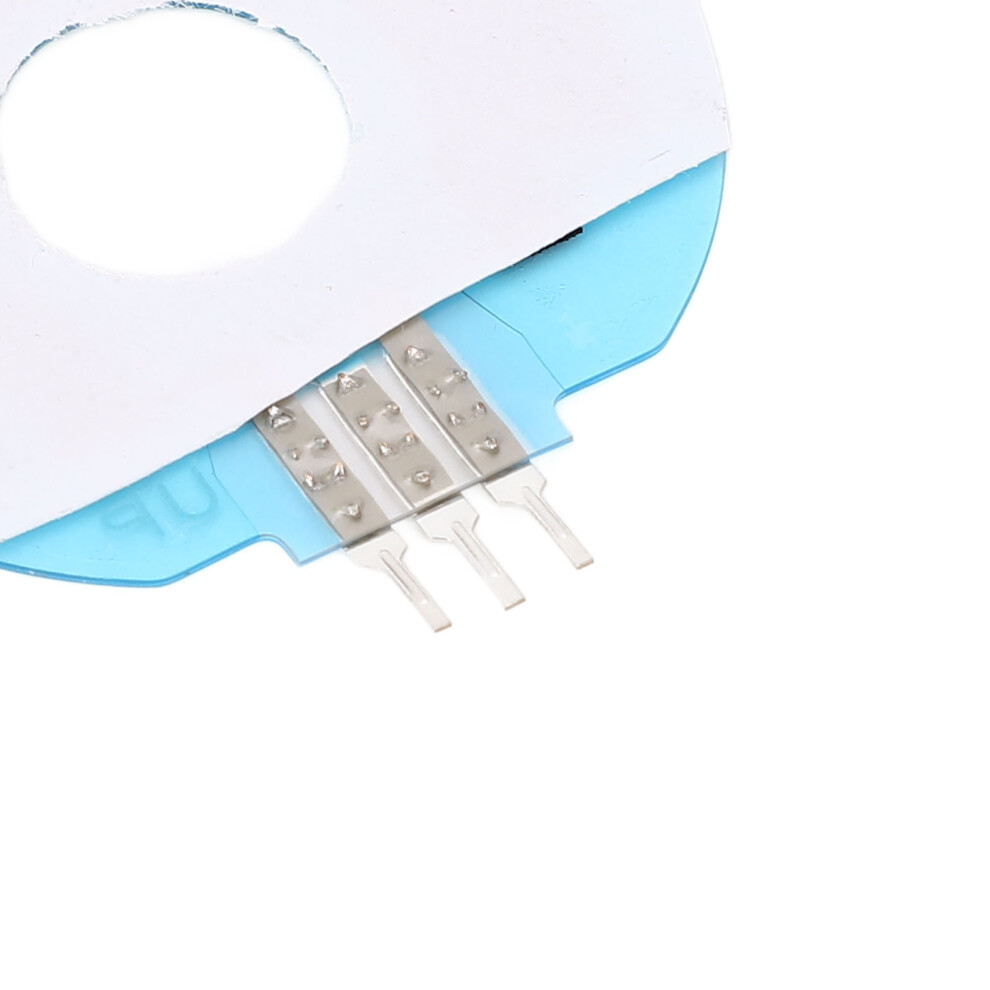

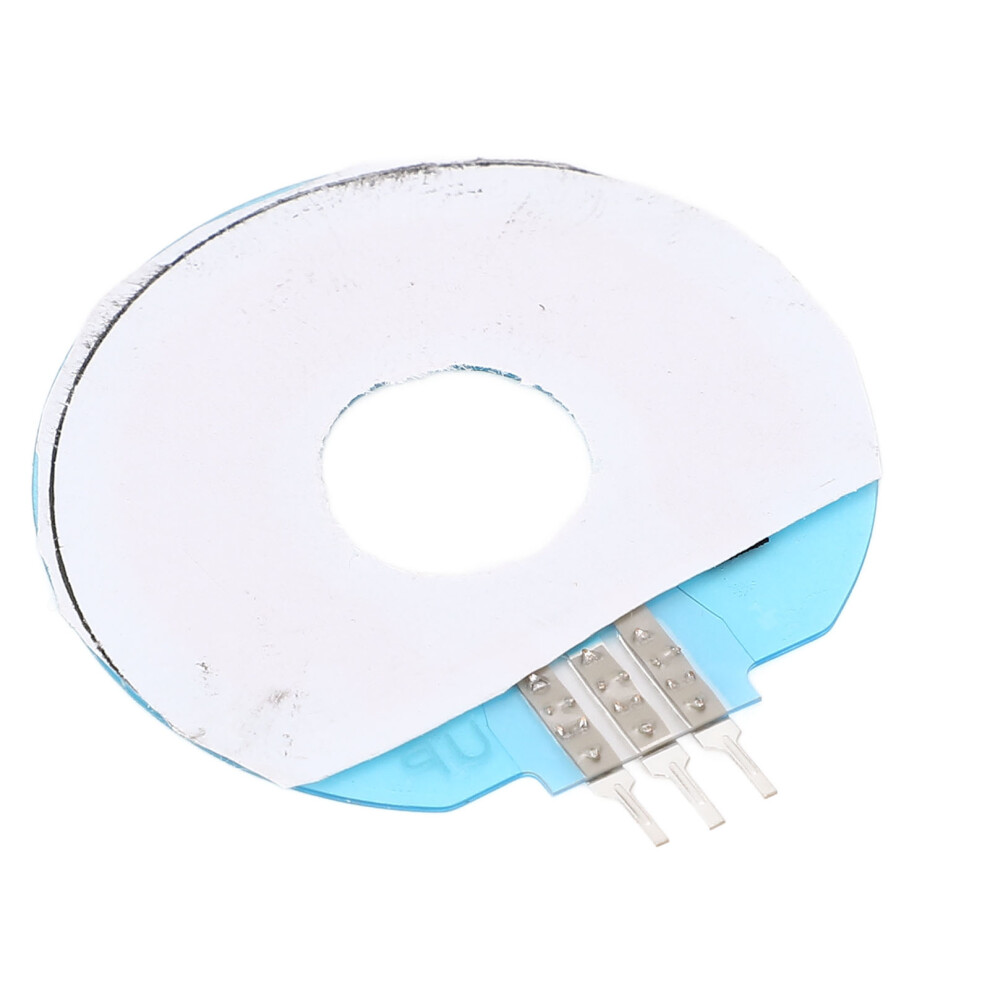

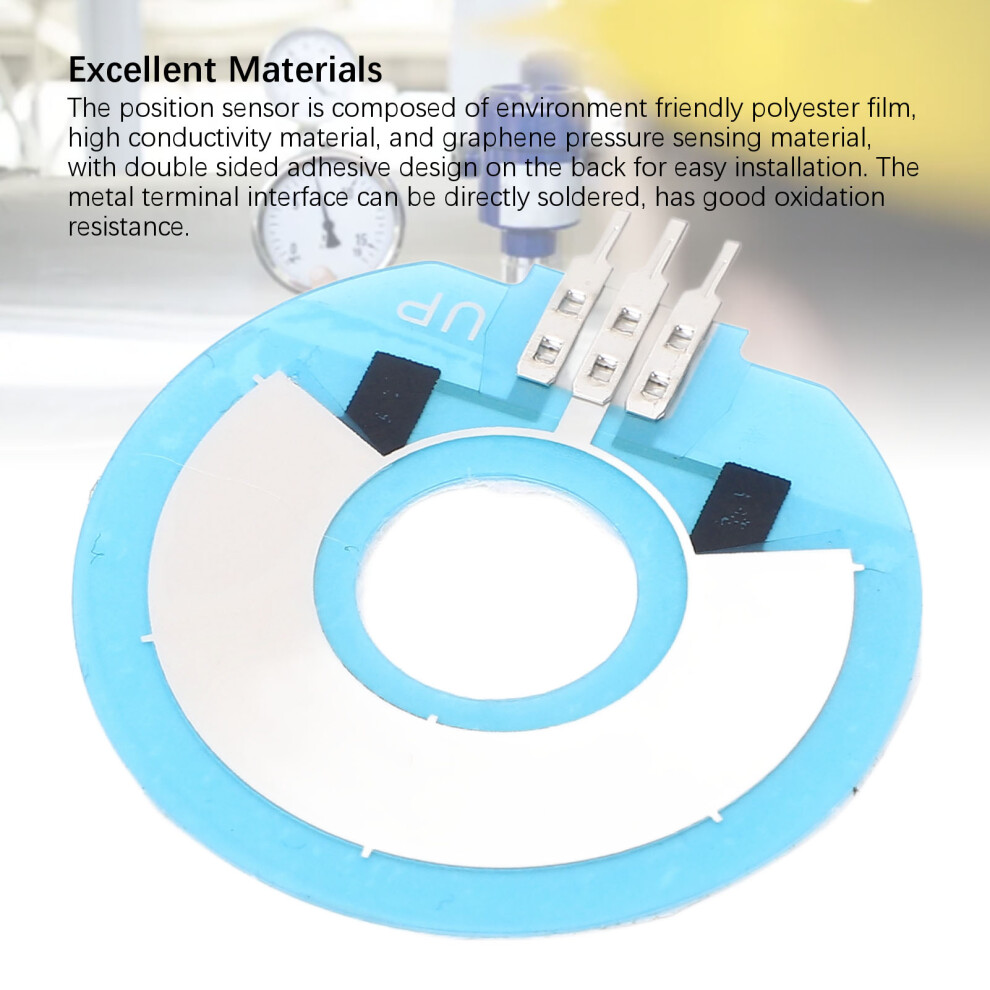

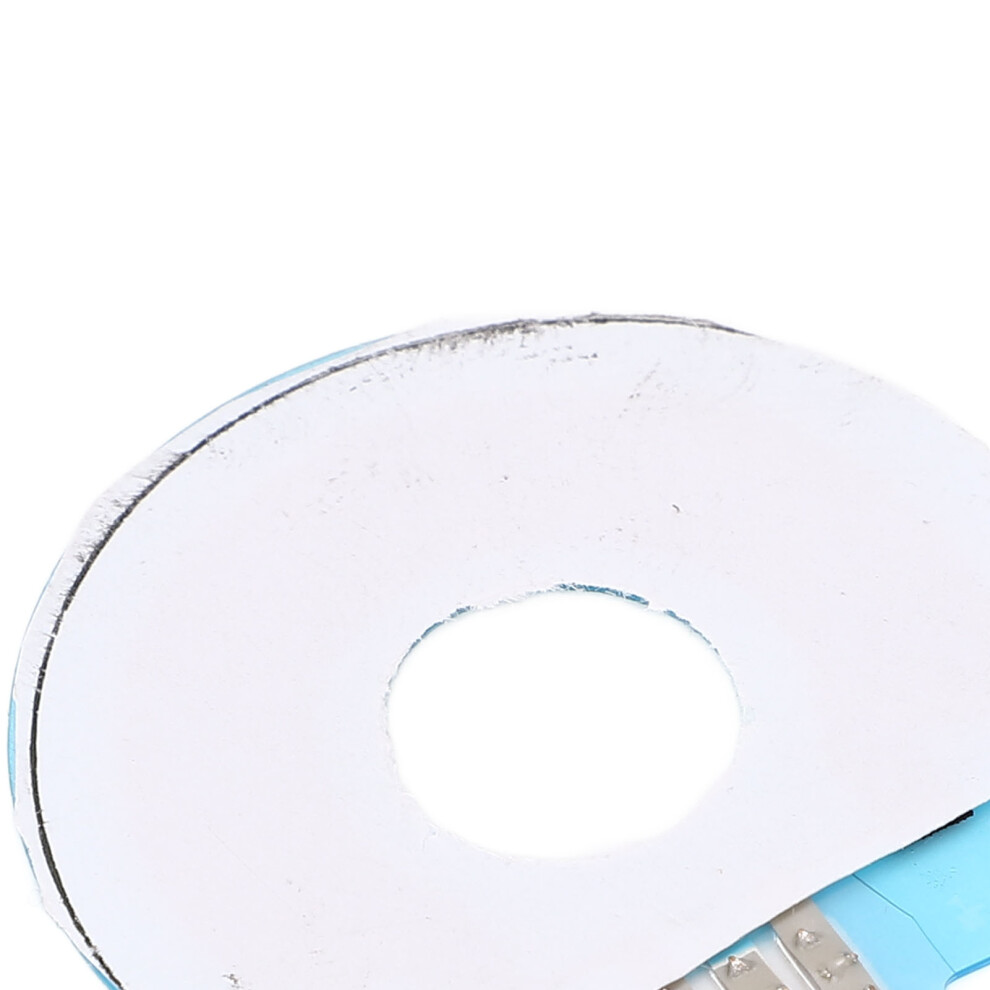

• Excellent Materials: The position sensor is composed of environment friendly polyester film, high conductivity material, and graphene pressure sensing material, with double sided adhesive design on the back for easy installation. The metal terminal interface can be directly soldered, has good oxidation resistance.

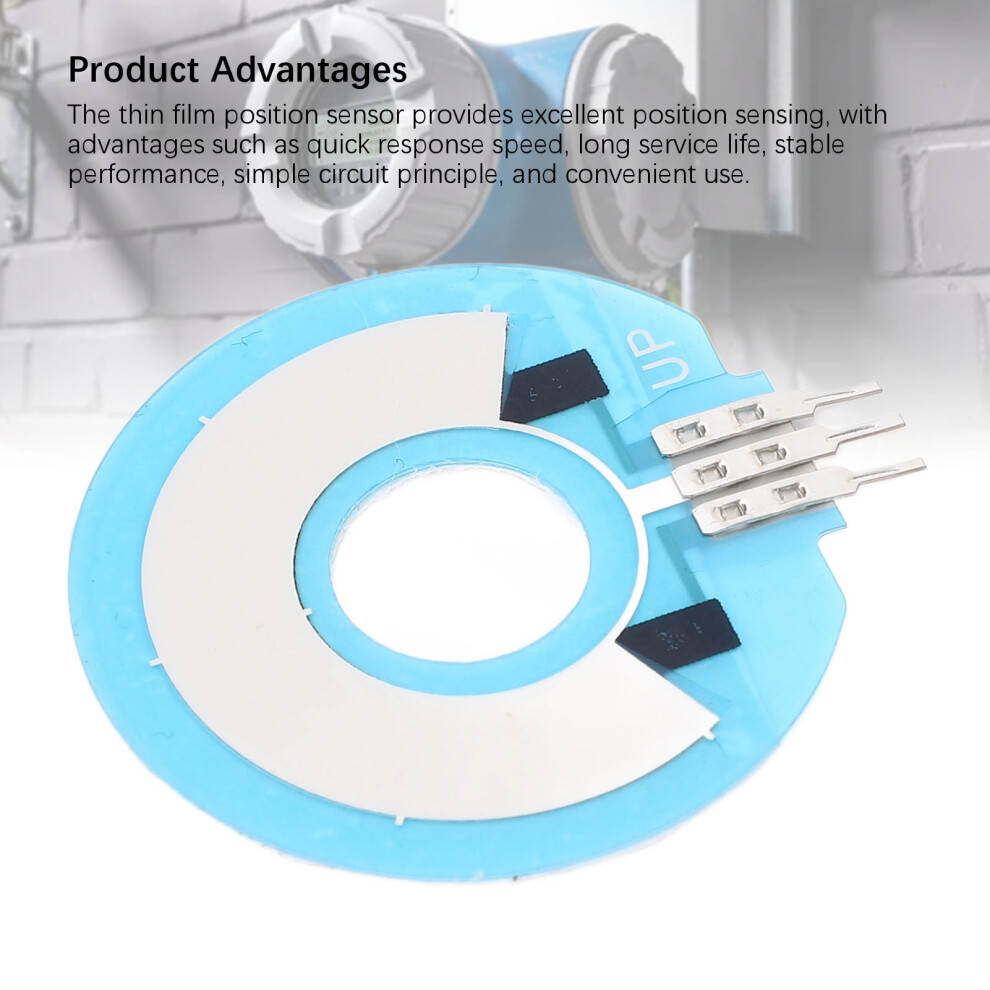

• Product Advantages: The thin film position sensor provides excellent position sensing, with advantages such as quick response speed, long service life, stable performance, simple circuit principle, and convenient use.

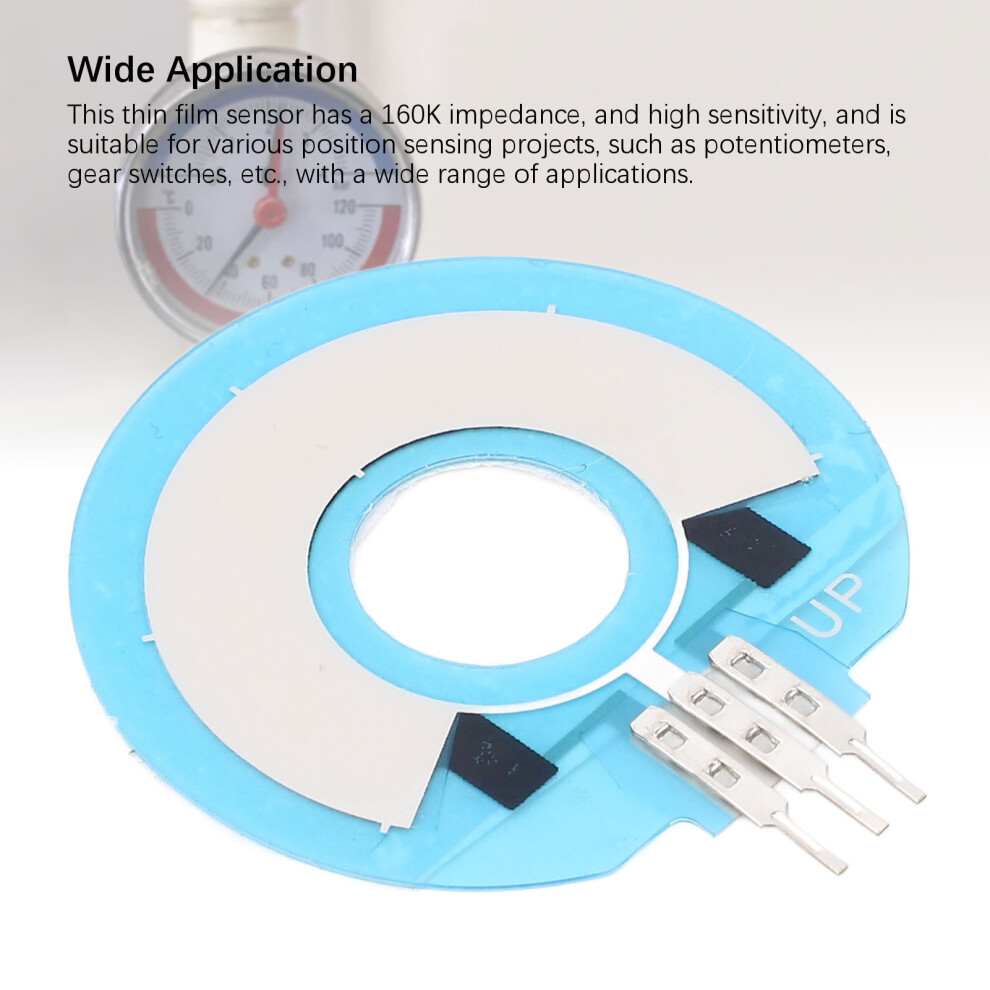

• Wide Application: This thin film sensor has a 160K impedance, and high sensitivity, and is suitable for various position sensing projects, such as potentiometers, gear switches, etc., with a wide range of applications.
