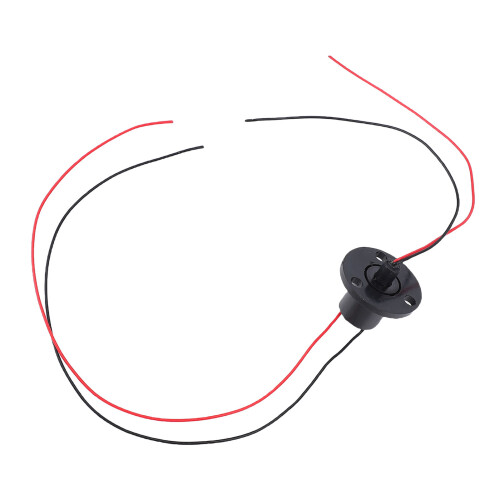

Elektrischer Schleifring, 2 A, Durchmesser 22 mm, 360 Drehung
Ähnliche Produkte, die dir gefallen könnten
Would you like us to let you know when it's back?
Zusammenfassung
- Electrical Slip Ring: Feature 2 wires, 2A per circuit, 22mm diameter, supports 360 degree rotation. Easy to install, simply place in the sleeve, secure the screw, and connect the wire.
- Mixed Transmission: Our electric collector ring adopts fiber brush technology, supports mixed transmission of power signals, and uses gold wires and gold contacts, ensures stable transmission of current and signals.
- Stable Rotation: The slip ring adopts 90 degree V shaped slot design, allowing for stable rotation, with low torsion and low electrical noise.
- 360 Degree Rotation: The slip ring can smoothly rotate 360° forward and backward without twisting, fully meets the requirements of image and data transmission as well as high power 2A current transmission.
- Wide Application: The stator and rotor use colored wires, simplify circuit connections. Suitable for a wide range of applications, including electric testing equipment, turntables, CCTV security systems, and more.
Elektrischer Schleifring, 2 A, Durchmesser 22 mm, 360 Drehung Beschreibung
Elektrischer Schleifring, 2 Drähte, 2 A, 250 U/min, Durchmesser 22 mm, 360-Rotation, Kollektorring zur Prüfung von Sicherheitsausrüstung
Item Type: Elektrischer Schleifring
Material:
Gehäuse: PBT
Leiter: 0,32 mm² PTFE-Kabel
Technische Parameter:
Schaltkreise: 2
Schaltstrom: 2 A pro Schaltkreis
Kontaktmaterial: Edelmetall
Isolationswiderstand: 500 MΩ/500 VDC
Dielektrische Festigkeit: 1000 V/50 Hz AC 60 s
Geschwindigkeit: 0-250 U/min
Temperatur: -40C bis +80C
Schutzart: IP51
Durchmesser: ca. 22 mm / 0,87 Zoll
Details
| OPC | PTZRZC8 |
|---|---|
| Codes | 8751394041927 (EAN) |
