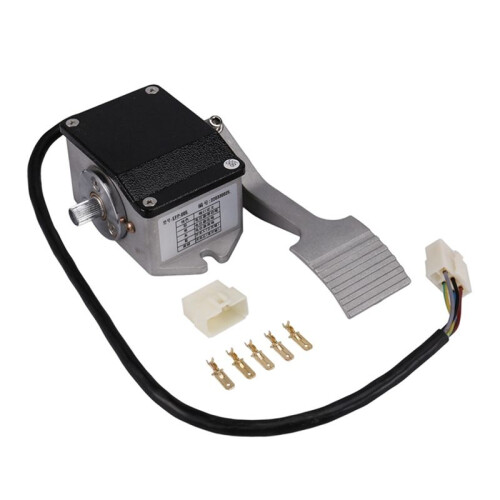

Forklift Throttle Foot EFP-005 0-5K Electric Accelerator for EV Curtis Throttle Pedal

Forklift Throttle Foot EFP-005 0-5K Electric Accelerator for EV Curtis Throttle Pedal Beschreibung

Model: -005 (3-wire potentiometer throttle, working with 1204M-4201 Series Motor Controller, 1268-5403 SepEx Motor Controller and other controllers)
Signal output: 0-5KΩ 0.1KΩ (BI potentiometer P270-033B)
/off signal: 0V - power supply voltage
Operation temperature range: -55 Celsius -120 Celsius
Storage temperature range: -40 Celsius - 80 Celsius Ingress protection: IP55

Mechnical lifespan: 1,000,000 Product Description: 54793
Potentiometer Throttle (Foot Pedal)
0-5KΩ Speed Signal Device (3-Wire Pot Throttle)
Model: -005
The foot pedal could be installed at both ends of rotating shaft
Solid metal case, ingress protection: IP55
Attention:
Wires: There are 5 wires, 3 of them are potentiometer wires, and another 2 is wires.
Brown: Potentiometer Wiper
Black: Potentiometer Low
Red: Potentiometer High
: Input (common)
Yellow & Green: Output (normally open)
Color: As Shown
Material: Aluminum Alloy

Package Contents:
1 * Forklift Throttle Foot
