GN701 SMD Tester 3000 Counts 172.53221mm Black

GN701 SMD Tester 3000 Counts 172.53221mm Black Beschreibung

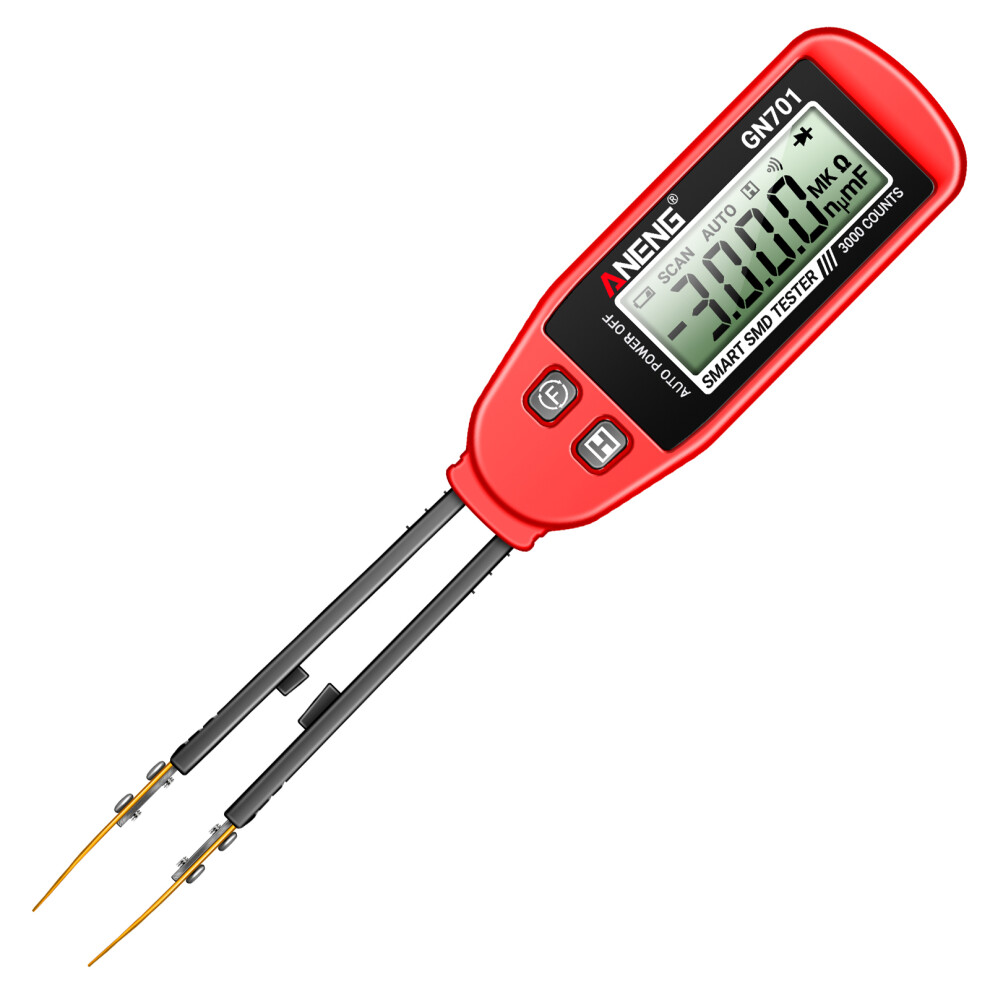

ANENG GN701 Smart SMD Tester 3000 Counts Multimeter Handheld Patch Test Resistance Capacitance Continuity Diode Test Meter Tools
This tester is versatile and suitable for a wide range of applications in electronics. Whether you need to test resistors, capacitors, continuity or diodes, this tester has you covered. Its high accuracy ensures reliable results, making it an essential tool for professionals and hobbyists alike.
Features:

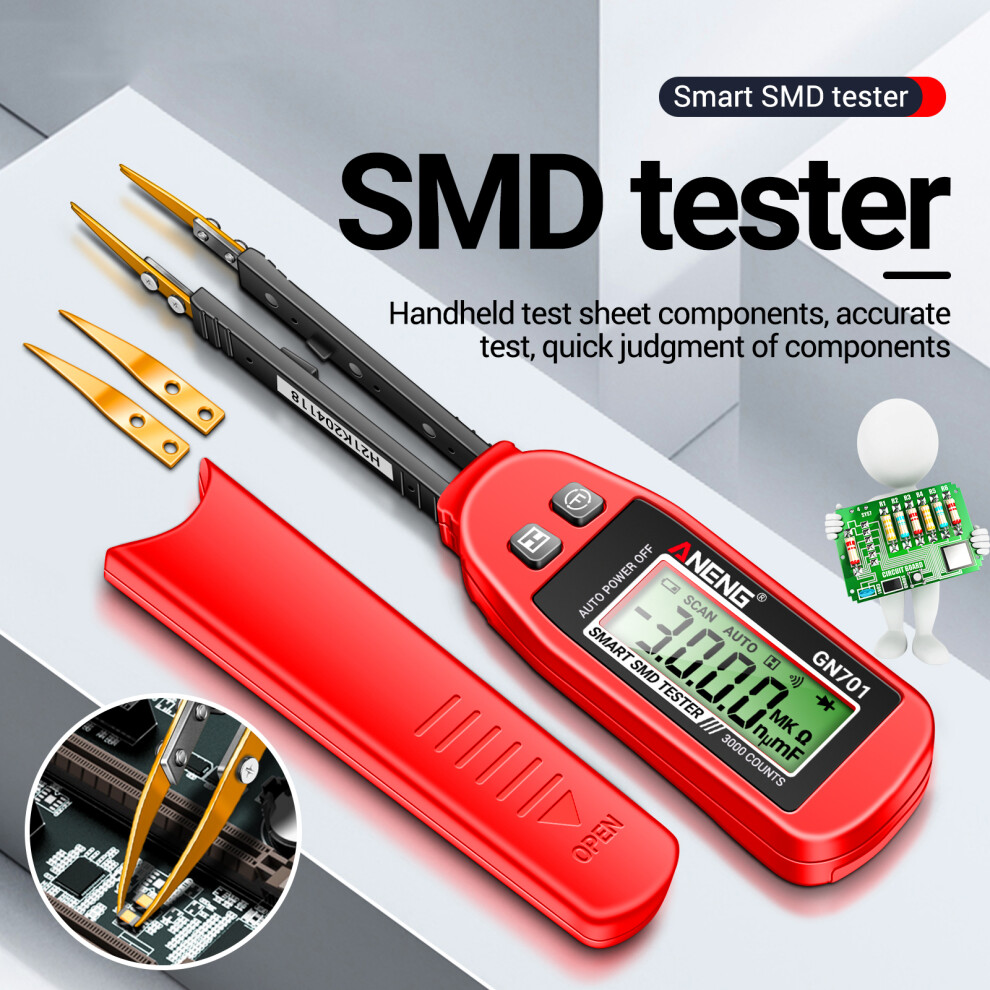

SMD Tester: Handheld test sheet components, accurate test, quick judgment of components.
Handheld Patch Test: Can identify resistors/capacitors/diodes and other components, accurate testing.

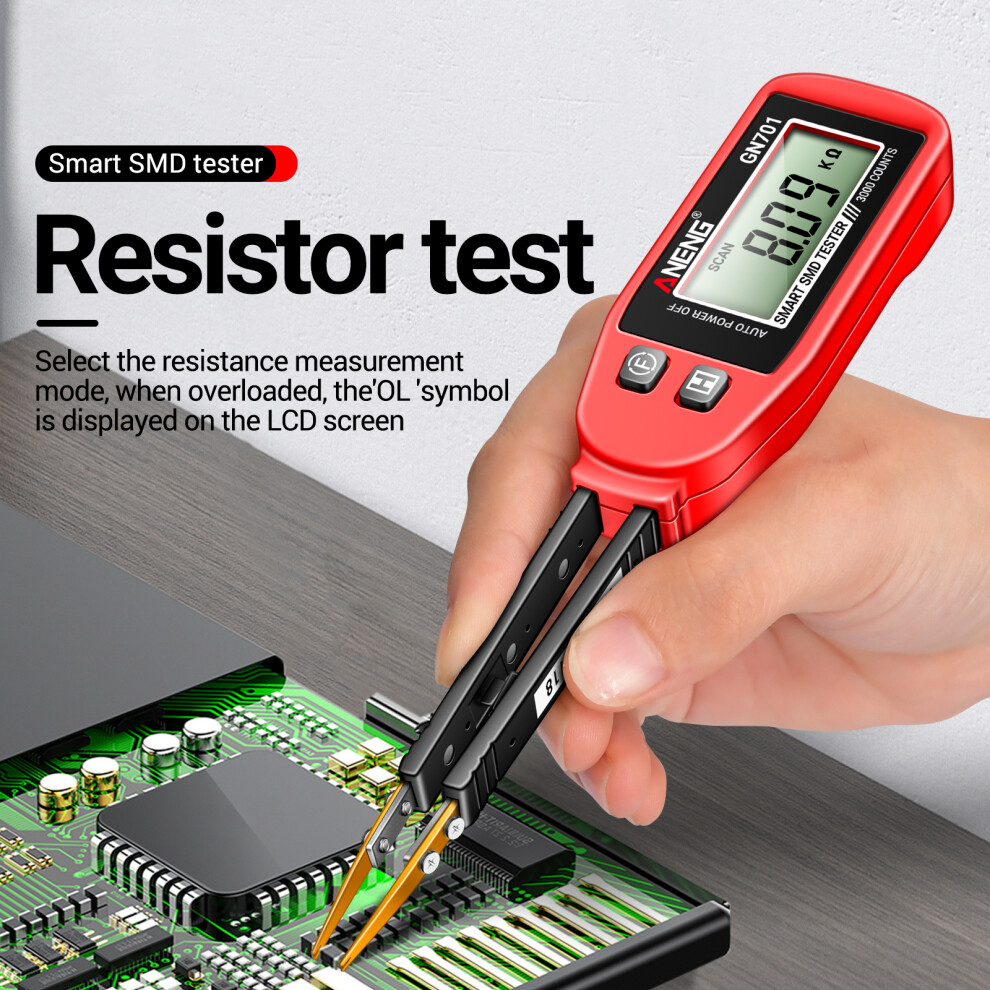

Resistor Test: Select the resistance measurement mode, when overloaded, the 'OL' symbol is displayed on the LCD screen.

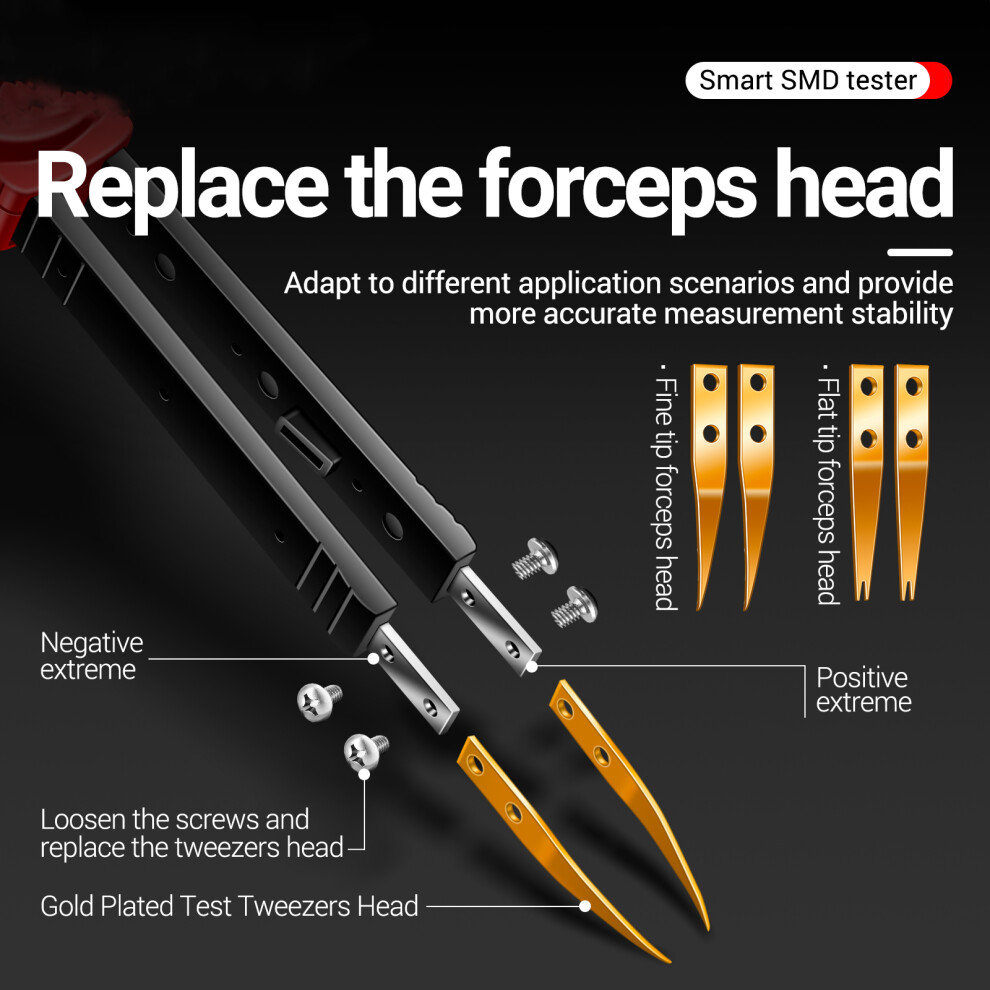

Replace the Forceps Head: Adapt to different application scenarios and provide more accurate measurement stability.

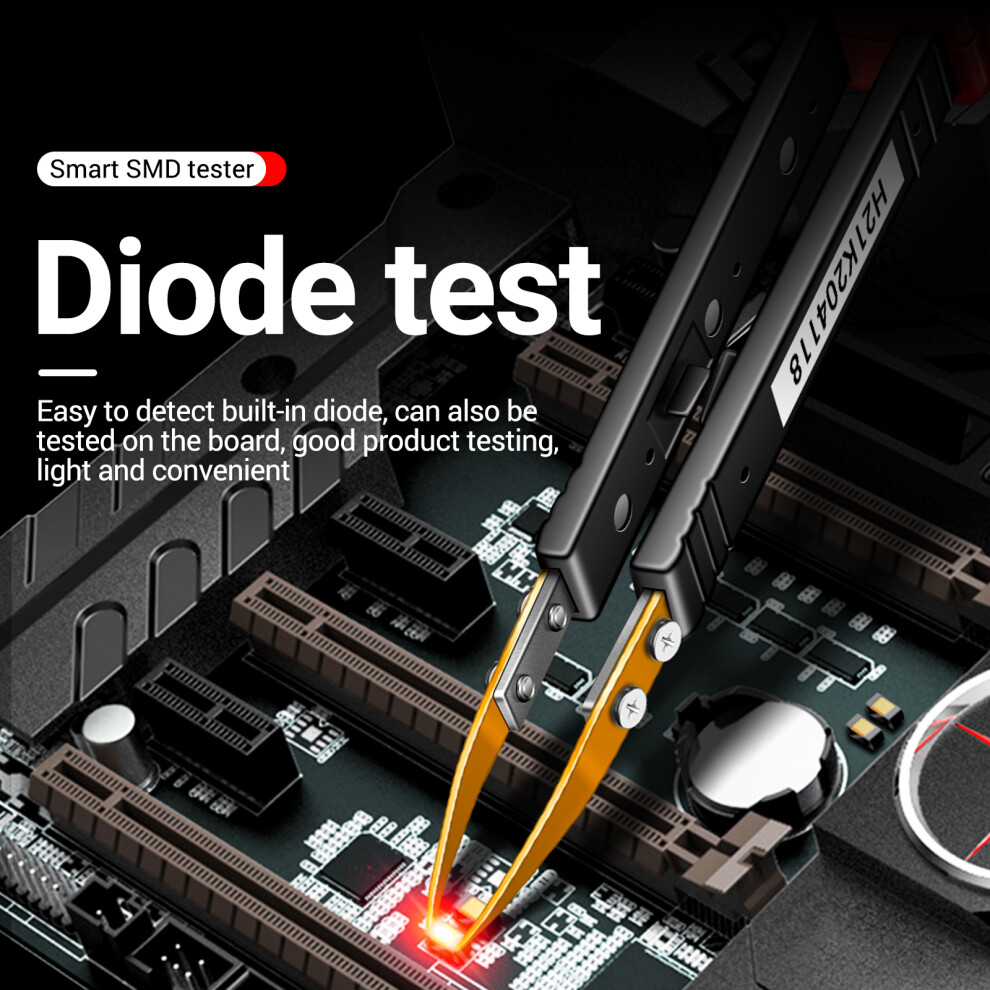

Diode Test: Easy to detect built-in diode, can also be tested on the board, good product testing, light and convenient.

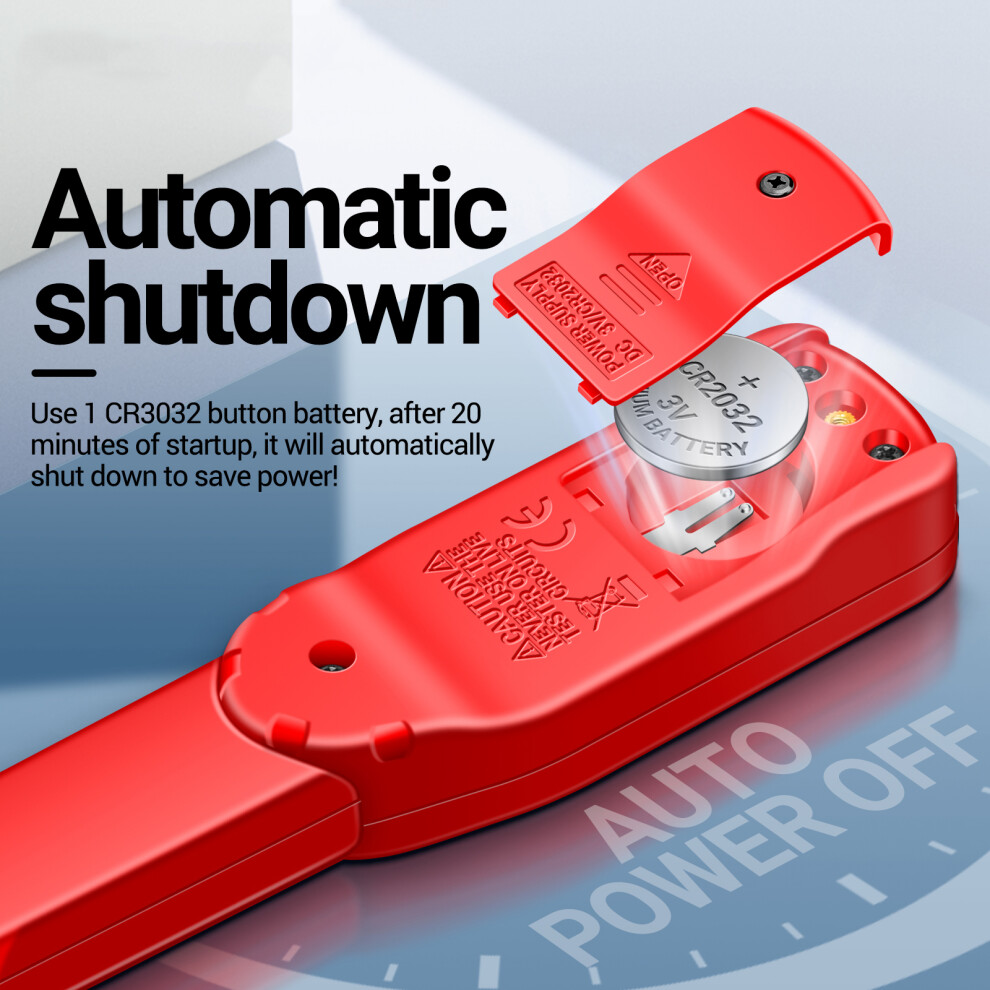

Automatic Shutdown: Use 1 CR3032 button battery (not included), after 20 minutes of startup, it will automatically shut down to save power!
Data Hold Key: When this key is pressed, the meter stops refreshing the test data, while maintaining the current test data, and returns to the normal test state when this key is pressed.
Specifications:
Model: GN701
Material: ABS
Resistance: 0Ω-30MΩ, 0.1Ω-10kΩ, ±(1.2% of reading +3digits)
Capacitor: 0nF-30mF, 1pF-10uF, ±(3.0% of reading +3digits)
Diode: Yes
Buzzer: Yes
Data Retention: Yes
Auto Power Off: Yes
Low Battery Prompt: Yes
Screen: LCD display
Power Supply: 3V CR3032 button battery (Not included)
Max Count: 3000 count
Operating Temperature and Humidity: 0~40 / 32~104, 80% RH
Storage Temperature and Humidity: -10~50 / 14~122, 70% RH
Security Level: 2014/30/EU CAT II
Item Size: 172.5 * 32 * 21mm / 6.79 * 1.26 * 0.82in
Package Weight: 100g / 3.53oz
Package Size: 20 * 5 * 2.8cm / 7.87 * 1.97 * 1.10in
Package List:
1 * Smart SMD Tester
1 * Gauge Pen Cover
2 * Gold-plated Test Needle
1 * Packaging Box
1 * User Manual (English)
