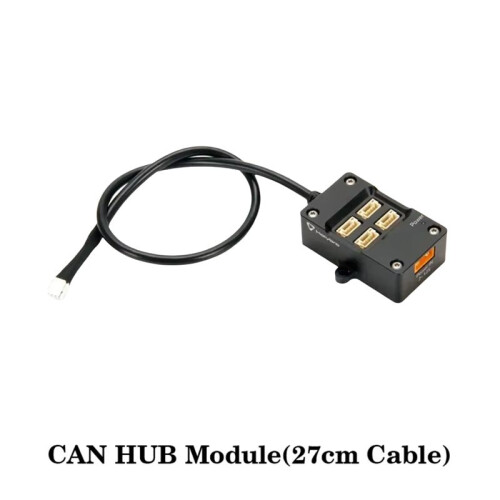

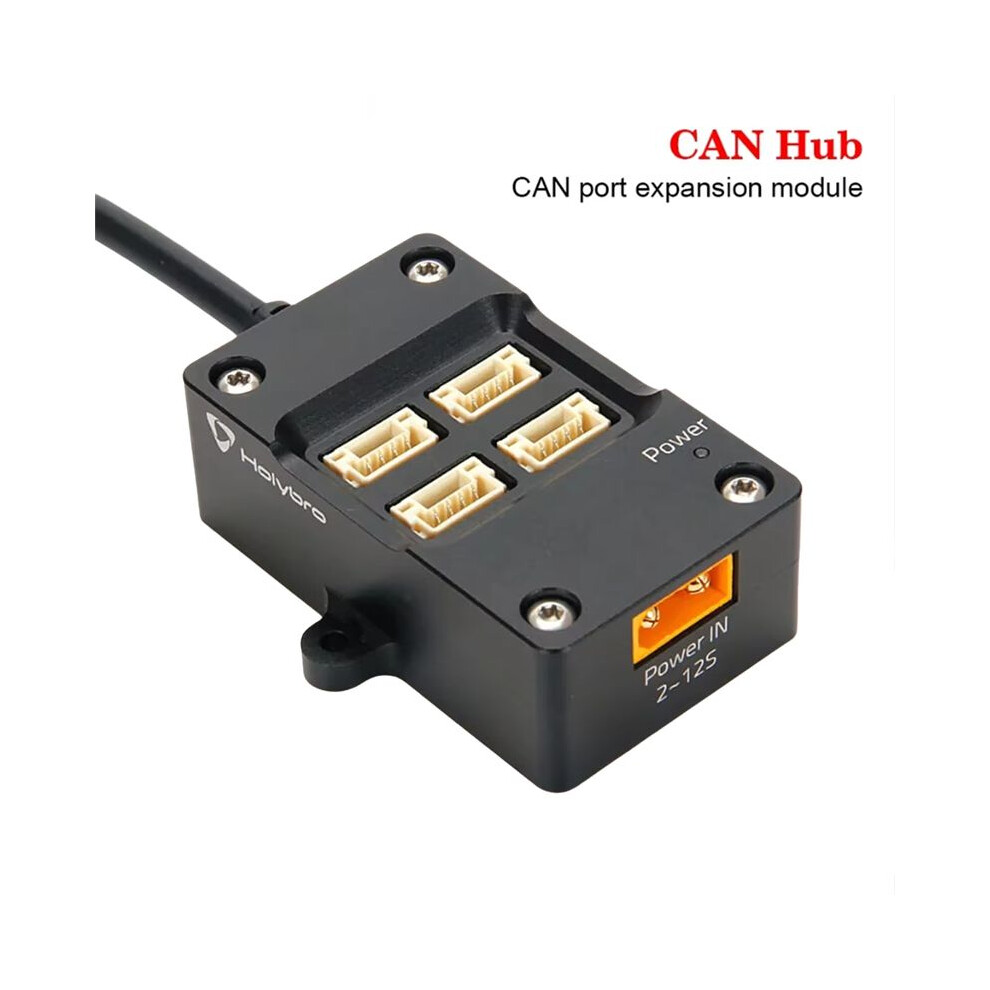

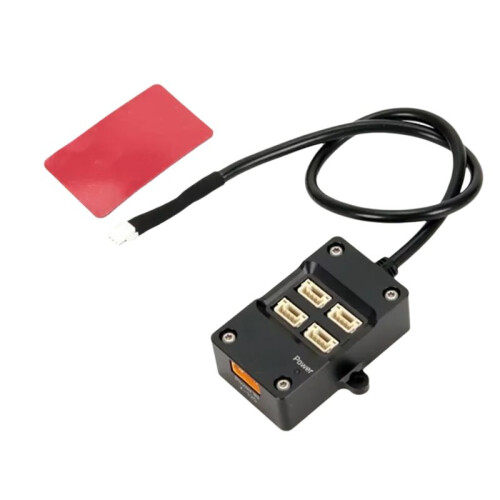

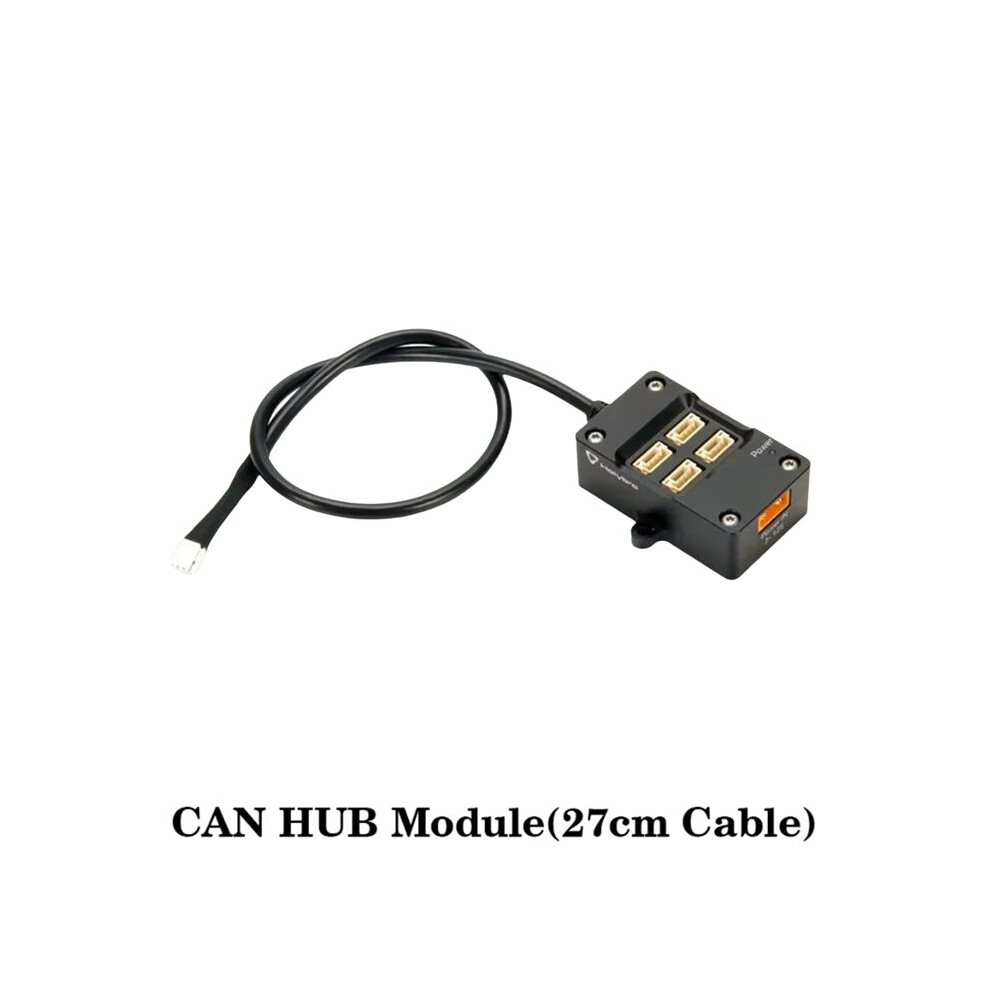

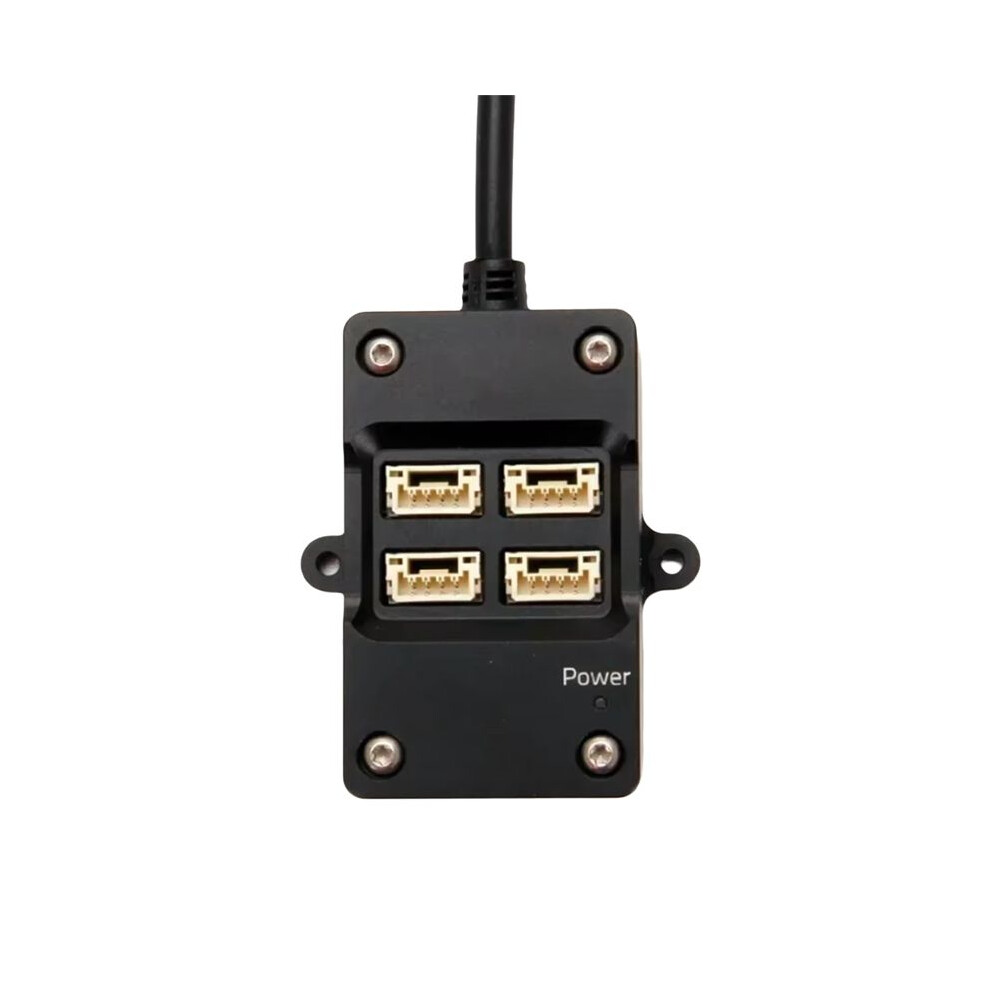

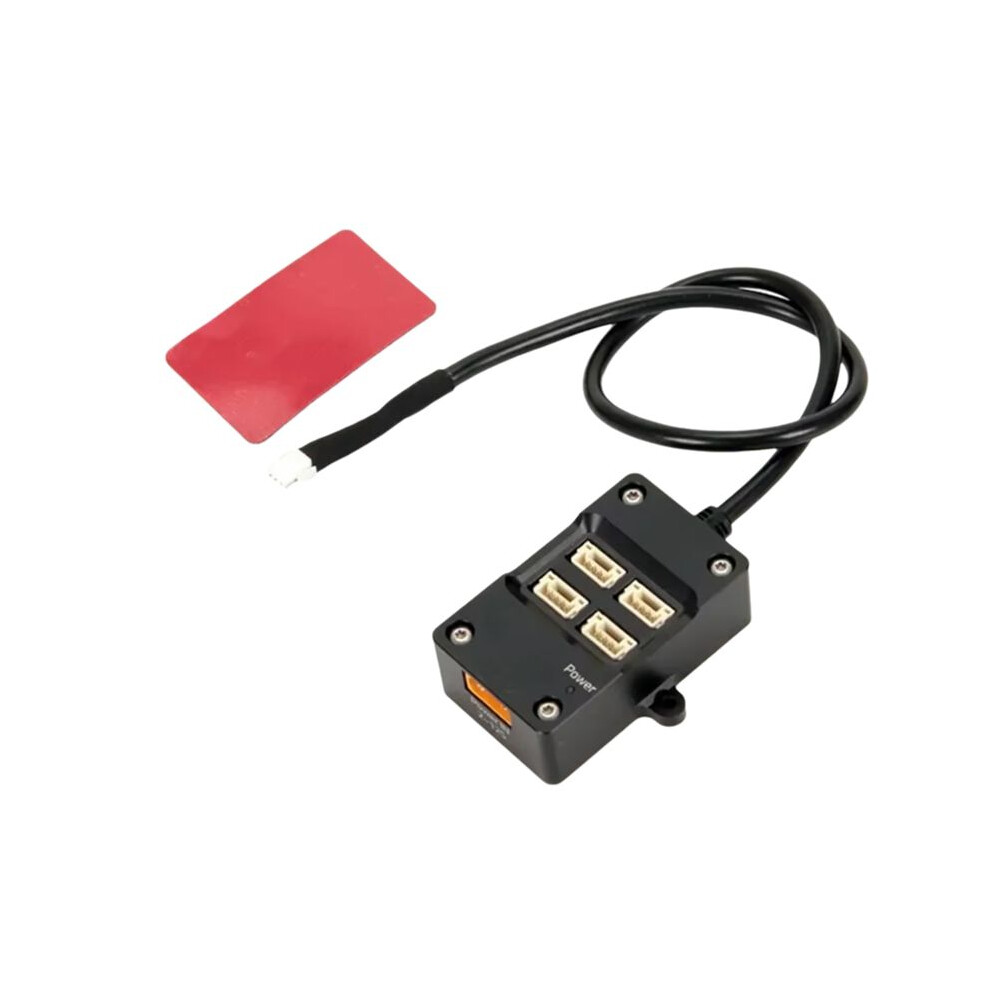

HolyBro CAN Hub Expansion Module 2-12S Powered 5V Output Multi-Port Connectivity for Various Flight Controllers 27CM

HolyBro CAN Hub Expansion Module 2-12S Powered 5V Output Multi-Port Connectivity for Various Flight Controllers 27CM Beschreibung

The HolyBro CAN Hub is an essential expansion module tailored for various flight controllers, enhancing connectivity and power stability. This module is expertly designed to manage multiple peripherals with ease.
Power Input Range: Compatible with 2S to 12S setups, ensuring versatility across different power systems.
Stable Output: Delivers a consistent 5.2V0.15V output with a maximum current of 1.0A per CAN port, ensuring reliable performance.
Enhanced Connectivity: Expands a single CAN port to four, with each port equipped with its own stable power supply, thanks to the independent step-down power supply.
High Compatibility: Includes an XT30 connector for power input and GHR-4V-S for CAN input, with four BM04B-GHS-TBT for output.

This module not only simplifies the management of additional devices but also guarantees that each connected device receives adequate power without the risk of voltage drops, common in overloaded systems.
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
Specification:27CM
Color: As Shown
Material: ABS

Package Contents:
1 x CAN Expansion Board
