NJTY T58A Digital Multimeter 9999 Counts, Compact, Professional Electric Tools
Neu
Schnell sein – nur noch 1 Stück auf Lager
Darum werden Sie OnBuy lieben:
- Verdienen Sie Cashback bei jedem Einkauf – lösen Sie es direkt ein für Ihre nächste Bestellung
- Kostenloser Versand – auf Millionen von Artikeln auf unserer Website
- Kunden lieben uns – 126,000 Bewertungen mit der Note « Ausgezeichnet »
49,77 €
65,49 €
24% Rabatt!
inkl. MwSt.
KOSTENLOSE Lieferung
1%
Was ist sofortiges Cashback?
Mehr erfahren
Preisangaben inkl. USt.
Zinsfreie Zahlungsmöglichkeiten verfügbar
Vollständige Produktbeschreibung und Details anzeigen
Voraussichtliche Zustellung: Standard (Kostenlos) | Do. 18. - Sa. 20. Jun
Verkauft von: OKMANO
Rücksendungen: 30 Tage
180 Tage Zahlungsschutz
Beliebt in Elektrische Prüfgeräte
Beschreibung & Details
Zusammenfassung
- DIGITAL MULTIMETER: Accurately measure AC/DC voltage, AC/DC current, frequency, resistance, capacitance and diodes. This multimeter is a very useful tool for solving industrial and household electrical problems. Ideal for household sockets, fuses, batteries (including vehicles), automotive circuit troubleshooting, charging systems, electronic testing, and more.
- EASY TO USE: This instrument is a handheld digital multimeter with true RMS value. It has a large screen 9999 counts LCD digital display, and It has a backlight (automatically adjusts the brightness when turned on) and lighting, making it easy for users to read.
- NCV TEST: Rotate the rotary switch to the NCV position and place the top of the meter close to the conductor. If the meter detects the AC voltage meter, light the corresponding signal strength indicator according to the detected signal strength (low-yellow, high-red), and the buzzer will send out different frequency alarms.
- AUTO POWER OFF: After about 15 minutes after power on, if there is no operating instrument, it will give audible voice prompts, will automatically cut off the power, enter the hibernation mode, in the automatic shutdown mode, any key can be restarted.
- ADDITIONAL TIP: This multimeter is designed to safely and accurately solve a variety of automotive and home electrical problems. If you want to make some home or business improvements, it's a suitable tool for both DIYers and hobbyists.
NJTY T58A Digital Multimeter 9999 Counts, Compact, Professional Electric Tools Beschreibung
NJTY T58A Digital Multimeter 9999 Counts Multimetro AC/DC Voltage Meter Capacitance Professional Electrician Tools
Specifications:
Model: T58A / T58B / T58C / T58D (Optional)
Material: ABS
T58A / T58B / T58C Parameters:
600V CAT III and 1000V CAT.II
Pollution Grade: 2
Height: under 2000m
Working Temperature: 0-40 (<80%RH, not considered <10)
Storage Temperature: -10~60 (<80%RH, take off battery)
*Test or Calibration Ambient Temperature: 20±2
*The Biggest Voltage Between Measurement End and Ground: 1000V VDC or 750VAC
*Fuse Protection: mA range, fuse: F 600mA/250V
A range, fuse: F 10A/250V
*Conversion Rate: About 3s/second
*Display: 9999 counts LED display
*Overload display: 'OL' displayed
DC Voltage: 1V, 10V, 100V,1000V
AC Voltage: 1V, 10V, 100V,750V
DC Current: 1mA, 100mA, 1A, 10A
AC Current: 1mA, 100mA, 1A, 10A
LoZ: 750(ACV), 1000(DCV)
Frequency: 10Hz, 100Hz, 1KHz, 10KHz, 100KHz, 1MHz, 10MHz
Resistance: 1kΩ, 10kΩ, 100kΩ, 1MΩ, 10MΩ, 100MΩ
Capacitance: 1nF, 10nF, 100nF, 1μF, 10μF, 100μF
Inductance L (T58C only): 10mH, 100mH, 1H, 10H, 100H

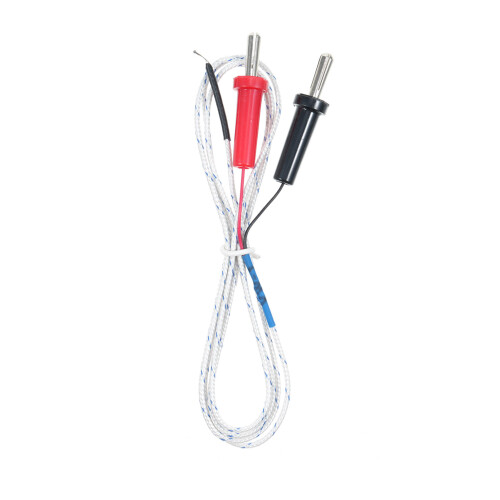

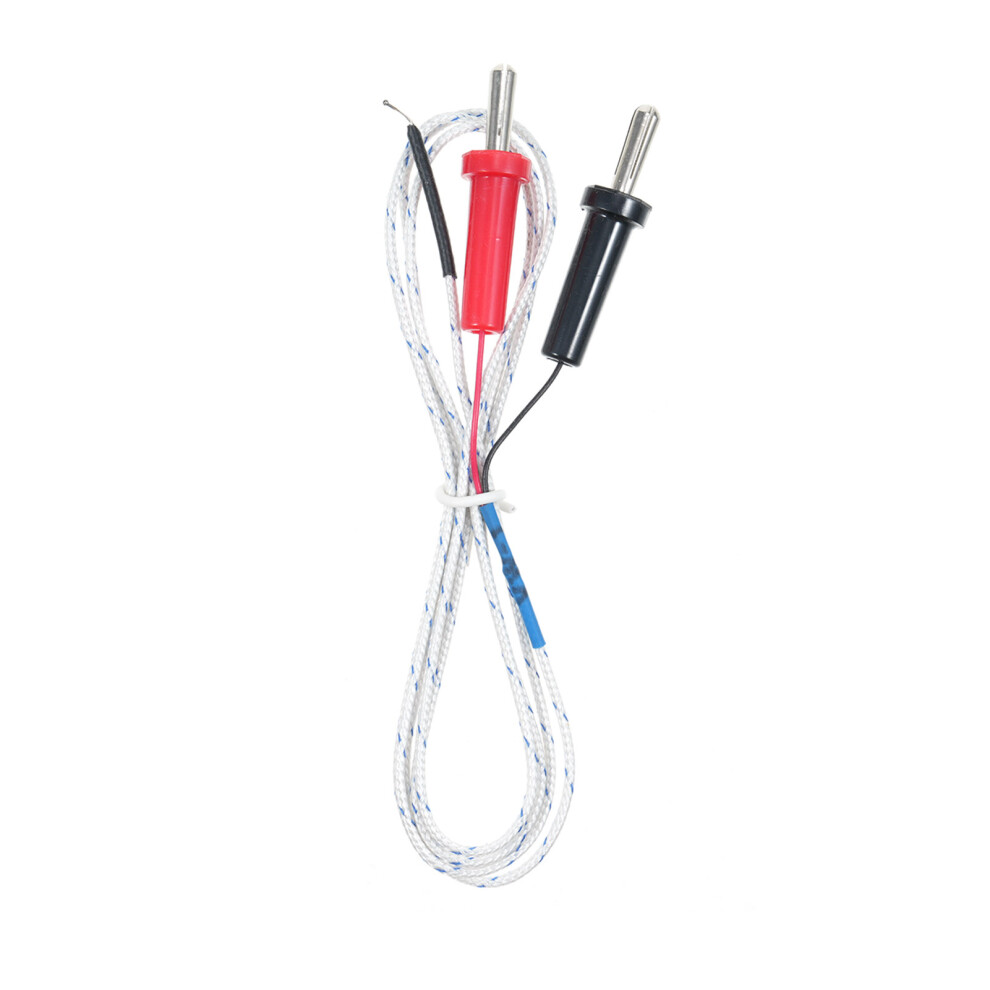

Temperature: -55~1000 / -67~1832
Diode: √
Buzzer: √
Transistor: hFE (T58A only)
T58D Parameters:
600V CAT III and 1000V CAT.II
Pollution Grade: 2
Height: under 2000m
Working Temperature: 0-40 (<80%RH, not considered <10)
Storage Temperature: -10~60 (<80%RH, take off battery)
*Test or Calibration Ambient Temperature: 20±2
*The Biggest Voltage Between Measurement End and Ground: 1000V VDC or 750VAC
*Fuse Protection: mA range, fuse: F 600mA/250V
A range, fuse: F 10A/250V
*Conversion Rate: About 3s/second
*Display: 60000 counts LED display
*Overload display: 'OL' displayed
DC Voltage: 100mV, 600mV, 1V, 60V, 600V, 1000V
AC Voltage: 100mV, 600mV, 1V, 60V, 600V, 750V
DC Current: 600μA, 6mA, 60mA, 600mA, 6A, 10A
AC Current: 600μA, 6mA, 60mA, 600mA, 6A, 10A
Frequency: 100Hz, 1KHz, 10KHz, 100KHz, 1MHz, 10MHz, 25MHz
Resistance: 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ
Capacitance: 6nF, 60nF, 600nF, 6μF, 60μF, 600μF, 6mF, 60mF
Temperature: -50~1000 / -58~1832
Diode: √
Buzzer: √

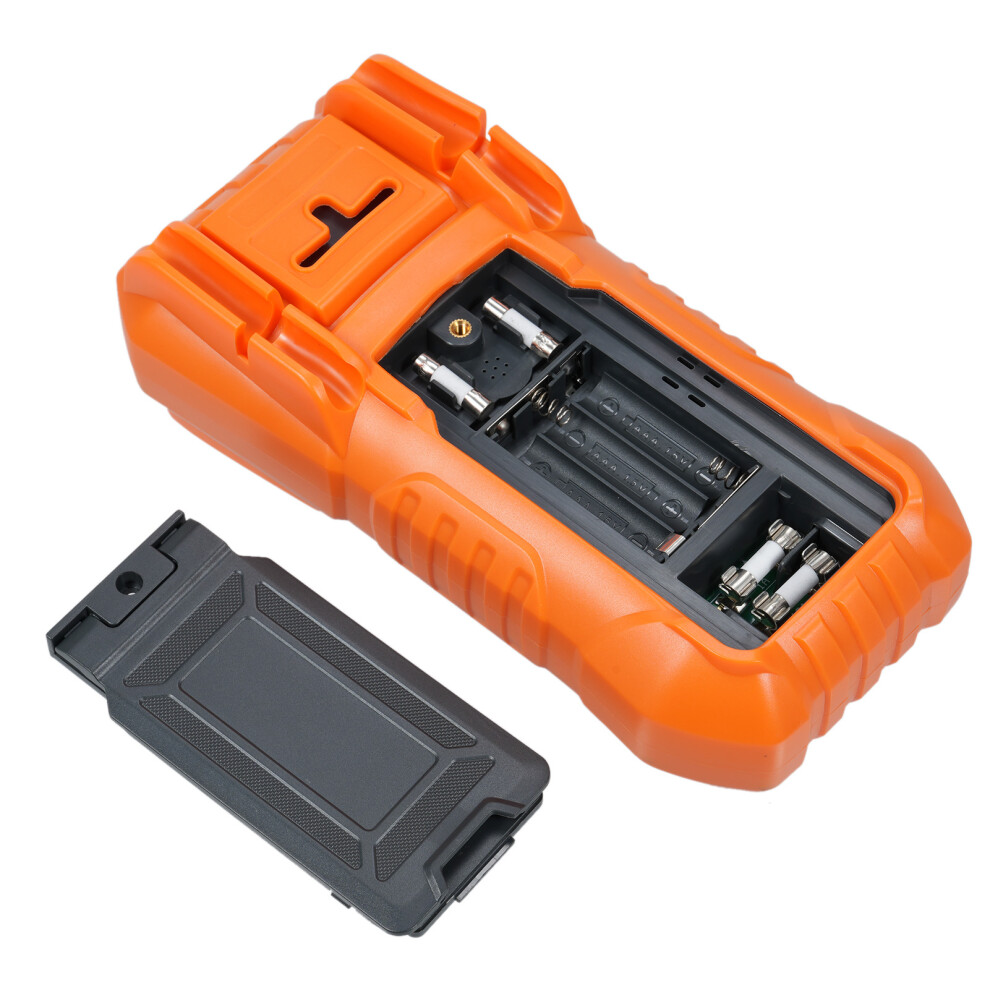

Power Supply: 3 * 1.5V AAA batteries (Not included)
Item Size: 187 * 95 * 55mm / 7.36 * 3.74 * 2.16in
Item Weight: 331g / 11.67oz
Package Weight: 606g / 21.37oz
Package Size: 22.5 * 13.5 * 6.5cm / 8.85 * 5.31 * 2.56in
