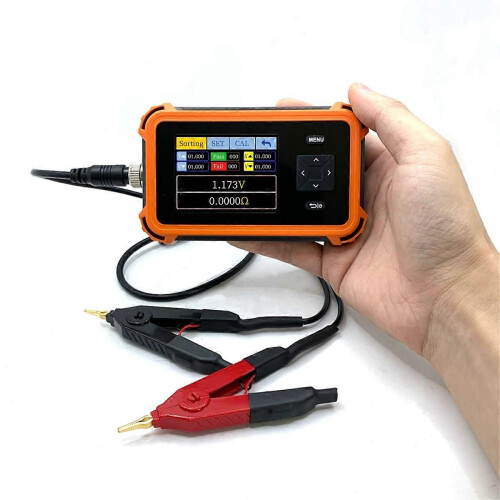

PBT100 18650 Battery Voltage Internal Resistance Tester,

PBT100 18650 Battery Voltage Internal Resistance Tester, Beschreibung

PBT100 18650 Battery Voltage Internal Resistance Tester,
1. High Accuracy & Speed: Measure resistance (0-100Ω) and voltage (-110V to +110V) with 0.5% precision using 1KHZ AC method and four-wire Kelvin clips.
2. Smart Sorting Mode: Set custom voltage/resistance thresholds to instantly classify lithium batteries (soft pack/cylindrical) and screen defective units.
3. Portable & User-Friendly: Compact design with a 2.8inch TFT screen, adjustable stand, and Type-C rechargeable 1200mAh battery.
4. Customizable Features: Personalize display colors, shutdown , and save calibration values for consistent performance.
Voltage measuring range:0 - 110V(DC)
Voltage gear:Automatic, 1V, 10V, 100V
Resistance measuring range:0 - 100Ω
Resistance gear:Automatic, 10mΩ, 100mΩ, 1Ω, 10Ω
Accuracy:0.5%
Instrument frequency:AC 1Khz
Rechargeable:Type-C interface (5V/1A)
User calibration:Support
Sorting mode:Support
Test Lead Length: 0.8m
Battery capacity: 1200mah
Screen: 2.8inch TF HD display
Color: Orange
Material: ABS
Package Contents:
1 x Battery Resistance Tester
1 x Kelvin Clip (Four-wire)
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
