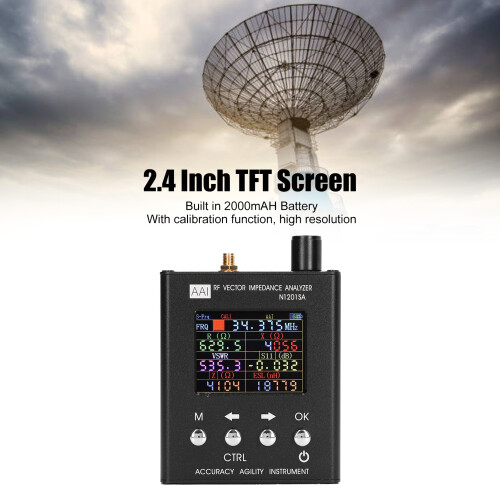

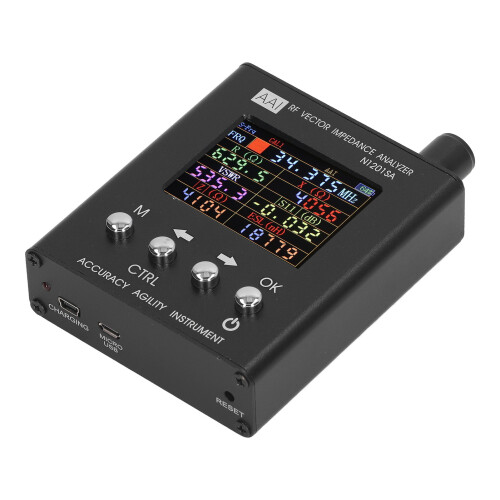

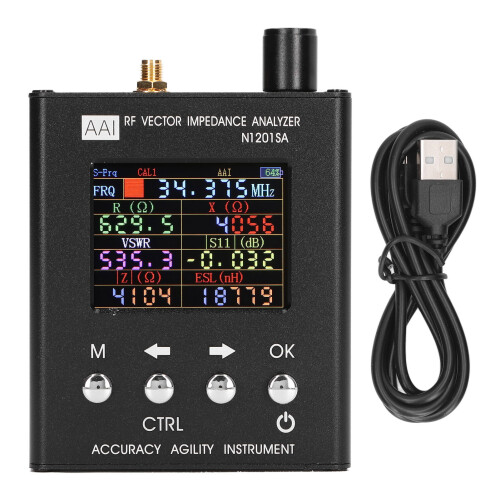

RF-Vektor-Impedanzanalysator Schwarz 2,4 Zoll 2000 mAh
New
249,30 €
Would you like us to let you know when it's back?
Beschreibung & Details
Zusammenfassung
- MAIN PURPOSE: The vector impedance analyzer is mainly used to test antenna impedance, RF device impedance, circuit board impedance, etc.
- MEASURING PARAMETER: Can be used to measure resistance, reactance, standing wave, and S11, with a wide measurement range, high resolution, and accuracy.
- BUILT IN BATTERY: The antenna analyzer has built in 2000mAH polymer lithium battery, USB interface for charging, can operate continuously for over 4 hours.
- OTHER FUNCTIONS: The single point measurement result is 4 digit significant figures, 280 scanning points, with calibration function, stable and reliable.
- 2.4IN TFT SCREEN: The antenna impedance analyzer adopts 2.4 inch TFT screen, lightweight and portable, suitable for outdoor and high altitude work.
RF-Vektor-Impedanzanalysator Schwarz 2,4 Zoll 2000 mAh Beschreibung
RF-Vektor-Impedanzanalysator 2,4-Zoll-Display ANT SWR Antennenanalyse-Tester USB-Ladefunktion 137,5 MHz-2700 MHz
Artikeltyp: Antennenanalysator
Betriebsfrequenz: 137,5 MHz-2700 MHz
Frequenzschritt: 1 kHz
Display: 2,4-Zoll-TFT-Auflösung 320240 (QVGA)
Batterie: Lithium-Polymer-Batterie (2000 mAh) (integrierter Akku)
Leistungsaufnahme: 1300 MHz
S11: 0 dB bis -50 dB
Fehler (Einzelpunktmessung):
Impedanz: Z < 200 Ω, Frequenz < 1,3 GHz; Z < 200 Ω, Frequenz > 1,3 GHz
S11: 0 dB bis -10 dB, -10 dB bis -20 dB, -20 dB bis -40 dB
Stehende Welle: < 2, 2 < VSWR < 10
Richtungscharakteristik (nach Kalibrierung): 137,5 MHz, 34,375 MHz - 2 GHz, 2 GHz - 2,7 GHz
Scanpunkte: 280
Ausgangspegel: -18 dBm
Betriebstemperatur: 5 C-40 C
Luftdruck: 860 hPa-1060 hPa
