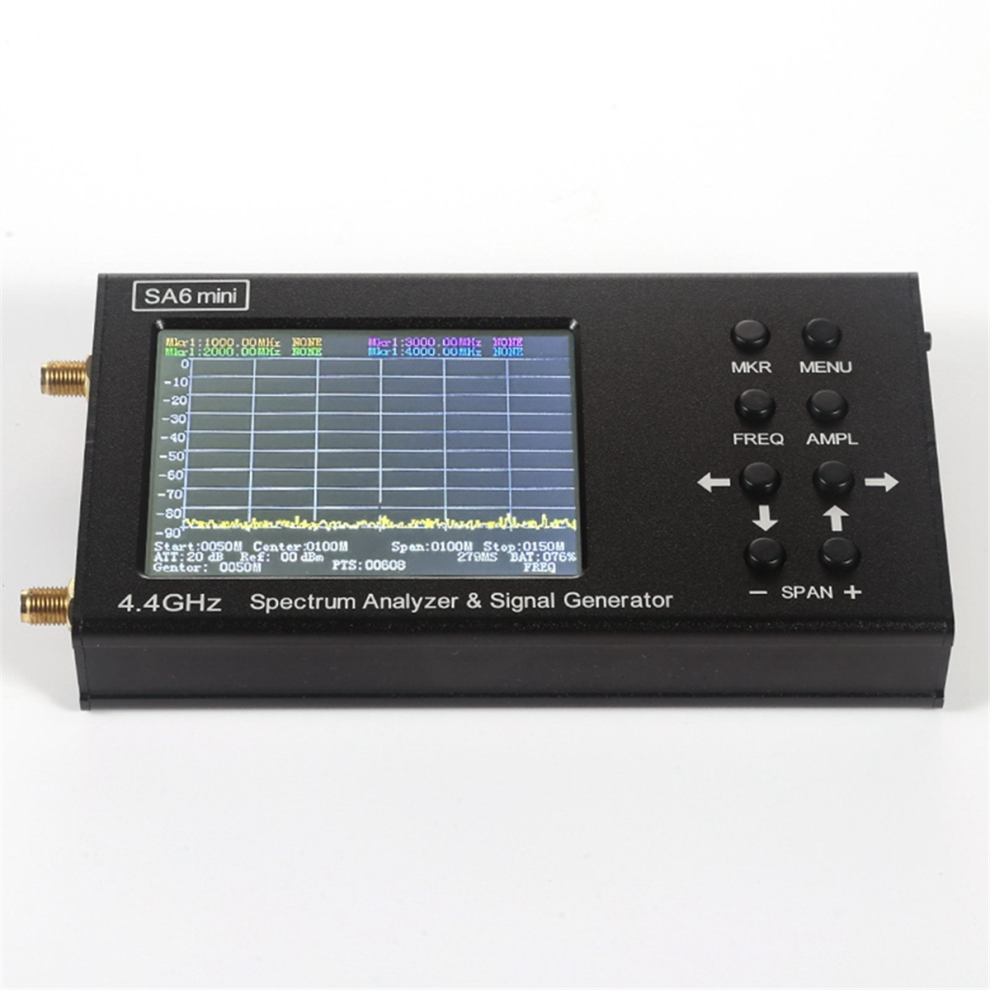

SA6 4,4 GHz Spektrumanalysator-Signalgenerator

SA6 4,4 GHz Spektrumanalysator-Signalgenerator Beschreibung

Designed for a wide range of applications from 35 to 4400 MHz, this compact device is ideal for Wi-Fi, CDMA and other signal testing
Wide frequency range: 35-4400 MHz, suitable for a variety of applications
Portable design: can be easily carried to any location for anytime, anywhere testing
High accuracy: accurate readings for reliable results, user-friendly interface, simplify testing with intuitive controls
Whether you are in a lab environment or in , SA6 provides you with the reliability and accuracy you need for all spectrum analysis tasks

Displayed frequency range 35-4400MHz
Measurement frequency range 45-4400MHz
Dynamic range 75dB in 45-3000MHz band
70 dB for 3000-4400 MHz band
Maximum bandwidth 4355 MHz
IF bandwidth (fixed) 200 kHz
speed over 100 MHz 600 MHz/s
time Less than 0.25 seconds for 100 MHz span
Detectable signal duration 20 ms at 10 MHz span.
Noise floor:
Less than -100 dBm in band up to 3000 MHz
Less than -95 dBm in 3000-4500MHz band
Less than -90 dBm in the 4500-6200 MHz band
Input impedance 50 ohms
SWR Less than 1.5 in the operating frequency range
Internal attenuator 0-30dB
Colour:black
Material:ABS

Package Contents:
1 * Spectrum Analyzer

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
