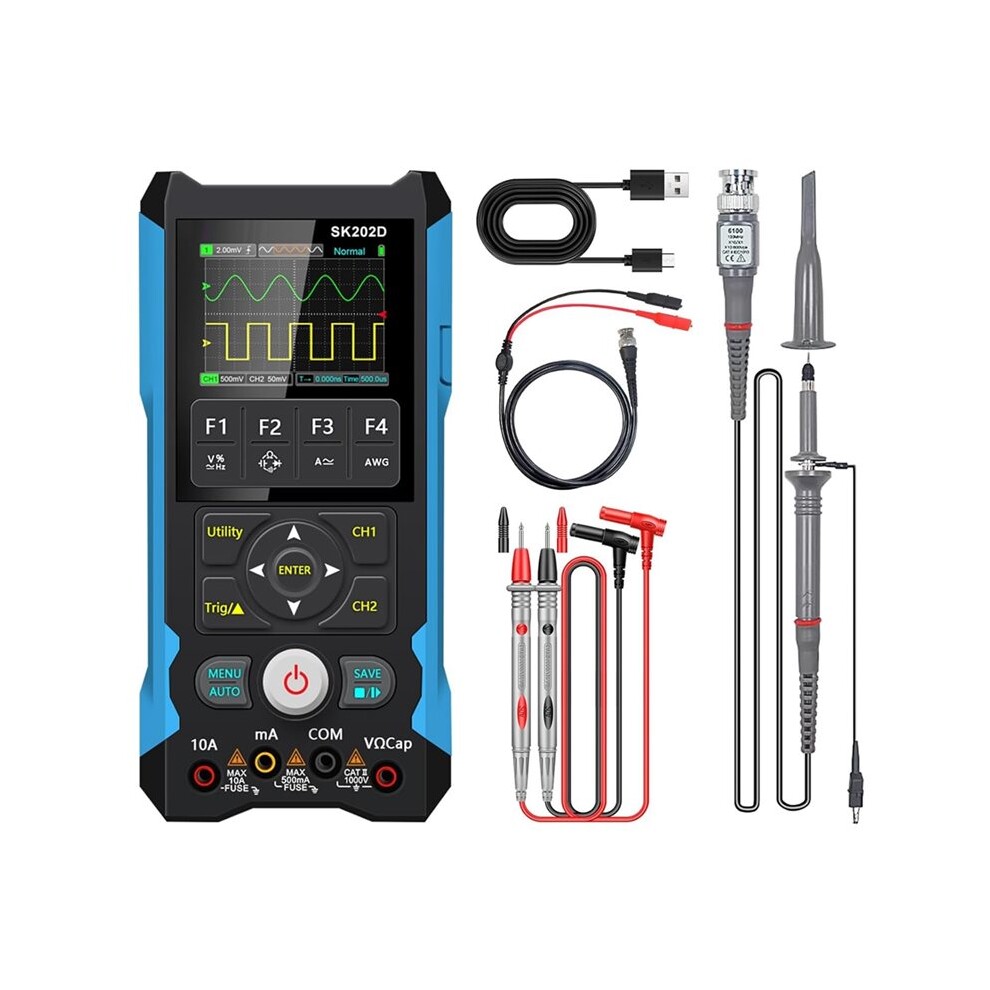

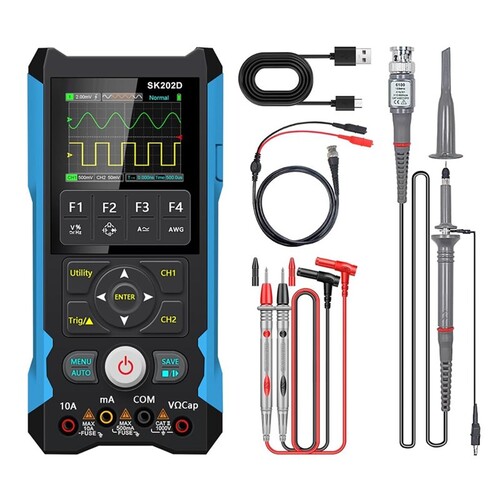

SK202D Handheld Oscilloscope Multimeter,80MHz Bandwidth,200MS/S Sampling Rate,6000 Counts Voltage,Current,Capacitor Test

SK202D Handheld Oscilloscope Multimeter,80MHz Bandwidth,200MS/S Sampling Rate,6000 Counts Voltage,Current,Capacitor Test Beschreibung

[2 Channel Oscilloscope] The oscilloscope features 80 MHz bandwidth, 200 MSa/s sampling rate, and an automatic measurement function. Its vertical sensitivity range is 10mV/div to 10V/div (via Input BNC). It supports measurement data waveform hold, capable of storing 2000 sets of data and 200 waveforms.
[6000 Counts Multimeter]AC Voltage: 0-750 V, Voltage: 0-1000 V, /AC Current: 0-10 A, Resistance: 0-60 MΩ, Capacitance: 0-99.99 mF, support continuity Measurement and -Off Test
[Signal Generator]The signal generator supports three modes for precise waveform capture: Auto/Normal/Single. Additionally, the waveform output frequency can go to 5 MHz (The sine wave range is 1 Hz to 5 MHz, the square wave range is 10 Hz to 1 MHz, and the triangle wave range is 10 Hz to 1 MHz) with a 1 Hz step
[Supports Type-C Connection and Data hold and storage functions]The SK202D Oscilloscope Multimeter support Type-C connection to devices such as computers or tablets,Additionally,it features a data and waveform hold function during measurements, allowing it to store 2,000 sets of data and 200 wavaforms.
[Supports fast charging for extended usage ]The SK202D oscilloscope multimeter supports 15W fast charging, providing approximately 10 hours of usage to meet your long measurement needs. Additionally, it has a built-in auto power-off function to save battery.
Color: As Shown
Material: plastic

Package Contents:
1*Handheld Oscilloscope Set
