V1.3 UPA USB Programmer Diagnostic Tool UPA-USB ECU Chip Tuning Programmer for 2014 Version Main Unit Lite Programmer

V1.3 UPA USB Programmer Diagnostic Tool UPA-USB ECU Chip Tuning Programmer for 2014 Version Main Unit Lite Programmer Beschreibung

V1.3 UPA USB Programmer Diagnostic Tool UPA-USB ECU Chip Tuning Programmer for 2014 Version Main Unit Lite Programmer
EEproms - Simply connect the mainboard to the UPA programmer directly or by using a DB9 male / female extension cable (1:1). Insert the correct config key into the slot of the mainboard and start programming either via the ZIF or SOIC Socket. You can also use the included DIL to 10pin Flat-ribbon header, put it inside the ZIF socket and wire up an SOIC clip or clamps for ISP use from there.
MCU's - Pick the Adapter you want to use, attach the flat cable to the Adapter (PIN1 is always indicated, on both the cable and also the Adapter) and also to the main board's 10pin ISP connector. Select the VCC supply source by the jumper on the mainboard next to the ISP connector (on = target supplied from upa, off = target got own supply).
Slide the Adapter over the soldered PLCC MCU on the target PCB. (No soldering, no pinout reviewing, no pin counting, saves lots of time and hassle and let's you make your job faster, precise and easier)
Once your workshop is equipped with our Adapter Set you have a all new UPA Experience.
Top 2 Reasons to Get the UPA:
1. This set of New UPA USB Programmer main unit used for main unit damaged
2. Software version: V1.3
Note:This set of New UPA USB Programmer main unit, do not contain Adapters.
STMicroelectronics ST62*:
ST6240, ST6245, ST6249
NSC CR16*: CR16HCS5(9), CR16MCS5(9), CR16MES5(9), CR16MFS5(9), CR16MCT5/9, CR16HCT5/9
for HC05*: MC68HC05B6, MC68HC05B8, MC68HC05B16, MC68HC705B16, MC68HC05B32, MC68HC05E6, MC68HC705E6, MC68HC05H12, MC68HC05L28, MC68HC05P3, MC68HC705P3*, MC68HC05X16, MC68HC05X32
for HC08*: MC68HC08AS20, MC68HC08AS32, MC68HC08AS60, MC68HC08AZ32, MC68HC(9)08AZ32A, MC68HC908AZ60, MC68HC908AZ60A
Colour:As Shown
Material:ABS

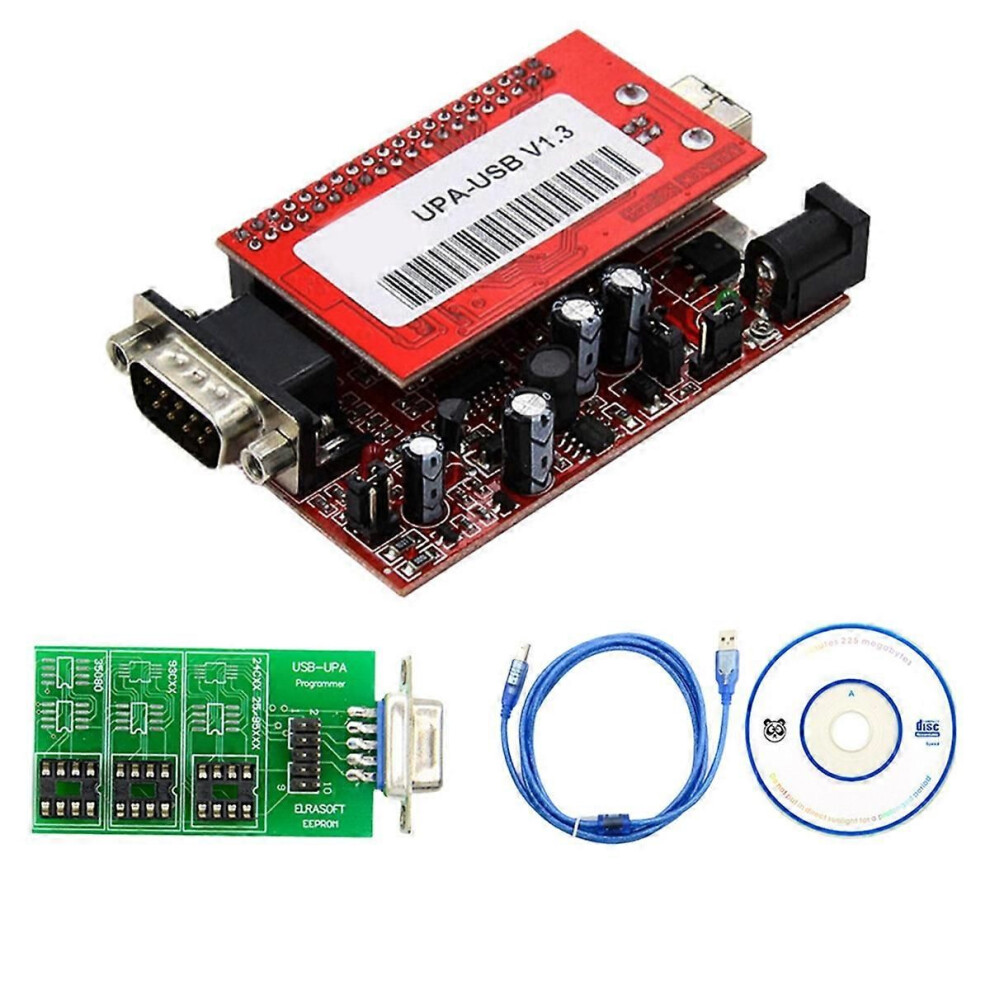

Package Contents:
1 * programmer
1 * wiring harness
1 * motherboard
1 * CD
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
