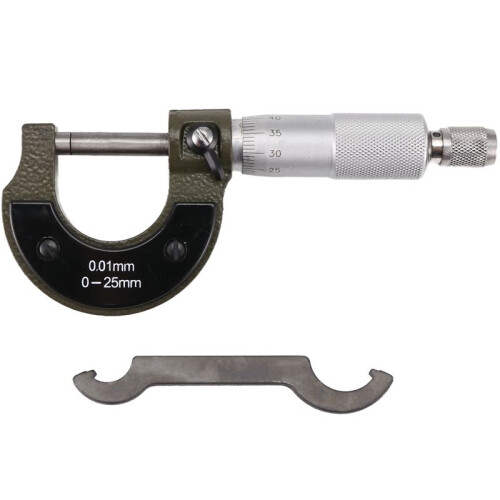

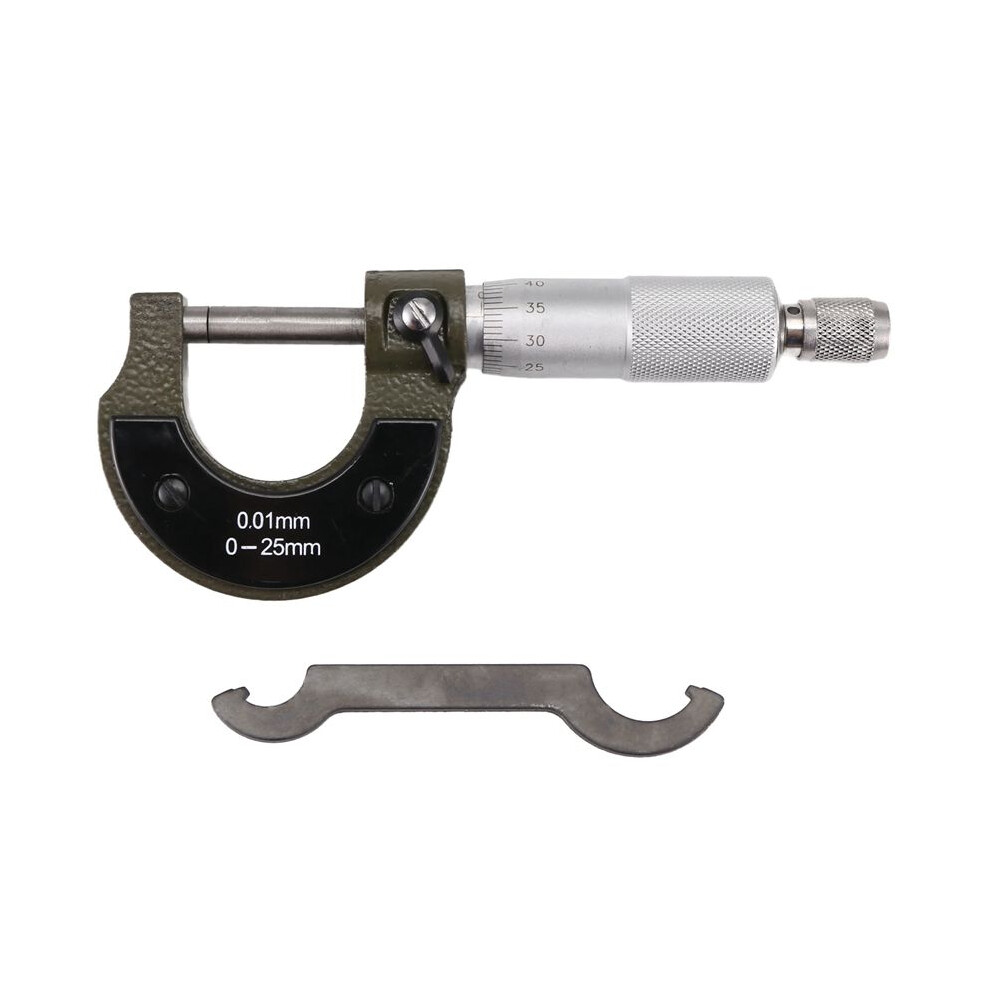

0-25mm Metric Micrometer Carbon Steel Outside Micro-Meters Precise Tools Micro-Meter Gauge Meter Accurate Measuring Tool

0-25mm Metric Micrometer Carbon Steel Outside Micro-Meters Precise Tools Micro-Meter Gauge Meter Accurate Measuring Tool Beskrivelse

Outer diameter micro-meter the external dimensions measuring instruments, measure the distance between the two sides of the square frame by use of helix principle. Outer diameter micro-meter is mainly used for measuring a variety of external dimensions.
Diameter micro-meter dividing value is 0.01mm, the upper limit of measurement range is not more than 300mm, divided into a 25mm per specification. Such as 0-25mm, 25-50mm ...... and so .

Measuring range: 0-25
Resolution: 0.001
Instructions for use:

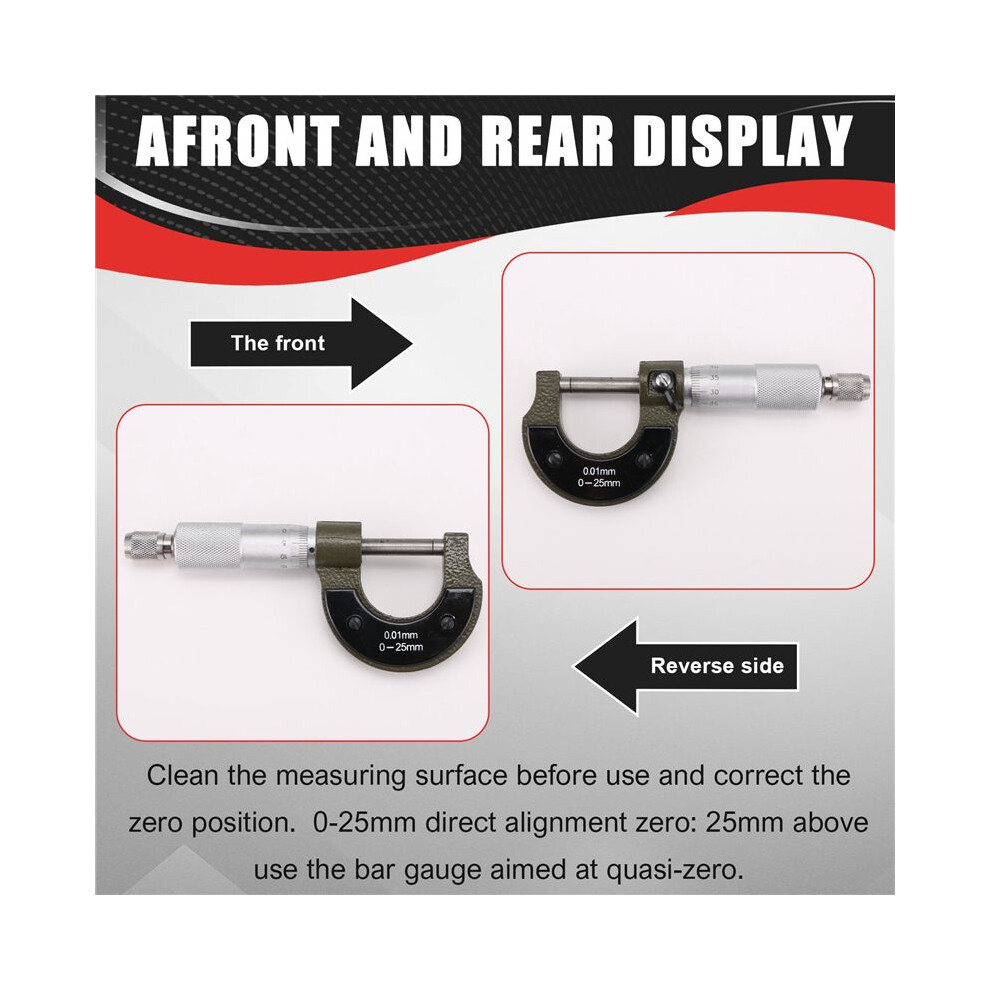

1. Clean the measuring surface before use and correct the zero position. 0-25mm direct alignment zero: 25mm above use the bar gauge aimed at quasi-zero.
2. Zero correction method: If the 0-bit is not aligned with the baseline, first loose screw with a screwdriver slightly, with a wrench to adjust the baseline position, so that the baseline alignment 0 taste bit , then tighten the screws. (See instructions for use picture 2)
3. When measuring, the micro-meter should be perpendicular to the work piece under test, rotating force measuring device, the measuring surface in contact with the work piece should be rotating gently, when the force measuring device issued a slight "click, click ..."sound, That is the actual size of the work piece under test.

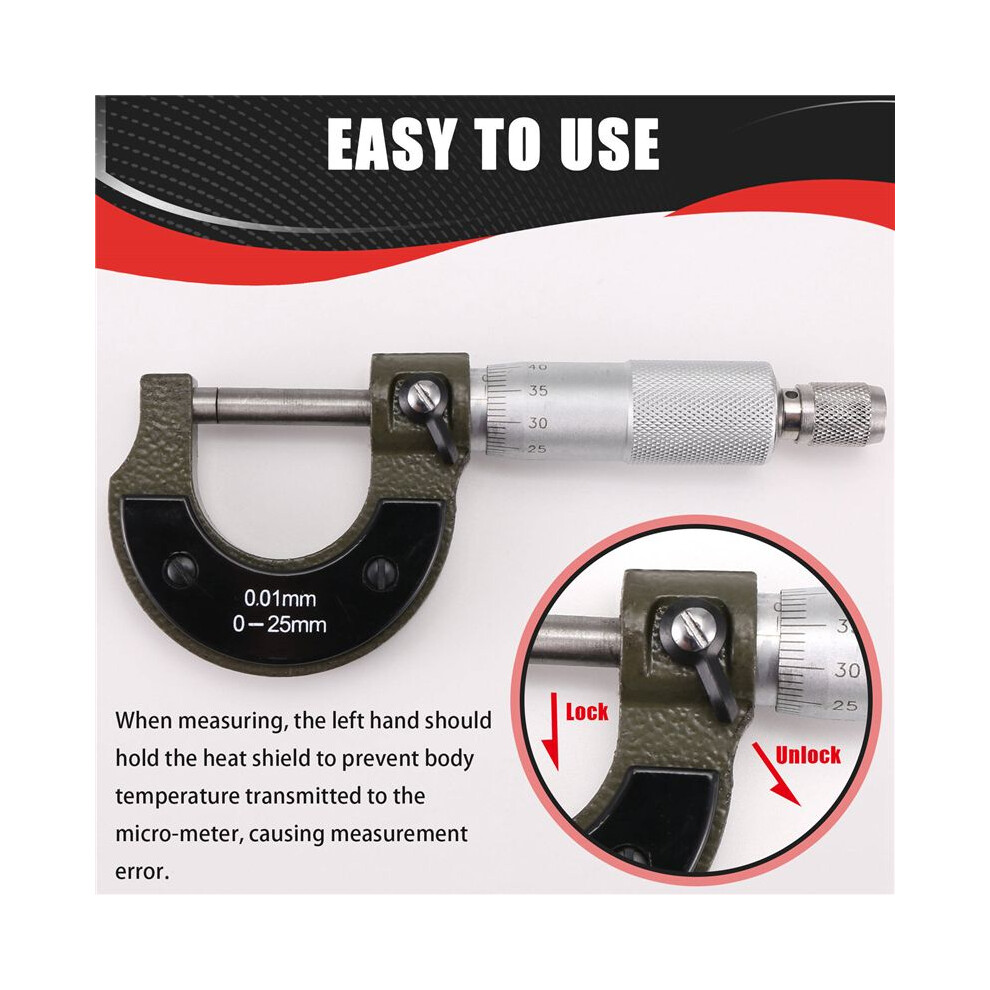

4. Locking device can be passive measurement of micro-screw back and forth. Relax to the right and lock to the left.
5. When measuring, the left hand should hold the heat shield to prevent body temperature transmitted to the micro-meter, causing measurement error.

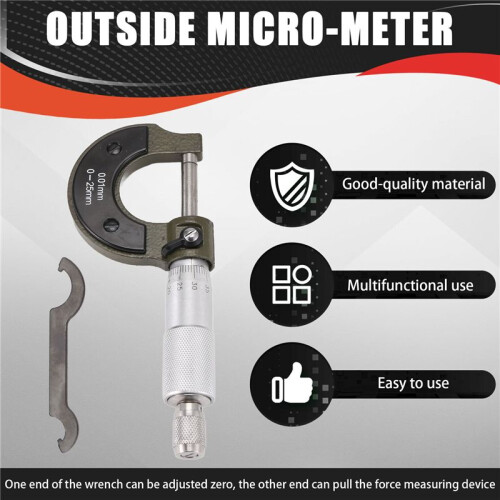

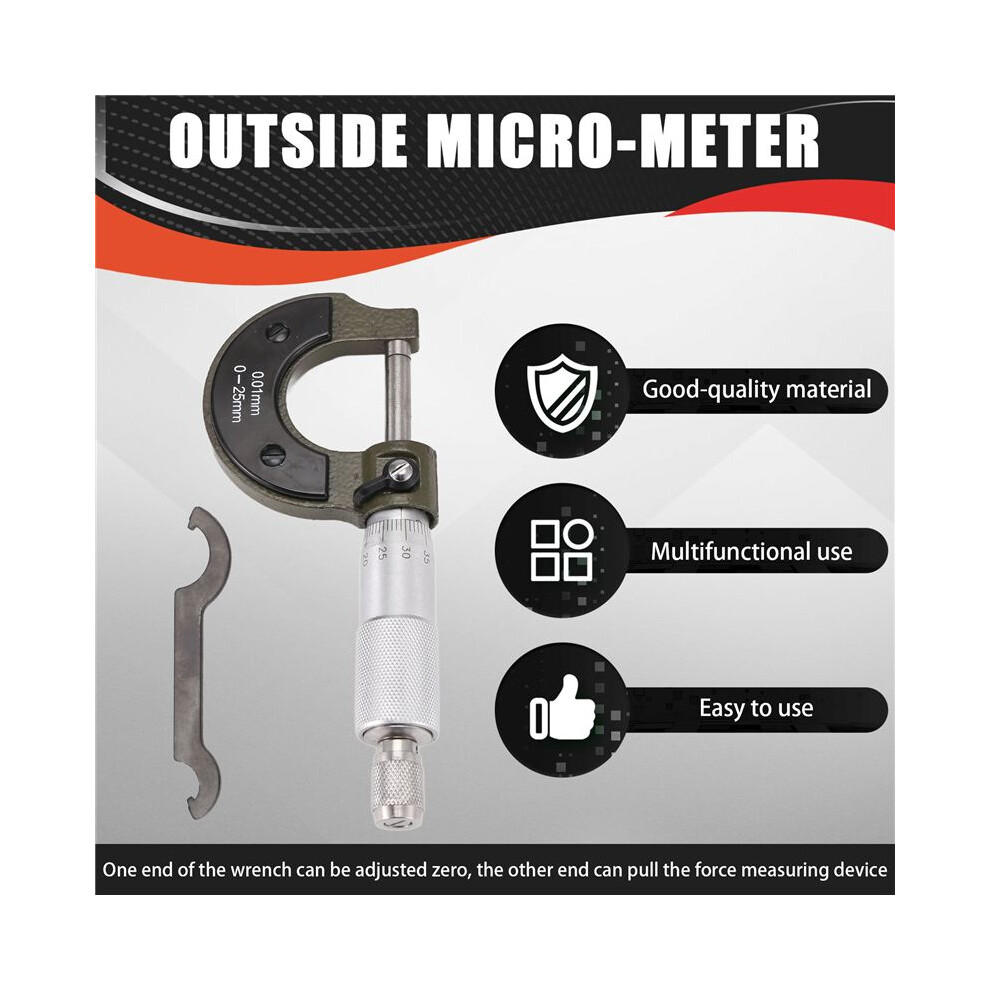

6. One end of the wrench can be adjusted zero, the other end can pull the force measuring device.
Colour:As Shown

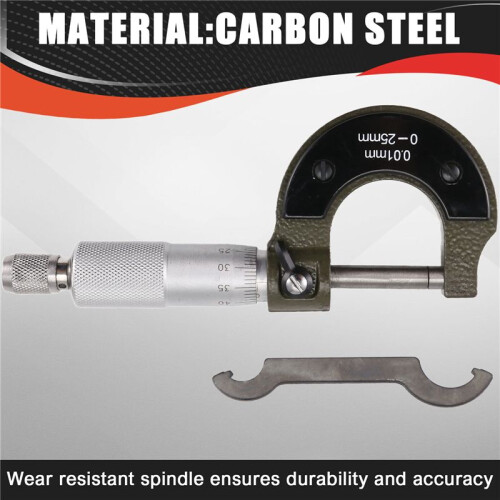

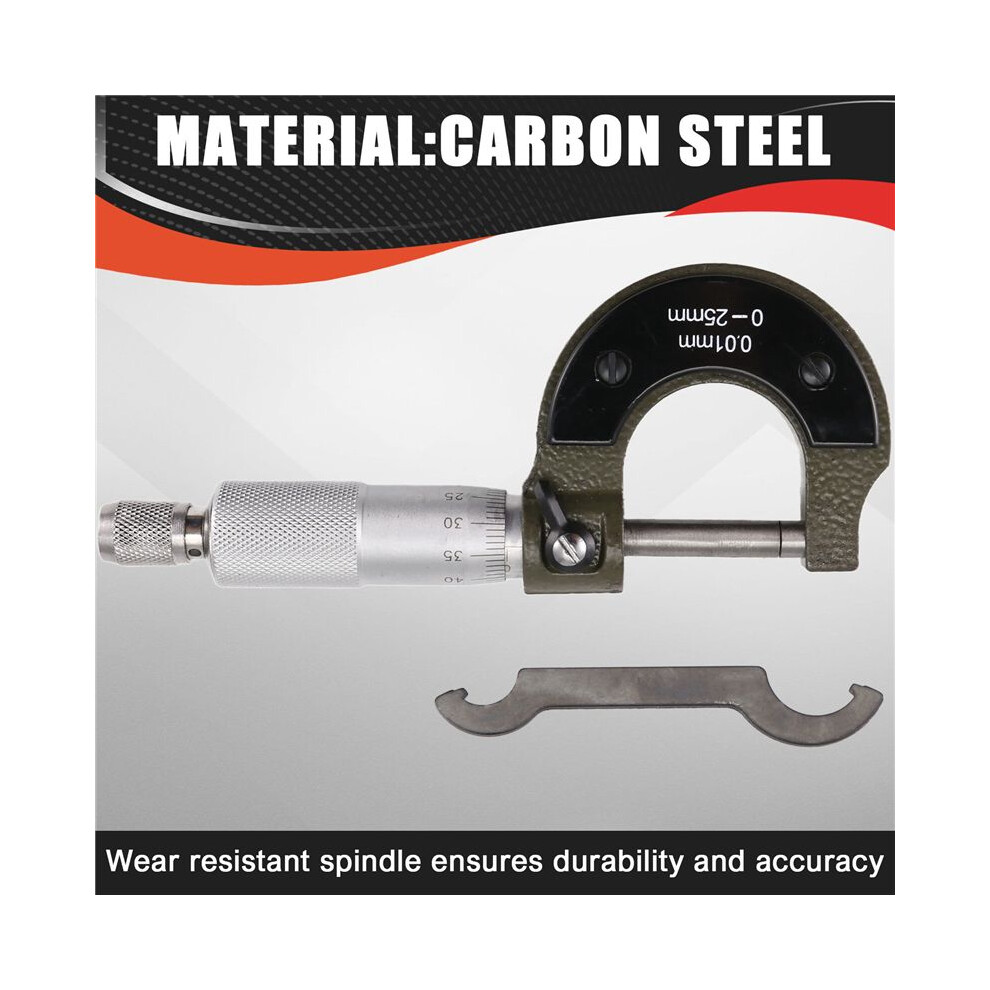

Material:carbon steel

Package Contents:
1 x Outside Micro-meter
1 x Accessory
