0-999s/Min/Hour 24V 480W Digital Delay Relay T2310 Open Control Module Power Supply

0-999s/Min/Hour 24V 480W Digital Delay Relay T2310 Open Control Module Power Supply Beskrivelse

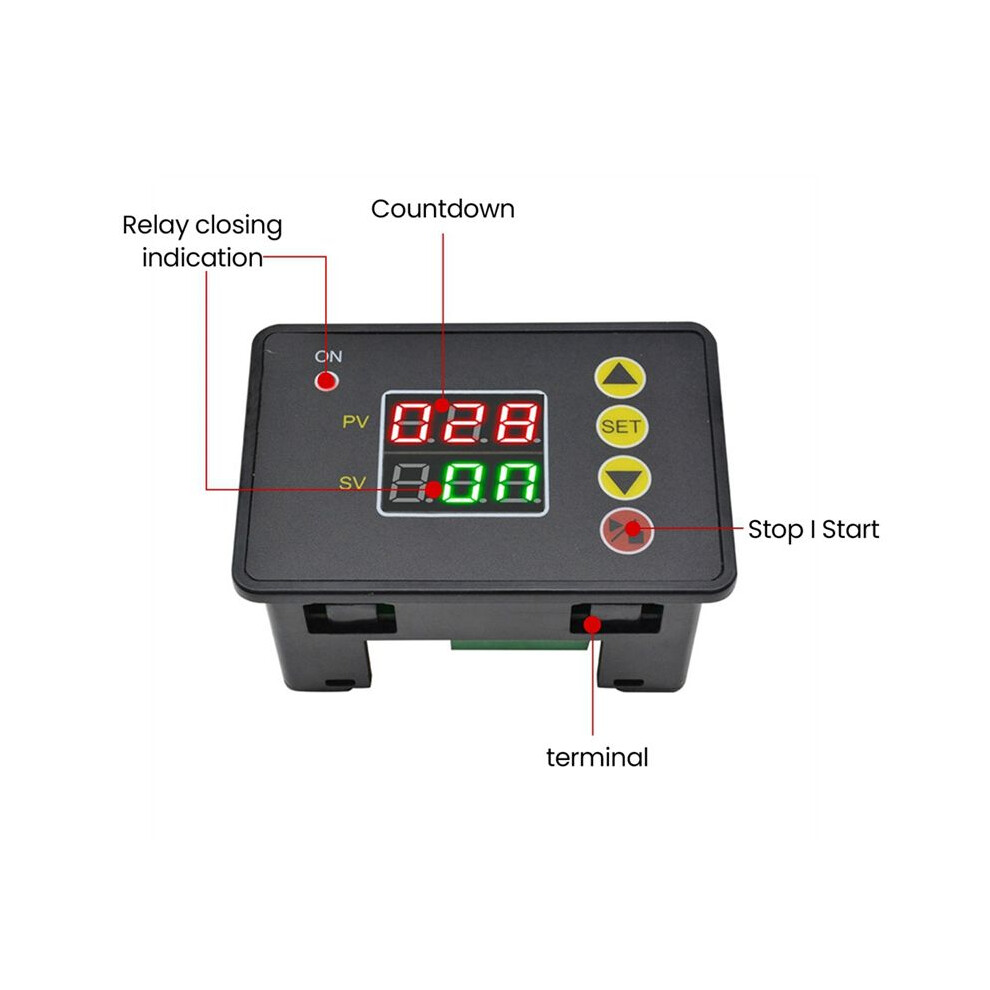

T2310 is a -controlled relay with 1 normally open relay
Fixed bit pass, off timing display Settings, independent timing unit, so that large span can be realized
Optimized setting operation, timing , timing off, infinite cycle setting more convenient, more intuitive
1-999 times alternate work and infinite cycle work independent setting, the maximum extent to meet the needs of use

Timing range: 0-999 (seconds, minutes, hours)
Minimum unit: 1 second Error: 20ppn
Timing type: non - clock countdown
Timed startup: Supported
Timed shutdown: Supported
Infinite loop: Supports infinite switching loop
Quantitative cycle: Support 1-999 cycle
Independent timing unit: Supported
Program trigger: Support automatic trigger and manual trigger , factory default automatic trigger
Setting Lock: Supported
Power-off save: Only the latest Settings are automatically saved.
Relay type: 1 channel normally open relay
Output type: contact live, active output
Product size: 67x45x34mm
Installation hole size: 63x42mm (embedded installation)
Operating voltage = Input voltage = Output voltage = label voltage
Note: Due to different production batches, there may be slight differences in products.
Colour:Black
Material:ABS
Type: 24V 480W

Package Contents:
1x Relay
