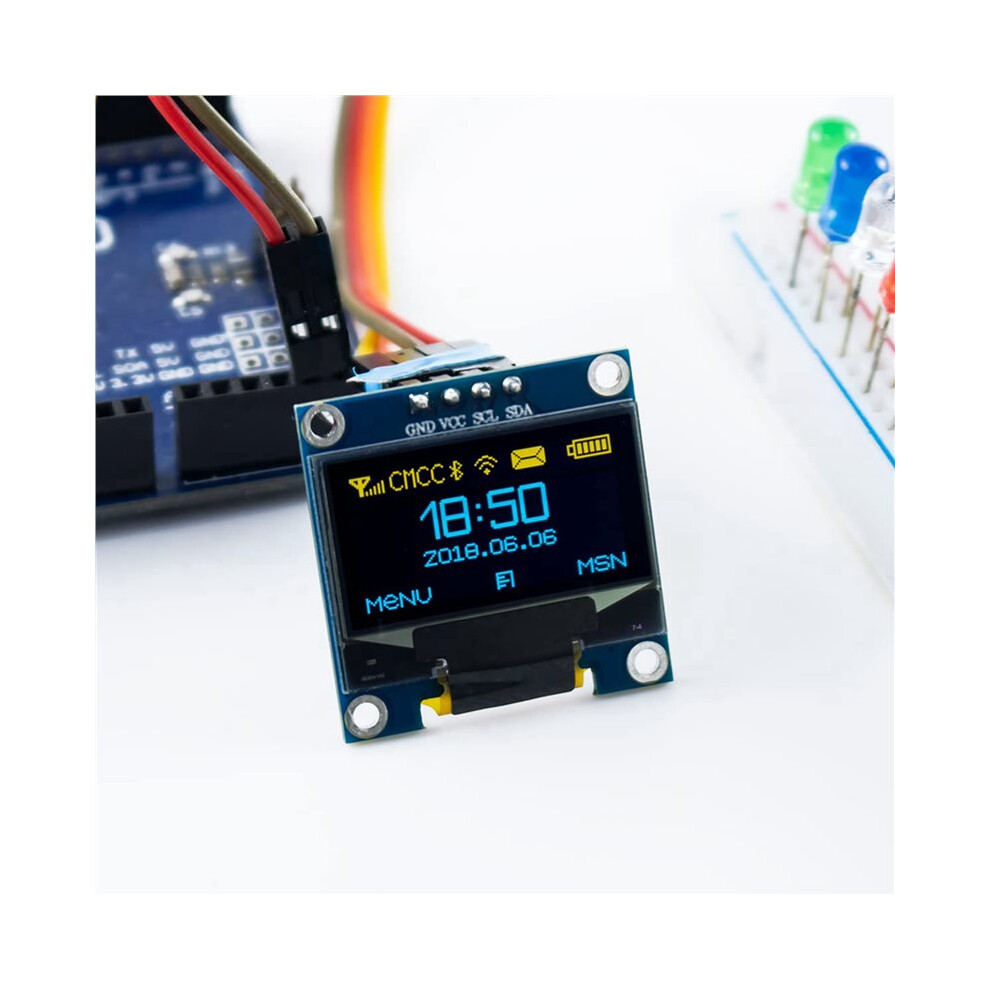

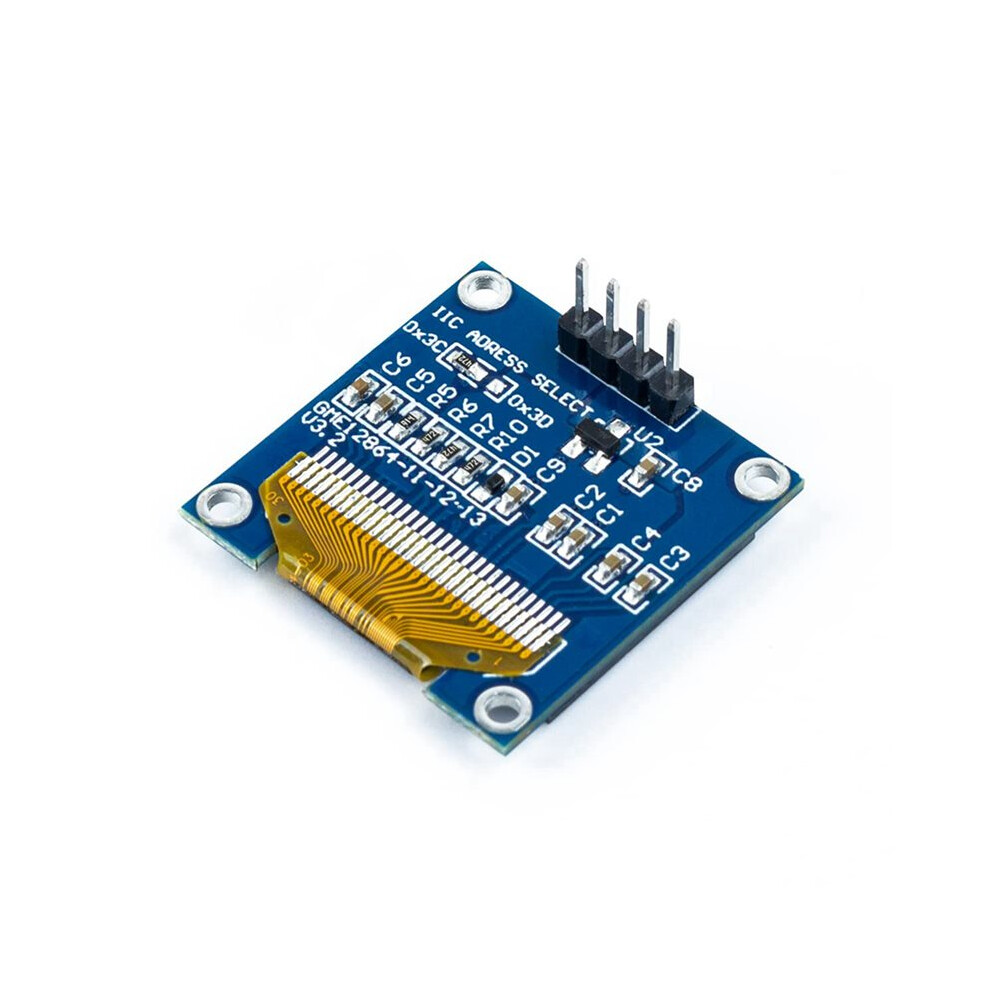

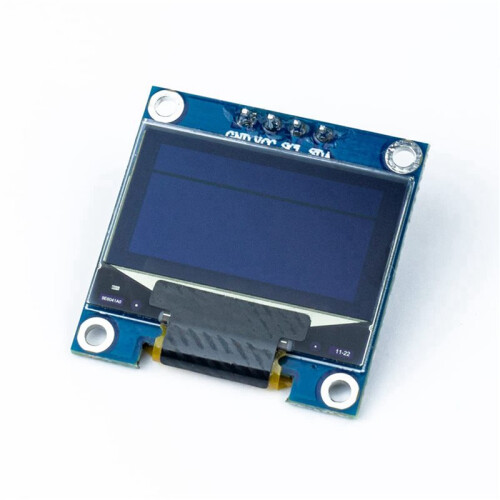

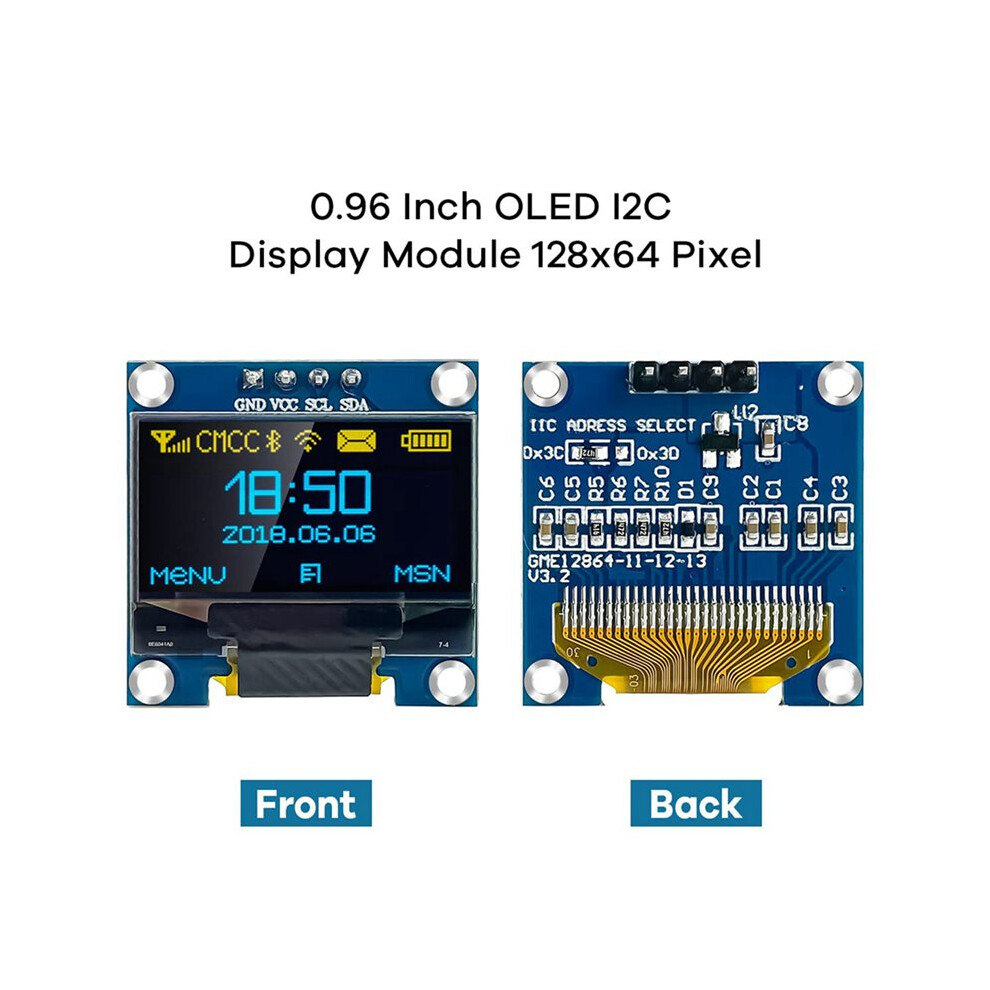

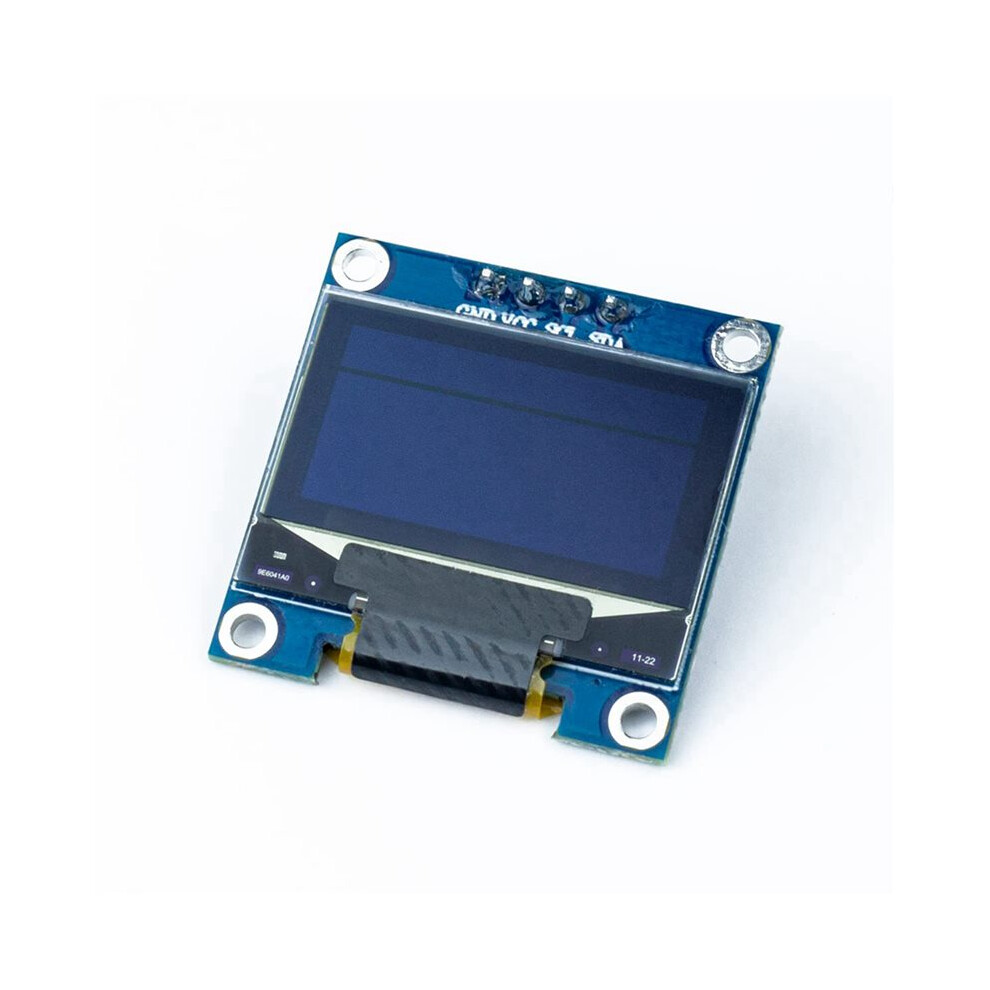

0.96 Inch 10PCS OLED I2C Display Module for Raspberry PI 128x64 Pixel IIC Serial Self-Luminous Display Module
Brand Typecat
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 130,000 anmeldelser med vurderingen “Fremragende”
282,12 kr.
339,90 kr.
Spar 17%!
+31,63 kr. levering
1%
Tjen 2,82 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (31,63 kr.) | tir. 4. - lør. 8. aug.
Solgt af: Papishop
Returnering: 30 dage
180 dages betalingsbeskyttelse
Mest populære i Natsynskikkerter
Beskrivelse og detaljer
Oversigt
- 1. 0.96 Inches, Resolution: 128x64, Viewing Angle: Greater than 160°, Supported Voltage: 3.3V-5V DC, Power Consumption During Normal Operation: 0.04w, Full Screen Lighting 0.08w
- 2. Embedded Driver Ic: SSD1306. Communication: I2c/Iic Interface, Only Two I/O Ports

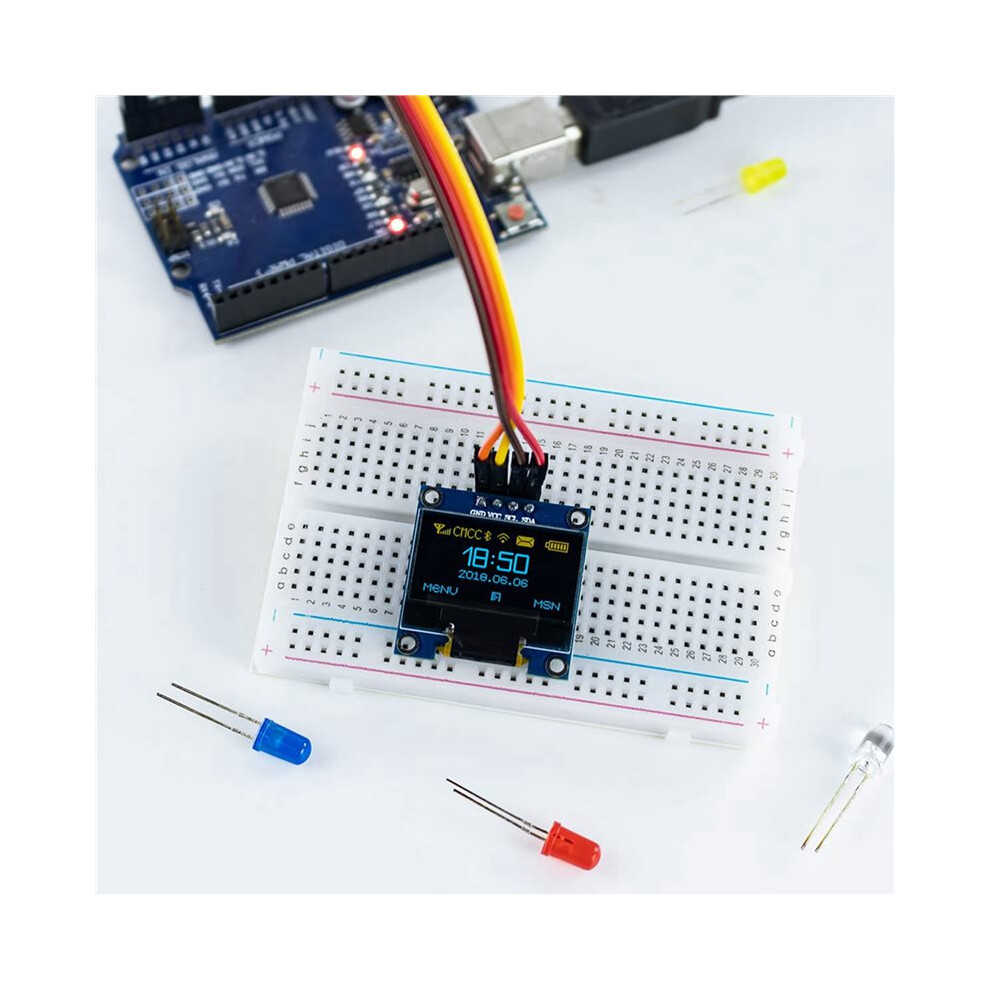

- 3. Compatible With for R3 Board And Mega, for Raspberry Pi, 51 MCU, for Stim 32, Etc.
- 4. No Backlight Is Required, The Display Unit Can Emit Light By Itself. It Features Ultra-High Contrast, Bright And Clear Dots, Making Even Small Fonts Easy To Read
- 5. There Are No Fonts Embedded In The Oled Controller, Users Can Create Fonts Through Font Generation Software.
0.96 Inch 10PCS OLED I2C Display Module for Raspberry PI 128x64 Pixel IIC Serial Self-Luminous Display Module Beskrivelse
1. 0.96 Inches, Resolution: 128x64, Viewing Angle: Greater than 160, Supported Voltage: 3.3V-5V , Power Consumption During Normal Operation: 0.04w, Full Screen Lighting 0.08w
2. Embedded Driver Ic: SSD1306. Communication: I2c/Iic Interface, Only Two I/O
3. Compatible With for R3 Board And Mega, for Raspberry Pi, 51 MCU, for Stim 32, Etc.
4. No Backlight Is Required, The Display Unit Can Emit Light By Itself. It Features Ultra-High Contrast, Bright And Clear Dots, Making Even Small Fonts Easy To Read
5. There Are No Fonts Embedded In The Oled Controller, Users Can Create Fonts Through Font Generation Software.
Resolution:128x64
Viewing Angle:Greater than 160
Supports Many Platforms:51 Series MSP430 Series STM32/2, CSR Chips, Etc.
Ultra-Low Power Consumption:0.04W During Normal Operation
Wide Voltage Support:3.3V - 5V
Working Temperature:-30 - 80
Driver Chip:SSD1306
Communication Method:Iic, Only 2 I/0
No Font Library:Use Modulo Software To Extract Fonts
Backlight:Oled Self-Illuminates, No Backlight Required
Note:Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use
Colour:As Shown
Material:PCB
Package Contents:

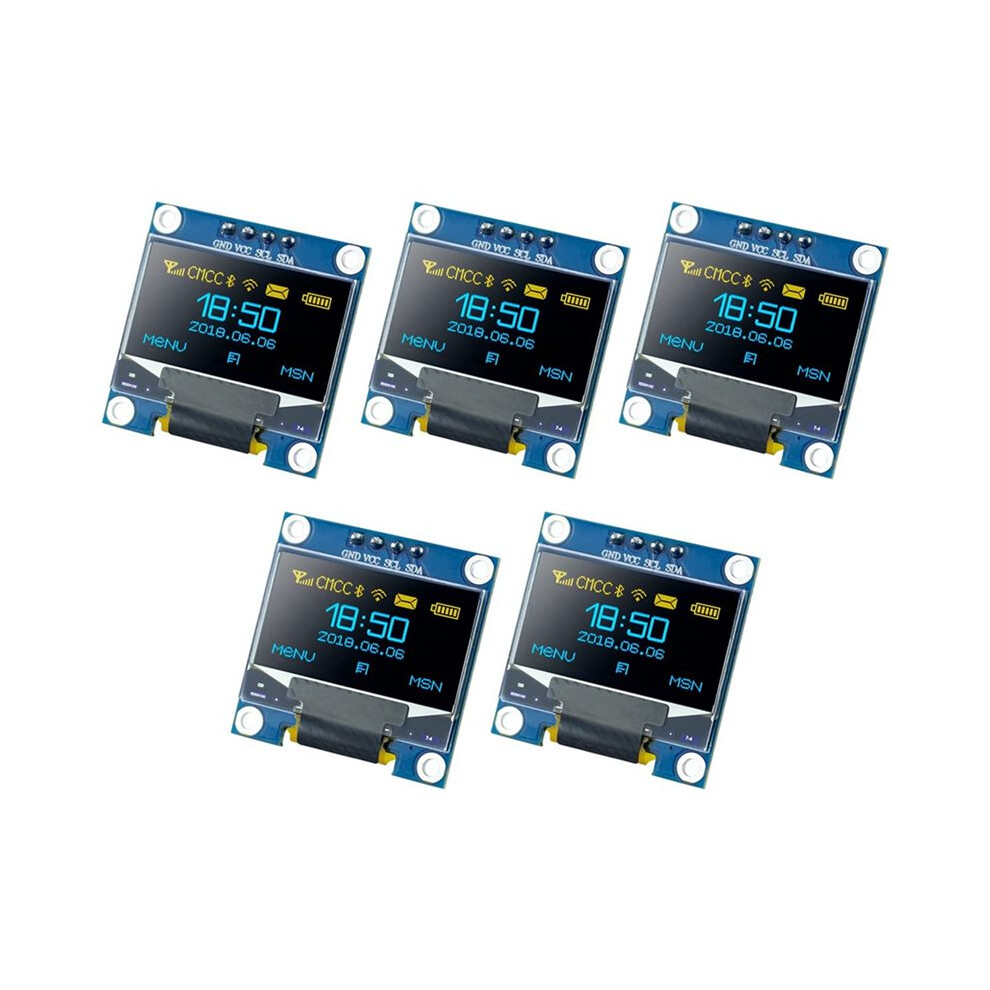

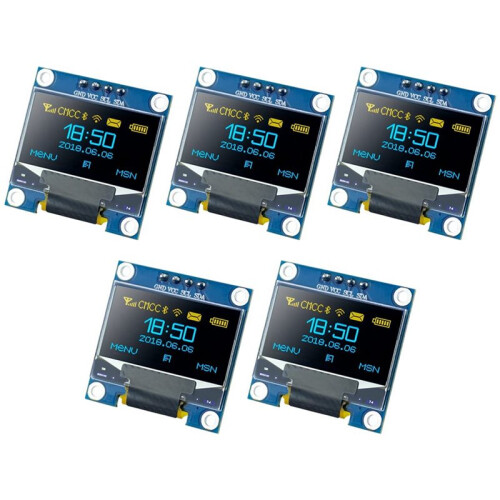

10 x Display Module
Detaljer
| OPC | PWMPBV6 |
|---|---|
| Mærke | Typecat |
| Koder | 6031666993454 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 10cm |
|---|---|
| Width | 6cm |
| Length | 8cm |
| Weight | 0.075kg |
| Colour | As Shown |
| Material | PCB |
