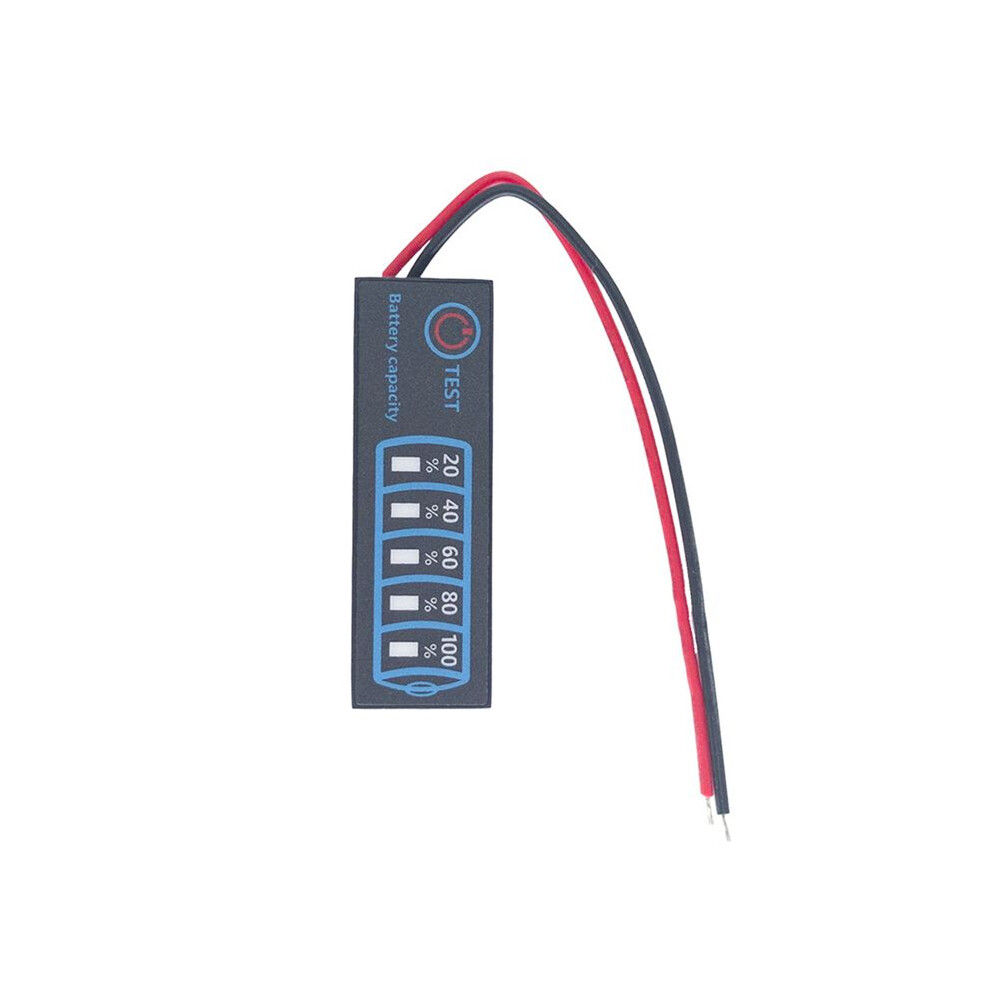

10 Pcs Battery Level Indicator 3S Ternary Lithium Battery Phosphate Lead-Acid Battery Capacity Display Meter

10 Pcs Battery Level Indicator 3S Ternary Lithium Battery Phosphate Lead-Acid Battery Capacity Display Meter Beskrivelse

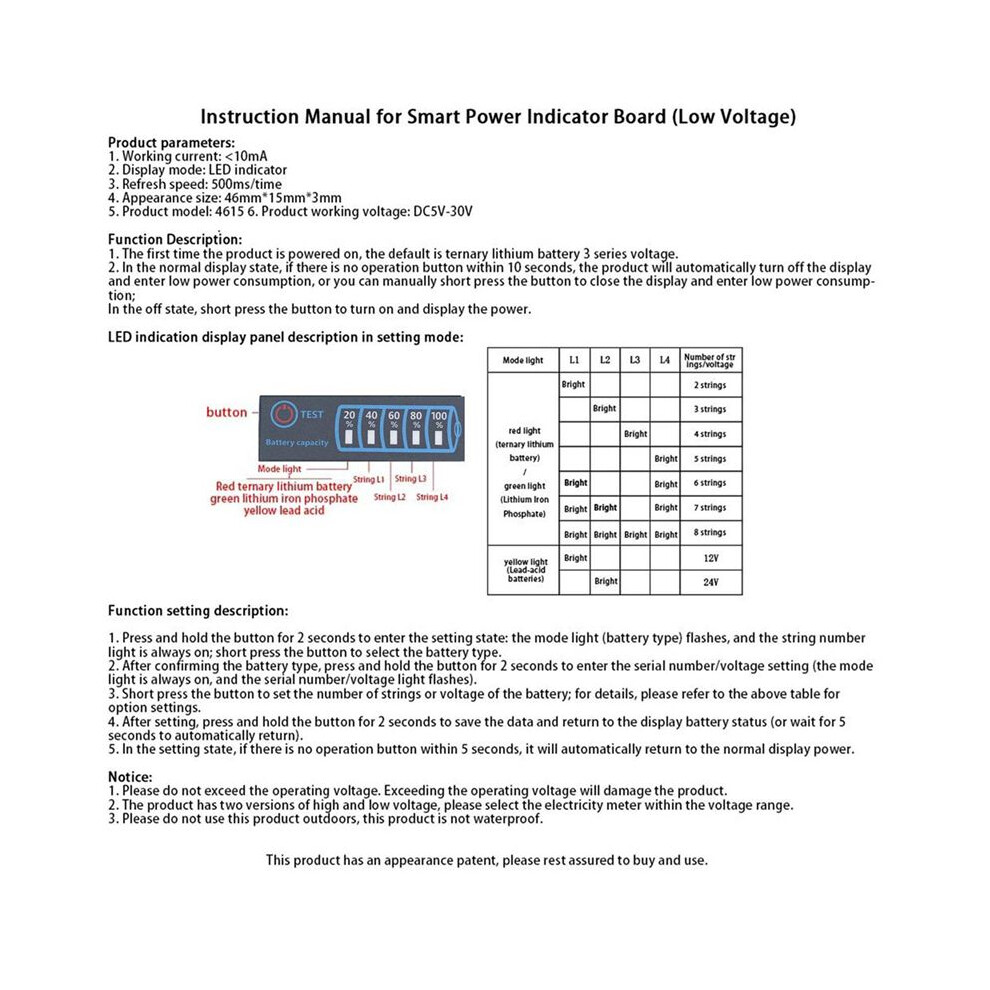

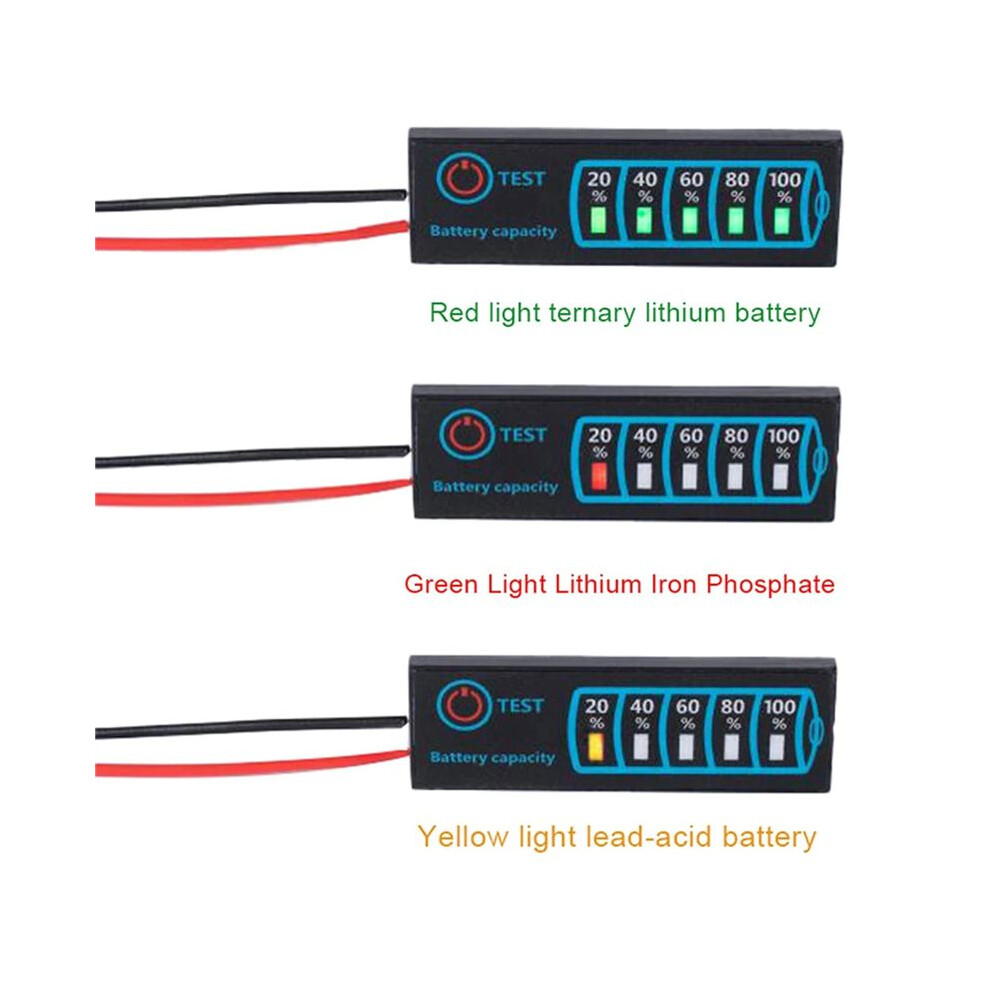

Features: 1,The first the product is powered , the default is ternary lithium battery 3 strings of voltage

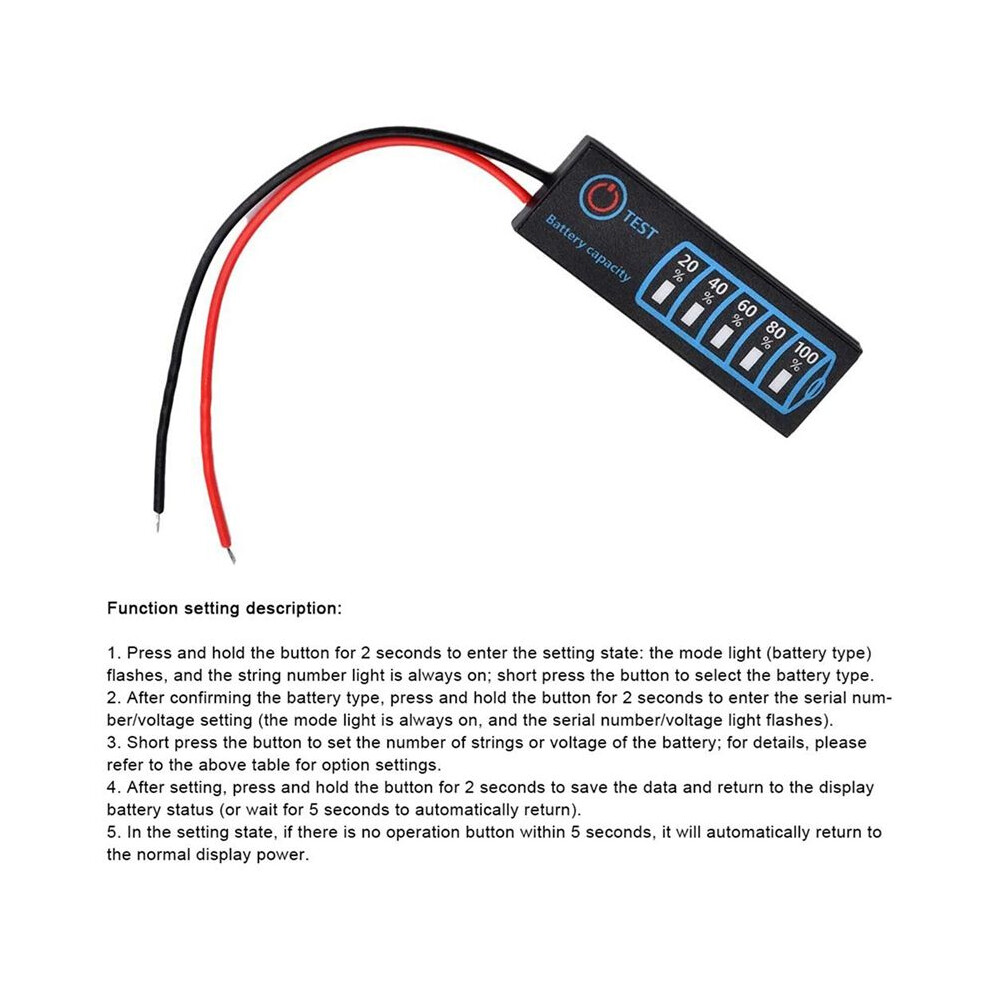

2,In the normal display state, if there is no operation button for 10 seconds, the product will automatically turn off the display and enter low power consumption. You can also manually short press the button to turn off the display and enter low power consumption; when the product is in the off state, short press the button to turn and display the power.
3,In the setting state, if the button is not operated within 5 seconds, it will automatically return to the normal display battery.
4,After setting, press and hold the button for 2 seconds to save the data and return to the display battery status (or wait for 5 seconds to automatically return)

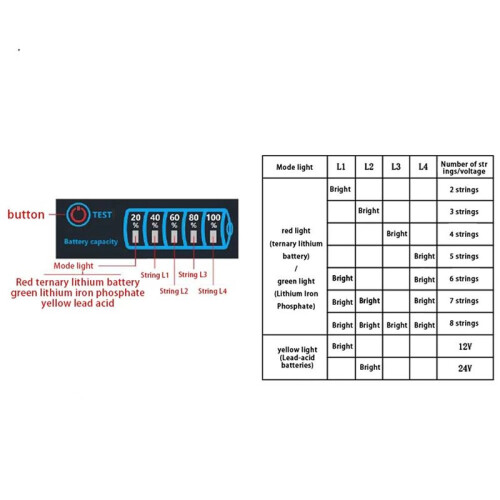

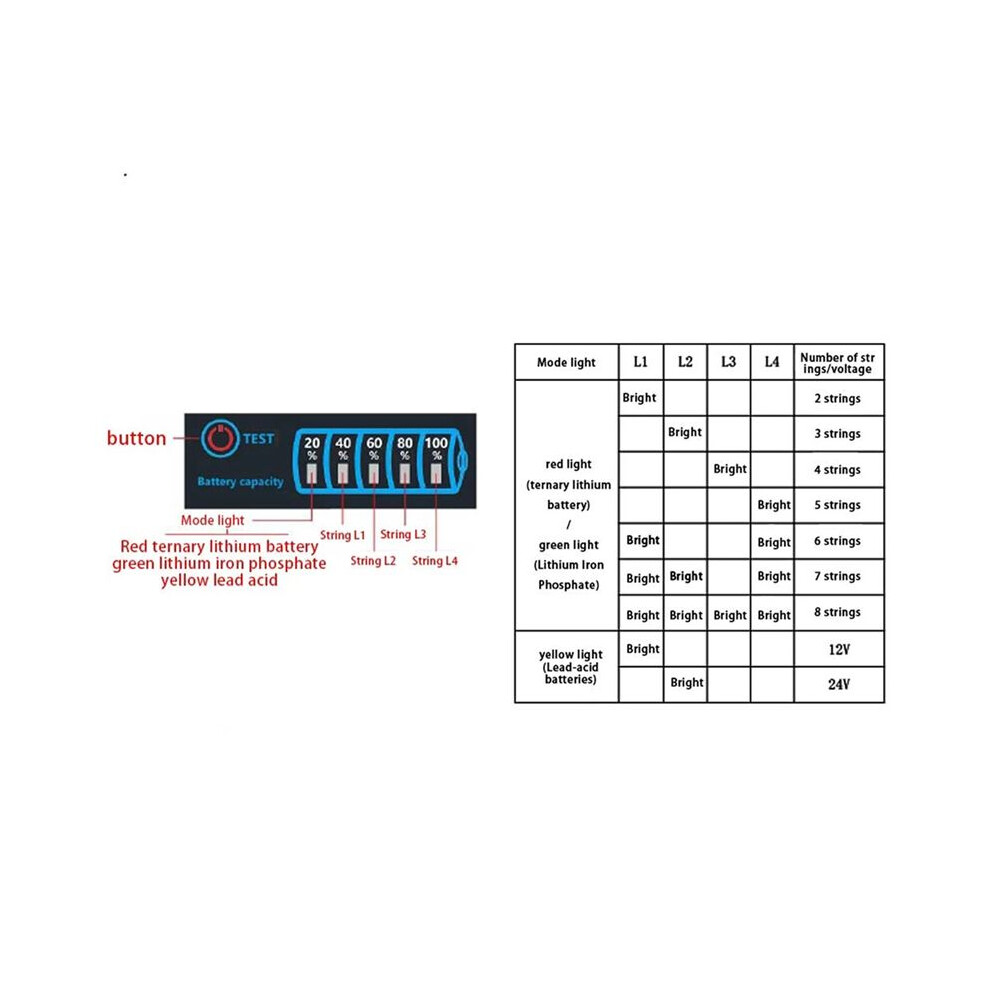

5,Short press the button to set the number of strings or voltage of the battery; for details, please refer to the above table for option settings.

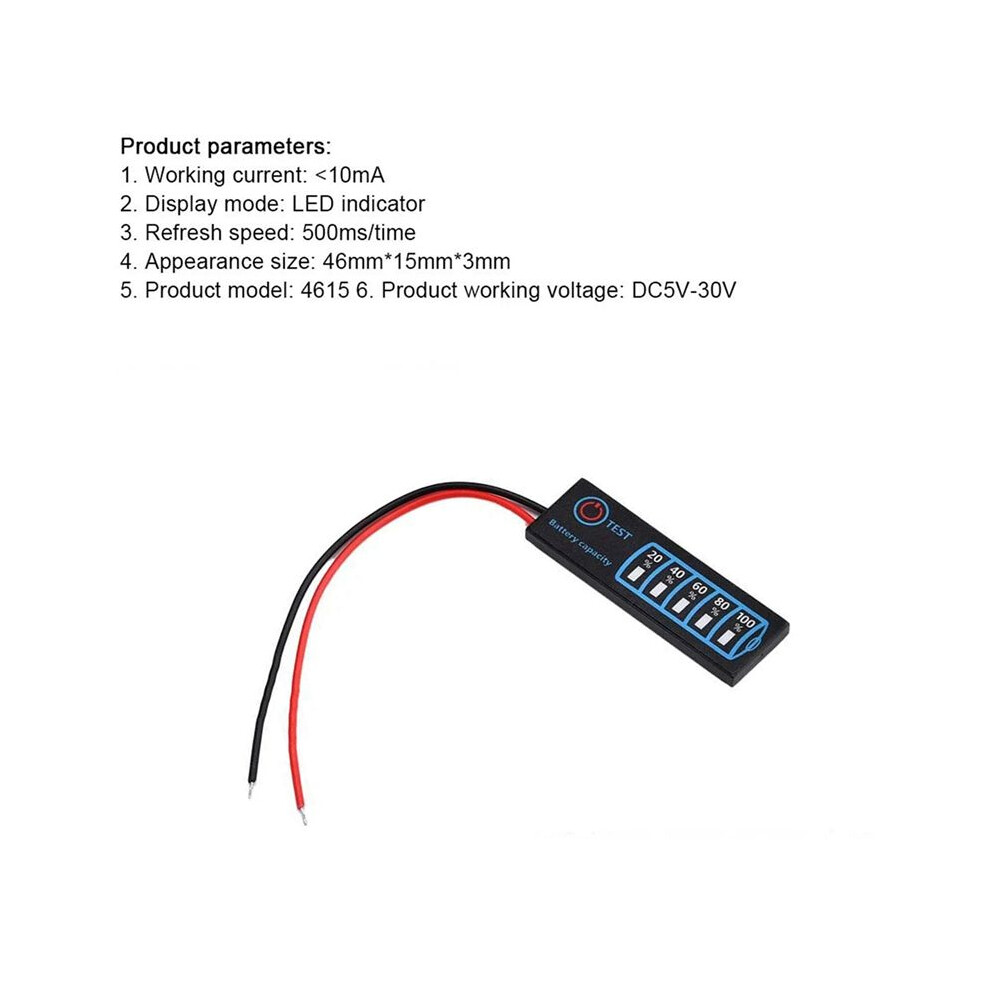

Specification:
Working current: Less than 10mA
Display mode: LED indicator
Refresh rate: 500ms/
Appearance size: 46mm x 15mm x 3mm
Item model number: 4615
Product working voltage: DC5V-30V
Notice:
1,Please do not exceed the operating voltage. Exceeding the operating voltage will damage the product.

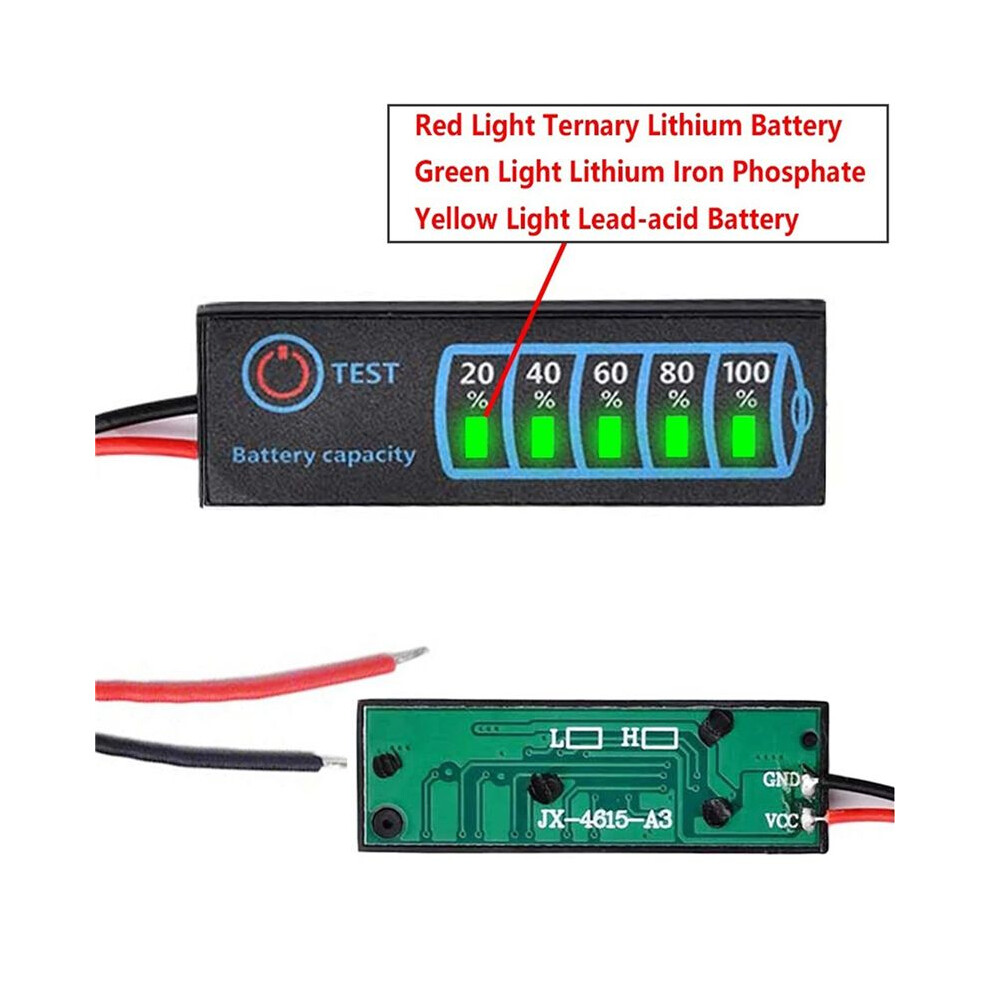

2,The product has two versions of high and low voltage, please select the electricity meter within the voltage range.
3,Please do not use this product outdoors, this product is not waterproof
Material: Plastic
colour: black

Package Contents:

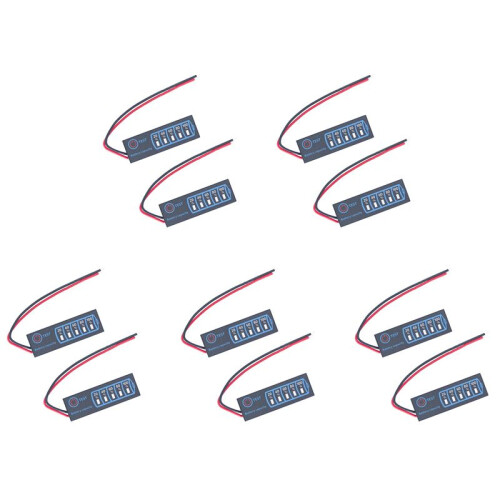

10 x Battery indicator board
